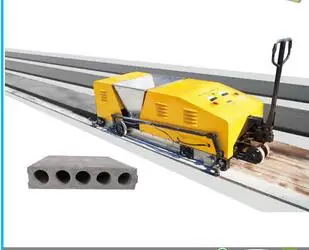

lightweight concrete wall panel forming machine/precast concrete wall/concrete precast houses
- Category: >>>
- Supplier: Dezhou Haitian Electromechanical Technology Co. Ltd.
Share on (916687183):
Product Overview
Description
lightweight concrete wall panel forming machine/precast concrete wall/concrete precast houses 008615866626003
Product Description
1- The concrete product produced by HQJ machine can also be used as roof of houses with the materials of cement, sand and aggregate.
2- HQJ panel machine is a movable producing panel machine which need platform to move during producing.
3- Thin steel wire is put inside the panel in advance before producing. And this process is easy, not using tensile machine.
4-The machine is applied to the high tech. Extrusion technique can make the panels more density and surface much smoother.
5- Has applied patent for HQJ model lightweight panel machine.
Patent No.: ZL20090025183.7
Machine features
The concrete product produced by HQJ machine can also be used as Interior walls, Exterior wall or Boundary wall with the materials of cement, fly ash and slag.
HQJ Lightweight Panel Machine, which has got the national patent in Haitian Company can produce lightweight wall board with good quality. The molding rule is extrusion strength inside the machine.
The lightweight panels can be put pre-stressed steels on both the up and below sides. And the steel diameter can reach to 6mm, in order to enhance the strength of the panels.
The mixing knife and other spare parts which are easy to be broken are protected by alufer. Long service life has been appreciated by lots of our loyal clients. The entire machine uses the anticorrosion technology, never get rust.
Specifications
Model(mm) | HQJ80X600 | HQJ90X600 | HQJ100X600 | HQJ120X600 | HQJ200X600 | HQJ240X280X2 |
Panel width | 595±2 | 595±2 | 595±2 | 595±2 | 595±2 | 280±2 |
thickness(mm) | 78±1 | 88±1 | 88±1 | 118±1 | 198±1 | 238±1 |
No of hole including diameter (mm) | 8Xφ43 | 7Xφ58 | 7Xφ62 | 5Xφ80 | 3Xφ145 | 1Xφ160 |
forming speed(mm/min) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Main power(KW) | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
vibration power(KW) | 0.8 | 0.8 | 0.8 | 0.8 | 3 | 3 |
machine dimentions(mm) | 2500X950X750 | 2500X950X700 | 2500X950X750 | 2550X950X750 | 2650X1000X850 | 2650X1000X900 |
machine weight(kg) | 1010 | 1010 | 1035 | 1650 | 1680 | 1740 |
Note: other types can also be made as customer request

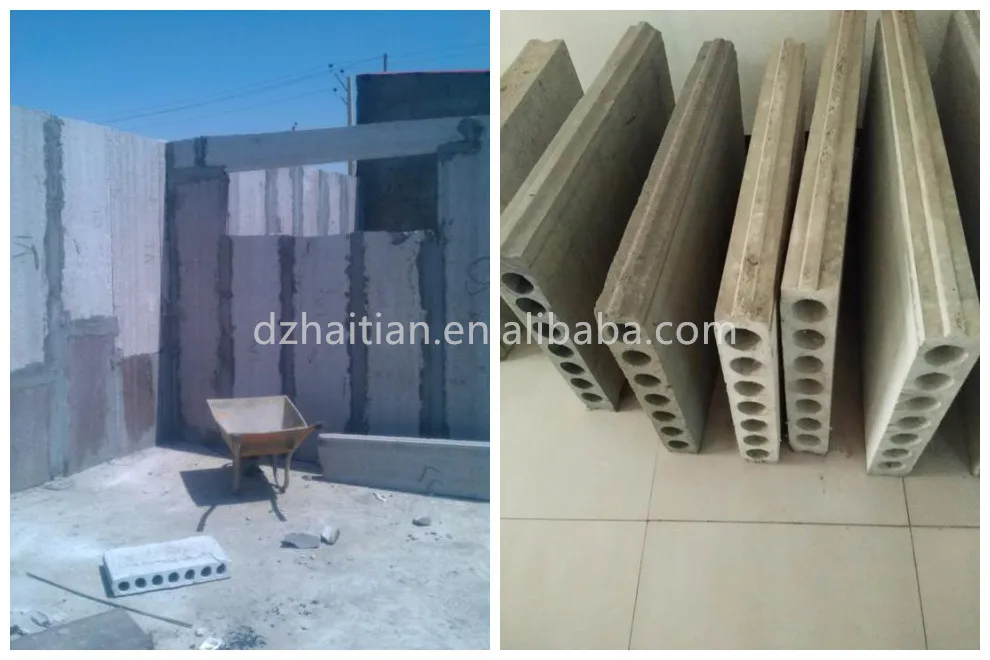

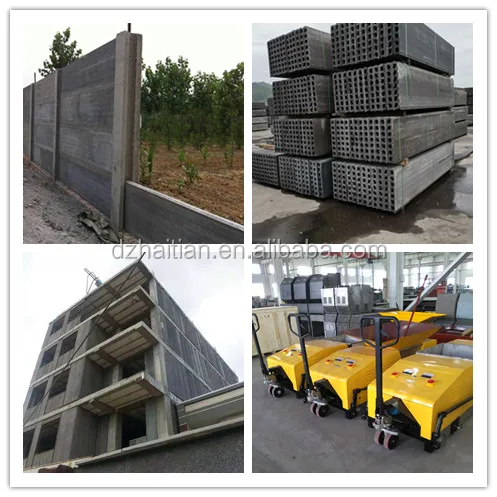

use of the wall panel

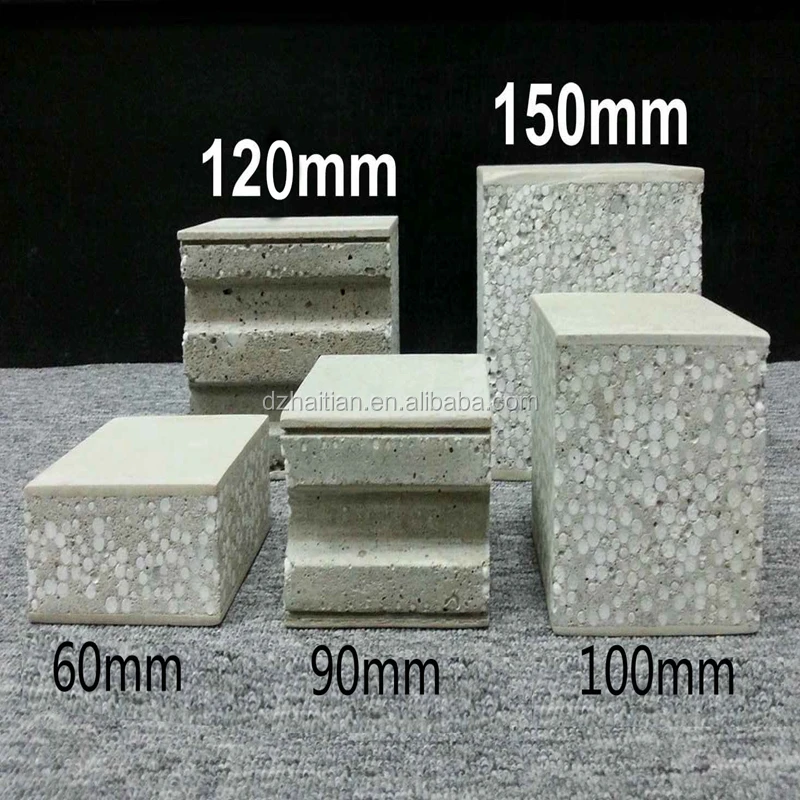

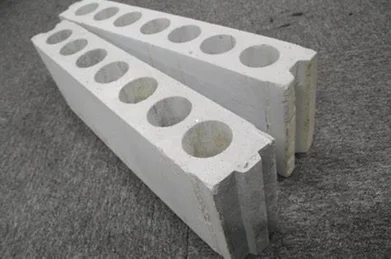

Finished Products
FAQ
1.When did your company established?
Dezhou Haitian machine is established in the year 1997.
2.Where is your company situated?
Dezhou Haitian machine is located in Dezhou city, ShanDong province China.
You can take plain to Jinan or Beijing airport, we will pick you up in Jinan.
3.What is your payment term?
You can transfer the payment via T/T.
4.We need to confirm following information before sent formal offer:
What kind of slab you want to make, wall panel, roof panel, lintel or?
Do you have exact size thickness and width)?
If not, please tell us the span, we will give you suggestion.
