1920*1200 resolution LED LCD Monitor Novatek Solution Driver Controller
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (916930010):
Product Overview
Description
Product Description
Product Name:LCD Monitor Driver Controller Card Board
Model: MHV7X01
Special Features:
Built-in 4-way LED Backlight Driver (Inverter) + Smart Backlight Adjustment
Built-in HDCP KEY
FPS/RTS Game Function + Special Effects
LCD Driver Controller Card Board Key Feature
1. Used for TFT LCD Panel for LCD Monitor Display, Advertising machine or digital photo frame;
2. Resolution up to 1920*1200 Dot to Dot; LVDS output max Full HD 1920*1200.
3. Input Signal VGA + HDMI,
4. Display color up to 24bit.
5. Audio power output 2W x2
6. With Built-in LED 4-way backlight inverter, no need extra Inverter, to drive panel 7~100inch
LCD Driver Controller Card Board Product Specification
VGA: Analog RGB(0.7Vp-p),(TTL)
Input Signals:HDMI + VGA + Audio
Support Mode:DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,WSXGA, WSXGA+, WUXGA, etc.
Color: 24bit
Line Frequency: 30-94.5KHz
Field frequency: 56-75Hz
Output: Dual LVDS Standard
Audio Power Output: 8ohm 2W×2 (Optional)
Control Key Board: POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G
OSD Menu:Brightness, Contrast, Auto Correction, Phase, Clock, Line Position, Function, Reset
OSD Language(Optional):English, French, Italian, Spain, Japanese, etc
Power Input: 12 V(+/-0.6V)(DC)(without Amplifier, can be 5V)
Power Mode: Normal Work mode
PCBA Size: 107mm(L)×52mm(W)×16mm(H)
Plug & Play: Support
Power Management: Standby < 1W

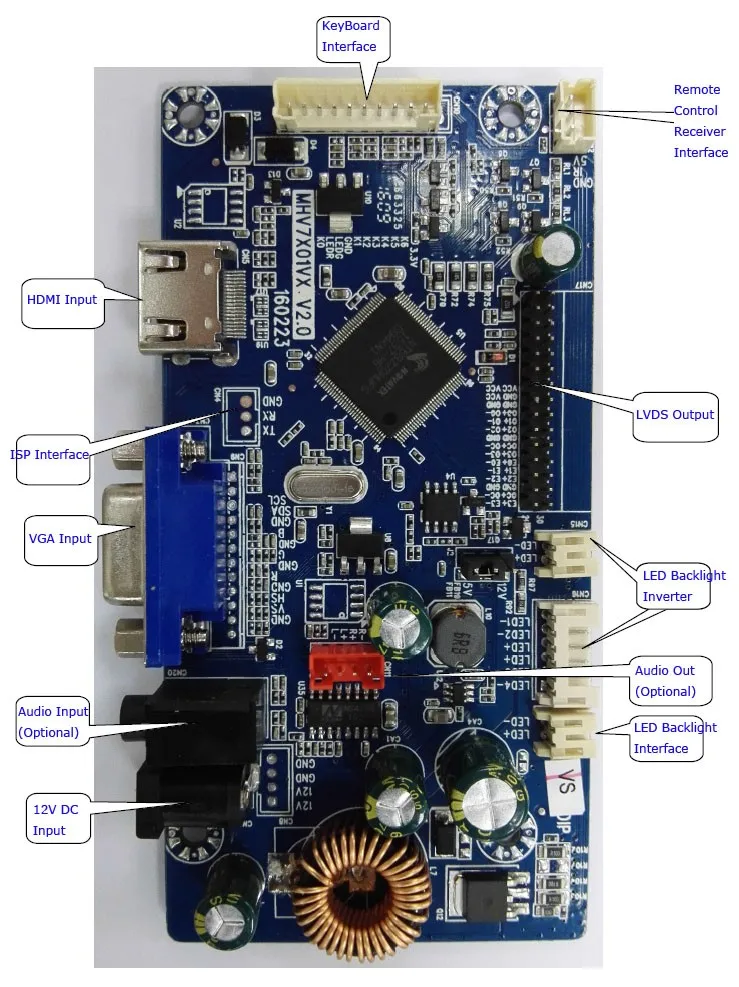

LCD Driver Controller Card Board Product Layout
Our Services
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Flexible Software to meet any custom request;
Company Information
FAQ
Q: Who we are? what's our Brand?
A: We are CND Electronic Technology (ShenZhen) Co., Ltd.
is our registered Brand.
Q: Where are you located? How can I get there?
A: Our office is in Shekou Nanshan Shen Zhen, very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.
Q: What's delivery time? what's the shipping methord?
A: 3 days for some items in stock; and 15 days if out of stock, shipment via sea or air as customer requested.
Q: What's our core product and services?

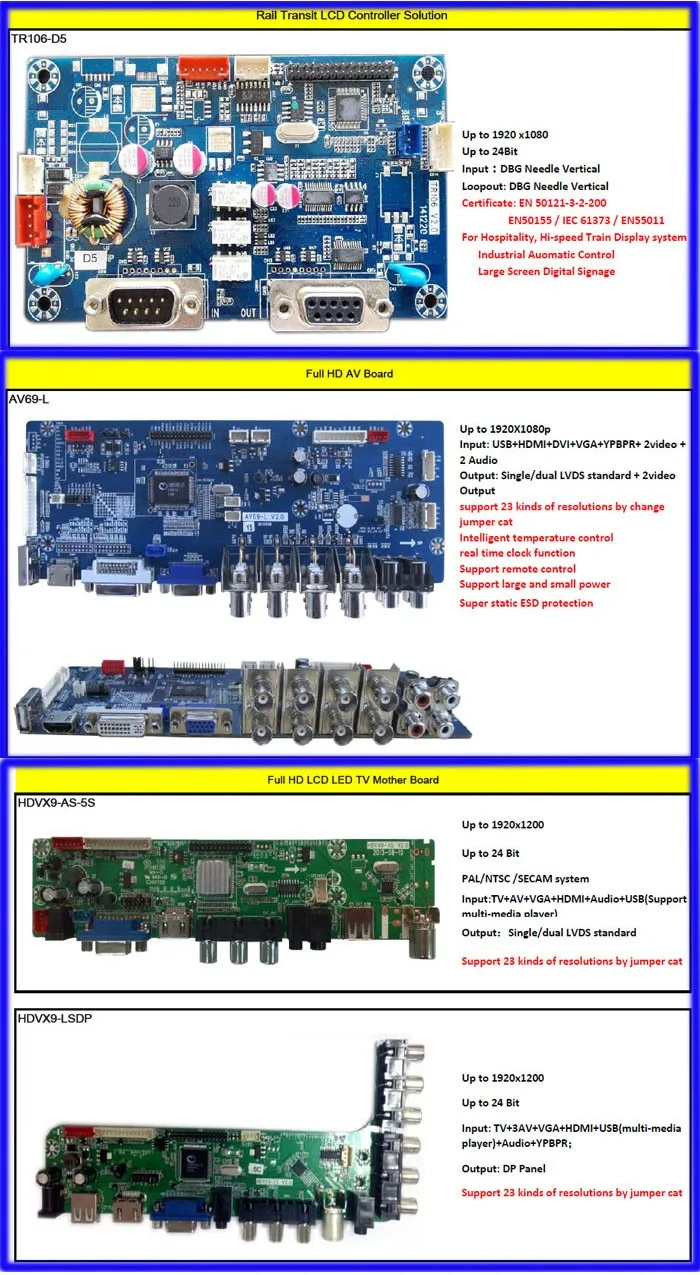

A: AD/ AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions
Q: What are our product applied in, and who is our Customer?
A: by far, our AD board solutions have applied in:
- Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc
- Mobile-TV of High-speed Railway Train for CRRC, and for subway train;
- Monitors of industrial control, for instance Security-montoring
- Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.
Q: What are our capability and advantages?
A: We've been proud that
- CND is the only AD board solution company whose 2K board have been sold more than 100K.
- CND is the first company developed UHD 4K board solutions.
- CND is the first one who have passed Freesync Cetification.
- CND is the first one developed Type-C 4K *2K board.
- Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...
- Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
CND is the best choice for LCD / LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
