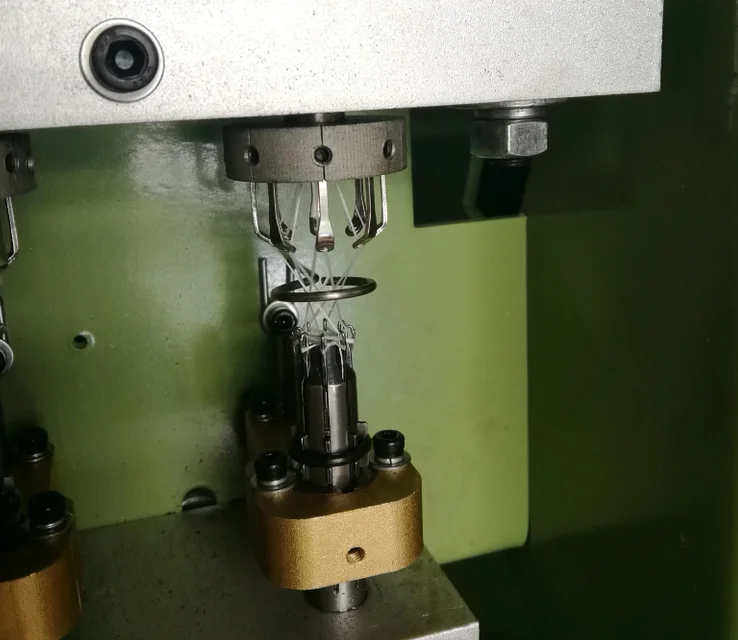

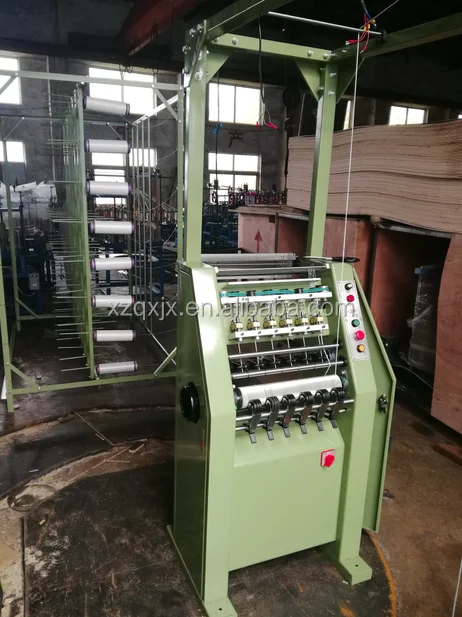

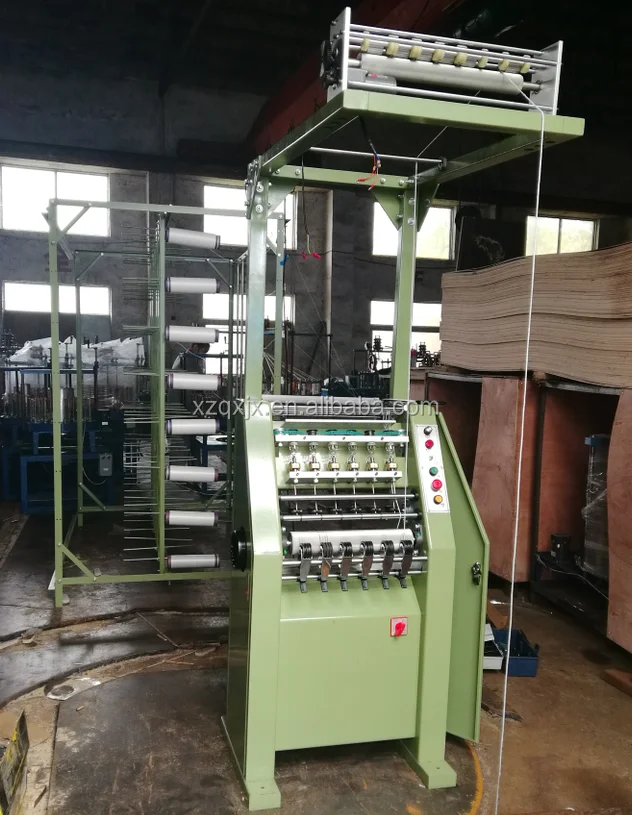

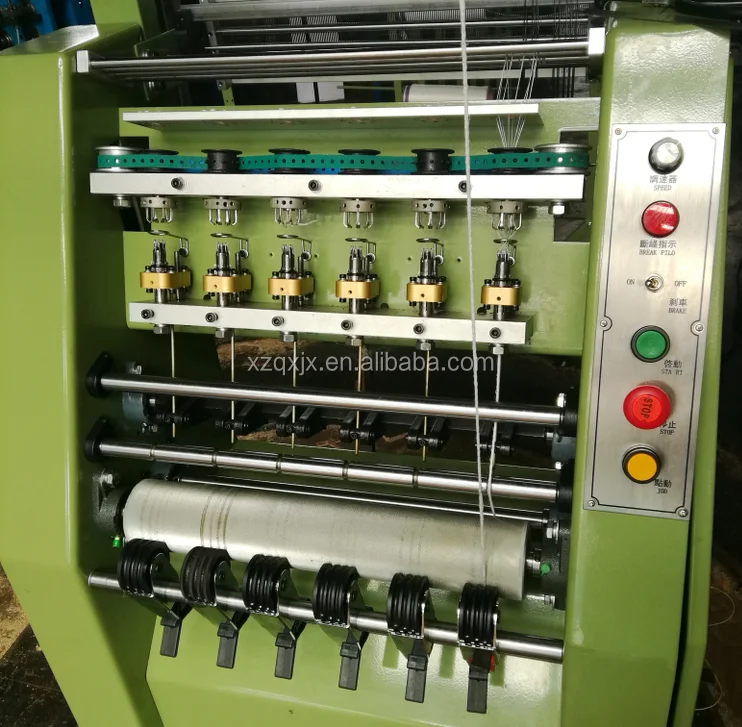

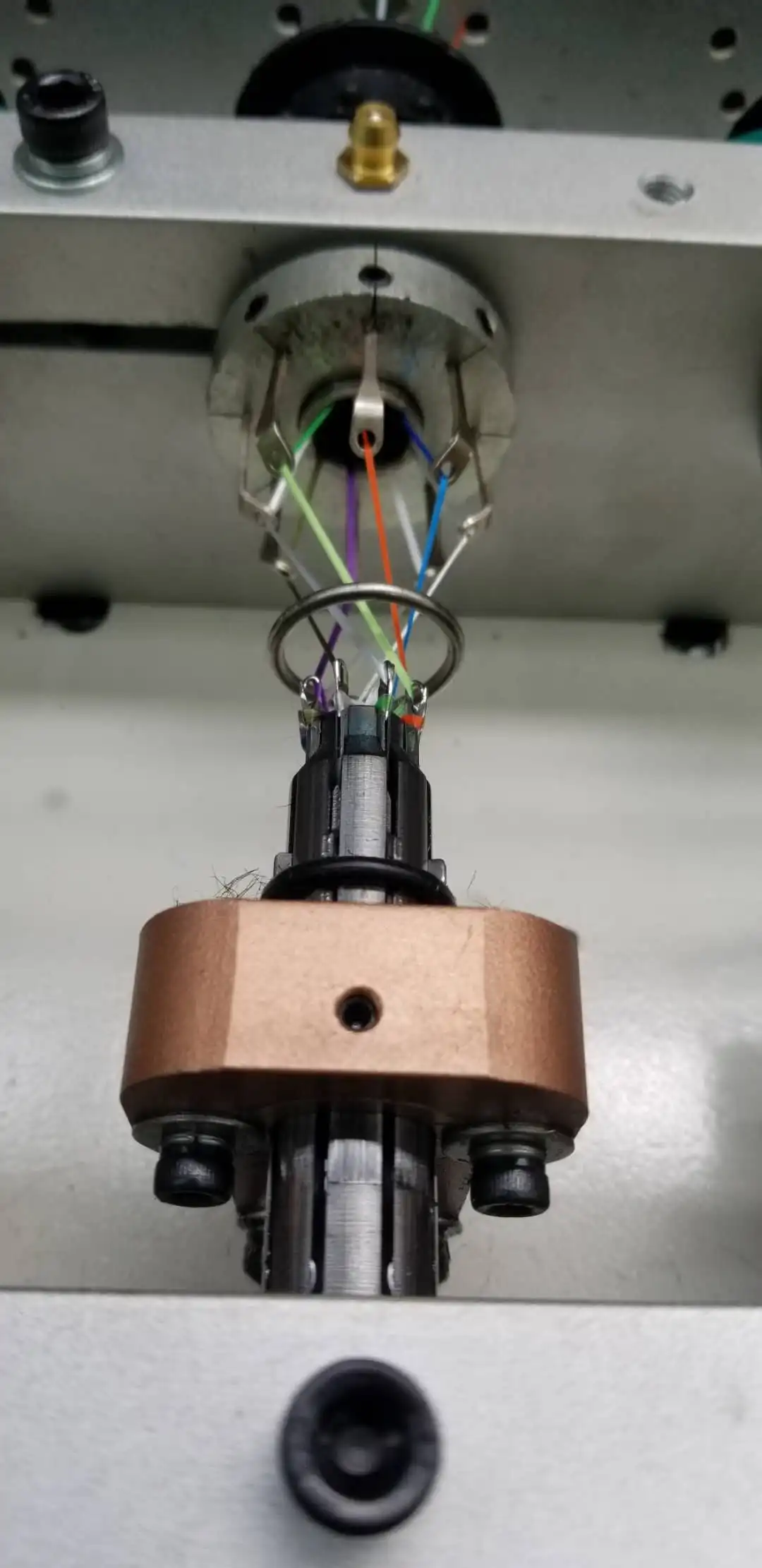

Fancy Cord Knitting Machine 6 heads

Share on (917154428):


Price:$4,000.00 - $4,500.00

Quantity:


Product Overview

Description








































































Model



QXFK6

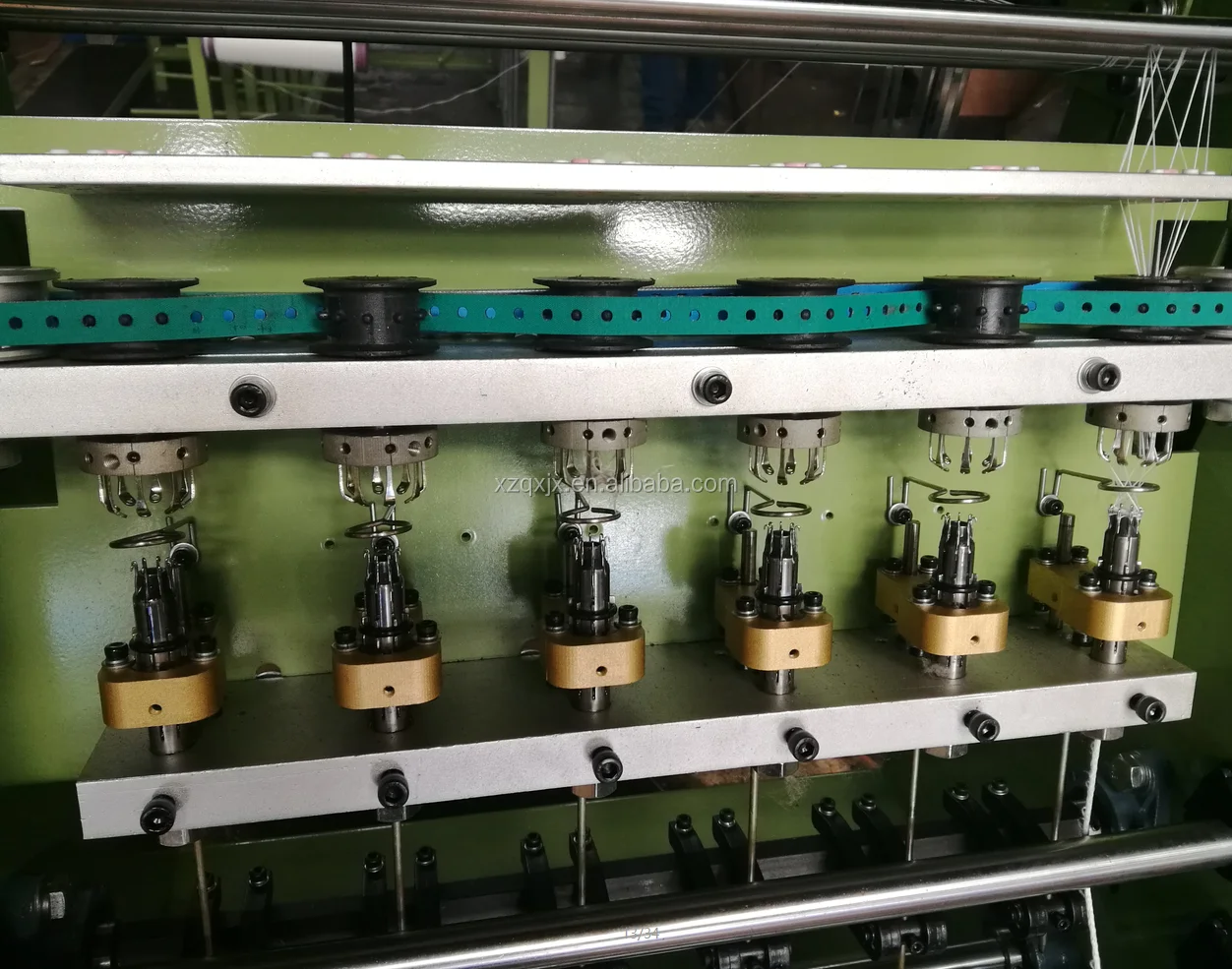

Head number



6



Needle number



As required



Cylinder



As required



Machine motor Power



0.75KW;  380V/50HZ/3PH

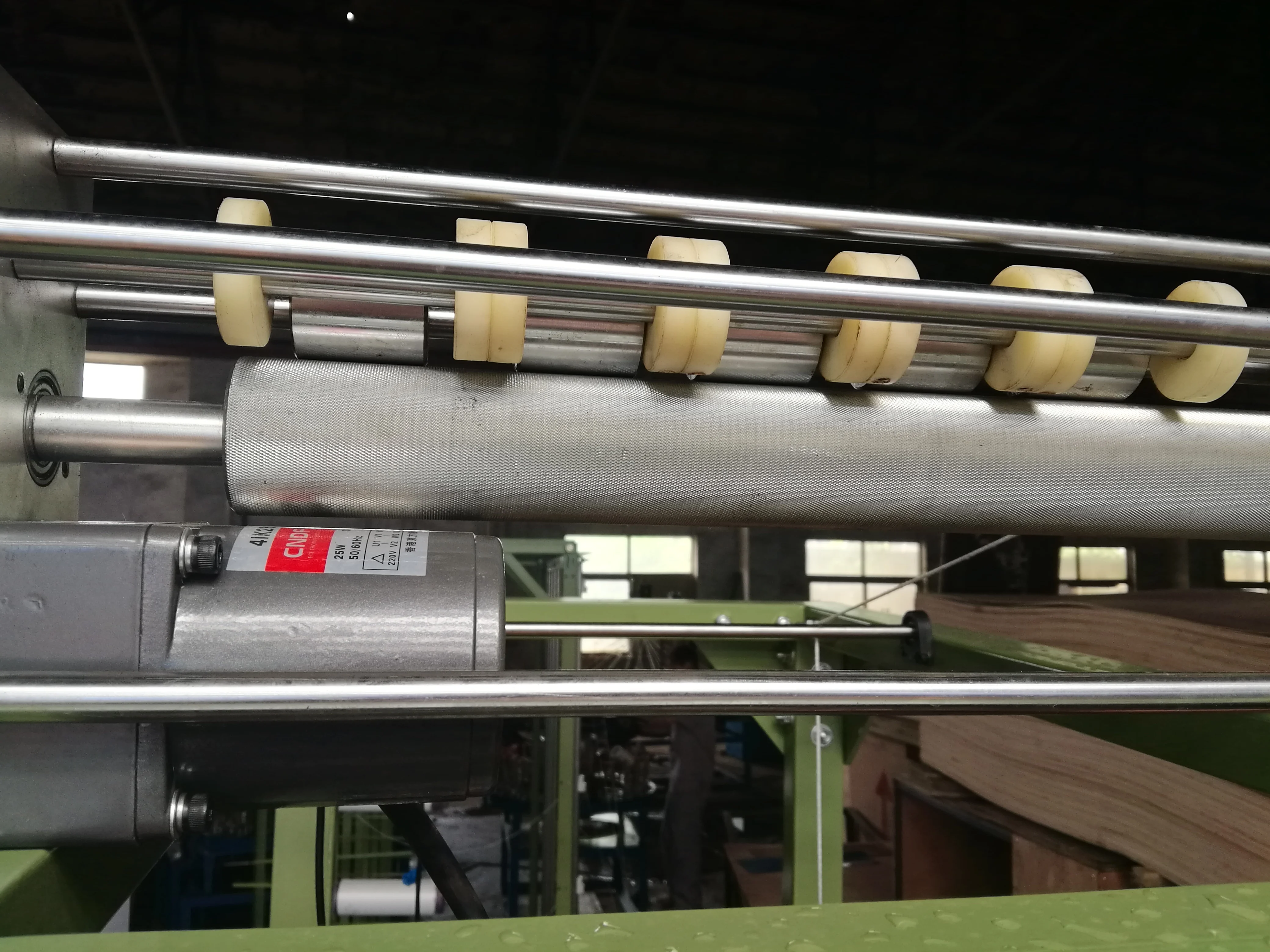

Take up winding motor power



0.25KW;  380V/50HZ/3PH



Max speed of horn gear



330RPM



Machine weight



280KG



Machine size



700*600*2100mm



Coil stand size(128 coils positions)



 2100*1300*2040mm



Packing size



900*850*2300mm



Delivery time



10-15 days














































_20220627162114_20220627162135











_20220627162114


_20220523164233


_20220523163628


_20220705152701



FAQ





1.What is the warranty for the braiding machines?


For the braiding machines ,we have one year warrnaty, if any quality problems on our side occured in this period.We will free spare parts and our technicians will be oversee to fix machines.

2.How is quality of the braiding machines?


In our company ,we have indepandent processing equipments. For damageable spare parts ,like horngear,gears,spindles and bobbins. We have heat treatment equipment.Every spare part is processed by ourselves,no worry about spare parts in the future.



3.How to get braiding machine's production?
Many clients care about the production of braiding machines.When clients provide their sample or picth size and yarn denier .We have machine speed then we can calculate the production.

4.If the machine has problem or stops working?
We have English translated operation manual and video for client reference.Also we provide engineers available to service machinery overseas after-sales service.

5.How to maintain the machines?
Change the machine oil regularly.Before working,inject some machine oil between horngear and horngear axle. After working,clear the broken yarn ,especially spindle track.
