Оборудование для резки кожаных узоров с ЧПУ

Product Overview

Description

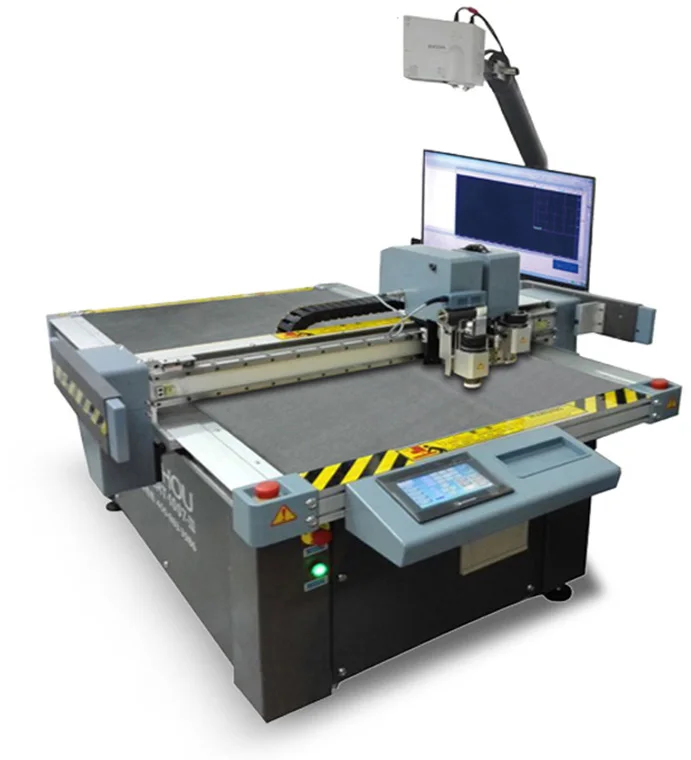

CNC Leather  Pattern Making Cutting Equipment is a professional cutting system for leather. With this machine, you can conduct rapid nesting and efficient cutting operation, while saving time, manpower and material. It is designed for sample cutting and small bulk production, specially providing a revolutionary cutting solution for footwear, case and bag, car and plane chair, furniture and apparel industries.






Key function:

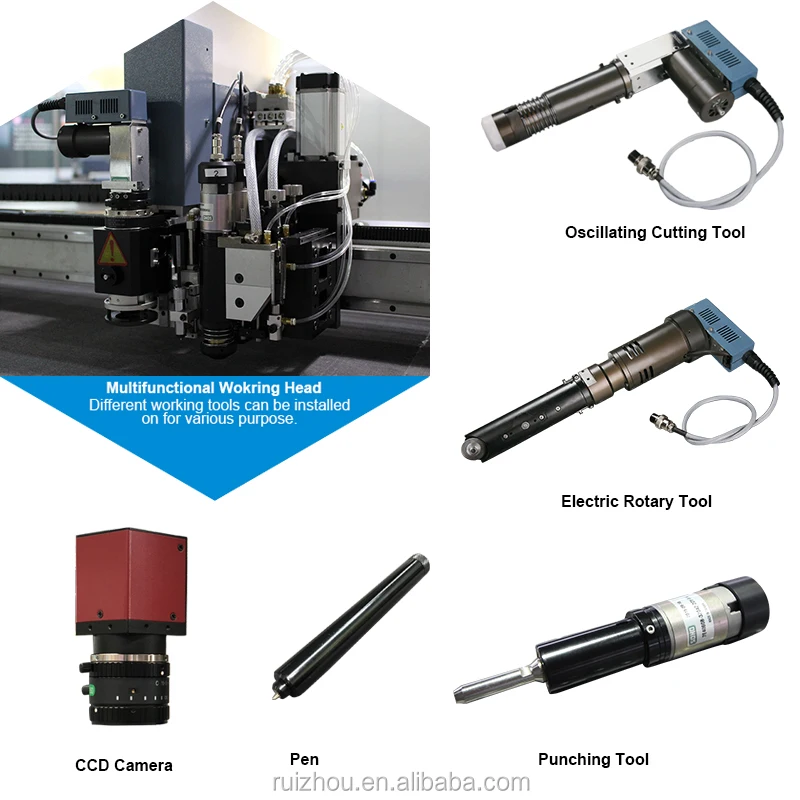

1.Multi-functional cutting tool, be able to do complete cutting, kiss cutting, and dot cutting;

2.Different shapes of cutting blades available for cutting a wide range of materials;

3.Powerful vacuum system makes it possible to hold small piece of material;

4.Dual projection system with rapid calibration and control;

5.Material digitizing;

6.Interactive marking of flaws on leather sheet.

7.Interactive nesting for genuine leather and synthetics

8.Automatic nesting for genuine leather and synthetics

9.Cutting process parameterization and control

10.Support for parts pick-up







The advantages of machine

1.creative design

It adopts vibrating knife cutting technology, without having to forge die cutter, which saves the cost and the time on making die cutter, management and storage of die cutter during the process of production. It enables you to grow out of the traditional technique of manual cutting forever. And it completely broke through the bottleneck that the enterprises rely on skilled workers and enable the enterprise to take the lead to enter the non-die cutter digital processing era.



2. high efficiency ,low resistance

It can work out highly-challenged and complex patterns which the die cutter can not realize, thereby extends the designing space of the designer dramatically, creating new-style patterns which can’t be imitated by handwork and making your patterns more attractive, thus reach the level that the buzz word “creation can go as far as your imagination can reach” communicates.



3. convenient

The user can make timely correction to the patterns, which avoid investing the time on developing and making samples, and meet the fast-changing market demands through quick sample making and error correction. You are supposed to achieve 2-3 days of time advantage over your competitors in terms of correction of the same kind of samples, thus helping you quickly seize the market opportunities.







Technical specification



Model	RZCUT-1007E
Cutting Speed	80cm/s ~ 120cm /s
Cutting Thickness	0.5mm ~ 6.0mm
Cutting Material	Natural Leather, Artificial Leather, Cardboard, Plastic Board, Gray Board, Synthetic Materials, Underlay, White Board etc
Cutting Tool	Vibrating Knife Cutting Tool, Punching Tool, Drawing Tool
Cutting Area(Length*Width)	1000mm×700mm
Pen Type	Ordinary Signing Pen, Oil Pen, Ball Pen or Silver Pen
Pen Parameters	Pen, Half-cut and Full-cut can be set to 8 different types
Vacuum Plate	Vacuum based on Cells
Buffer Size	Once-and-for-all high-speed transmission
Mechanical Resolution	0.07mm
Software Resolution	0.025mm, 0.01mm, 0.1mm optional
Transmission Interface	Standard Serial Interface, Parallel Port
Command System	Language of HP-GL and GP-GL
Control Panel	LCD Display, Touch Button, Touch Screen
Power Consumption	AC220/380V±10%,50/60HZ
Hold-down Method	Vacuum Suction

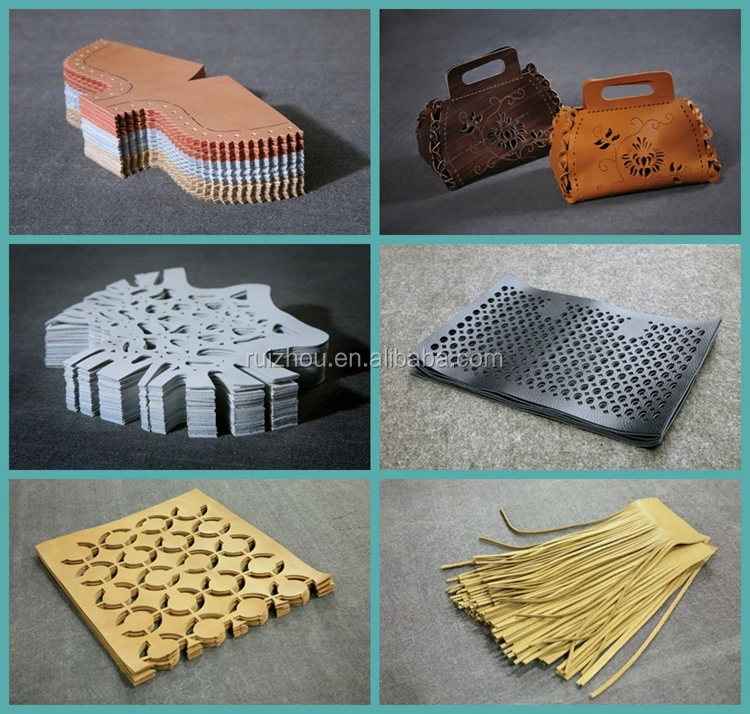

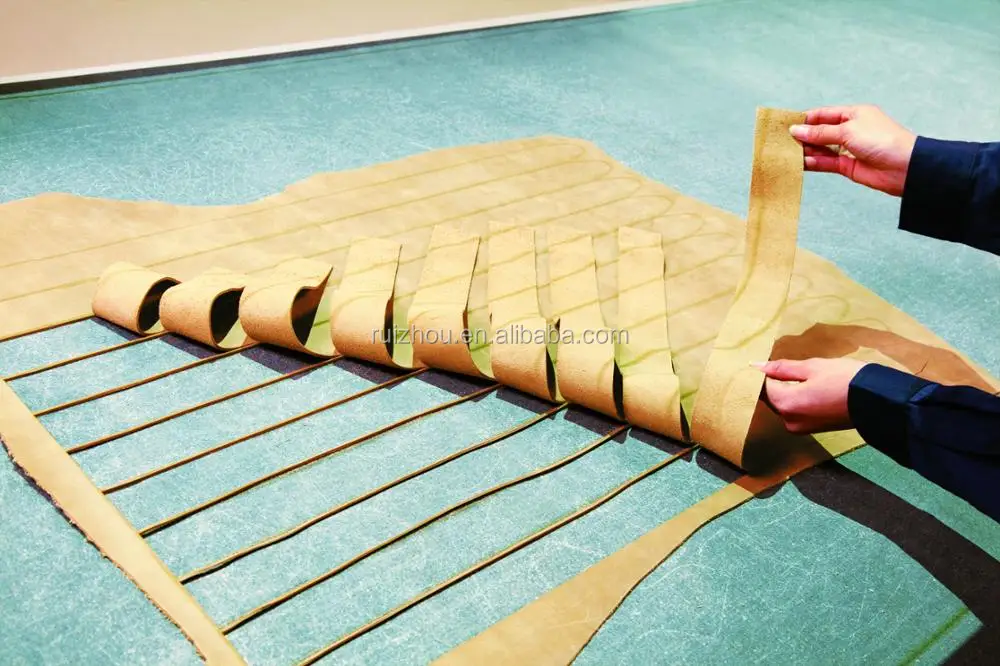

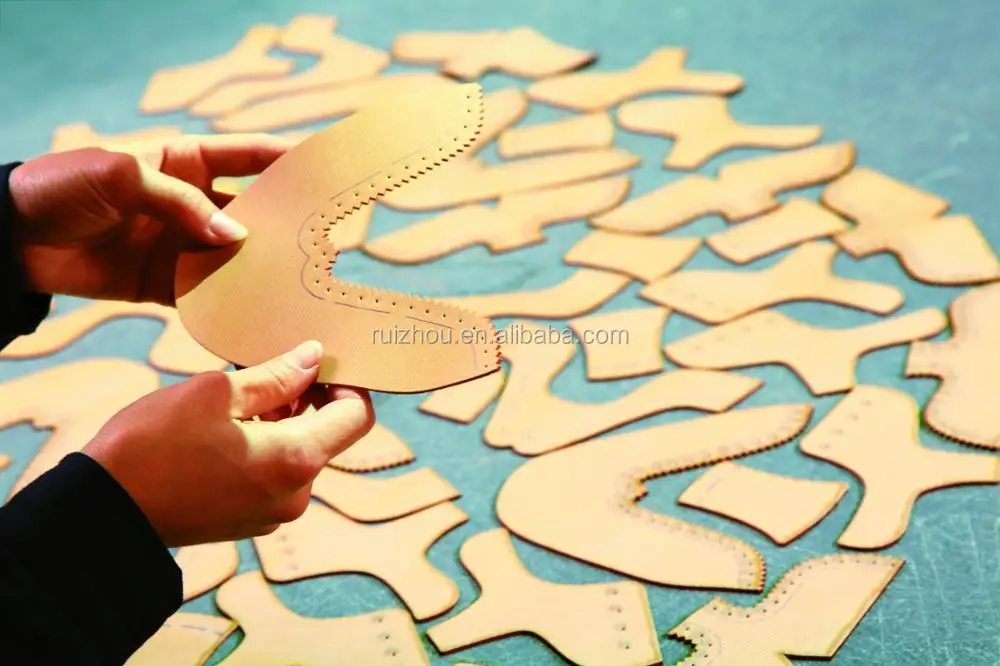

 Cutting samples:
