Air Splicer
US $220.00-$250.00
BenFa Wire Harness Rope Braiding Machine Bobbin
- Category: Textile Machine Parts >>>
- Supplier: Zhejiang Benfa Technology Co. Ltd.
Share on (917483396):
Product Overview
Description
2016 new style plastic and steel wholesale Braiding Machine Spindle
when the carrier and spindle working for braiding machine

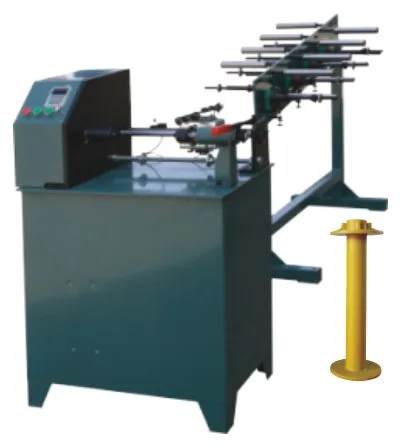

Single spindle when working for winding machine

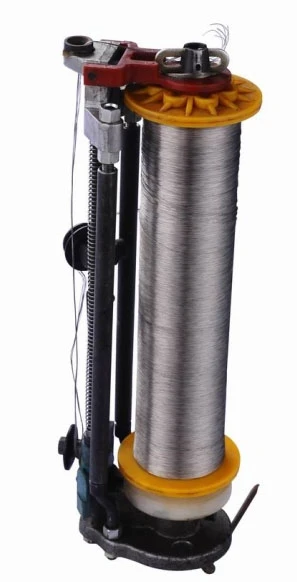

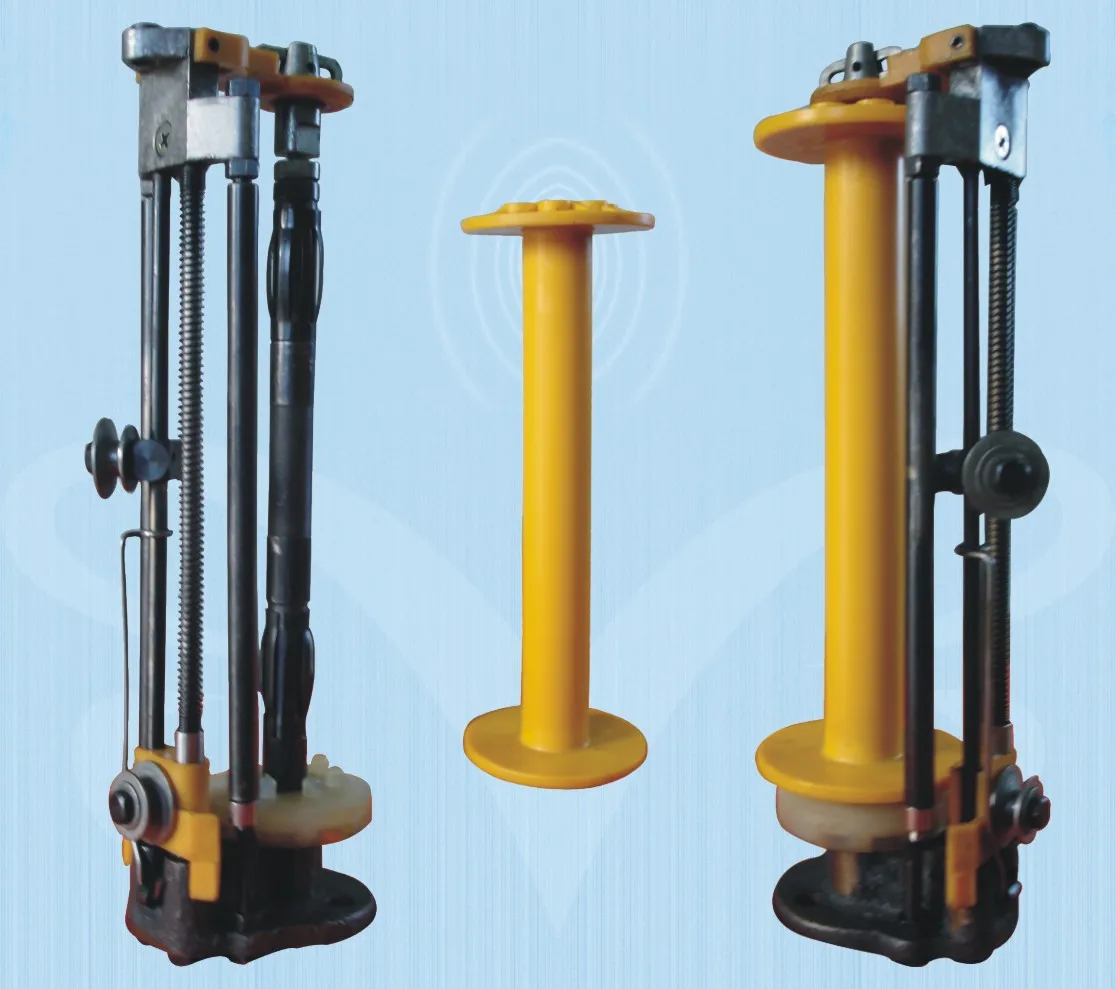

Carrier & Bobbin
Technical Parameters
| Item/Carrier | Article number | Measurement | Weight | Applying Machine |
| 1 | BFDZ-78282 | φ 88 ×320 mm | 550 g | 140,160,200 series braiding machine |
| 2 | BFDZ-69214 | φ 91 × 401 mm | 825 g | 140,160,200 series braiding machine |
| 3 | BFDZ-75198 | φ 80 × 220 mm | 600 g | 140,160,200 series braiding machine |
| 4 | BFDZ-65171 | φ 98 × 291 mm | 1265 g | 114,140,160 series braiding machine |
| 5 | BFDZ-56170 | φ 78 × 244 mm | 803 g | 114,140,160,200 series braiding machine |
| 6 | BFDZ-43111 | φ 56 × 225 mm | 170 g | 90,110,114 series braiding machine |
| 7 | BFDZ-80277 | φ 90 × 290 mm | 500 g | 160,200 series braiding machine |
| 8 | BFDZ-84202 | φ 95 × 220 mm | 3500 g | 200 series braiding machine |
| 9 | BFDZ-80168 | φ 90 × 180 mm | 3000 g | 200 series braiding machine |
| 10 | BFDZ-80168B | φ 90 × 180 mm | 3600 g | 200 series braiding machine |

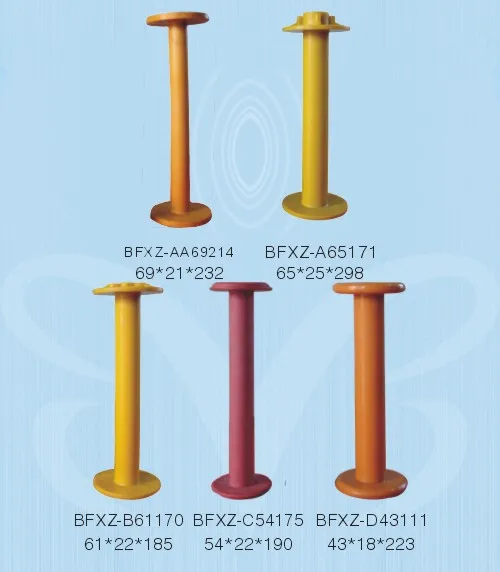

| Item/Bobbin | Article number | Measurement | Weight | Capacity |
| 1 | BF-43111 | 43 × 18 × 111 mm | 28.2 g | 133 m³ |
| 2 | BF-54175 | 54 × 22 × 175 mm | 90 g | 334 m³ |
| 3 | BF-56170 | 56 × 22 × 170 mm | 90.4 g | 354 m³ |
| 4 | BF-65171 | 65 × 25 × 171 mm | 115 g | 466 m³ |
| 5 | BF-75198 | 75 × 25 × 198 mm | 158 g | 773 m³ |
| 6 | BF-69214 | 69 × 21 × 214 mm | 124.4 g | 725.7 m³ |
| 7 | BF-78282 | 78 × 22 × 282 mm | 140 g | 1239.6 m³ |
| 8 | BF-80277 | 80 × 28 × 277 mm | 135 g | 1221 m³ |
| 9 | BF-84202 | 84 × 32 × 202 mm | 1570 g | 956 m³ |
| 10 | BF-80168 | 78 × 32 × 168 mm | 853 g | 603 m³ |
| 11 | BF-AL56170 | 56 × 22 × 170 mm | 140 g | 354 m³ |
Company Information
Xingchang benfa electromechanical establish in 1998 ,professional designing and producing braiding machine and complementary equipment technology company. Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimper machine and flexible hose assemble machine.
Quality First, Win-win each other. We will try our best to offering perfect hose braiding solution.
Power show
Certificate
Partners
Packaging & Shipping
Our Services
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing,debugging, operation of the machine, it will indicate you how to use this machine well.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
3.online service
24 hours on line, buyers can talk to us any time.
Your satisfaction is our eternal need! We always pursuing to do better!
FAQ
Frequently Asked Questions
Q: How long have you been in this field?
A: Our enterprise was founded in 1998, and we are professional in designing and producing knitting machine in this field for 18 years.
Q: How long is the warranty-period?
A: The warranty period of machine is one year, and we provide lifetime quality guarantee.
Q:As a transnational business, how do you deal with the after-sale service of the machine?
A: Depending on the problem, we have professional engineers with professional guidance; we promise we will solve your problem as soon as possible.
Q:Can you customize the machine for the customer?
A:Yes. We can, we also provide OEM for customers; If you need customized service, please contact with us.
