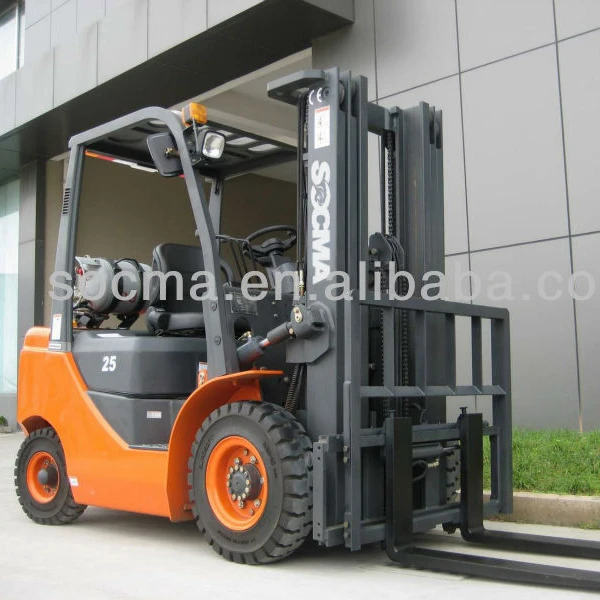

2.5T Gasoline&LPG Forklift with Nissan K25 Engine
- Category: >>>
- Supplier: Fujian Southchina Heavy Machinery Manufacture Co. Ltd.
Share on (918106426):
Product Overview
Description
2.5 ton gasoline Forklift compare with toyota 2.5ton LPG Forklift
Poster
| General | Model | FY25 | |||
| Power Type | Gasoline/LPG | ||||
| Rated Capacity | kg | 2500 | |||
| Load Centre | mm | 500 | |||
| Characteristic &Dimension | Lift Height | mm | 3000 | ||
| Fork Size | L×W×T | mm | 1070×122×40 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | ||
| Front Overhang (Wheel center to fork face) | mm | 470 | |||
| Ground Clearance (Bottom of mast) | mm | 120 | |||
| Overall Dimension | Length to face of fork(Without fork) | mm | 2530 | ||
| Overall Width | mm | 1150 | |||
| Mast Lowered Height | mm | 1985 | |||
| Mast Extended Height(With backrest) | mm | 4030 | |||
| Overhead Guard Height | mm | 2070 | |||
| Turning Radius (outside) | mm | 2240 | |||
| Min. intersecting aisle | mm | 2010 | |||
| Performance | Speed | Travel (Full load) | km/h | 19 | |
| Lifting(Full load) | mm/s | 490 | |||
| Max.Gradeability | % | 20 | |||
| Chassis | Tire | Front | mm | 7.00-12-12PR | |
| Rear | mm | 6.00-9-10PR | |||
| Wheelbase | mm | 1600 | |||
| Self weight | kg | 3750 | |||
| Power &Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | |
| Engine | Model | K25 | |||
| Manufacture | NISSAN | ||||
| Rated output/r.p.m. | kw | 37.4/2300 | |||
| Rated torque/r.p.m. | N·m | 176.5/1600 | |||
| No.of Cylinder | 4 | ||||
| Bore×Stroke | mm | 89x100 | |||
| Displacement | cc | 2488 | |||
| Fuel Tank Capacity | L | ||||
| Transmission | Type | ||||
| Stage | FWD/RVS | ||||
| Opeating Pressure for Attachment | Mpa | ||||
1.Adopt DCEC, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, sa-
tisfies the requirement of high efficiency operation.
2.used Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.
3.adopt double turbine hydraulic torque converter, stepless speed change, single level control for the speed changing.
4.variable speed control valve matched with neutral starter, the machine start more secure.
5.front axle adopt heavy duty type driving axle, enlarge the size of axle housing, hub and bearing, spiral bevel gear and
wheel planetary wheel deceleration increasing twist,steel structure bridge shell support, increase the load capacity and
service life.
