20 micron filter media stainless steel 2 / 5 / 6 layer sintered wire mesh cone

Product Overview

Description

20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh cone

Anping Shengyang Metal Wire Mesh Product co.,Ltd is metal wire mesh products factory, we produce filter mesh, protective mesh, security fence etc.

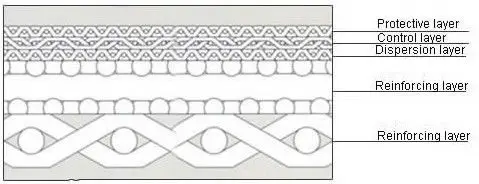

20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh cone composition: a single layer of fine woven wire in the middle, then two layers of coarser square woven wire mesh , two layers of strong dutch woven wire mesh.





20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh cone material: SUS304. 316. 316L, alloy steel , such as Hastelloy, Monel, Inconel.

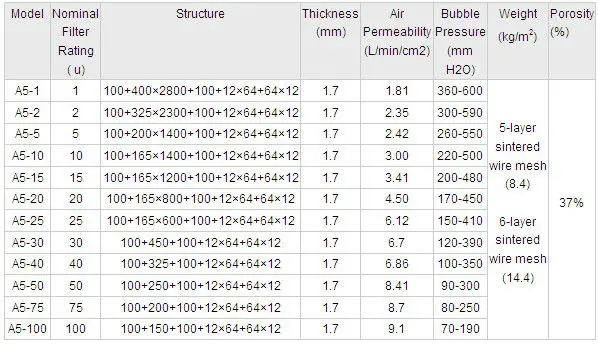

20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh cone Technical table



20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh :2'x4',4'x4', two size is standard size, except  this, different size disc, tube, large sheets,cones can be produced.





20 micron filter media stainless steel 2 / 5 / 6- layer sintered wire mesh cone usage: it's widely used in many industries ,such as pharmaceutical, chemical processing,food and beverage, transportation. Applications include fluidized beds, liquid and gas filtration, pharmaceutical powder processing, now many other application is developing and puting into use.
