Automatic 3 in 1 Bottled Pepsi Filling Machine manufacture

Product Overview

Description

      Automatic 3-in-1 Pepsi Filling Machine manufacture



Discraption

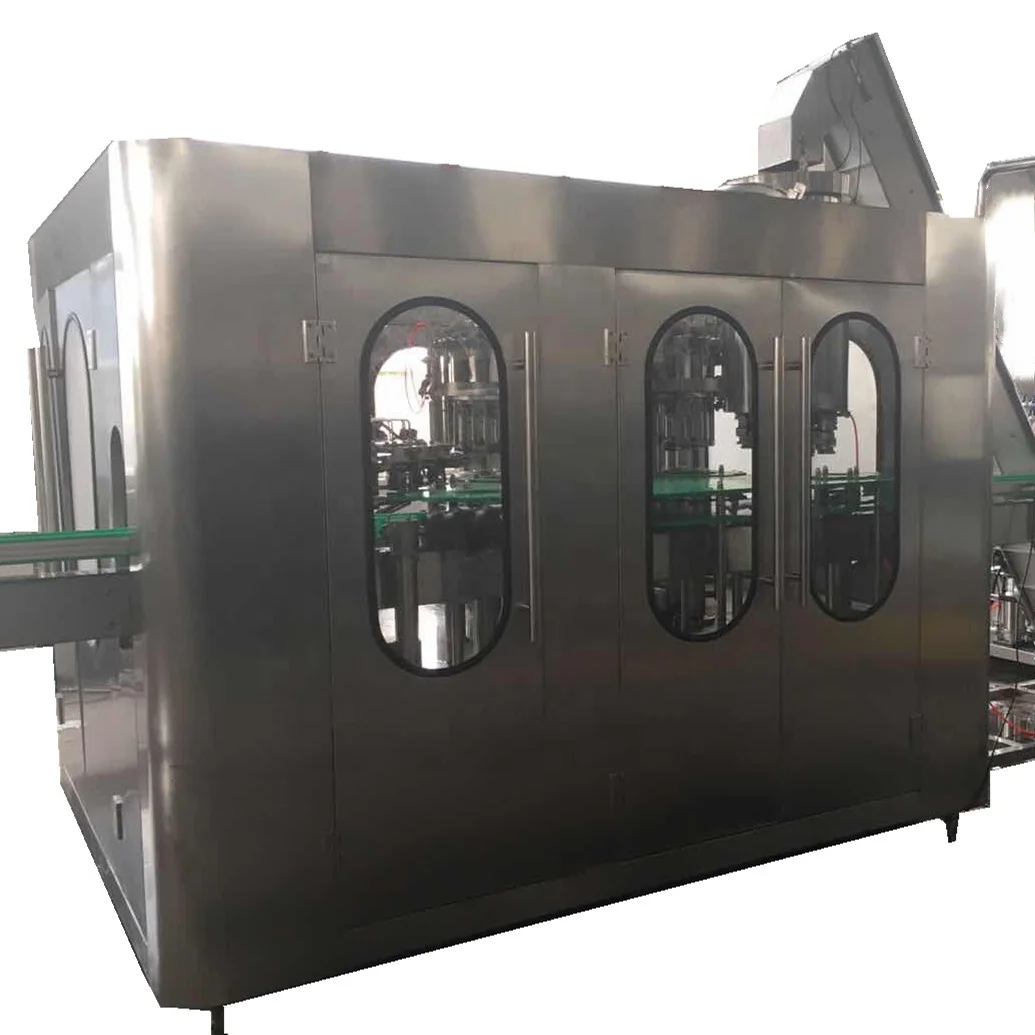

(1)This Pepsi Filling Machine manufacture is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.

(2) Pepsi Filling Machine manufacture is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 1500BPH to 20000BPH.

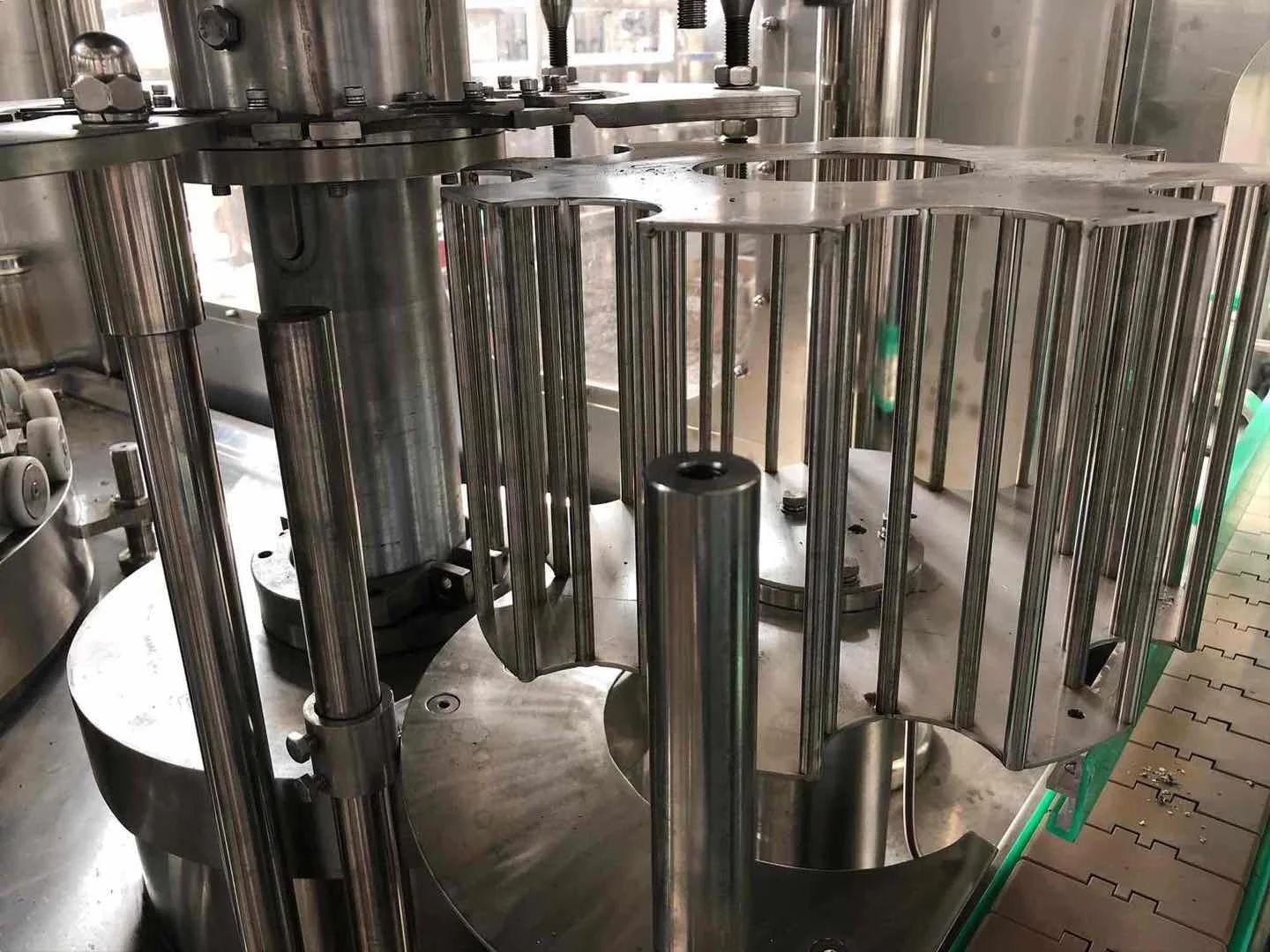

(3) Pepsi Filling Machine manufacture is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4) Pepsi Filling Machine manufacture Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The Pepsi Filling Machine manufacture case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6) Pepsi Filling Machine manufacture uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.



Model:	DCGF18-18-6		DCGF24-24-8	DCGF32-32-12		DCGF40-40-12
Capacity :500ml	5000		8000	12000		15000
Bottle shape:	roud or square
PET bottle: (mm)	(Bottle Diameter):φ50-.φ110mm   (Height):150-340mm
Cap:	PE srew cap
Filling precision:	≤±5mm
Filling pressure:(Mpa)	0.15-0.35	0.15-0.35		0.15-0.35	0.15-0.35
Rinsing pressure:(Mpa)	0.2-0.25	0.2-0.25		0.2-0.25	0.2-0.25
Filling volume :(L)	3.5	4		6	8
Overall size:(mm)	2450*1800 *2350	2780*2200 *2350		3600*2650 *2350	3800*2950 *2400
Weight: (kg)	3500	4500		5500	6500
