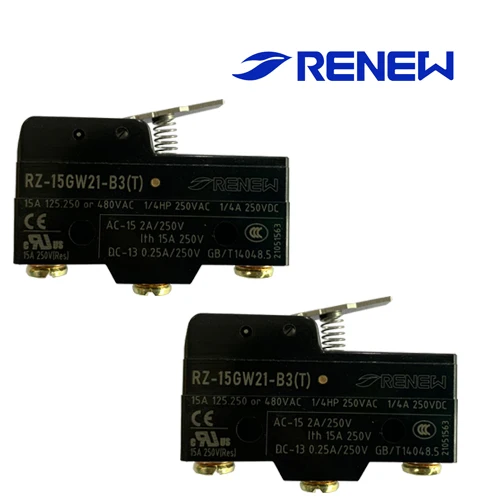

Z series plunger Basic 15a 250v micro switch

Product Overview

Description



Micro switch RZ type



Perfomance

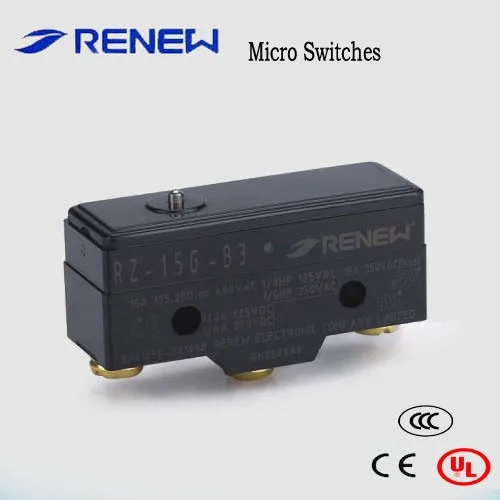

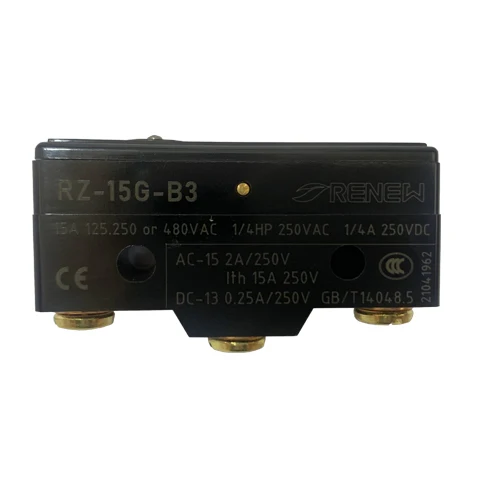

RZ-15G-B3 micro switch

Operating Force	250-350gf
Releasing Force	114gf min.
Pre Travel	0.4mm max.
Movement Differential	0.05mm max.
Over Travel	0.13mm min.
Operating Position	15.9±0.4mm

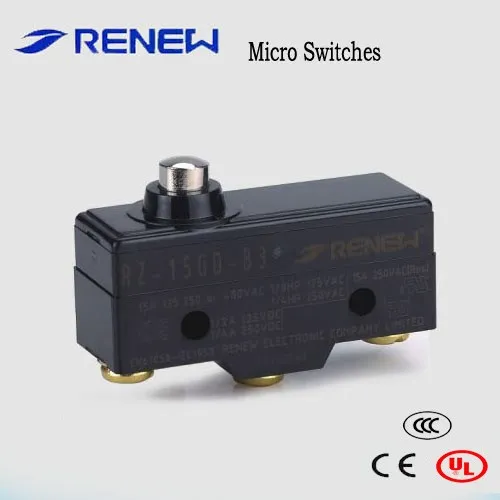

RZ-15GD-B3 micro switch



Operating Force	250-350gf
Releasing Force	114gf min.
Pre Travel	0.4mm max.
Movement Differential	0.05mm max.
Over Travel	1.6mm min.
Operating Position	21.5±0.5mm

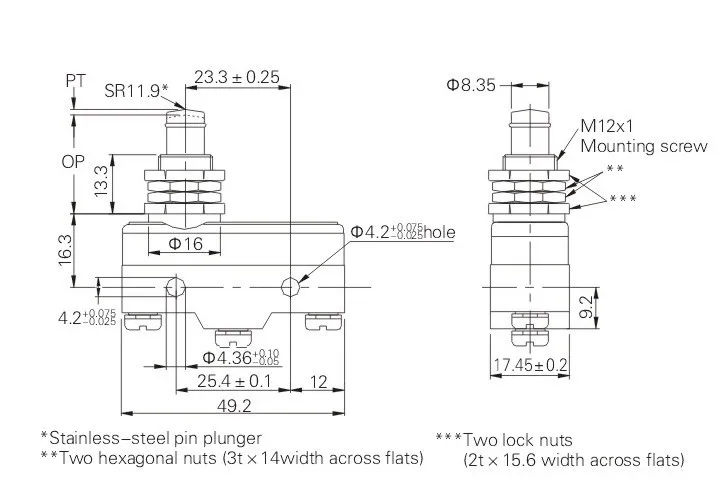

 RZ-15GQ-B3 micro switch





Operating Force	250-350gf
Releasing Force	114gf min.
Pre Travel	0.4mm max.
Movement Differential	0.05mm max.
Over Travel	5.5mm min.
Operating Position	21.8±0.8mm

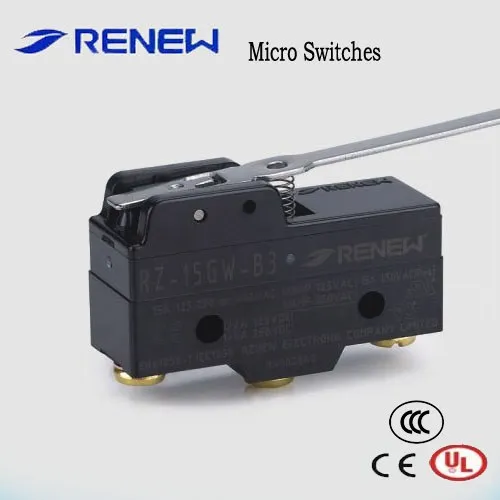

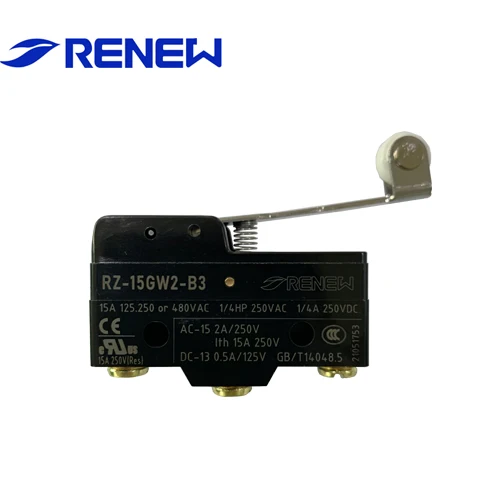

 RZ-15GW-B3 micro switch

Operating Force	70gf
Releasing Force	14gf min.
Free Position	28.2mm max.
Movement Differential	1.3mm max.
Over Travel	5.6mm min.
Operating Position	19±0.8mm











1. Characteristics



Item            Type				RZ-15 series
Operating speed				0.1mm~1m/secs (pin plunge type)
Operating frequency	Mechanical			240 operations/min
	Electrical			20 operations/min
Insulation resistance				Above 100 mΩ(use the DC500V insulation resistance test)
Contact resistance (initial value )				The max 15 mΩ
Dielectric strength				Between Non-connect terminal  : AC1000V  50/60HZ  for 1 min
				Between non voltage metal parts and each terminal , ground  and each terminal : AC2000V 50/60HZ for 1min
Vibration resistance(pin plunger type)		Malfunction		1.5mm double amplitude;  10-55HZ (contact gap is under 1ms )
Shock resistance		Pin plunger type		max 300m/s2 (contact gap is under 1ms )
		Others		max 50m/s2 (contact gap is under 1ms )
Life		Mechanical
				5,000,000 operations above (on/off frequency is 60 operations/min)( order OT)
		Electrical (resistive load)		500,000operations min. (on/off frequency is 20 operations/min )
Ambient operation temperature & Ambient humidity				-25~+80(with no icing ),  85%RH max. (at +5~35)
Contact material				AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight				Approx.  22 to 58g







Remark : switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life and the capability may be decreased because of the load capacity , so please consultation us freely .

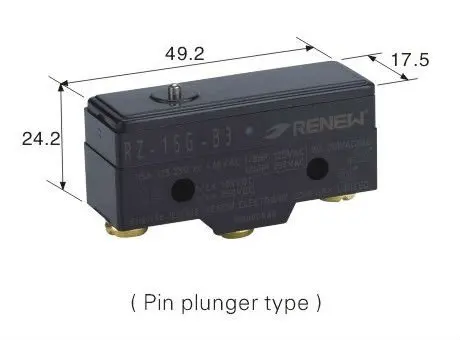

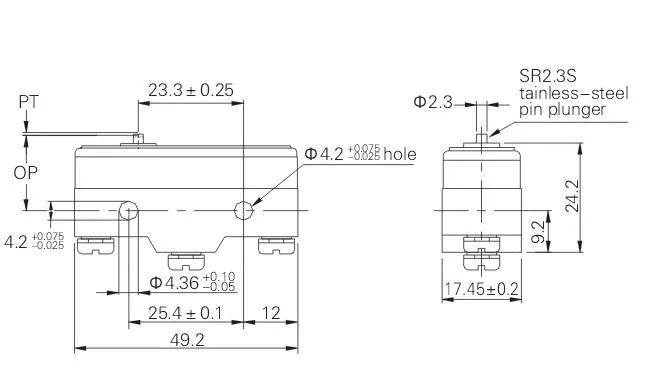

2.Demension size of micro switch RZ type





3.Other informaiton of micro switch RZ type



Rating:	15A, AC250V. 25A,AC400V
Contact form	SPDT, Reverse operation type
Terminals:	screw terminal with cup mouth washer, screw terminal with skidprooof within toothed washer screw terminal with spring washer
Maximum Operating Force	4gf-540gf





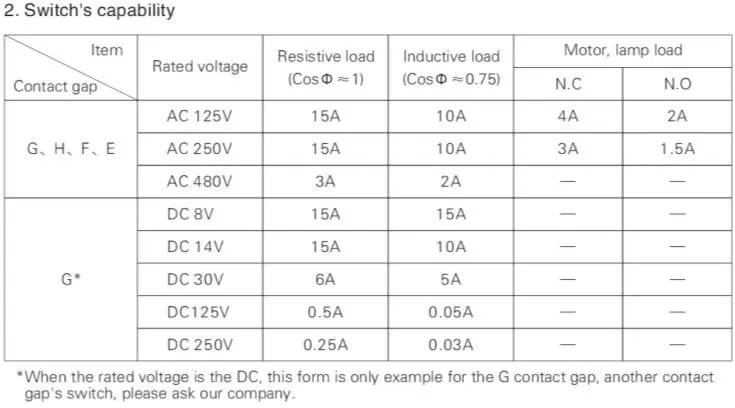

4.Capacity of micro switch RZ type
