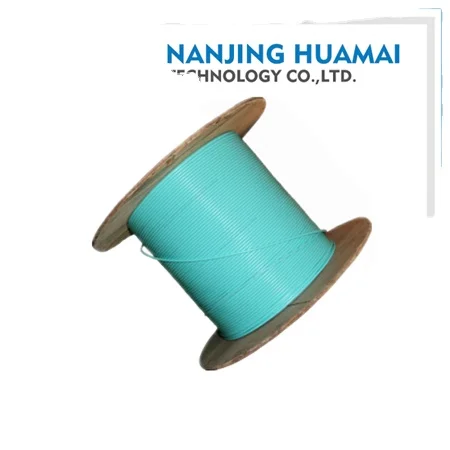

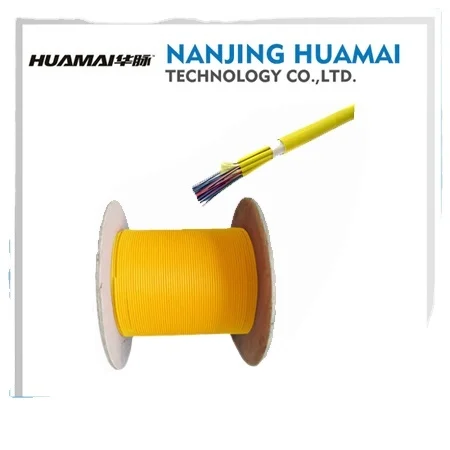

HM 98 08 Huamai FTTX Bunchy Fiber Optic Cable with Corning Fiber
- Category: >>>
- Supplier: Nanjing Huamai Technology Co. Ltd.
Share on (920750817):
Product Overview
Description
Product Description

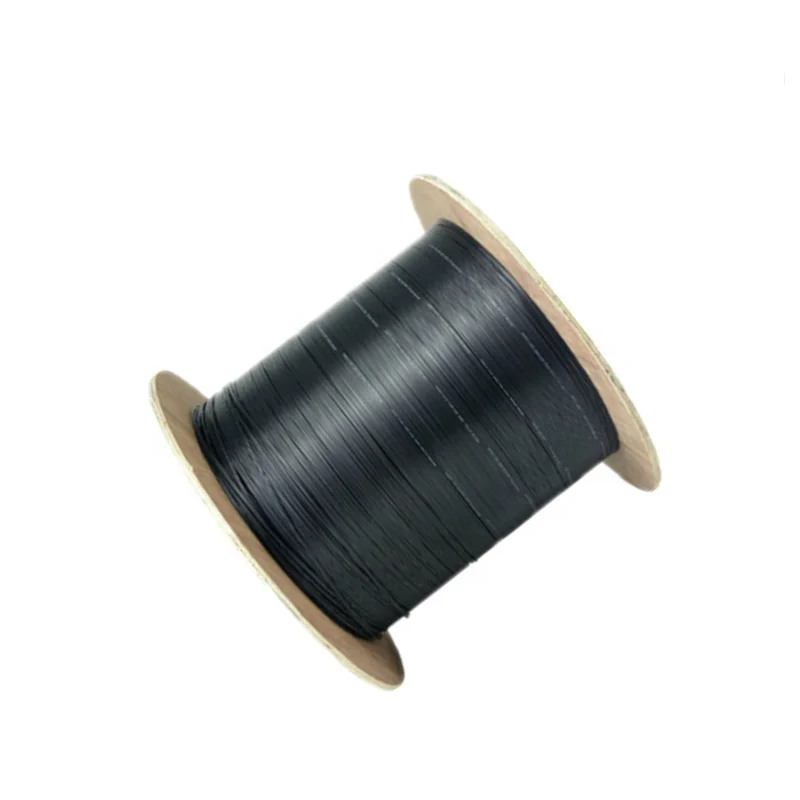

G652D,G657A Huamai FTTX Bunchy Fiber Optic Cable with Corning Fiber
Bunchy Fiber Optic Cable to be made up of 4-12pcs tight-buffered fiber, aramid yarn around the buffer fibers.
-Color Identification for drop fiber optic cable
Fibers color: Blue, Orange, Green, Brown ;Sheath color: Black
-Two parallel FRP or steel wire strength members ensure good performance of crush and tension resistance to protect the fiber;
-Single steel wire as the additional strength member ensures good performance of tensile strength;
-If G.657 fiber be put in the cable, ensure the very good bending performance. (Bend radius 10mm/G.657A , Bend radius 7.5mm/G.657B)
-Low smoke, zero halogen and flame retardant sheath
Material | OS1 9/125μm (1310/1550nm) | OM1 62.5/125μm (850/1300nm) | OM2 50/125μm (850/1300nm) | OM3 50/125μm (850/1300nm) | |||||||
Attenuation (dB/km) Typical Values | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 2.7/0.7 | |||||||
Minimum Bandwidth (MHz•km) | N/A | 400/400 | 160/500 - | 1500/500 - | |||||||
Primary Buffer Diameter | 250μm | 250μm | 250μm | 250μm | |||||||
Strength Members | 4x1320 Decitex Kevlar element | ||||||||||
Storage /Operating/ Installation Temperature | -20℃~+60℃ | ||||||||||
Sheath material | PVC or LSZH Sheath | ||||||||||
Fiber Optic Cable Specification | |||||||||||
Fiber Count | 2 | 4 | 6 | 8 | 12 | 16 | 24 | ||||
Nominal Outer Diameter(mm) | 5.0±0.2 | 5.1±0.2 | 5.3±0.2 | 5.9±0.2 | 6.6±0.2 | 7.5±0.2 | 8.2±0.2 | ||||
Nominal Weight (kg/km) | 19 | 21 | 23 | 28 | 34 | 46 | 57 | ||||
Max. Tensile Load | Long Term (N) | 220 | |||||||||
Short Term (N) | 660 | ||||||||||

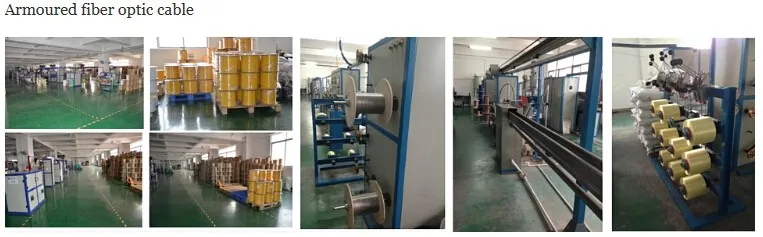

Workshop
1.What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
2.Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.
Your sucess is my business.
3.Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry,the sample deposit will refund to you when bulk order fixed.
4.What is the lead time for samples?
-About sample making,it usually takes 7-15days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to work overtime to speed up it.
5.Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
You have the idea,we turn it into excellent product for you.
