Semi trailer/Vehicle/Truck Chassis Shot Blasting Machine
- Category: >>>
- Supplier: Qingdao Qinggong Machinery Co. Ltd.
Share on (920872820):
Product Overview
Description

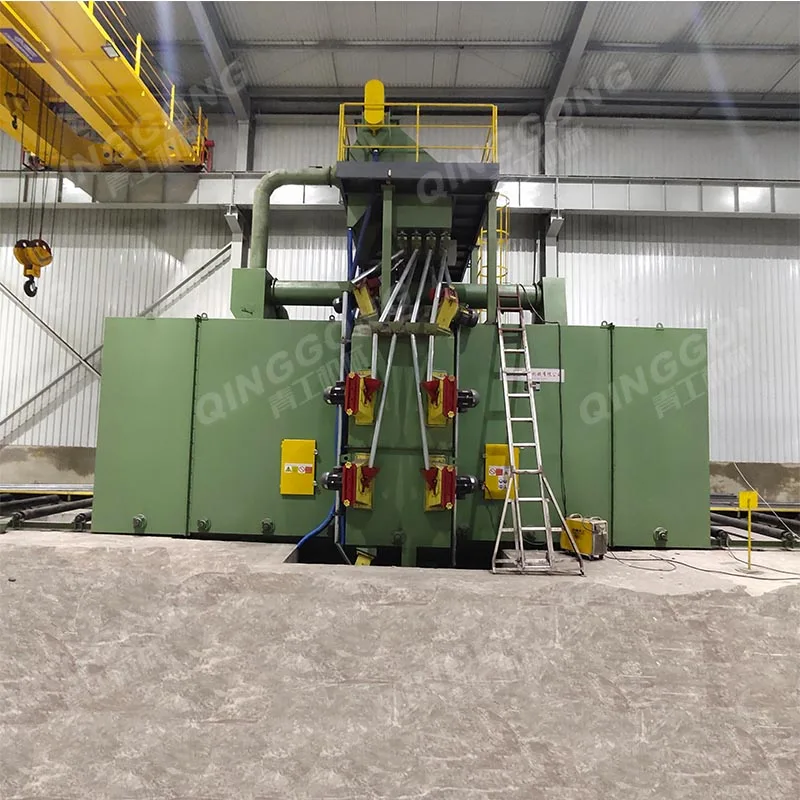

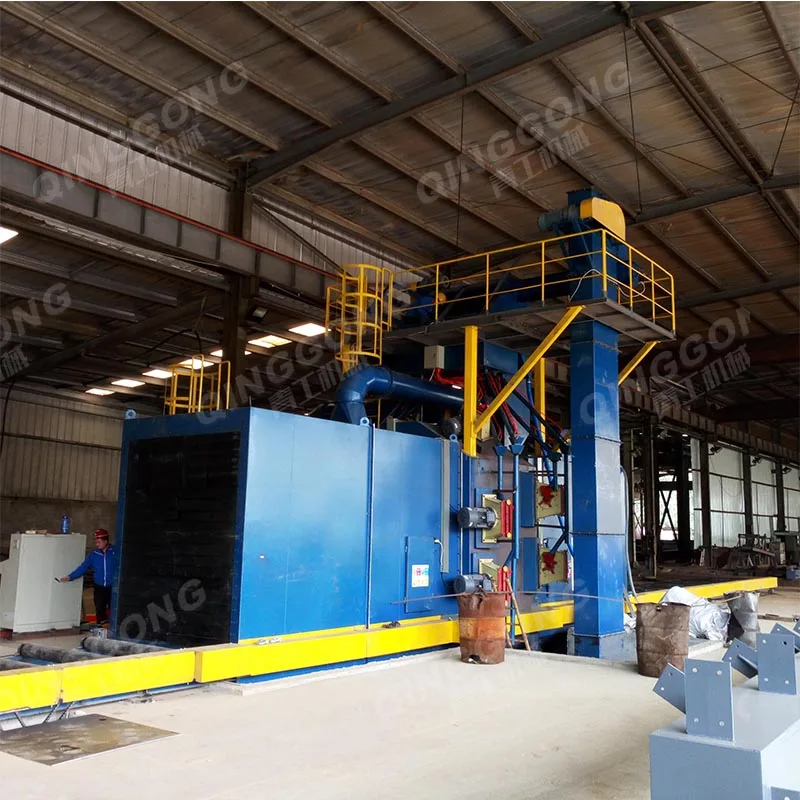

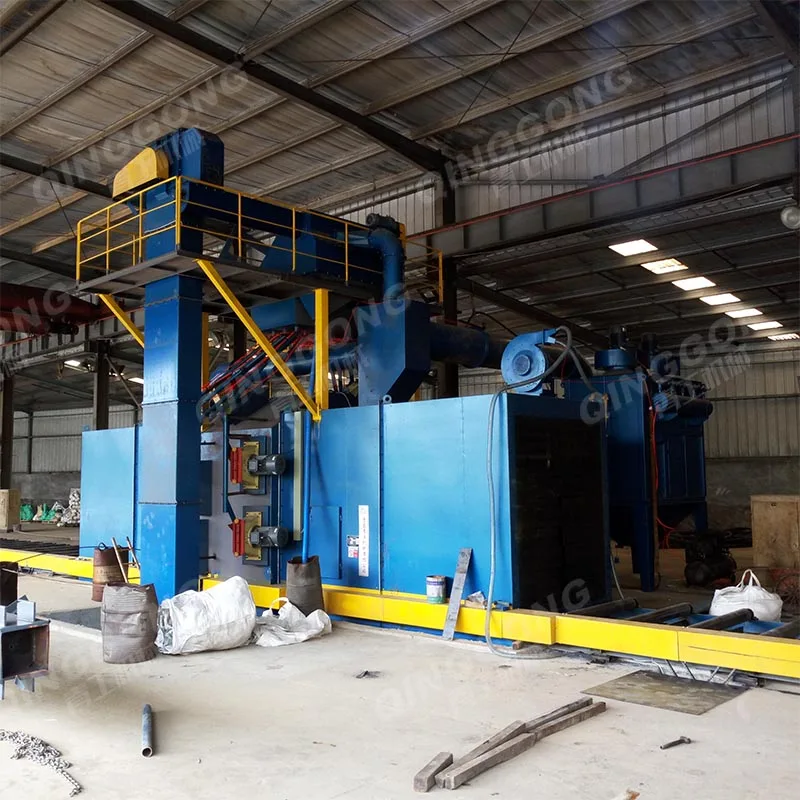

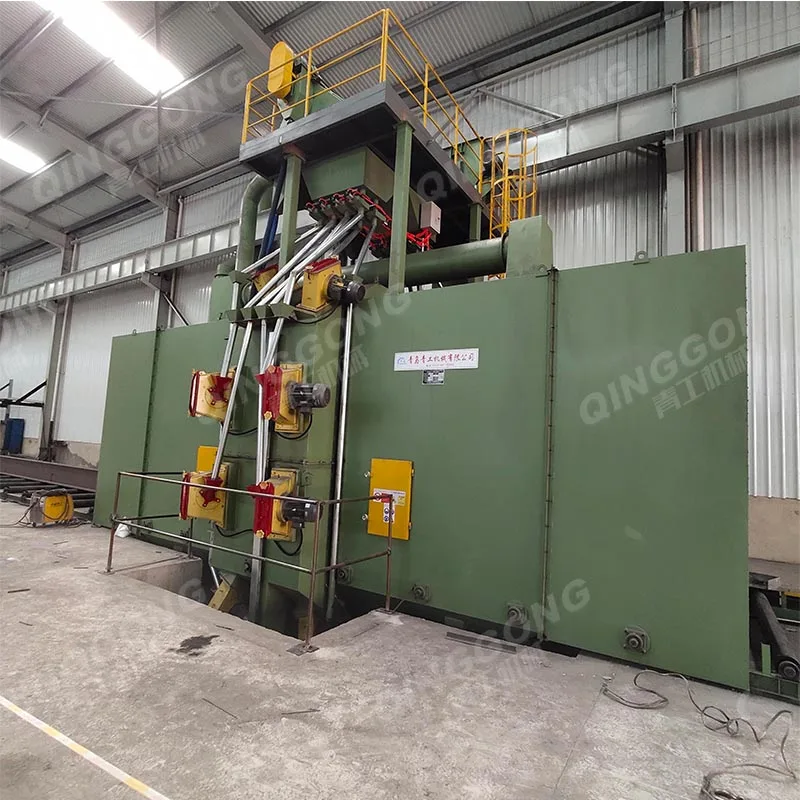

Semi-trailer/Vehicle/Truck Chassis Shot Blasting Machine
Product Description
☆Transportation system:

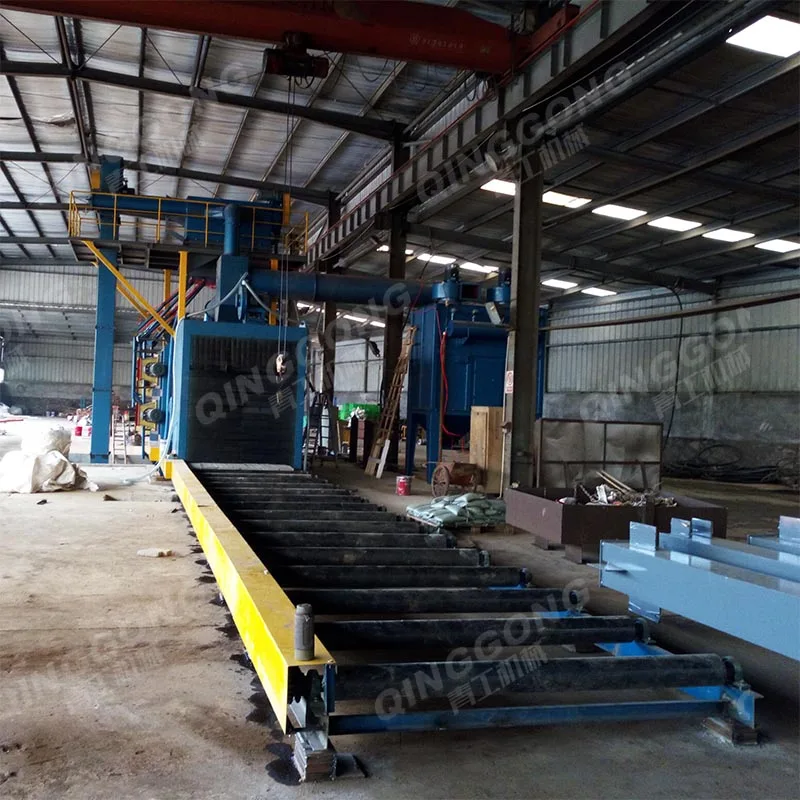

Roller conveyor system, width: 500-4500mm, load capacity: 300-10000kg.
☆Blast turbine:
Power of motor : 7.5-30kw
Number of turbine: 4-16
☆Intelligent abrasive dosing system:
Service time max 20% longer,
energy saved max 30%.
☆Workpiece:
Steel plate, pipes, steel structure, h beams, steel tube, profiles, steel angles and channels, etc.
☆Dust collector:
Settling chamber +cartridge-type dust collector.
Cartridge filter service time: 5 years.
☆Function:

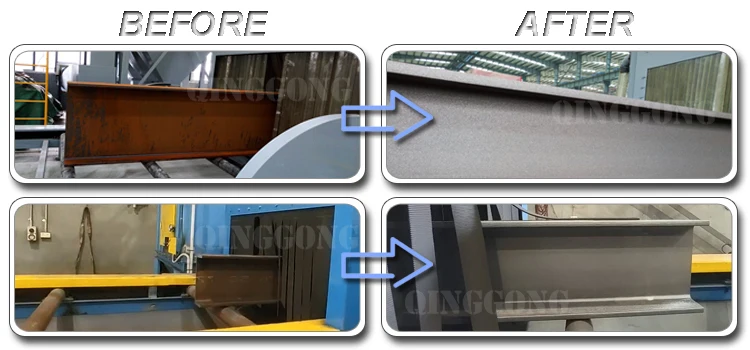

Remove rust, scale, sand, burrs, etc. Finished rust removal grade: SA2.5-3.0. Relieve internal stress, increase adhesion of coating.
Specification
Type | unit | QGRB600 | QGRB1000 | QGRB1500 | QGRB2000 | QGRB2500 | QGRB3000 |
Effective blasting width | mm | 600 | 1000 | 1500 | 2000 | 2500 | 3000 |
Dimension of entrance(W×H) | mm | 800×300 | 1200×300 | 1700×300 | 2200×300 | 2700×300 | 3200×300 |
Work speed to achieve cleaning of Sa2.5 ISO8501 | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
Number of wheels×power | kW | 4×7.5/11 | 4×11/15 | 4×11/15 | 6×11/15 | 8×11/15 | 8×11/15 |
Wheel optional | kW | — | — | — | 4×15 | 6×15/18.5 | 6×15/18.5 |
Abrasive initial filling capacity | kg | 2000 | 4000 | 4000 | 4500 | 6000 | 6000 |
Processed length of the workpiece | mm | 1200~12000 | 1200~6000 | 1200~12000 | 3000~12000 | 2400~12000 | 3000~18000 |
Foundation pit required | No | No | No | Yes | Yes | Yes |

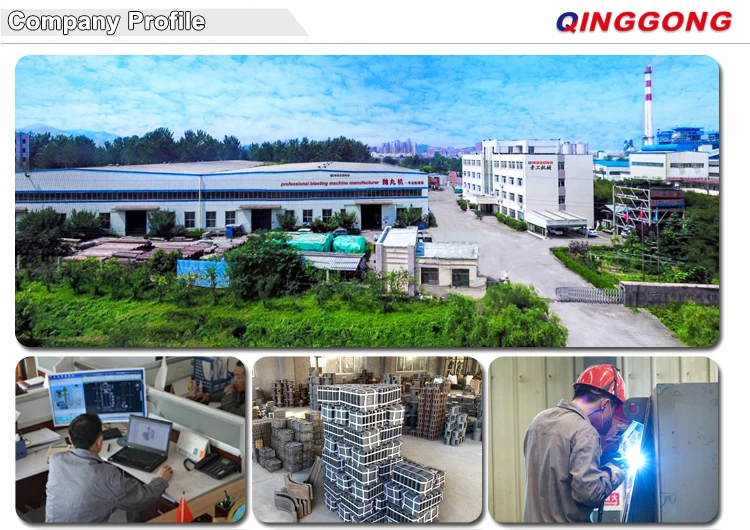

Company Profie
With 47 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines.
Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 ㎡.

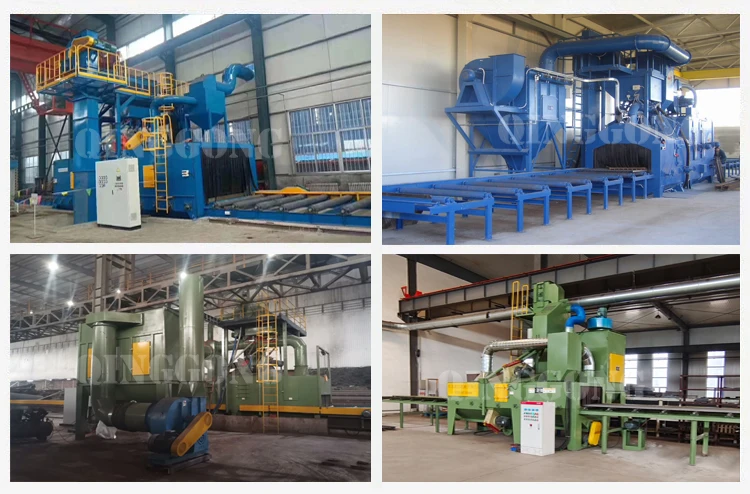

Untill 2022, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries and some major factories in China, like LongGong, SANY, TISCO, etc.
TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
