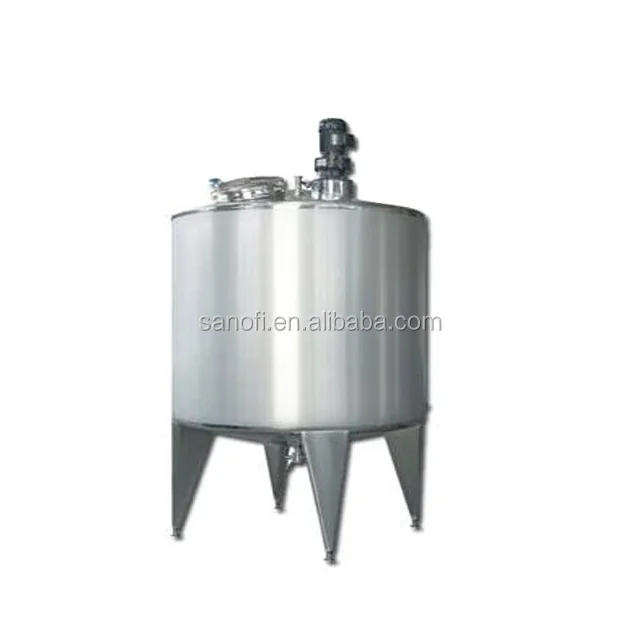

Juice Blending Tank/ Pasteurization Tank/Milk Pasteurizer

Share on (921284352):


Price:$2,500.00

Quantity:


Product Overview

Description


Specifications


Juice Blending Tank/ Pasteurization Tank/Milk Pasteurizer


1. Mixing tank
2. Applied for food, dairy, juice, and others
3. Single or jacket designmixing tank






 Juice Blending Tank/ Pasteurization Tank/Milk Pasteurizer





Description

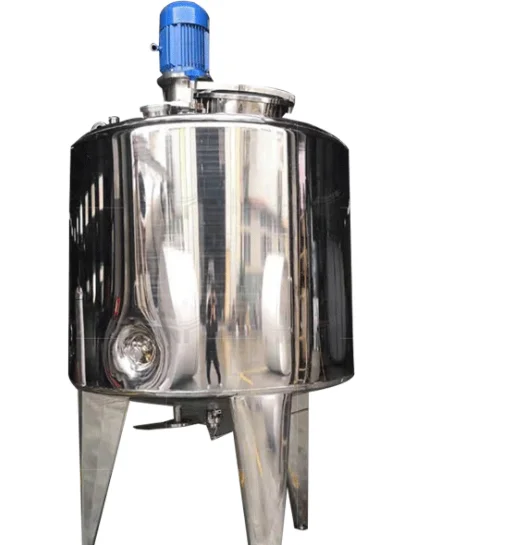

Mixing Tank
Applicable range:
Foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc
Material: SUS304 or SUS316L
Single or jacket ( with isolation)
Agitator: Chinese or Europen SEW
Paddle: Scrape type or frame type, angle type
Configuration option:
1. Manhole
2. Cleaning ball
3. Air vent
4. Adjustable legs
5. Thermometer PT100 type
6. Ladder





 Juice Blending Tank/ Pasteurization Tank/Milk Pasteurizer


Models and Parameters


















































































































































volume (L) Dimension(D× h ) (mm)Total height (mm) Diameter
Of inlet
& outlet
Heat preservation layer
Δ (mm)
500 840 × 1000 2250 38 60
600 920 × 1000 2300 38 60
700 990 × 1000 2300 38 60
800 950 × 1220 2500 38 60
900 1010 × 1220 2500 38 60
1000 1060 × 1220 2550 51 60
1500 1160 × 1500 2850 51 60
2000 1340 × 1500 2900 51 60
3000 1410 × 2000 3400 51 60
4000 1620 × 2000 3450 51 60
5000 1810 × 2000 3500 51 60
6000 1980 × 2000 3550 51 60
7000 1930 × 2440 4000 51 60
8000 2060 × 2440 4000 51 60
9000 2180 × 2440 4050 51 60
10000 2300 × 2440 4050 51 60
12000 2270 × 3000 4600 51 60
15000 2530 × 3000 4700 51 60
20000 2640 × 3660 5400 51 60





 Juice Blending Tank/ Pasteurization Tank/Milk Pasteurizer

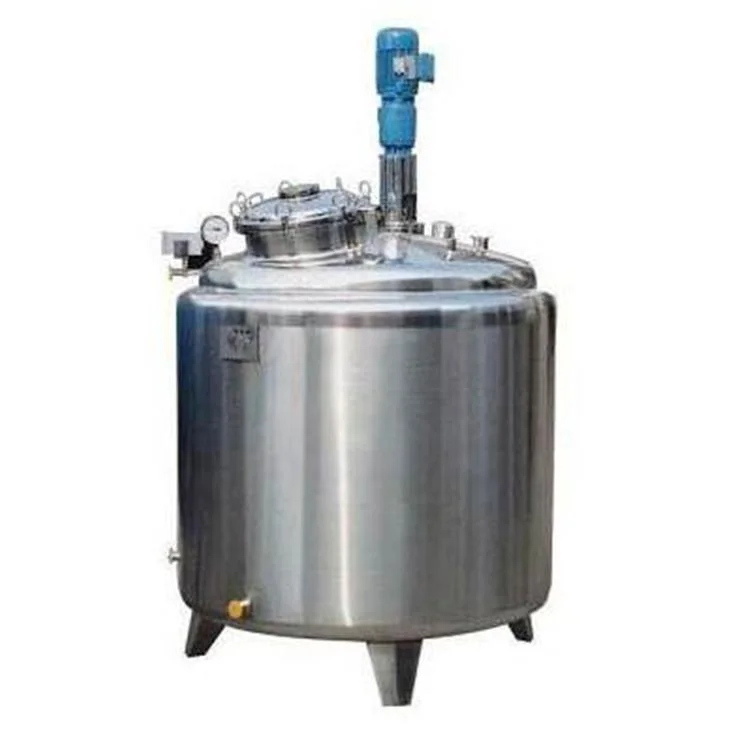

mixing tank2mixing tank


.jpg




Our Services


Customer's service


1.Free turnkey project plant layout design;
2.Free bottle and label design;


3.Free car Service To and From Airport and our factory;


4.We can guide you visting our current customer's facotry who are using our machines.





After-sale service





 1)Installation, debug


After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.


2)Training


Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.


3)Quality guarantee


We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.


4)After sales


1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.


2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
