Product Overview
Description

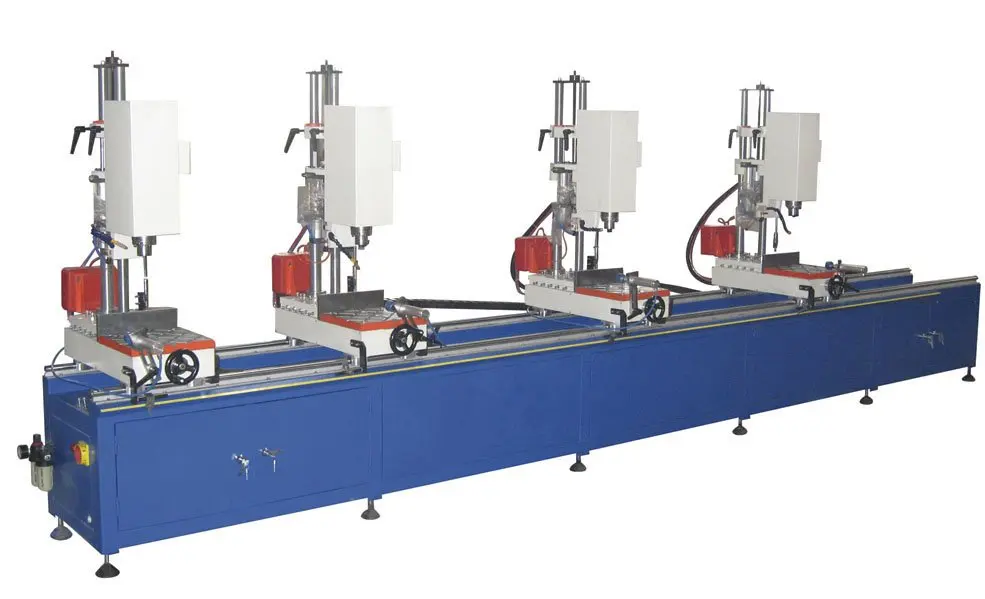

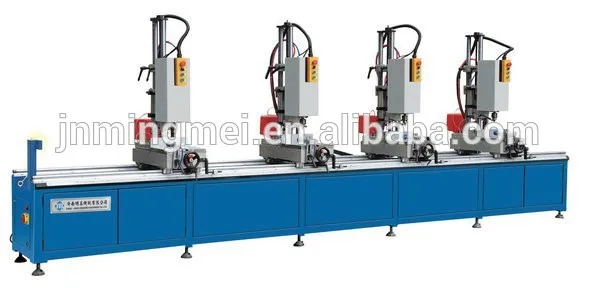

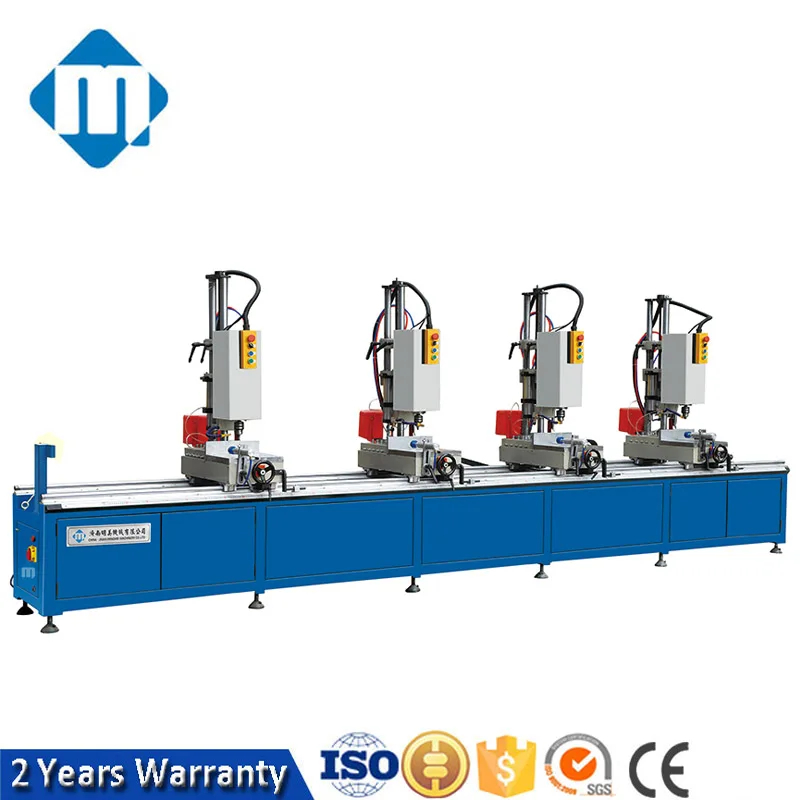

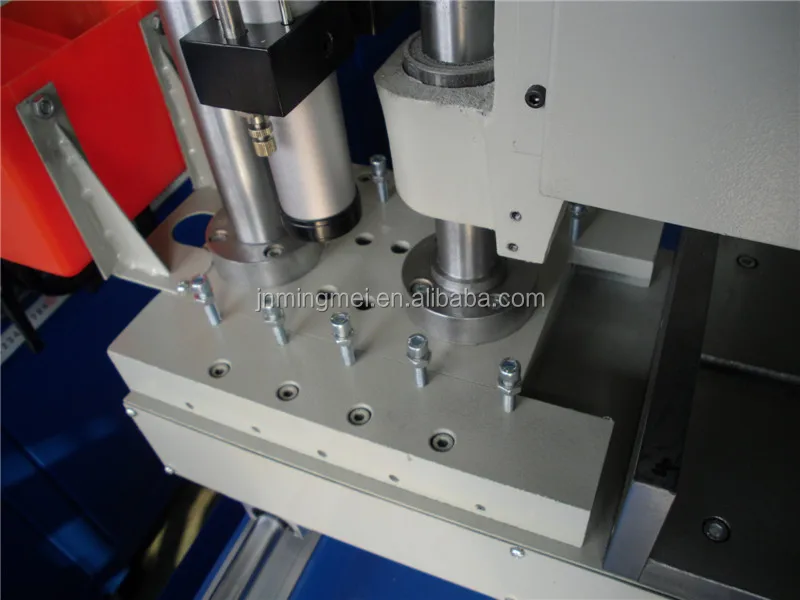

LZZ4-13 FOUR HEADS DRILLING MACHINE
(We can add more heads,each one head add USD680)
Product Description
1.Introduction:
Special for drilling of aluminum window,curtain wall profile ,
Suitable for long profile process and mass production.suitable for the profile less than 250*250mm
Max.processing lenth is 5000mm
Pneumatic-hydraulic damp feeding system.
2.Main technical parameters:
|
main motor power: 4*0.75KW
working voltage:AC380V 50HZ
over all dimension(L*W*H):5500*1100*1800mm
weight:880Kg
operation air pressure:0.5-0.8Mpa
Max/Min distance between each group holes:500-300mm
Max processing profile section size:250*250mm
Max drilling hole diameter:ø13
Drilling head feeding travel:125mm
workable size(L*W):300*220mm
Tolerance of drilling hole:+/-0.3mm
Tolerance of drilling position:≤0.3mm |
3.Remark
(1)Terms of delivery: 20 days after receiving your deposit
(2)Port of loading: Qingdao ,China
(3)Terms of payment :30% to be paid before the produce and the balance should be paid before shipment

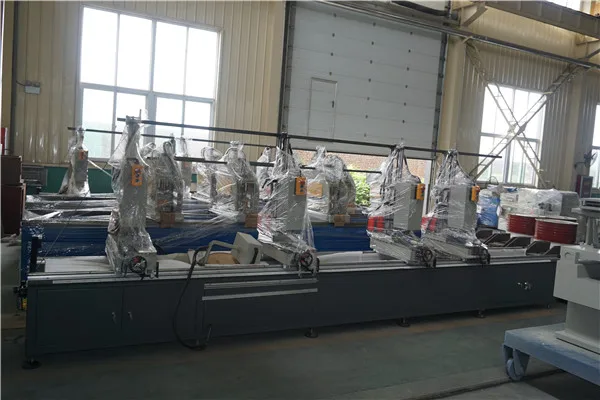

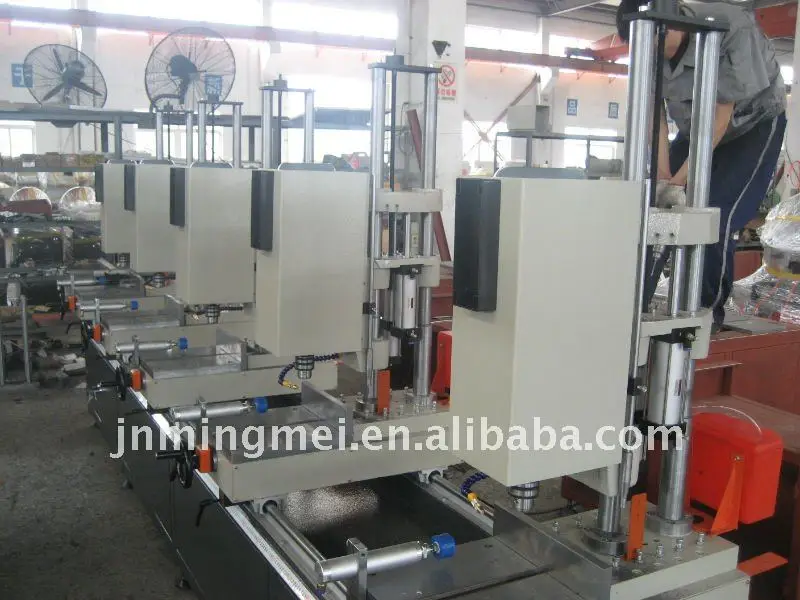

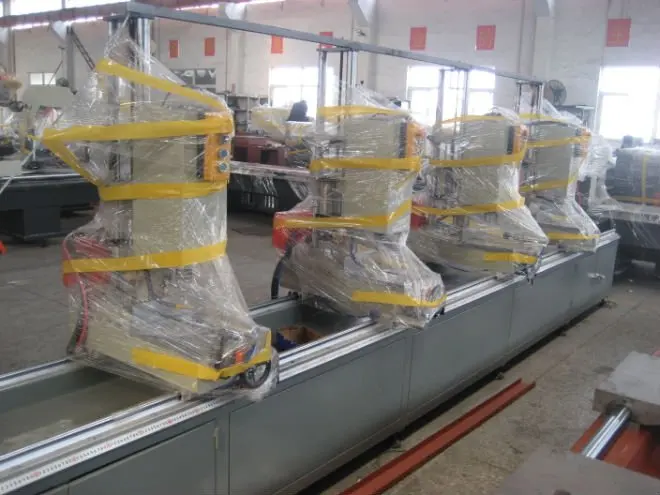

4.our factory
Our Services
