Product Overview

Description


Evacuated tube low pressure solar water heater for slope or flate roof   solar heater




OUSIKAI------------The toppest solar water heater supplier in China



Popular market:



India,  Pakistan,  Nepal,  Vietnam,  Mexico,  Chile,  Africa, and so on...

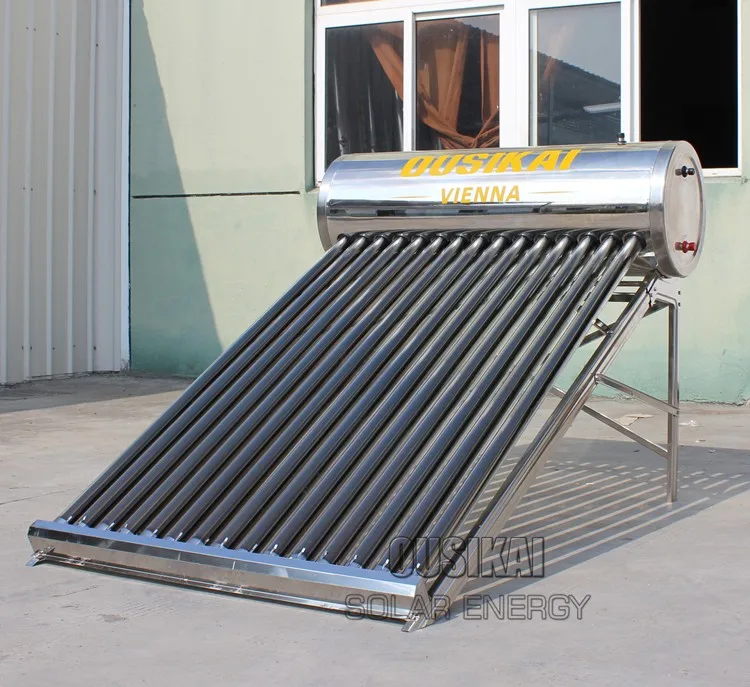

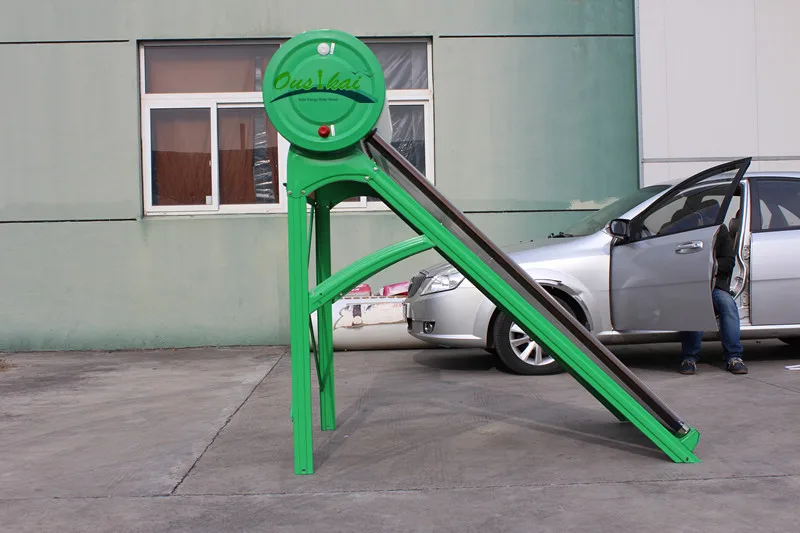

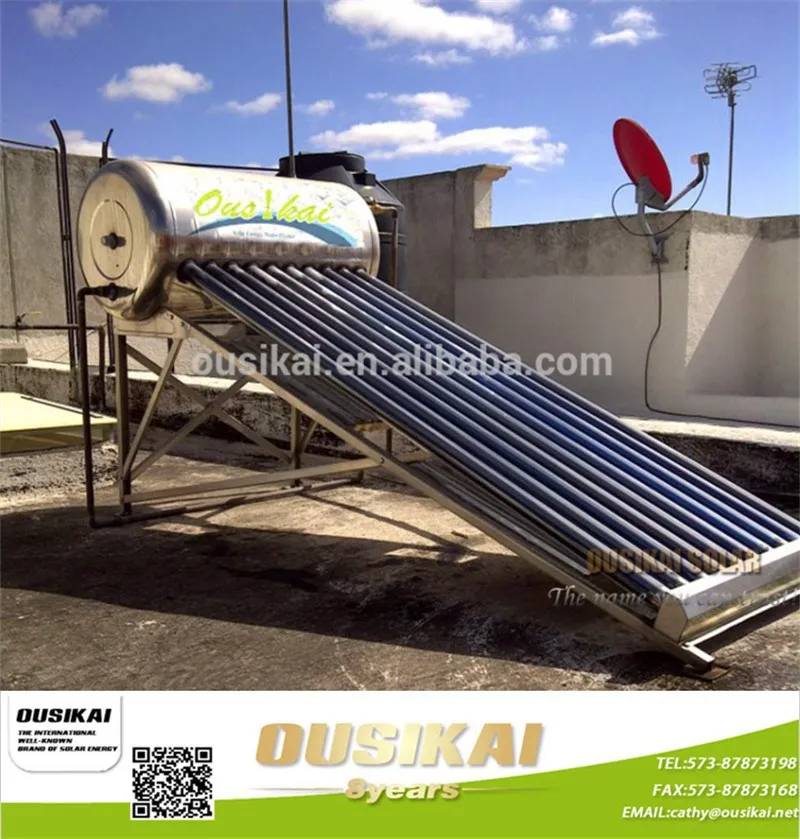

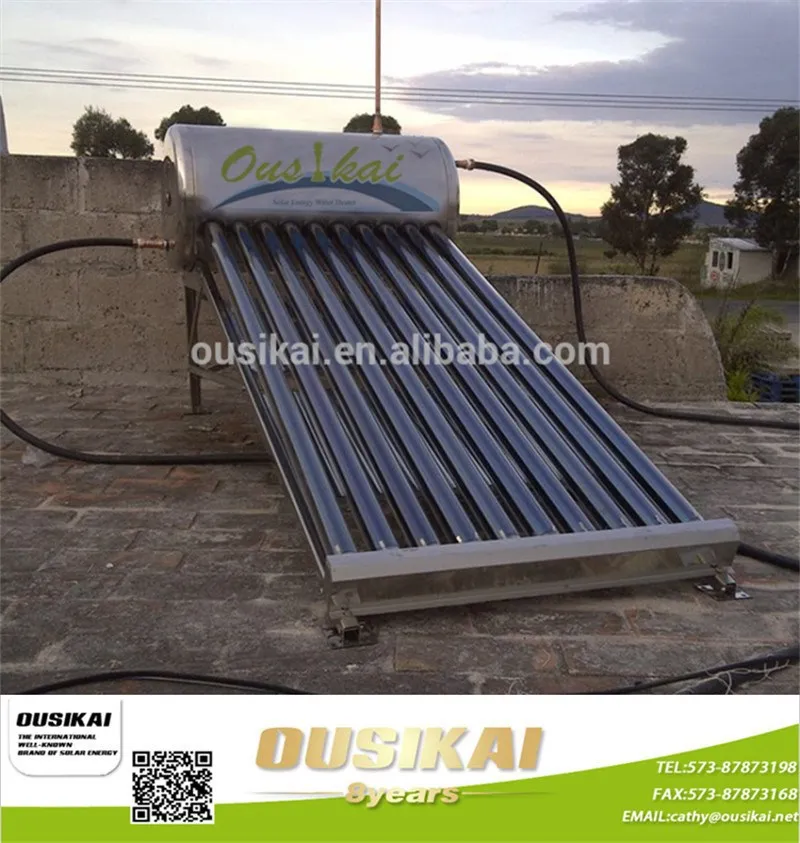

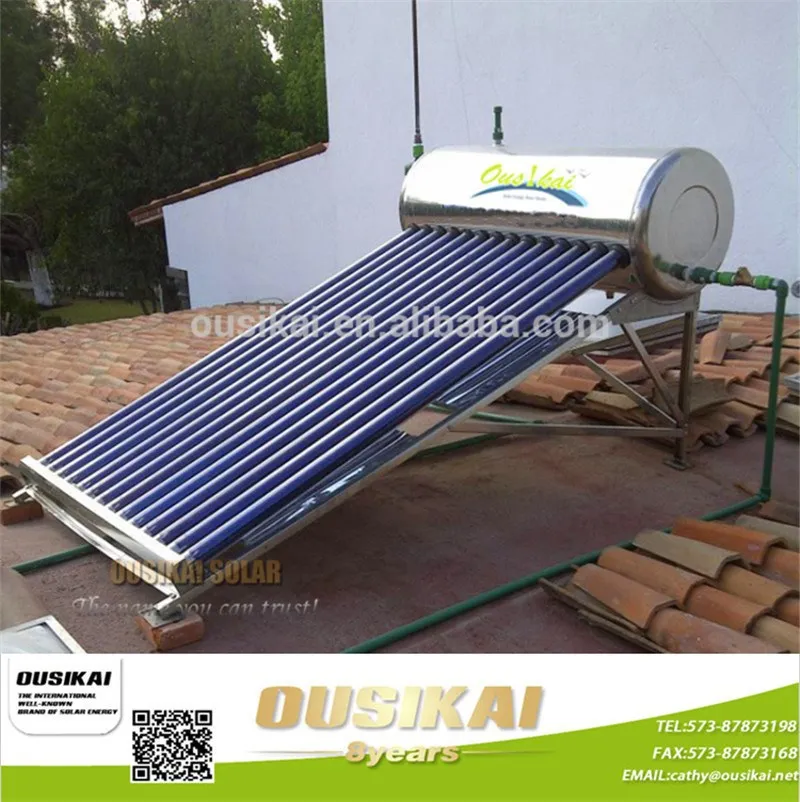

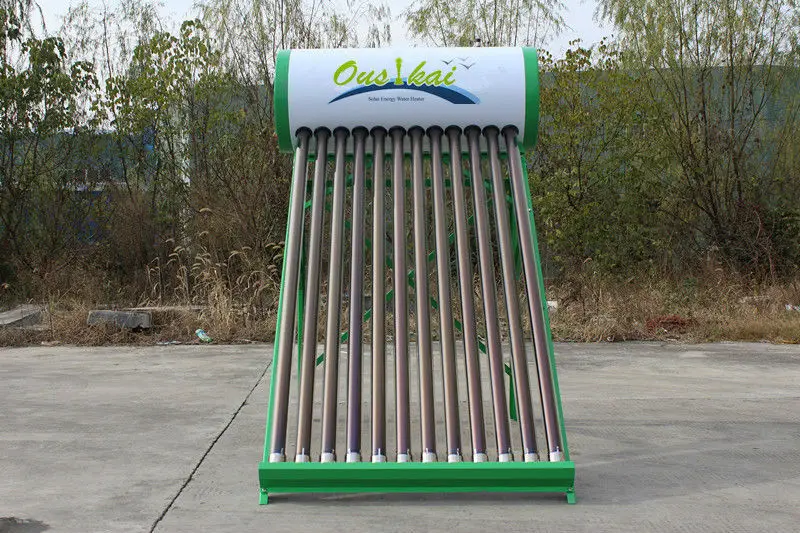

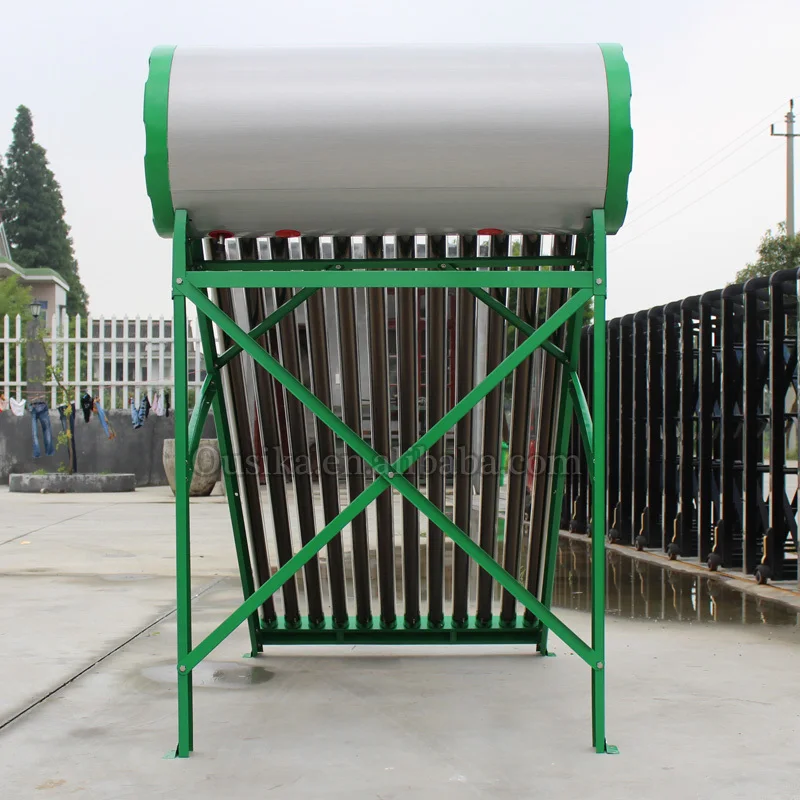

OUSIKAI Solar water heater pics

undefined


undefined


undefined
undefined

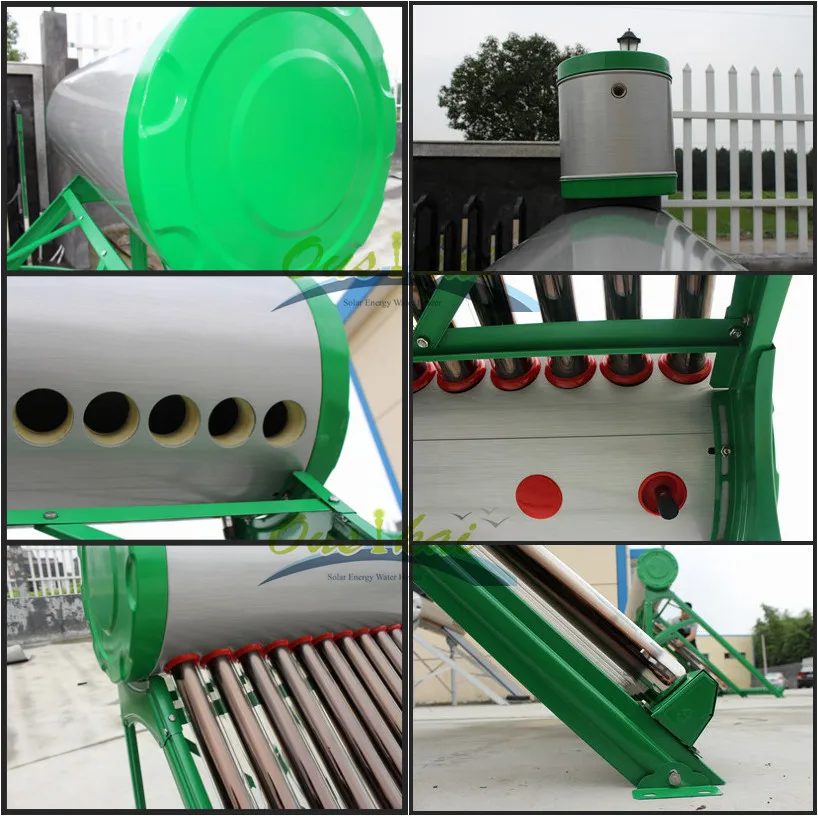

  Detailed pics of the composition



undefined

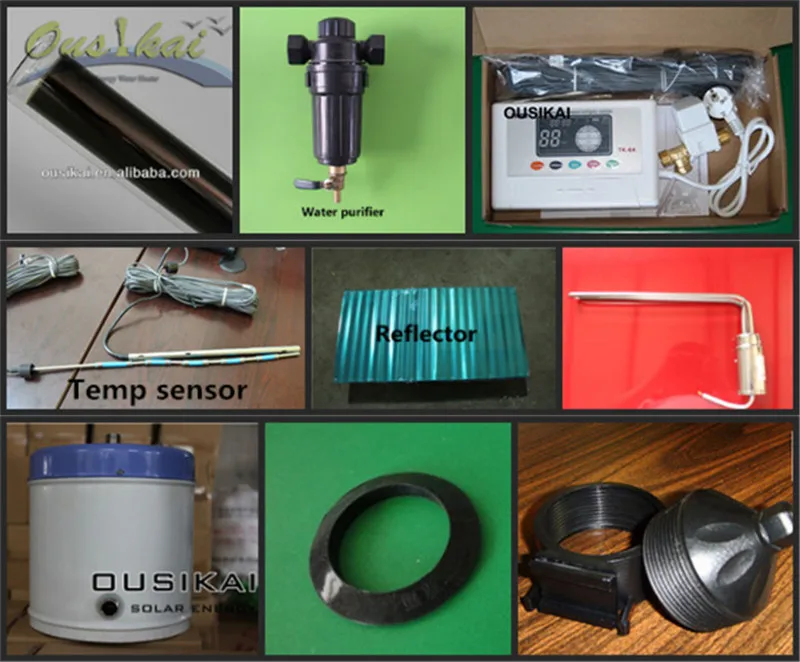

  Optional accessories of non-pressurized solar water heater


undefined
More items, pls refer to the following catalog

Model

Capacity

 (Liter)

Tube specification

Tube

quantity

Absorption

area(m2)

Packing

size(CBM)

Loading quantity(Sets)
20'GP40'GP40'HQ
OS-NPC58-10100Φ58mm*1800mm101.40 0.370 75151183
OS-NPC58-12120Φ58mm*1800mm121.56 0.432 66136160
OS-NPC58-15150Φ58mm*1800mm152.00 0.540 53109128
OS-NPC58-18180Φ58mm*1800mm182.40 0.648 4591106
OS-NPC58-20200Φ58mm*1800mm202.67 0.720 408296
OS-NPC58-24240Φ58mm*1800mm243.12 0.864 326880
OS-NPC58-30300Φ58mm*1800mm304.00 1.080 265564
OS-NPC58-32320Φ58mm*1800mm324.26 1.152 245160
OS-NPC58-32360Φ58mm*1800mm364.80 1.296 224252



Specification

Inner tank
MaterialSUS304-2B stainless steel
Thickness0.4mm-0.5mm
DiameterNormally 360mm
Outer tank
MaterialSUS201 stainless steel & painted steel
Thickness0.31mm-0.4mm
DiameterNormally 460mm
Insulation layer
MaterialHigh density polyurethane foam
Thickness 50mm
Heat preservation72 hours
Frame
MaterialSUS201 stainless steel or painted steel or aluminium alloy
Angle0-45 degree
Optional accessories Electric heater, magnesium bar, intelligent controller
Warranty Using life of wholesystem:10 years



Solar hot water heater advantage



1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

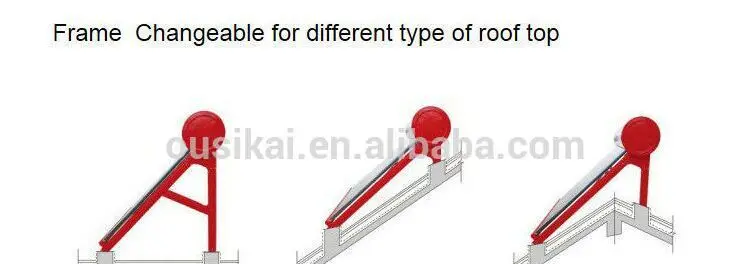

Installation for different rooftop



undefined

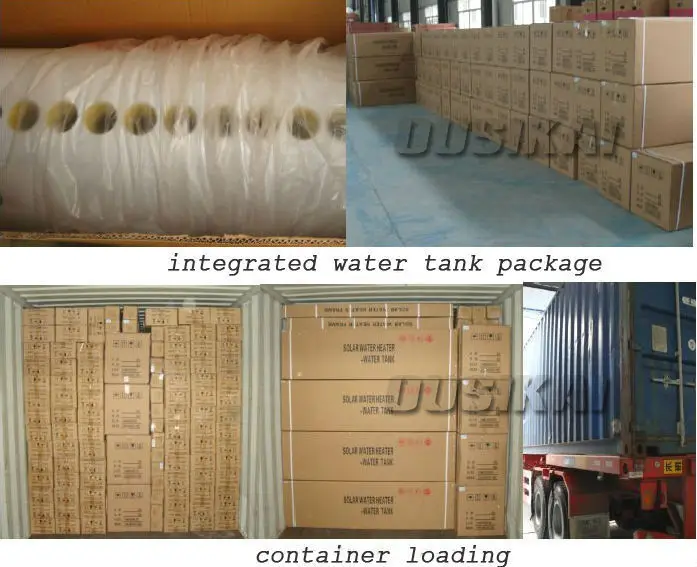

Solar water heater packing



undefined


undefined








OUSIKAI Factory photos

undefined

undefined

OUSIKAI certificate and test report

undefined
undefined

Factory show

undefined

Contact information:



undefined
