400W Cheap Model Dirty Water Submersible Electric Water Pump For Water Use For House

Product Overview

Description

400W Cheap Model Dirty Water Submersible Electric Water Pump For Water Use For House



It is ideal for general submersible water applications such as able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation. emptying spas, hot tubs, pools, flooded basements or garden.



Please note that it is not suitable for 24 hour continuous operation such as powering garden water features or fountains as other sellers may imply.



Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C



Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8

Materials:
-Pump body: PP
-Impeller: PPO, stainless steel if request
-Shaft with rotor: 45# Carbon Steel, stainless iron if request



Technical Specification:



Fully Submersible

Floating switch adjustment system

Rated Power: 400W

Max. delivery capacity: 7500L/H

Max. delivery height: 5.0m

Max. submersion depth: 5m

Contaminated water with particle size of max.: 35mm

Fitting: 38mm (3/2")-/25mm(1") - universal fitting, option hose connection system parts

Min. water level for operation: 7cm

Max. media temperature: 35 °C

Cable Length: 10 Meters



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAINSIZE	CABLE AND LENGTH (M)	QTY/20”CTN(PC)
TP01085	400	5.0	7500	5	35MM	H05RN-F3G0.75mm2X10m	2040
TP01086	550	7.0	10500	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01087	650	7.5	11500	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01088	750	8.0	13000	7	35MM	H07RN-F3G1.0mm2X10m	2040
TP01089	810	8.0	13200	7	35MM	H07RN-F3G1.0mm2X10m	2040
TP01090	900	9.0	14000	7	35MM	H07RN-F3G1.0mm2X10m	2040
TP01091	1100	10.0	15000	7	35MM	H07RN-F3G1.0mm2X10m	2040

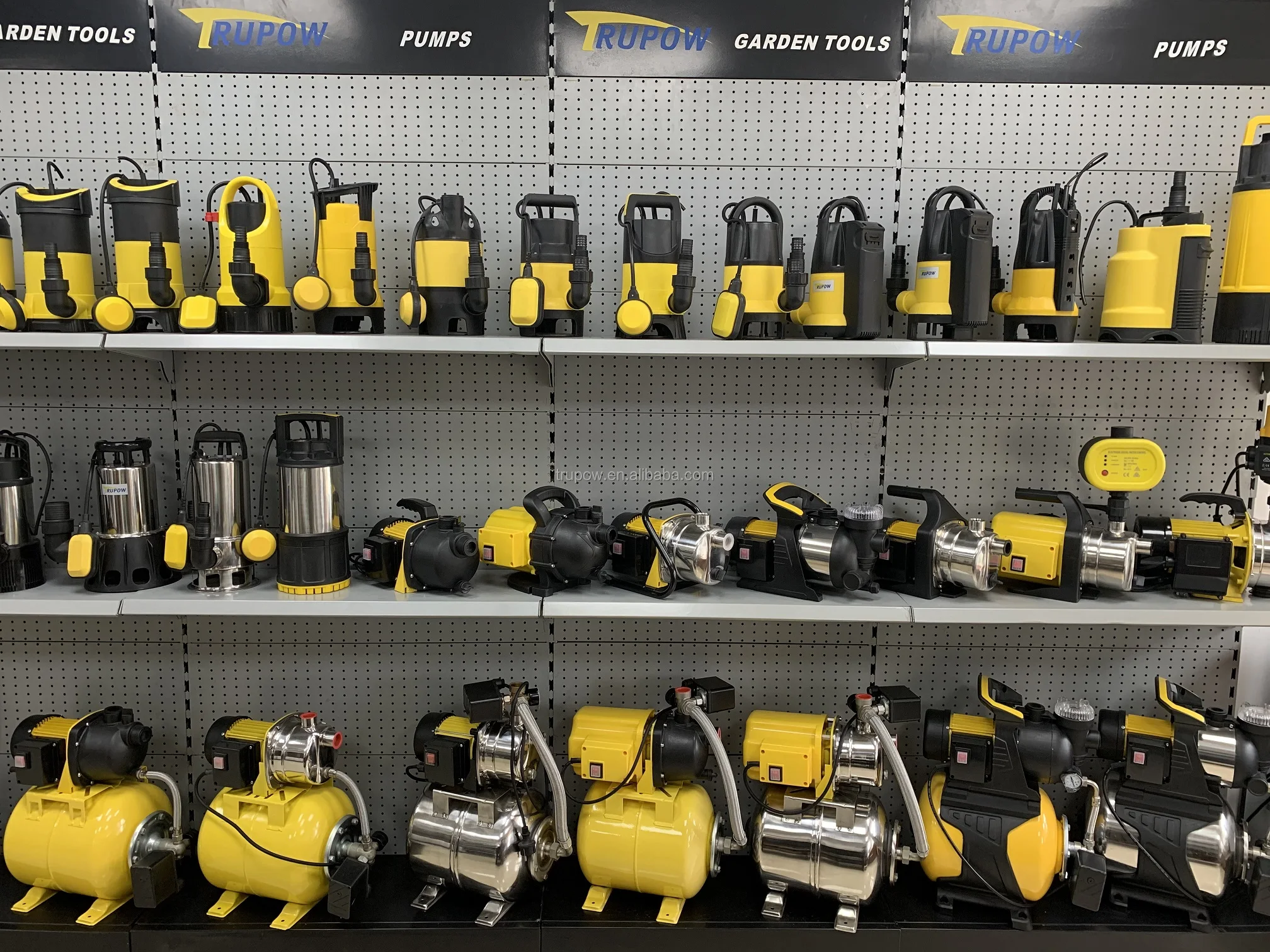

 Workshop More Photos
