Used Galvanized Steel Lamp Post Parking Lot Polygon Light Poles
- Category: >>>
- Supplier: Yixing Futao Metal Structural Unit Co. Ltd.
Share on (923557551):
Product Overview
Description
Used Galvanized Steel Lamp Post Parking Lot Polygon Light Poles
Company information
Product Description
1.new light poles
2.high quality light poles
3.most reliable light pole
4.high cost performance light pole
5.new style light pole
·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
(Other Material is Available on Request)
·Hot Dip Galvanized (≥86um)
·Any Color Polyester Powder Coated (≥100 um)
·Taper Conical , Octagonal, Polygon Section
·With demounted bracket design,easy loaded,install,and maintenance
·Theftproof slide lock
·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, residential light poles ,High Mast,highmast light poles
Height | From 5m to 16m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50,SS400,SS490, to ST52- |
Lamp power | 200 W- 2000 W (HPS/MH) 220V (+-10%) /50Hz |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |

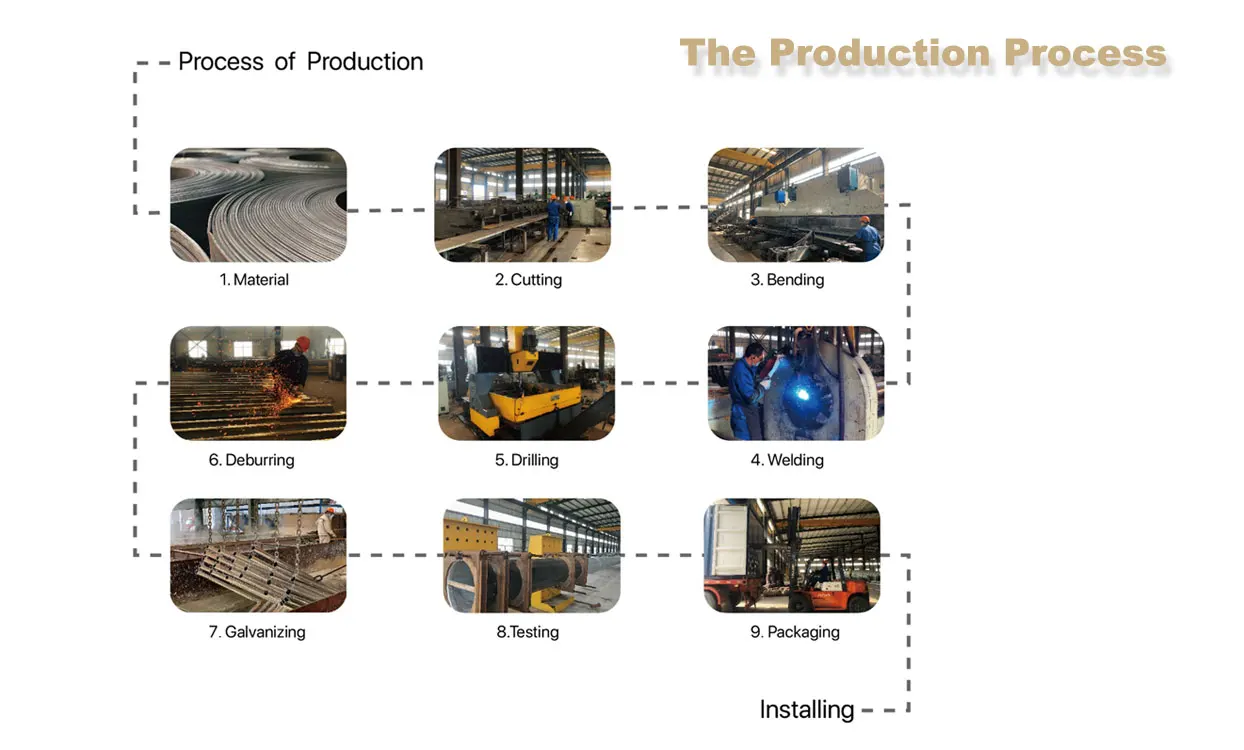

Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
