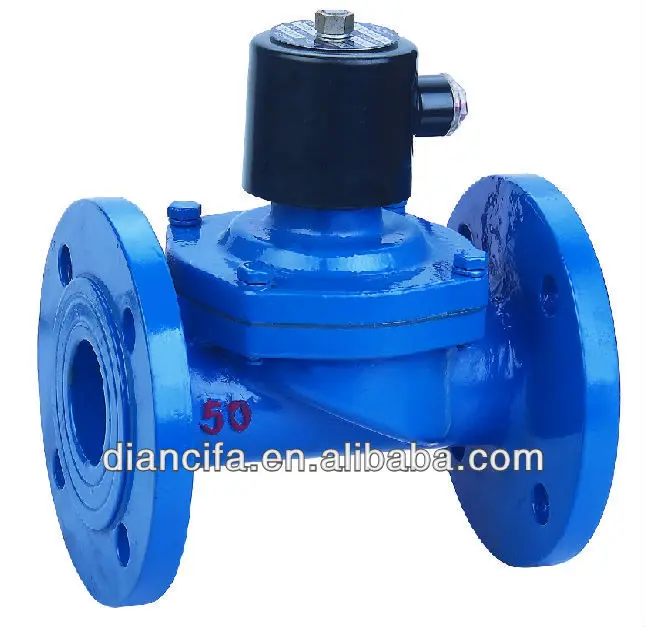

ZCM LPG SOLENOID VALVE FLANGE DN15~100MM
- Category: >>>
- Supplier: Yuyao No. 4 Instrument Factory
Share on (923598658):
Product Overview
Description
Technical specifications
24VDC LPG natural gas solenoid valve
Medium:fuel gas, coal gas
Temperature:-5~60 °C
Mode of action:Pilot operated/ direct drive
Pressure: 0~4 bar
Working mode: N/C, N/O
Body material: Brass, Stainless steel, cast iron
Sealing material: NBR
Protection class: IP65 OR IP54
PARAMETER
MODE | CONNETION | ORIFICE (mm) | CV Value | L(mm) | H(mm) | tem | pressure | volt | body material |
ZCM-3 | G1/8" | 3 | 0.22 | 41 | 75 | -5~60ºC | 0~4bar | AC220V/50HZ AC110V/50HZ 20VA;46VA;50VA DC24V/12V 28W;30W;30W | BRASS |
ZCM-5 | G1/4" | 5 | 0.6 | 53 | 90 | ||||
ZCM-10 | G3/8" | 10 | 2.1 | 69 | 117 | ||||
ZCM-15 | G1/2" | 15 | 4.5 | 69 | 117 | ||||
ZCM-20 | G3/4" | 20 | 7.5 | 73 | 124 | ||||
ZCM-25 | G1" | 25 | 12 | 99 | 135 | ||||
ZCM-32 | G1¼" | 32 | 22 | 115 | 154 | ||||
ZCM-40 | G1½" | 40 | 30 | 120 | 162 | 0~4bar | |||
ZCM-50 | G2" | 50 | 48 | 154 | 185 | ||||
ZCM-40F | Flange4~Φ18mm | 40 | 24.5 | 175 | 220 | Flange cast iron body brass | |||
ZCM-50F | Flange4~Φ18mm | 50 | 35 | 220 | 240 | ||||
ZCM-65F | Flange4~Φ18mm | 65 | 52.5 | 256 | 330 | cast iron | |||
ZCM-80F | Flange8~Φ18mm | 80 | 81.7 | 280 | 330 | ||||
ZCM-100F | Flange8~Φ18mm | 100 | 128.4 | 355 | 390 |
