50Liter jacketed chemical glass lined reactor Still machine

Share on:

Price:$2,399.00 - $2,680.00
Price in USD:Details


Product Overview


Company Information


YUHUA 50Liter jacketed  chemical glass lined reactor Still machine

Product Description

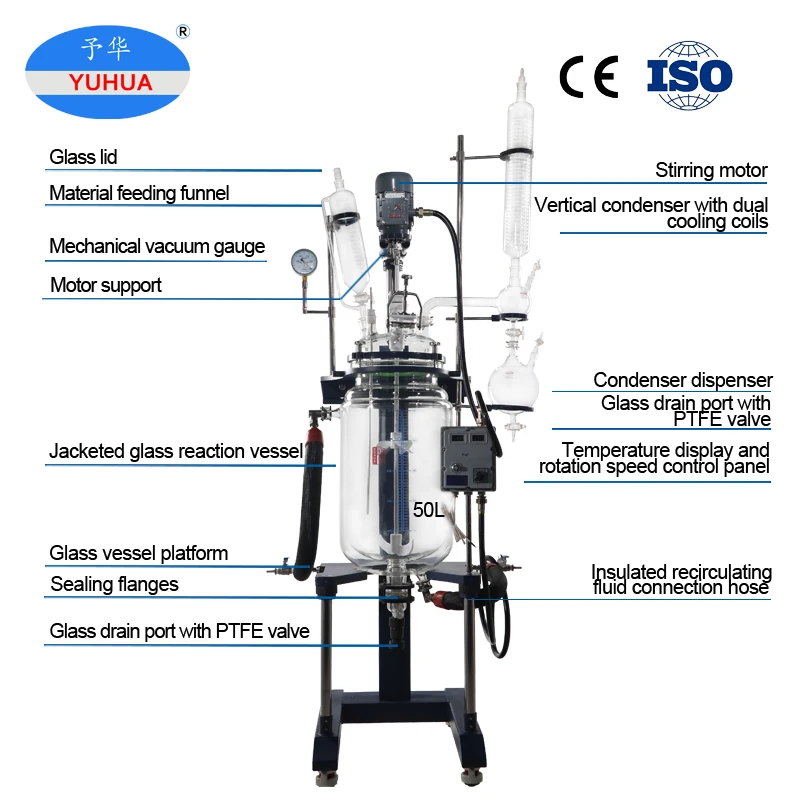

Jacketed glass reactor is a lab instrument which can be used for material mixing,heating,cooling,distillation and reflux etc experiment.

2).The material inside of the vessel inner layer can be mixed by PTFE coated agitator.

3).The inter-layer of the reactor is for go through with heating or freezing liquid,water or other high temperature liquid to heat up or cool down the material.

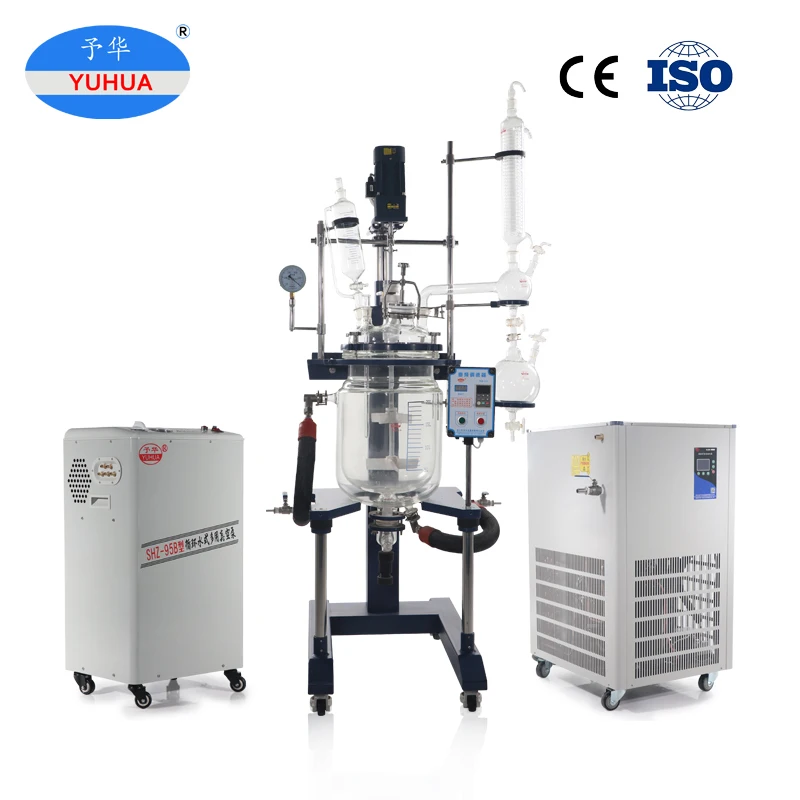

The heating and cooling equipment can be high temperature circulating bath,Low temperature coolant cooling chiller circulating device and heating & cooling all in one device etc closed refrigeration and heating equipment.

4) .The reactor vessel can be vacuumed by connect external vacuum pump.like water circulating vacuum pump,diaphragm vacuum pump etc.





Item No. XYSFT-50L EX
Vessel capacity(L) 50L(13.2gel)
Jacketed layer capacity(L) 16L(4.2gel)
 Temp.range(℃) -80~250
 Motor type Explosion proof
 Motor power(W) 180W


 1. Sample is available? Yes. YUHUA DNA is kind for all clients. And we  have materials  in stock to finish sample in short time.
2. Can you send to my adress? Yes. we have many kind shipping forwarder to support best shiping cost. We will pay extra delivery fee once order confirmed with DDP;
3. I need more support on installation,can you? Yes. we will take video,pictures to explain according to your confused. And there are many finished asembly products in our showroom, workshop, sales office to support us.
4. How long the warranty? 1 years for core parts,excpet glassware parts. But if the glassware parts already brokend after opening box,we will replace new.
5. How you gurranty the quality?  We have own quality inspection department. We produce according to ISO9001.
