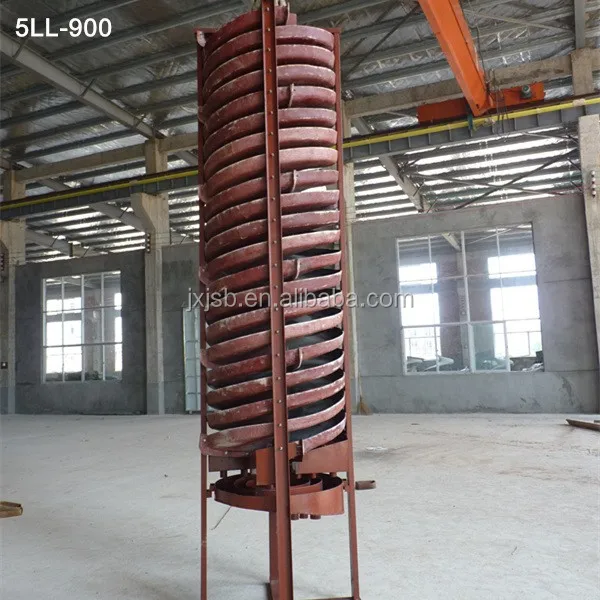

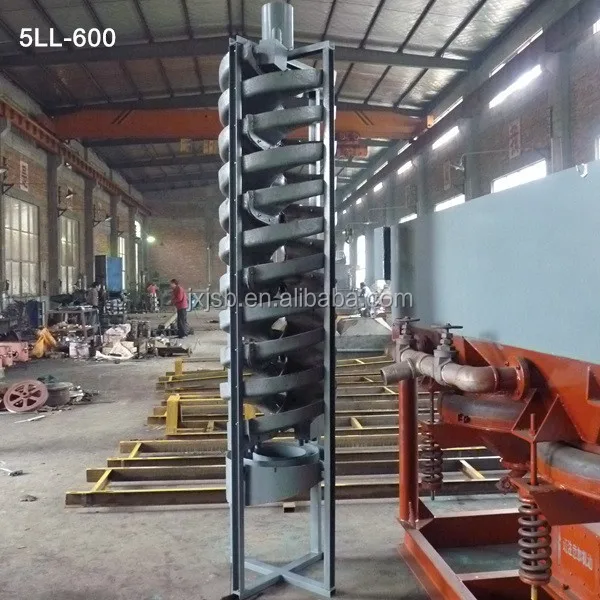

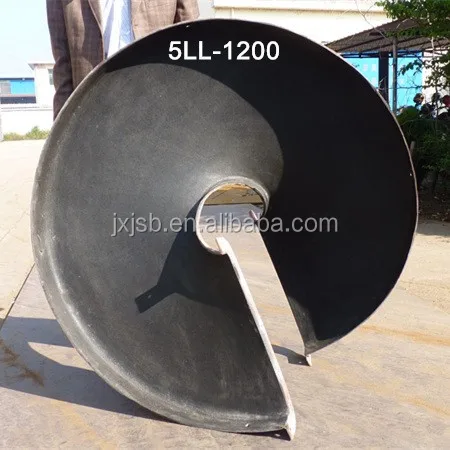

Mining Spiral Chute (5LL-400)



1. Principle and Application of  Mining Spiral Chute



    Mining Spiral Chute is new equipment with the domestic advanced level, successfully invented by Beijing General Research Institute of Mining and Metallurgy. It is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.

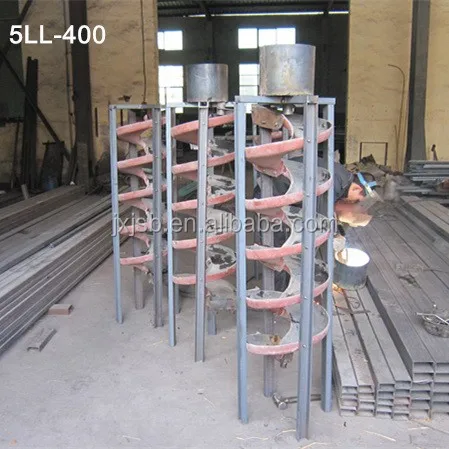

    5LL-400 Chromite spiral chute is a laboratory one, and the smallest spiral chute in theory.











2. Descriptions of Mining Spiral Chute

   Mining Spiral Chute

    Mining Spiral Chute is our company's concentrating scientific product, good for concentrating sand ore in beach, riverside, seashore and stream.


    The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; The advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.



 3. Structure of Mining Spiral Chute

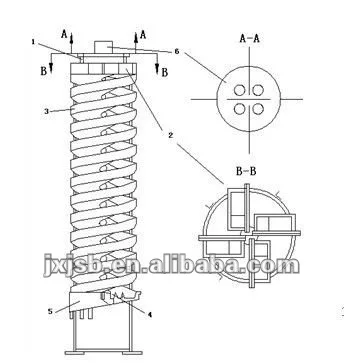

1. Channel steel support  2. Feeding box  3. Helical sluice

4. Product separator  5. Collector  6. Distributor







4. Technical Specifications of Mining Spiral Chute



Model		5LL-2000	5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
Feeding size(mm)		4-0.04	0.8-0.037	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding density(%)		20-45	25-50	25-55	25-55	25-55	25-55
Capacity(t/h)		15-40	6-8	4-6	2-3	0.8-1.2	0.1-0.2
Size	Length (mm)	2300	1560	1360	1060	700	460
	Width (mm)	2300	1560	1360	1060	700	460
	Height (mm)	6500	5230 / 4360	5230/4360	4000	2150	1500
Weight(kg)		1400	800	600	450	350	140



5. Features of Mining Spiral Chute

• Non-required power
• And precise separation
• High recovery, high efficiency
• Low operating cost and long working life
• Reliable running with minimal operator attention
• Light in weight, anti corrosion, rust and wear resistant
• Simple installation and Minimal maintenance requirements
• Strong adaptability to fluctuation of feeding amount, density, size and grade.
• Mining Spiral Chute is generally made from fiber glass, hand made by the workers.
• The surface of corundum forms strong friction concentration effect surpass plastic surface
