CYG Adhesive lined Tubular Heat Shrink sleeve

Product Overview

Description

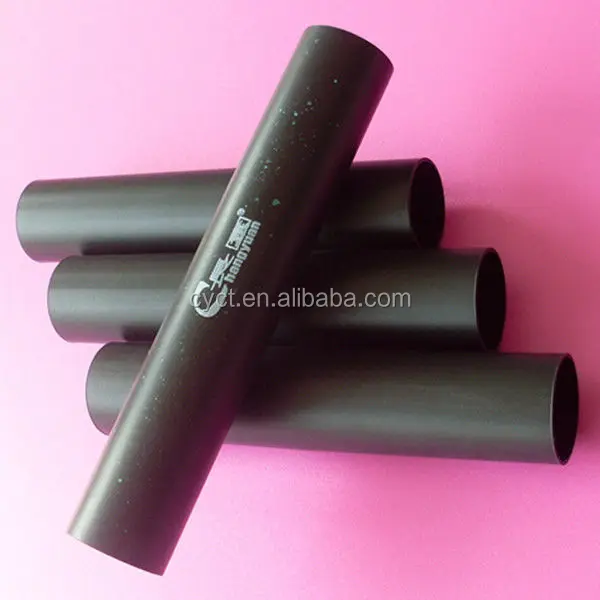

     CYG Adhesive lined Tubular Heat Shrink sleeve

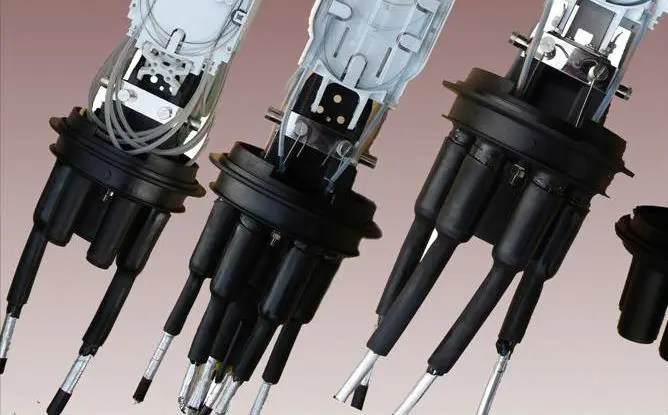

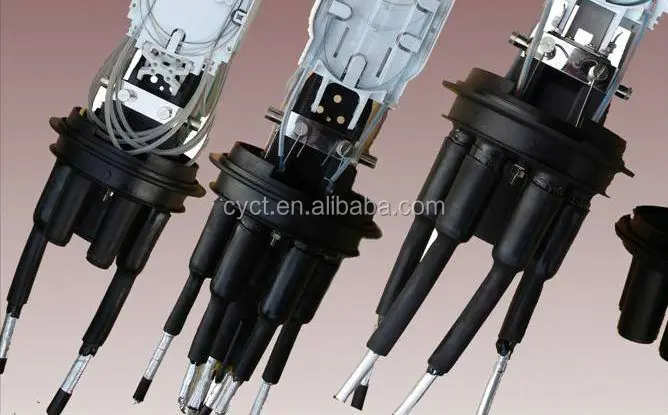

CYG Adhesive lined Tubular Heat Shrink sleeve  is used to seal Fiber optic splice closure.

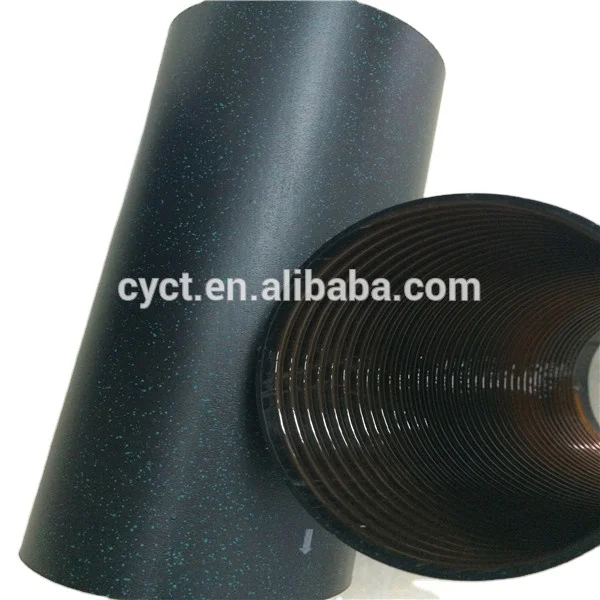

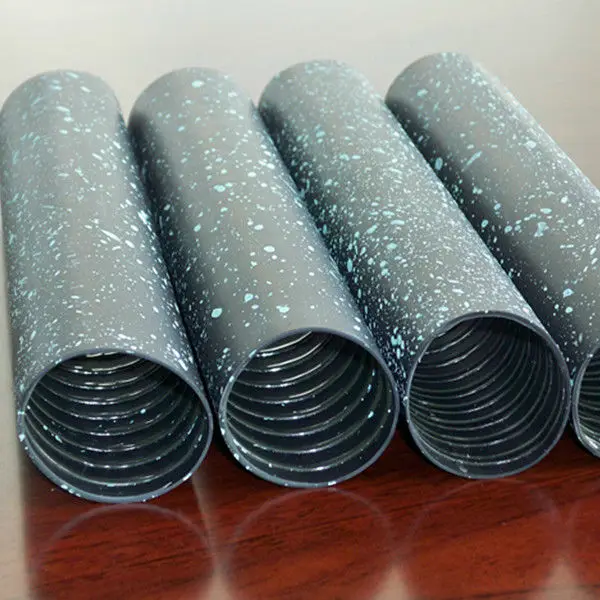

The inner adhesive lined coating or spiral lined adhesive coating inside guarantees a tight and reliable bonding to the closure.

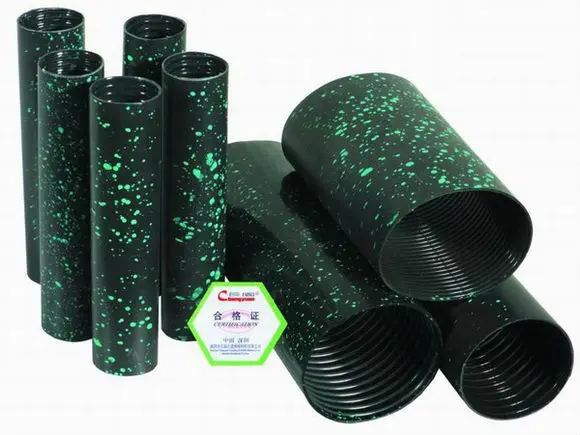

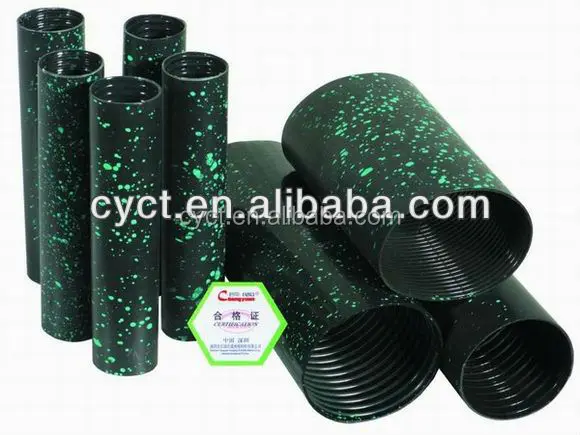

A thermo sensitive paint on the outside of the tubing indicates that proper shrink temperature by changing its color.







Adhesive lined Tubular Heat Shrink sleeve Features:

-hot-melt adhesive can resistant water and moisture

-easy installation, no special skills or equipments are necessary for installation

-conversion of thermo-sensitive color for indication of proper shrink temperature

-high shrink ratio of RSY allows it to accommodate different cable diameters.





FRY Adhesive lined Tubular Heat Shrink sleeve Specification



Type	Diameter as supplied	Recovered diameter	Recovered thickness
Φ28/6	28	6.00	2.5
Φ33/8	33	8.00	2.5
Φ35/12	35	12.0	2.5
Φ40/12	40	12.0	2.5
Φ45/13	40	13.0	2.5
Φ55/16	55	16	2.7
Φ65/19	65	19	2.8
Φ75/22	75	22	3.0
Φ85/25	85	25	3.0
Φ95/25	95	25	3.0

We can design and compound special specification products according to the customer’s requirements.



 FRY Heat Shrink sleeve Technical Data

Property	Test Method	Typical Data
Tensile strength	ASTM D2671	≥ 14MPa
Elongation at break	ASTM D2671	≥ 400%
Elongation at break after aging	ASTM D2671/150º C, 168hrs	≥ 300%
Density	ASTM D792	0.94g/cm3
Eccentricity	ASTM D2671	< 30%
Longitudinal shrinkage	UL224	5~8%
Dielectric strength	IEC243	≥ 20kV/mm
Volume resistivity	IEC93	≥ 10 14 Ω · cm
Copper stability	ASTM D2671	Pass
Water absorptive	ISO 62/23 º C, 14days	< 0.15%
Adhesive
Water absorptive	ISO 62	< 0.1%
Softening Point	ASTM-E28	90°C
Peel strength to stainless steel	DIN 30672	50N/cm
Peel strength to PE	DIN 30672	70N/cm
Copper stability	ASTM D2671	Non-corrosive
Resistance to fungus and decay	ISO 846	Pass





Pls. feel free to contact us for more information of CYG Adhesive lined Tubular Heat Shrink sleeve
