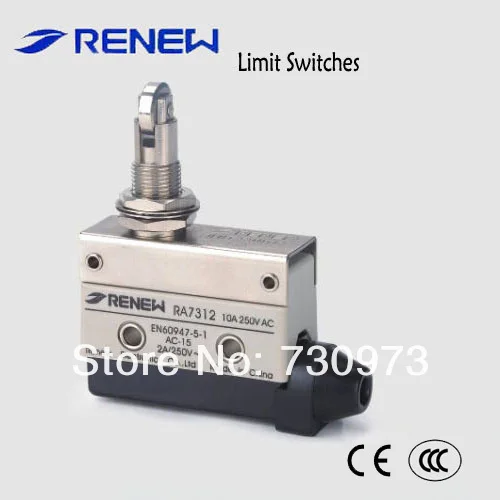

RL7312 Panel mount cross roller plunger limit switch Compact size limit switch
- Category: >>>
- Supplier: Yueqing Renew Electronic Co. Ltd.
Share on (925775443):
Product Overview
Description
RL7312 Panel mount cross roller plunger limit switch Compact size limit switch
Product Description
RL7 series omron limit switch panel mount cross roller plunger type
Part Number: RL7312
Rated value and characteristics of limit switch Rl7 series
Rated working current | 10A 125V, 250VAC; 0.4A 115VDC(resistor load) | ||
Contact type | Contact resistance (initial value ) | Under 15 mΩ (not include copper resistance ) | |
Contact material | Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize | ||
Electrical | Insulation resistance (initial value) | 100 mΩ min. (use the DC500V insulation resistance test) | |
Dielectric strength | Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between dead metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
| ||
Mechanical | Shock resistance | In the free position | Less than 98m/s2(10G) |
In the full operating position | Less than 294m./s2(30G) | ||
Vibration resistance | 1.5mm double amplitude 10-55HZ (contact gap is under 1 ms) | ||
Expected Life | Mechanical | 10,000,000 operations min. (on/off frequency 50 operations/min) | |
Electrical | 200,000 operations min.(on/off frequency is 20 operations/min) | ||
Using condition | Ambient temperature /Ambient humidity | -20~+60 (with no icing), 95%RH max. (at +5~20) | |
The max on/off frequency | 120 operations/min | ||
Operating characteristics of limit switch RL7312
| Item | Characteristics |
| OF Max | 600gf |
| RF Min | 100gf |
| PT Max. | 2.0mm |
| MD Max. | 0.8mm |
| OT Min. | 6.0mm |
| OP | 33.3±1.2mm |

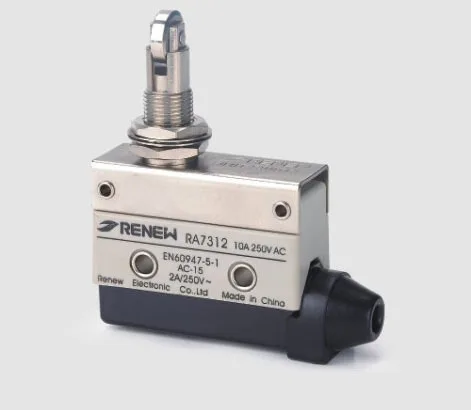

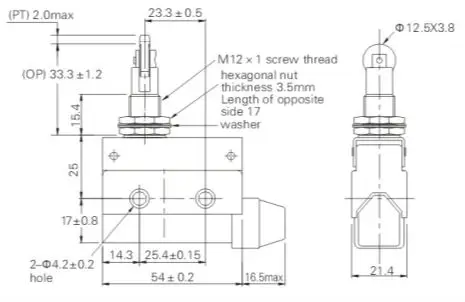

Picture and demension of limit switch RL7312
Packaging & Shipping
Our Services
Warranty period: 12 months.
Company Information
Our company was founded in 1996, We are specialized in developing and producing micro-switch, limit switch, travel switch, toggle switch
All kinds of test machine:
Workshop:
WHY CHOOSE US?
1. More than 27 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL. ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.
FAQ
1.Q:What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. We do not have a paypal account at present.
2. Q: Do you have a price list?
A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.
3. Q: What are your warranties?
A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
4. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
5. Q: What about the package?
A: All use thickening export carton with "RENEW" mark, your specified mark or none.
6. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
7. Q: Do you accept small order quantity?
A: Yes, order quantity without limited.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
9.Q: Do you bear the freight charge?
A: We can offer you EXW, FOB or CIF price.
