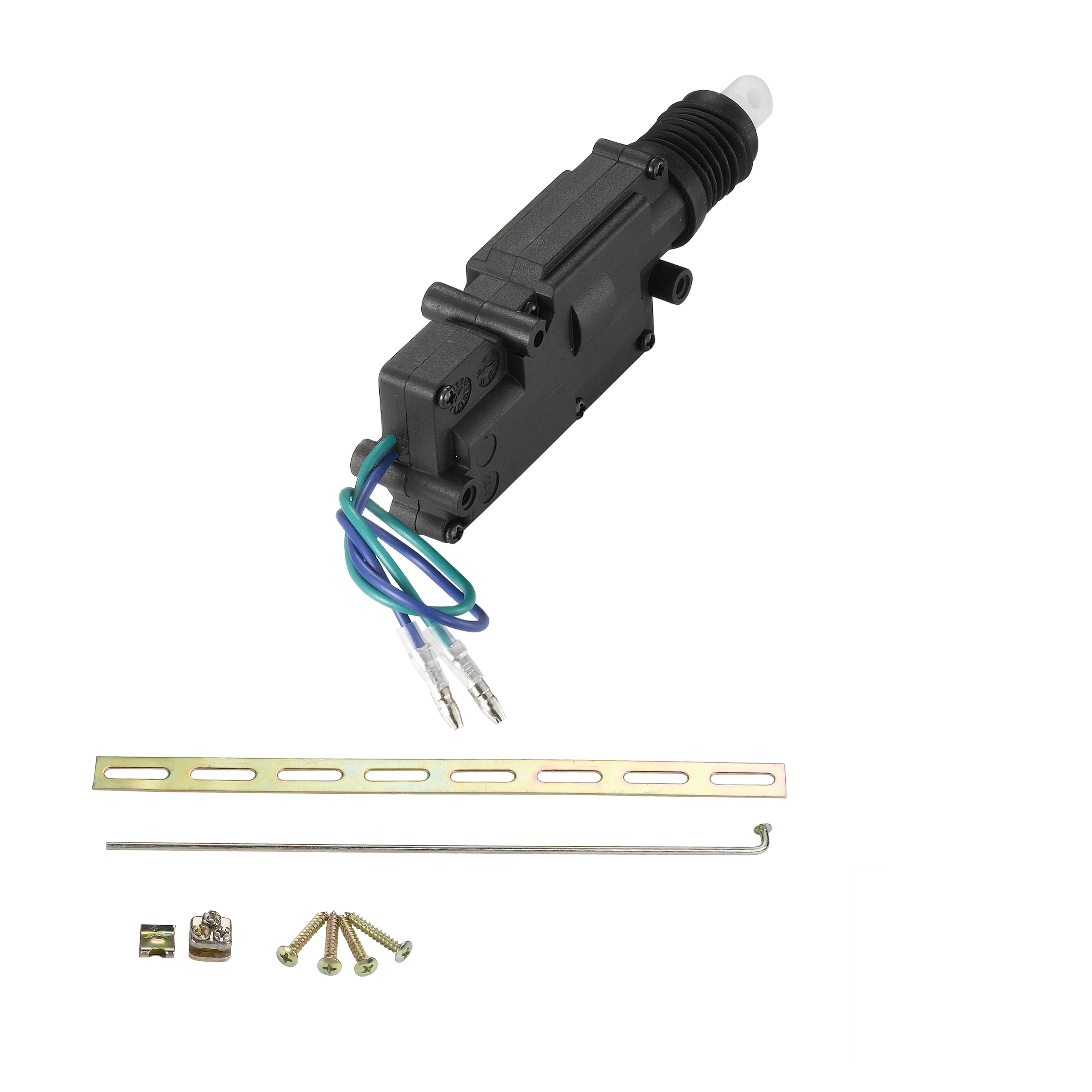

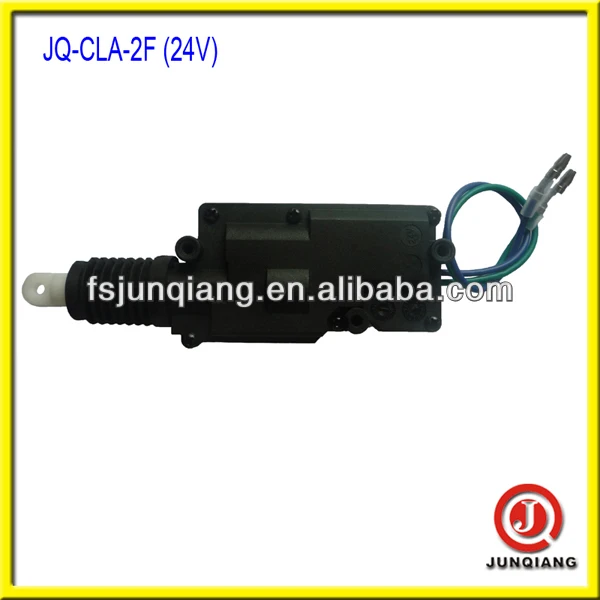

24V Clutch Type 2 Wire Power Door Lock Actuator
- Category: Central Locking System >>>
- Supplier: Foshan Jun Qiang Car Accessories Factory [Guangdong China]Foshan
Share on (925887909):
Product Overview
Description
Product Description
- Clutch type power door lock actuator
- Universal features, fits any model of any brand
- Heavy-duty, high torque motor
- Motor with Japanese technology
- Covers fixed with screws
- Nylon housing
- Patented double track design, moving more stable and anti-block
- Adjustable positioning hardware for easy installation and quiet operation

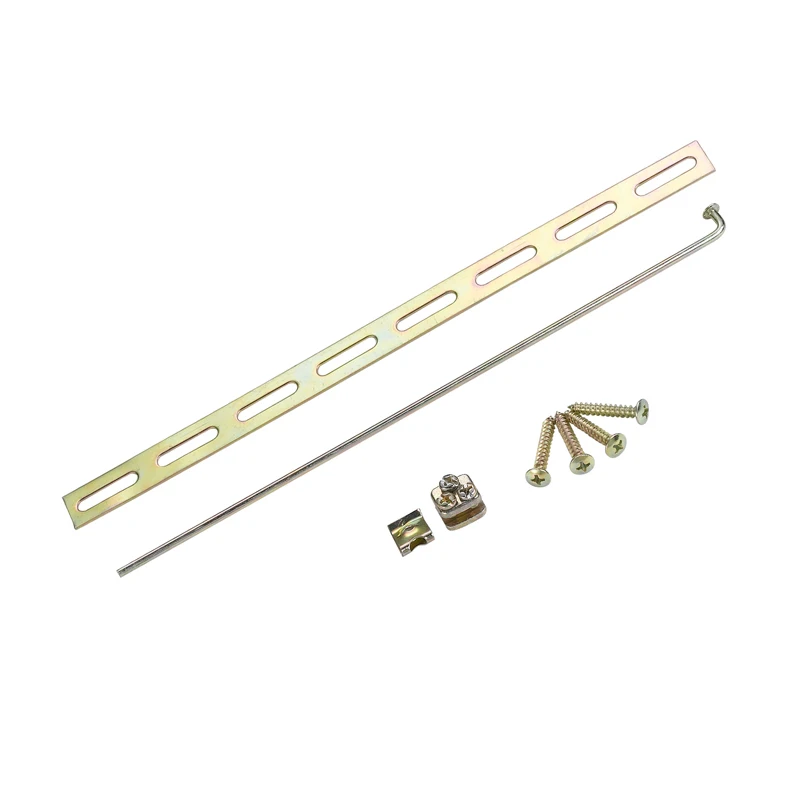

- Hardware with eight mounting holes for flexible installation
- Working temperature: -30 to +85 degrees Celsius
- Life time: 100,000 times min.
- Push/pull force: 5.5-6 kgs
- Working Voltage: DC 24V +/- 2V
- No load current:≤0.5A
- Load current: 2-3.5A
- Operating pulse: 0.3-0.4 second
- Time of 1 cycle: 6 seconds, can work continuously
- System of control: negative ground
- 360-degree swivel head
- Travel distance: 18 +/- 1 mm
- 5 wire version is avaialble
