Geological Inclination Survey Instrument Drilling Hole Digital Inclinometer

Product Overview

Description

Geological Inclination Survey Instrument Drilling Hole Digital Inclinometer



Main Applications :

Widely used to measure vertex and azimuth in various kind of non-magnetic and weak magnetic geological drilling borehole

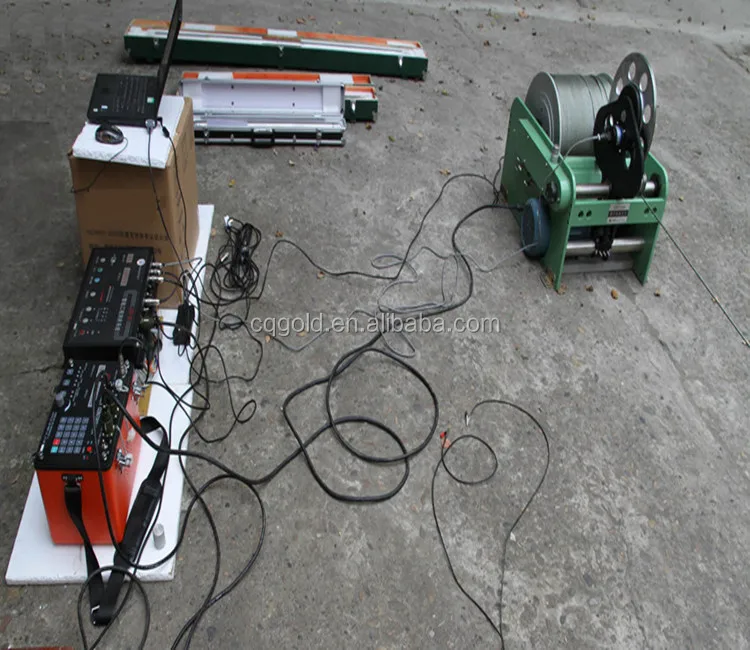

System component:

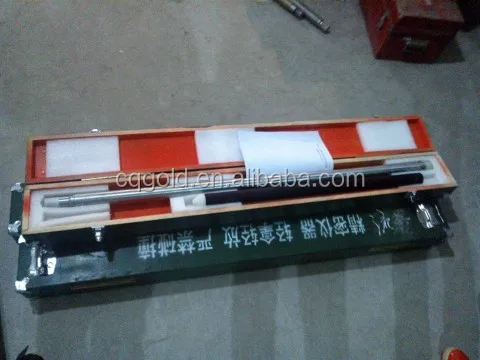

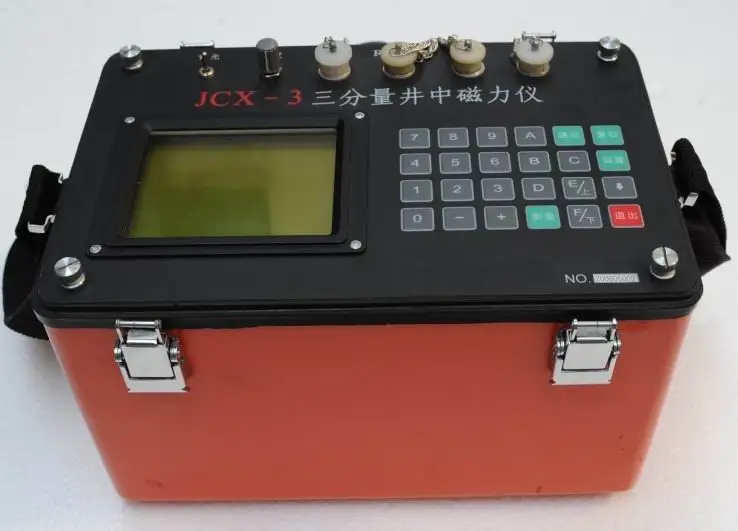

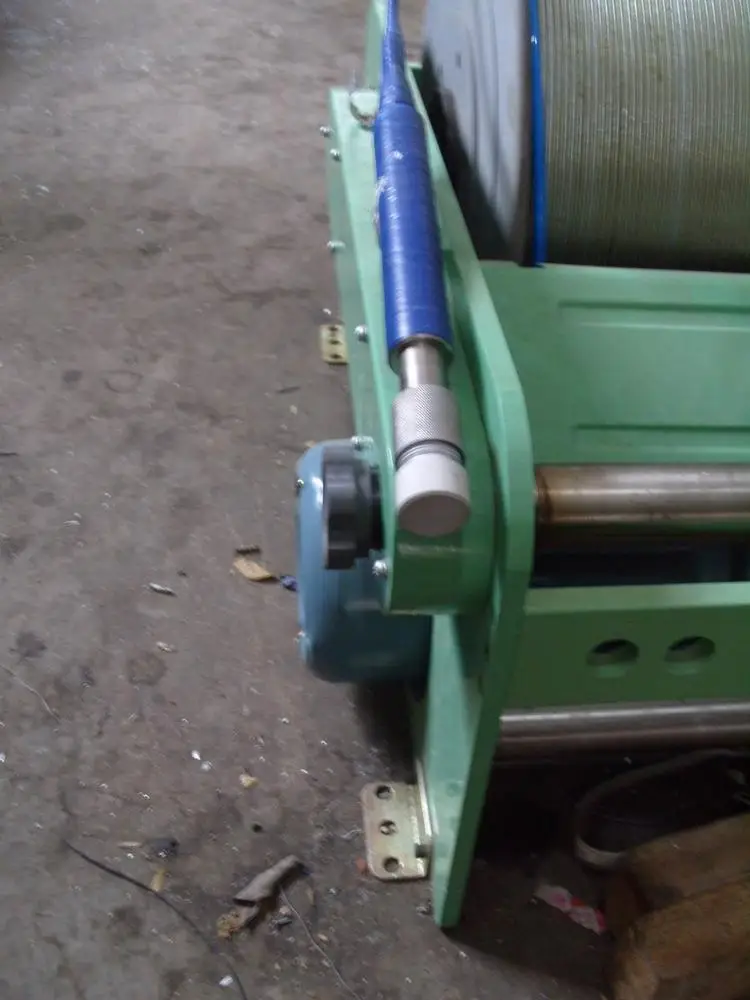

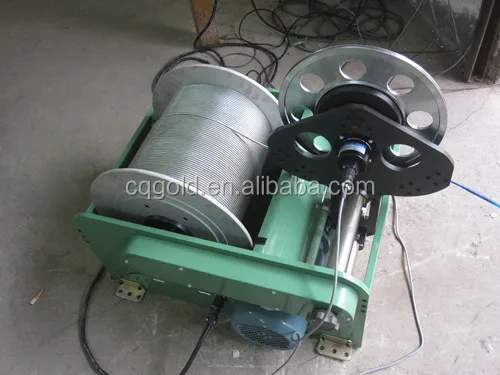

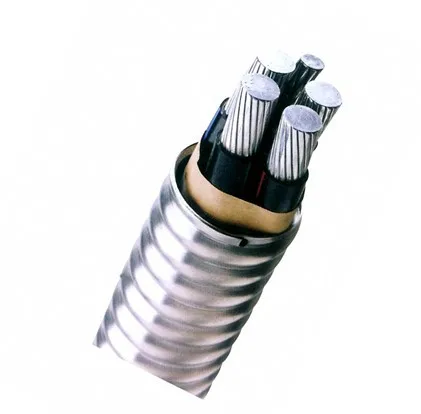

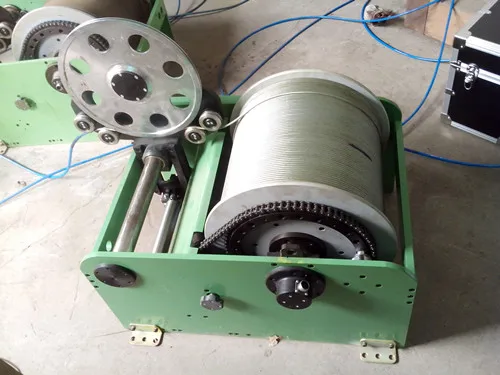

Main instrument, probe, cable and other components





Features:

• Direct-reading of vertex and azimuth


• Digital display, point measurement or continuous measurement


• Simple, reliable operation

Main Technical Specifications

Vertex Coverage: 0~60°

Vertex Accuracy: ≤ 0.1°

Azimuth Coverage: 0~360°

Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)

Working Temperature: 0~85 °C

Probe Outline Dimension: φ42×1000 mm

Ground Instrument Dimension: 240×95×140mm

Probe Weight: 2 Kg (weighing bar 5 Kg)

Probe Downhole Length: ≤1000.
