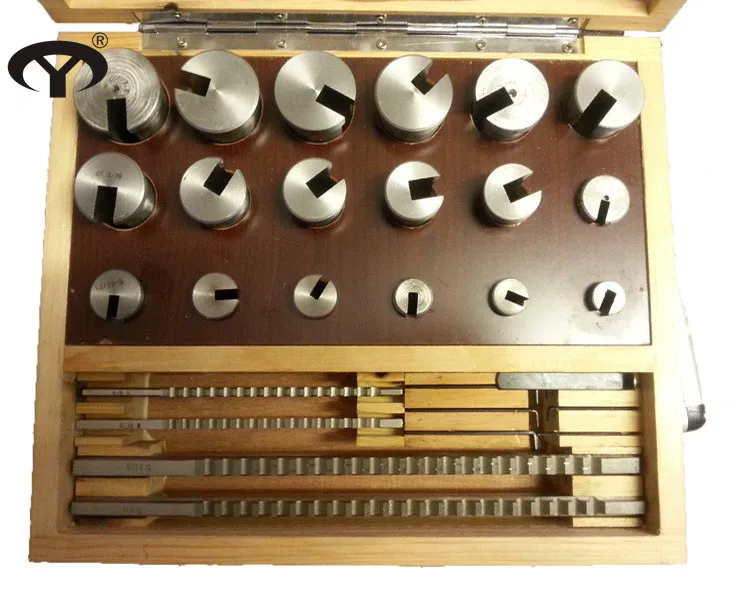

 HSS American Standard Imperial Keyway Broach Sets

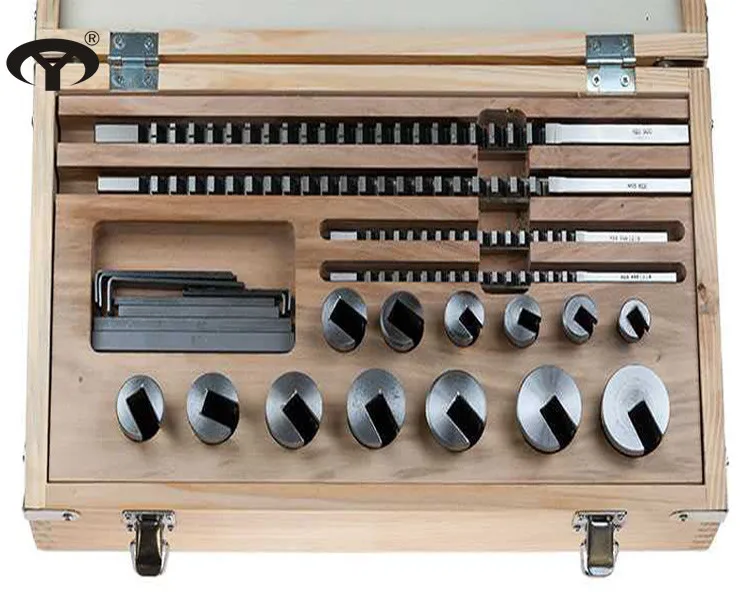

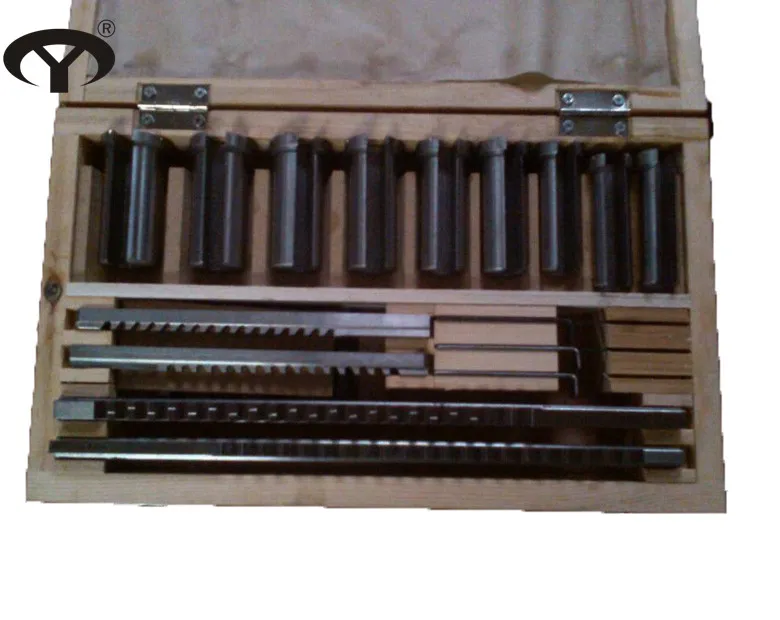

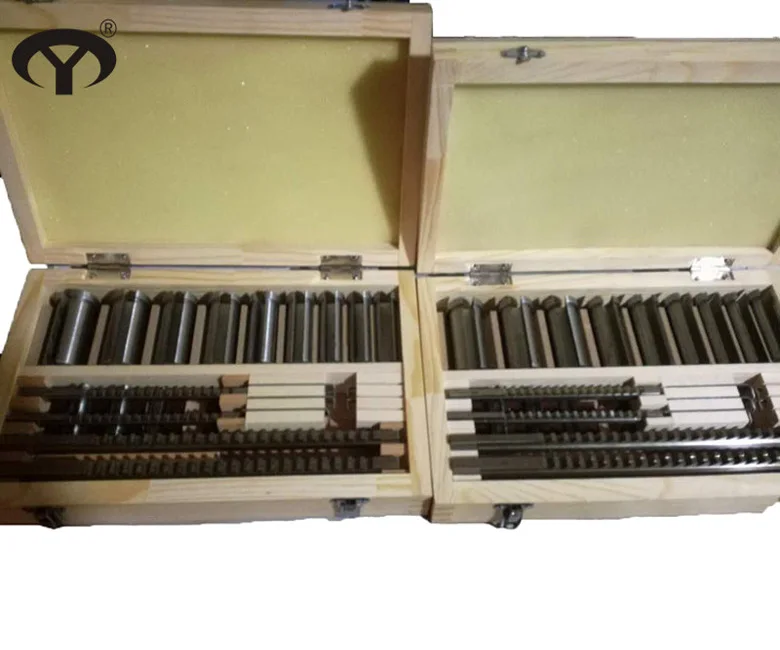

Keyway Broach Sets in extra strong wooden cases Chongqing Yuqing

Yuqing keyway broach sets are ideal für engineering works, mechanical workshops, repair and maintenance departments of industrial business, apprentice shops and many more.

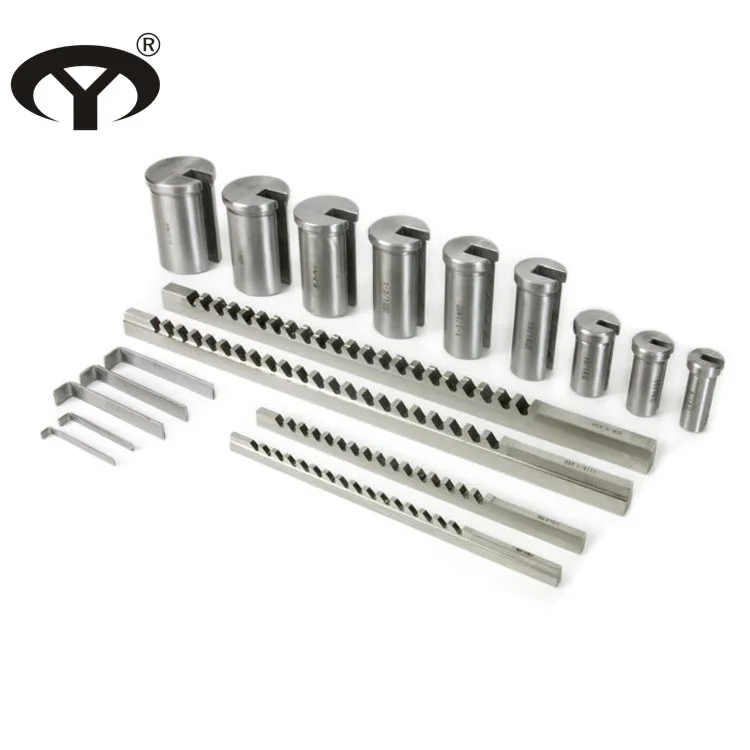

Our Broach Sets feature the most common combinations of American Standard Keyway Broaches (1/16" - 3/4") and Bushings (1/4"- 3").

No. 00 Precision SetEDP No. 11101	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common combinations for small keyways and bores. 3 Broaches and 5 Bushings = 15 keyway combinations. Collared A Bushings
	1/16 , 3/32 , 1/8	A	1/4, 5/16, 3/8, 7/16, 1/2

No. 10 Standard SetEDP No. 11104	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Our best selling Broach Set. 4 Broaches and 9 Bushings = 18 keyway combinations. Collared B and C Bushings
	1/8 , 3/16	B	1/2, 5/8, 3/4, 7/8
	1/4 , 3/8	C	1, 1 1/8, 1 1/4, 1 3/8, 1 1/2

No. 10A Standard SetEDP No. 11108	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Same as No. 10 Set, but for sixteenth-sized bores. 4 Broaches and 9 Bushings = 18 keyway combinations. Collared B and C Bushings
	1/8 , 3/16	B	9/16, 11/16, 13/16
	1/4 , 3/8	C	15/16, 1 1/16, 1 3/16, 1 5/16,1 7/16, 1 9/16

No. 10-10A Combination SetEDP No. 11120	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Combines 10 and 10A sets. Features all bore sizes in 1/16 inch increments. 4 Broaches and 18 Bushings = 36 keyway combinations. Collared B and C Bushings
	1/8 , 3/16	B	1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8
	1/4 , 3/8	C	15/16, 1, 1 1/16, 1 1/8, 1 3/16,1 1/4, 1 5/16, 1 3/8, 1 7/16, 1 1/2,1 9/16

No. 20 Combination SetEDP No. 11121	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Same as No. 10-10A combinaton set, but adds a 5/16 inch keyway for 11 extra combinations. 5 Broaches and 18 Bushings = 47 keyway combinations. Collared B and C Bushings
	1/8 , 3/16	B	1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8
	1/4 , 5/16 , 3/8	C	15/16, 1, 1 1/16, 1 1/8, 1 3/16,1 1/4, 1 5/16, 1 3/8, 1 7/16, 1 1/2,1 9/16

No. 30 Standard SetEDP No. 11112	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
A great starter set. 3 Broaches and 9 Bushings = 15 keyway combinations. Collared B and C Bushings
	1/8	B	1/2, 5/8, 3/4
	3/16 , 1/4	C	7/8, 1, 1 1/8, 1 1/4, 1 3/8, 1 1/2

No. 30A Standard SetEDP No. 11116	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Same as No. 30 Set, but for sixteenth-sized bores. 3 Broaches and 9 Bushings = 15 keyway combinations. Collared B and C Bushings
	1/8	B	9/16, 11/16, 13/16
	3/16 , 1/4	C	15/16, 1 1/16, 1 3/16, 1 5/16,1 7/16, 1 9/16

No. 30-30A Combination SetEDP No. 11124	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Combines 30 and 30A sets. Features all bore sizes in 1/16 inch increments. 3 Broaches and 18 Bushings = 30 keyway combinations. Collared B and C Bushings
	1/8	B	1/2, 9/16, 5/8, 11/16, 3/4, 13/16
	3/16 , 1/4	C	7/8, 15/16, 1, 1 1/16, 1 1/8, 1 3/16,1 1/4, 1 5/16, 1 3/8, 1 7/16, 1 1/2,1 9/16

No. 40A SetEDP No. 11127	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common keyway combinations for medium-sized keyways and bores. 4 Broaches and 8 Bushings = 32 keyway combinations. Plain D Bushings
	5/16 , 3/8 , 7/16 , 1/2	D	1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8,2 1/4, 2 1/2

No. 40 SetEDP No. 11129	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Same as No. 40A, but for sixteenth-sized bores. 4 Broaches and 8 Bushings = 32 keyway combinations. Plain D Bushings
	5/16 , 3/8 , 7/16 , 1/2	D	1 7/16, 1 9/16, 1 11/16, 1 13/16,1 15/16, 2 3/16, 2 7/16, 2 15/16

















Broach series: Round broach , parallel side spline broach , keyway broach , push type round broach, push type parallel side spline broach, triangle spline broach,involute spline broach, square broach, hexagonal broach, forme broach





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
