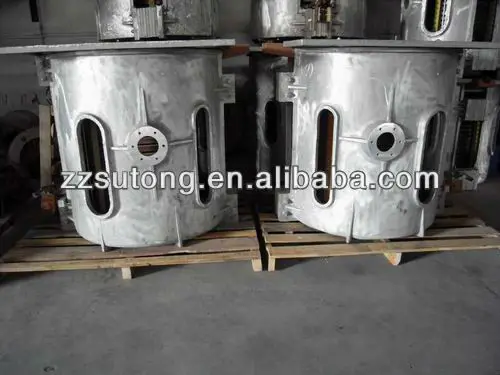

300KG Induction Copper Melting Furnace with automatic industrial furnace

Product Overview

Description



300KG Induction Melting Furnace For Gold

 automatic tilting industrial furnace



Industrial furnace application:

This is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel, silver and other ferrous or non ferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube- bending forming in casting and melting industries.



Performance and features:

1. Zero-voltage scanning soft start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost , low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution , easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.



 copper melting induction furnace main technical parameters:



Type	Capacity (t)	Medium frequency Power	Input voltage (V)	Frequency (Hz)	Melting rate (t/h)	Power consumption(d/t)	Transformer rated capacity(KVA)
GWT-0.05	0.05	30	380	2500	0.05	550	50
GWT-0.2	0.2	100	380	1000	0.2	550	160
GWT-0.35	0.35	160	380	1000	0.3	550	200
GWT-0.75	0.5	250	380	1000	0.5	550	315
GWT-1	1	400	380	1000	0.8	550	500
GWT-1.5	1.5	500	660	500	1	500	630
GWT-2	2	600	660	500	1.2	480	630-800
GWT-3	3	1000	660	500	2.3	450	2000
GWT-5	5	1500	950	300	3.5	420	1600
GWT-10	10	2000	950	300	5	410	4000
