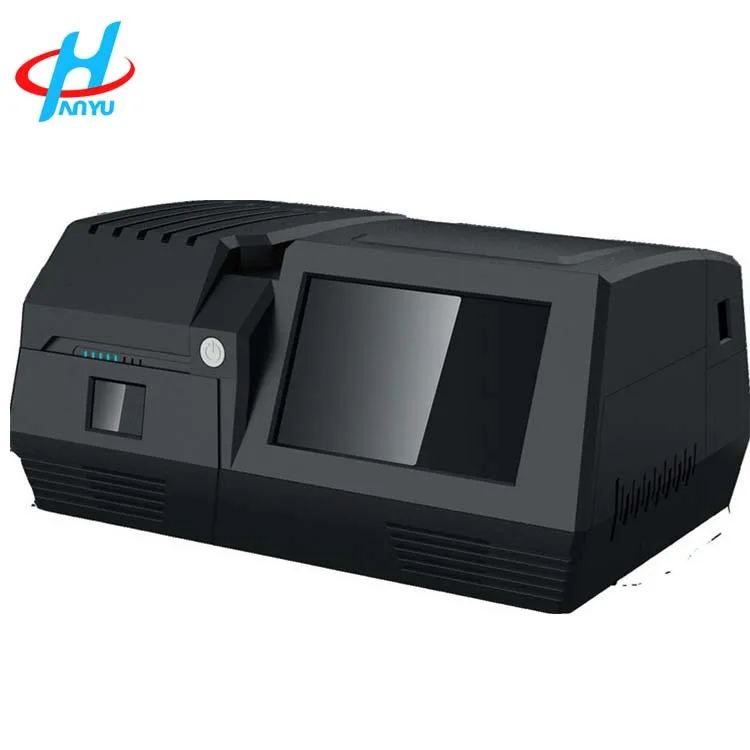

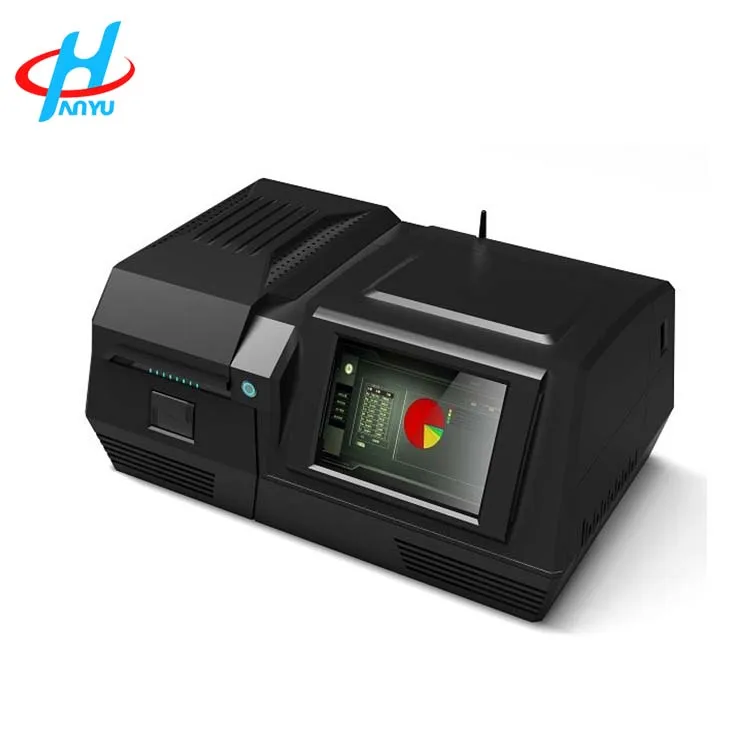

EXF8200 electronic gold tester

Product Overview

Description

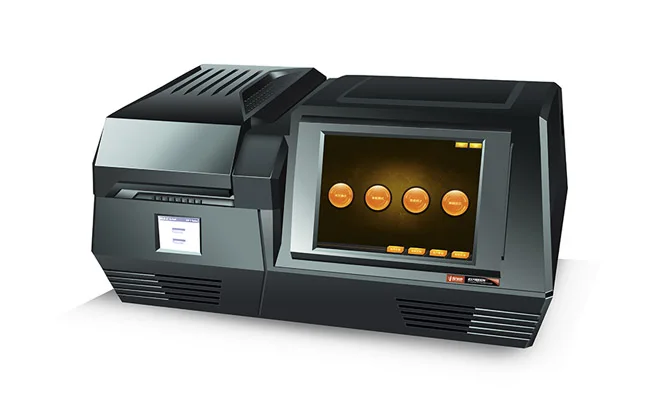

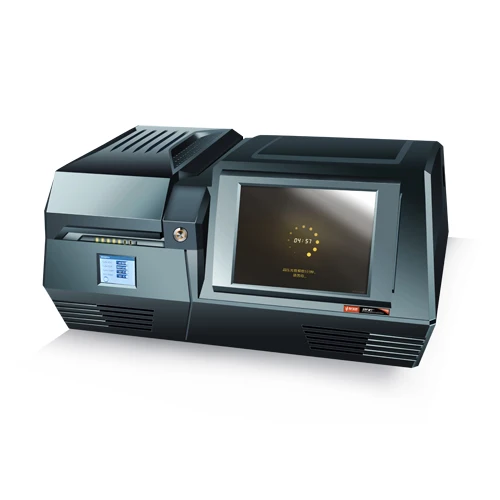

EXF8200 china high efficiency xrf gold tester



Quick Detail:
EXF8200 is an ideal instrument for noble metal analysis, which
integrated an industrial computer with industrial motherboard &
multi-point hand touch.
Competitive Advantage:
 Precision: ±0.1%
 Inbuilt industrial motherboard & multi-point hand touch
 Competitive price
 Integrity Display

Description:
EXF 8200 is integrated an industrial computer with industrial
motherboard & multi-point hand touch. Providing best operation
experience.

It is designed exactly to security standards with active radiation
protection, high voltage protection and X-ray tube overheating protection.
Warm-up and anti-interference procedure is controlled by the program,

to reduce the interference by the reflected X-ray and the spectrums, to
add the accuracy and stability.
Optional colors for different elements will help to distinguish the
interested elements clearly and conveniently. When the testing is over,
the testing report will be shown timely.
Applications:
Fast, precise and non-destructive metal testing for jeweler retailers,
jewellery manufacturers, precious metal refineries, pawn shops







Basic parameters
Working Priciple	Energy Dispersive X-Ray Fluorescence
Measurement & Weight	670*400*330mm/33kg
Precision	±0.1%
Expanded uncertainty	≤0.36%
Operating Environment	Temperature-11~46°C Humidity≤70%
Operator requirement	Above senior middle school eduction
Instrument  standard configuration
High Voltage	0~50kv (Made in China) 0~1mA
Detector	Gas proportional detector (Made in China)
Main structure	High-strength metal frame  + industry plastic shell
Integrated Computer	Industrial Integrated PC
Inbuilt Touch Screen	9.7"
Printer	No printer
X-ray Source	Mo material x-ray light tube (wind cool,no radiation)
Testable Elements	AU AG PT PD CU IR CD (7 elements)
Input votage	100-240V
Rated power	150W
