L61 series horizontal broaching machine/maquina de brochado horizontal
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (929249277):
Product Overview
Description

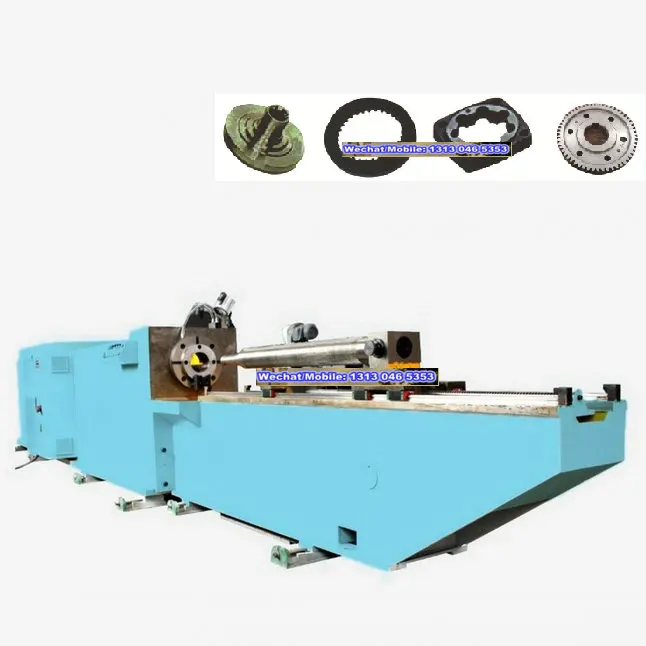

L61 Series horizontal broaching machine
Recommended Broacher
Main Usage
This kind of broaching machine is mainly used for machining inner holes of various types of parts, such as round holes, squred splined holes, holes with single key, involute profile and others.
Main Technical Data
Specifications | Unit | L6120F broaching | L6140F |
Rated pulling capacity | kN | 200 | 400 |
Nominal working stroke | mm | 1600 | 2000 |
Working stroke speed (stepless) | m/min | 1.5~7 | 1.5~7 |
Return stroke speed (stepless) | m/min | 3~18 | 3~18 |
Bore diameter of the faceplate | mm | Φ150H7 | Φ150H7 |
Bore diameter of end-plate bearing | mm | Φ250H7 | Φ250H7 |
Operation height | mm | 850 | 850 |
Main oil pump flow | L/min | 252 | 252 |
Max. working pressure | MPa | 13 | 13 |
Size of end-plate | mm | 640×550 | 640×550 |
Axial plunger pump for main drive |
| A3H180-FR14K | A3H180-FR14K |
Displacement | mL/r | 180 | 180 |
Max. working pressure | MPa | 16 | 16 |
Rotated working pressure | MPa | 11 | 11 |
Motor for main drive |
| Y225M-4-B35 | Y225M-4-B35 |
Auxiliary pump - Variable Vane Pump |
| SVPF-40-70 | SVPF-40-70 |
Displacement | mL/r | 22.2 | 22.2 |
Max. working pressure | MPa | 6 | 6 |
Rotated working pressure | MPa | 4 | 4 |
Motor power for auxiliary pump | kW | 2.2 | 2.2 |
Motor speed for auxiliary pump | rpm | 1470 | 1470 |
Main motor power | kW | 45 | 45 |
Speed of main motor | rpm | 1470 | 1470 |
Cooling pump flow | L/min | 100 | 100 |
Motor power for cooling pump | kW | 0.25 | 0.25 |
Motor speed for cooling pump | rpm | 3000 | 3000 |
Total capacity of motor | kW | 48 | 48 |
Overall dimensions (LxWxH) | mm | 8630×2500×1480 | 8630×2500×1480 |
Net weight | kg | 8000 | 10500 |
Remark:
Such vertical broaching machine is customized based on customers' exact requirements(One Machine, One Part), so, it is better to provide the detailed workpiece drawing when you inquiries me about such broaching machines.
Free Std Accessories
Pls send inquiry to me for standard accessories and other further information about such horizontal broaching machines.
Optional Accessories
Optional accessories will be provided according to customers' exact machining requirements;

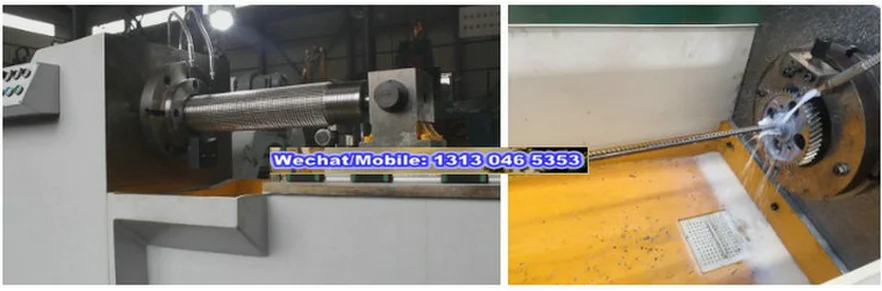

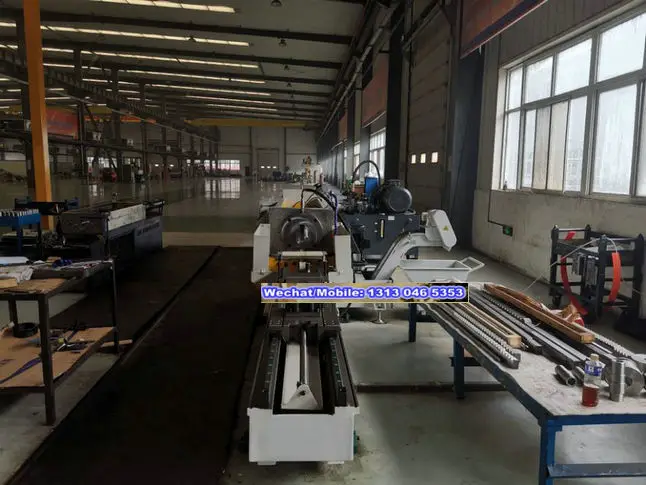

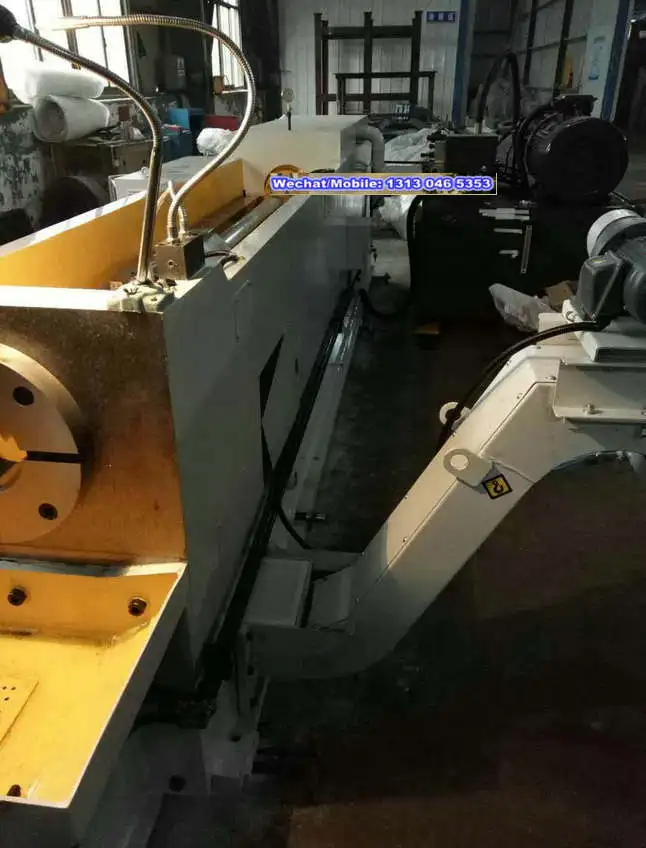

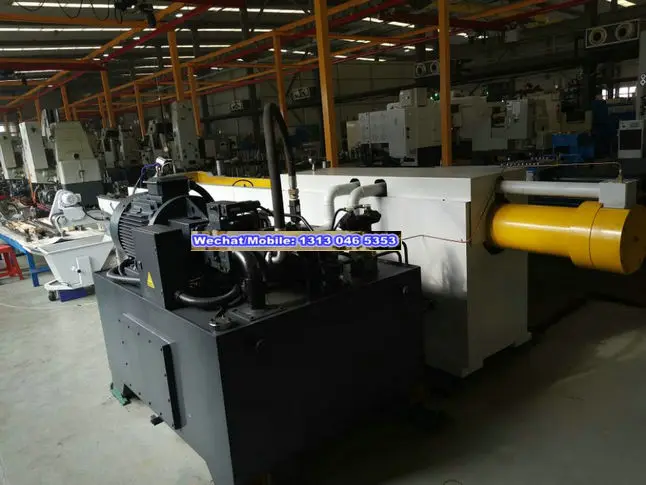

Real Photos
