0.6X 5X PCB Inspection Monocular Video Inspection Microscope Zoom Lens
- Category: >>>
- Supplier: Ningbo Haishu Honyu Opto-Electro Co. Ltd.
Share on (929342028):
Product Overview
Description
Product Description
0.6X-5X Monocular Video Microscope/Video Inspection System/PCB Inspection Microscope VID.05.H650 Series
Key Features
• High-resolution and high definition images.
• Capable of observing different objects by using LED coaxial illumination
• Wide application in electric equipments, semi-conductor, LCD inspection and measurement.
• Capable of connecting Nikon, Olympus, Mitutoyo standard screw thread metallurgical lens.
Specification
Zoom range | 0.6X~5.0X |
Zoom Ratio | 1:8.3 |
Zoom Body Diameter | Body Diameter for matching focusing mount: 45mm |
Standard Working Distance | 86mm(1X objective in Standard Specification) |
Standard CS-mount | the distance between the bearing surface and CCD plate is 12.5mm |
Order Guide
Order No. | Specification |

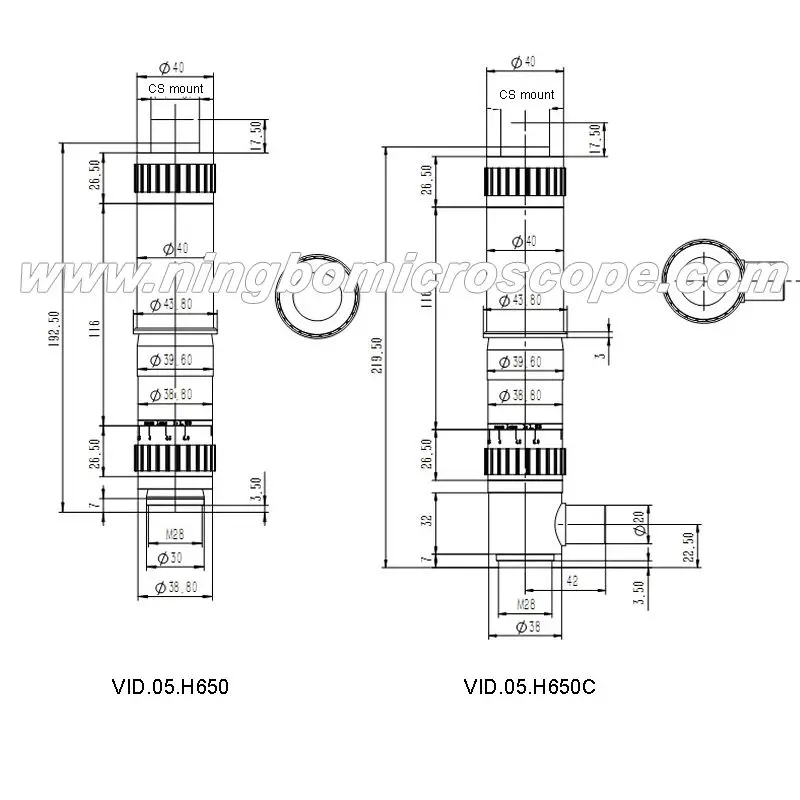

VID.05.H650 | Basic Main Body (with 1X Fine Focusing C-mount and 1x Objective) |
VID.05.H650D | Basic Main Body with Clip Stop Function |

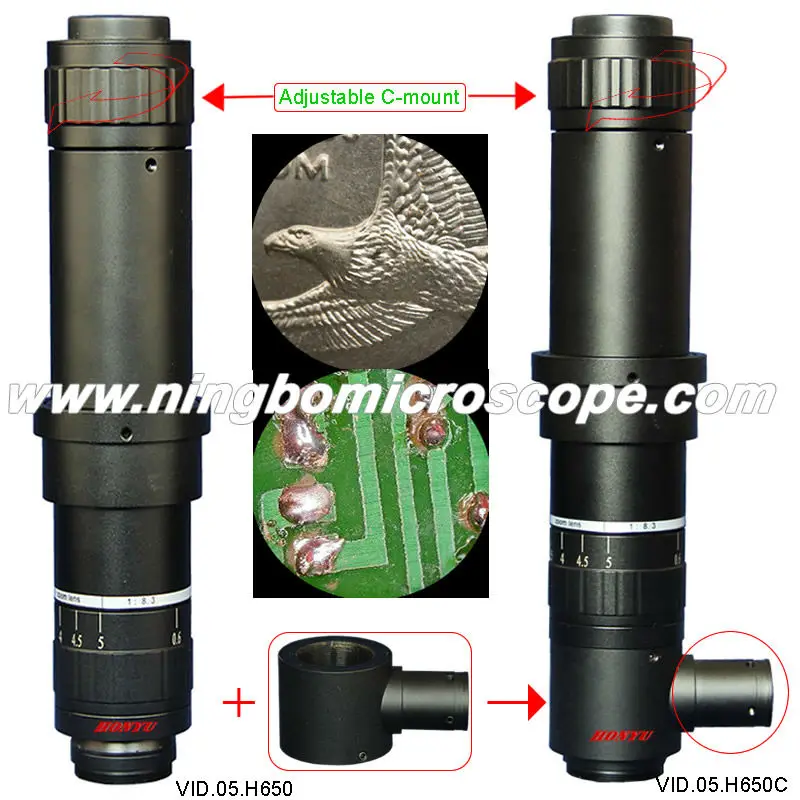

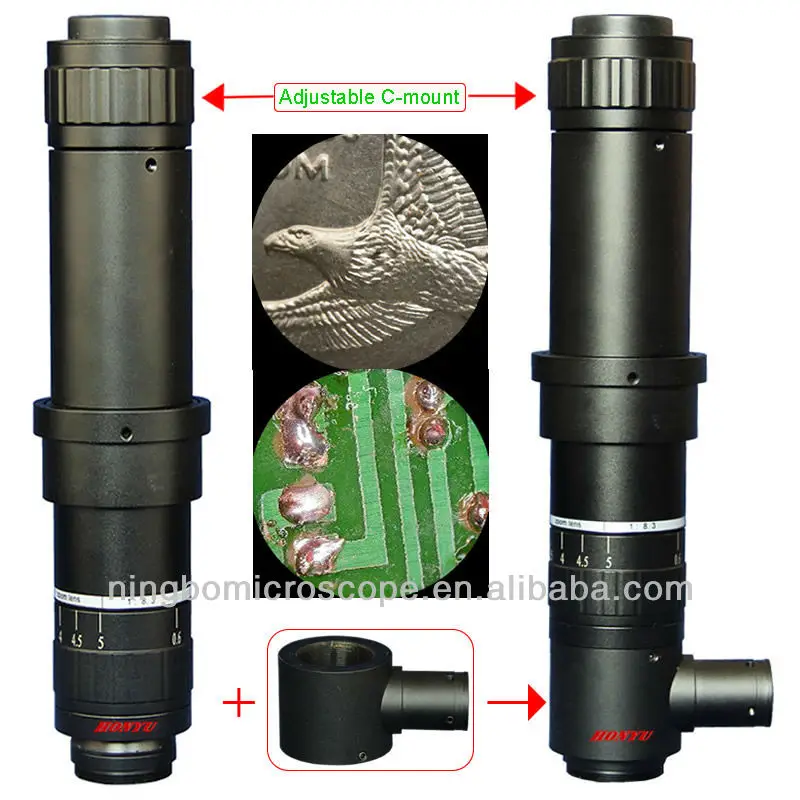

VID.05.H650C | Basic Main Body(VID.05.H650)+Coaxial light Kits(VID.05.H650-CK) |

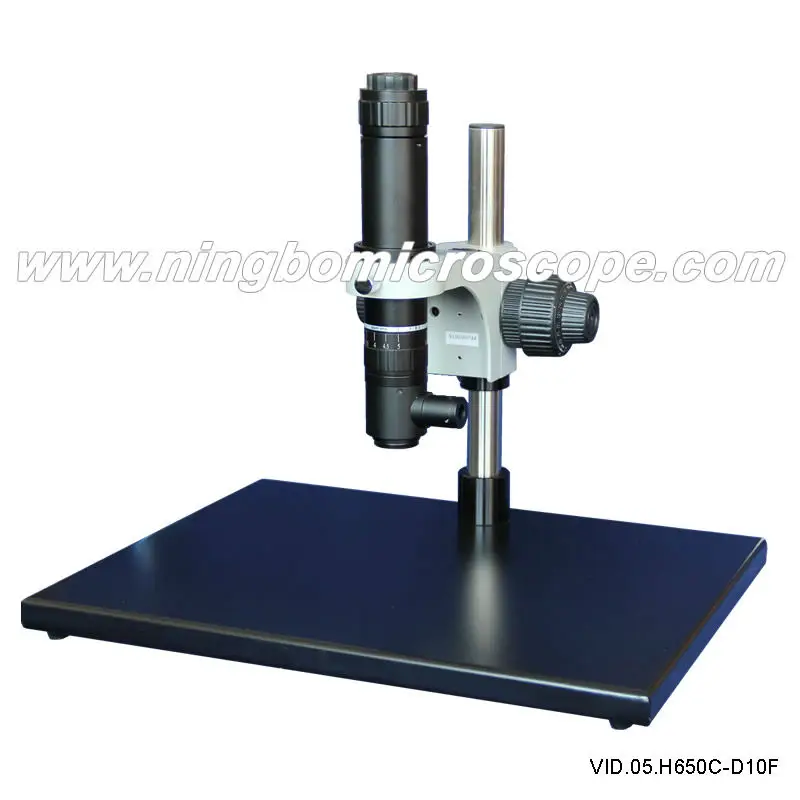

VID.05.H650C-D10F | Basic Main Body(VID.05.H650)+Coaxial light Kits(VID.05.H650-CK)+Big base stand with C/F Focusing |

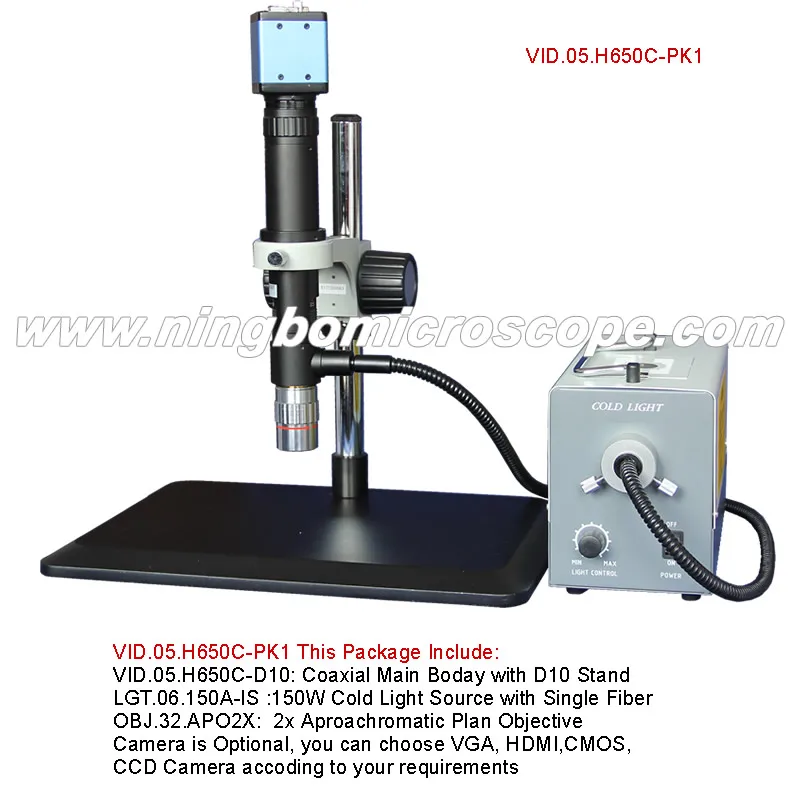

VID.05.H650C-PK1 | This Package Include: |
VID.05.H650C-D10: Coaxial Main Body with D10 Stand | |
LGT.06.150A-IS :150W Cold Light Source with Single Fiber | |
OBJ.32.APO2X: 2x Apochromatic Plan Objective | |
Camera is Optional, VGA, HDMI,CMOS, CCD cameras are available |

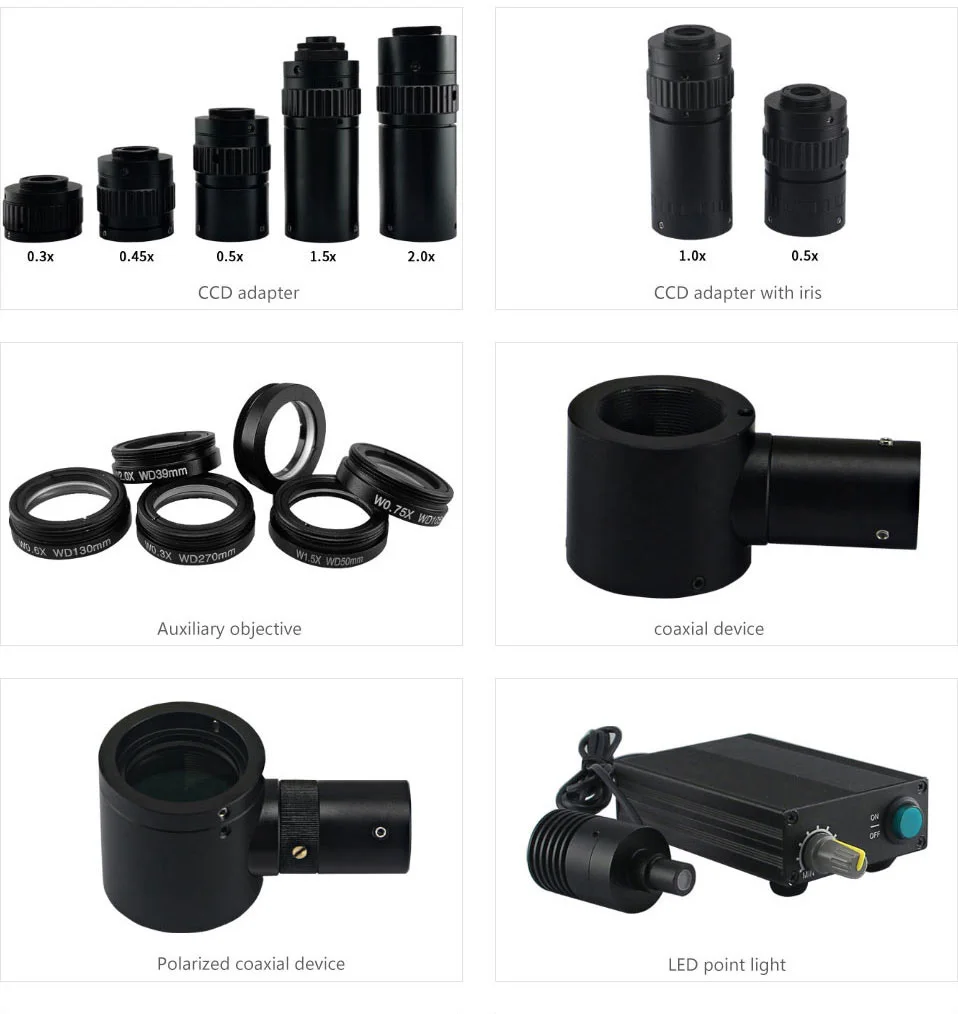

Optional Accessory
| Name of Parts | Specification | Order No. |
| Objectives | 0.3x WD=270mm | OBJ.05.H650-0.3X |
| 0.5x WD=160mm | OBJ.05.H650-0.5X | |
| 0.6x WD=130mm | OBJ.05.H650-0.6X | |
| 1x WD=86mm | OBJ.05..H650-1X | |
| 1.5x WD=50mm | OBJ.05..H650-1.5X | |
| 2x WD=39mm | OBJ.05..H650-2X | |
| CCD Adapter | 0.3x | ADA.05.H650-03 |
| 0.4x | ADA.05.H650-C04 | |
| 0.5x | ADA.05.H650-C05 | |
| 0.75x | ADA.05.H650-C075 | |
| 1.0x | ADA.05.H650-C1X | |
| 2.0x | ADA.05.H650-C2X | |
| 3.0x | ADA.05.H650-C3X | |

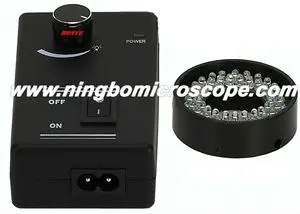

| Special LED Ring Light | This LED Ring Light only for Video Microscope
| LGT.05.R25 |

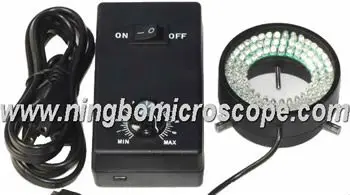

This LED Ring Light only for Video Microscope
| LGT.18.96T | |

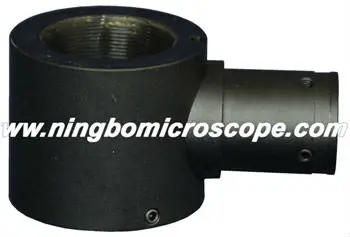

| Coaxial Kits | This Coaxial Kit is attachable to VID.05.H650
| VID.05.H650-CK |
| Other Light source | Different Light source | |
| VGA Cameras |
VGA.27.130V VGA 1.3M Camera
VGA.28.202S VGA Measuring Camera | |
| AV Cameras | Different AV Camera | |
| USB CCD/CMOS Cameras | Different CCD/CMOS Camera  | |

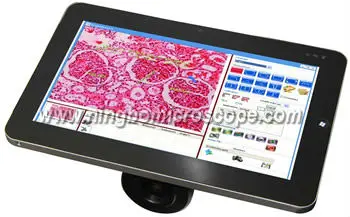

| PAD Cameras | Different PAD Cameras
| |

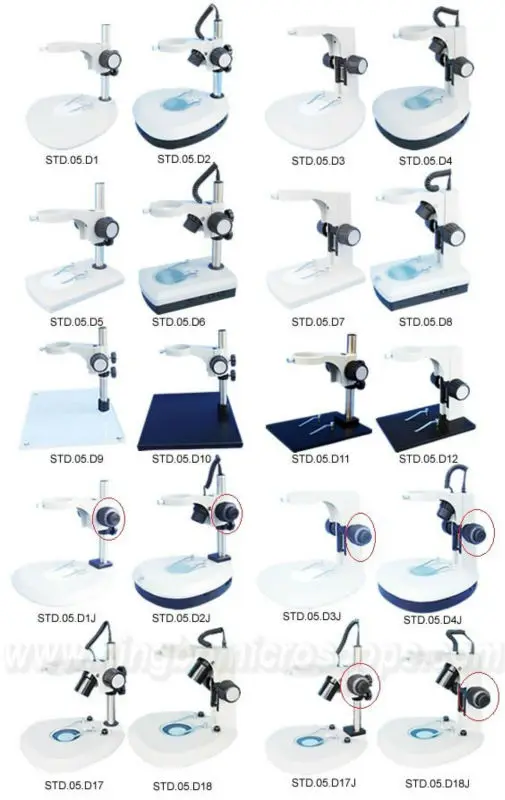

| Stand | Please click here for different stand.
| |

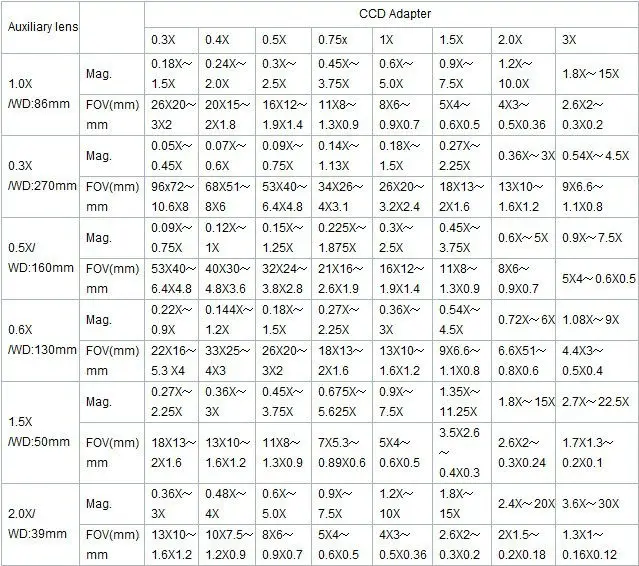

Optic Parameter
Main Body Zoom Rrange: 0.6X~4.0X | |||||||||
| Note: Optical magnification and the field of video are based on 1/3 CCD camera and 14monitor |
Product Show

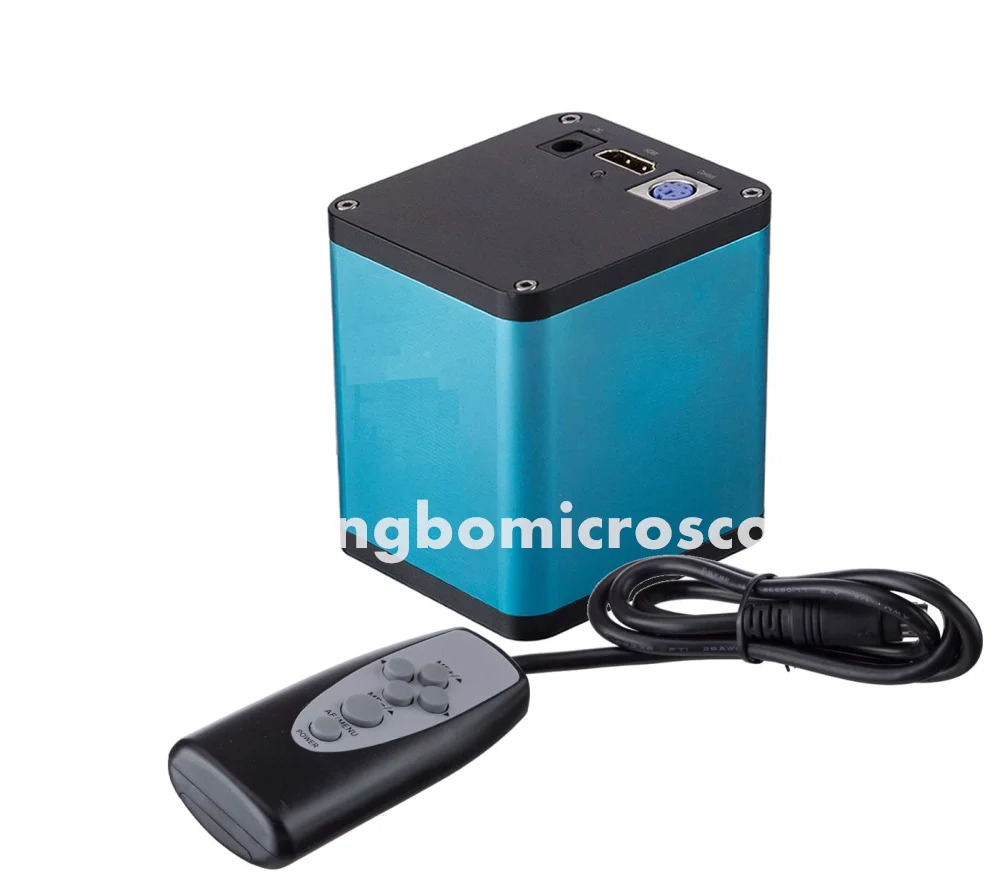

Special Recommendation: 1080P Full HDMI Autofocus Camera for Visual Inspection
APO Ojectives
//ningbomicroscope.en.alibaba.com/product/60339502472.html
