Video Microscope



Description and Notes



VID.32.01 Video Microscope For Industry Inspection/Video Microscope



Features:

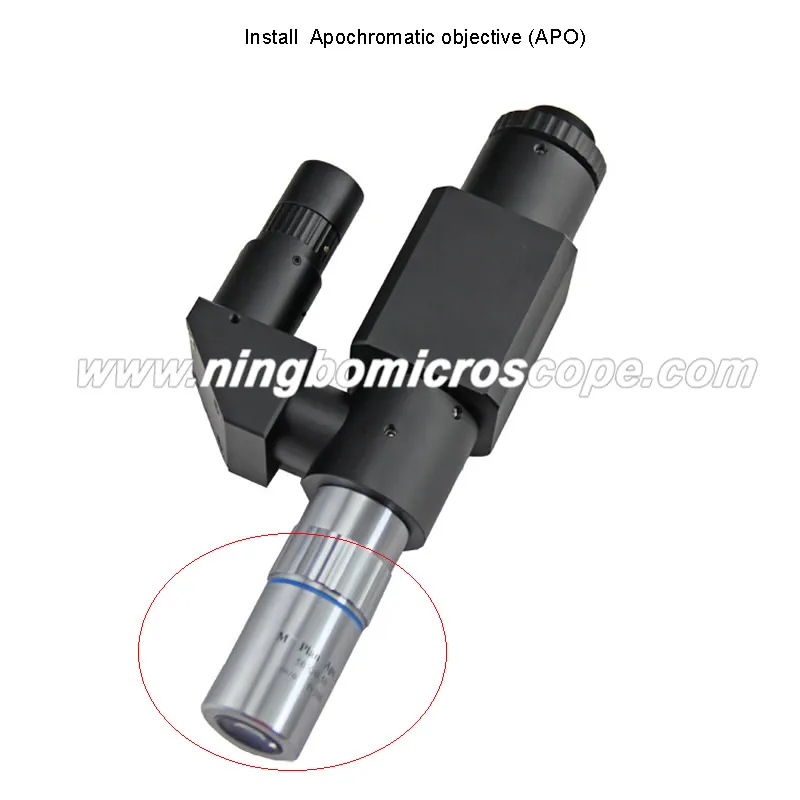

MPL APO Objecitive Features:



1.With Long Working Distance , Plan Apo and Big Field of View objective For Visible Light Imaging observation
2.Infinitive Optical System, Tube Lens Focal Length 200mm
3.With Long Working Distance , Plan Apo and Big Field of View objective NIR objective for Non-visible Light Imaging NIR observation (NIR= Near Infrared)

1.Parfocal Distance 95mm
2.Objective Screw thread M26X0.7
3. Infinity optical system, the industry objectives of Nikon L300/L200/LV150/MM40L3U/MM400/MM800, OLYMPUS MX61/ MX61/BX51/BX61,Mitutoyo MF-A/MF-US/FS70,Union Hisomet and etc. is compatible.





Specification



VID.32.01 Industry Video scope with APO lens

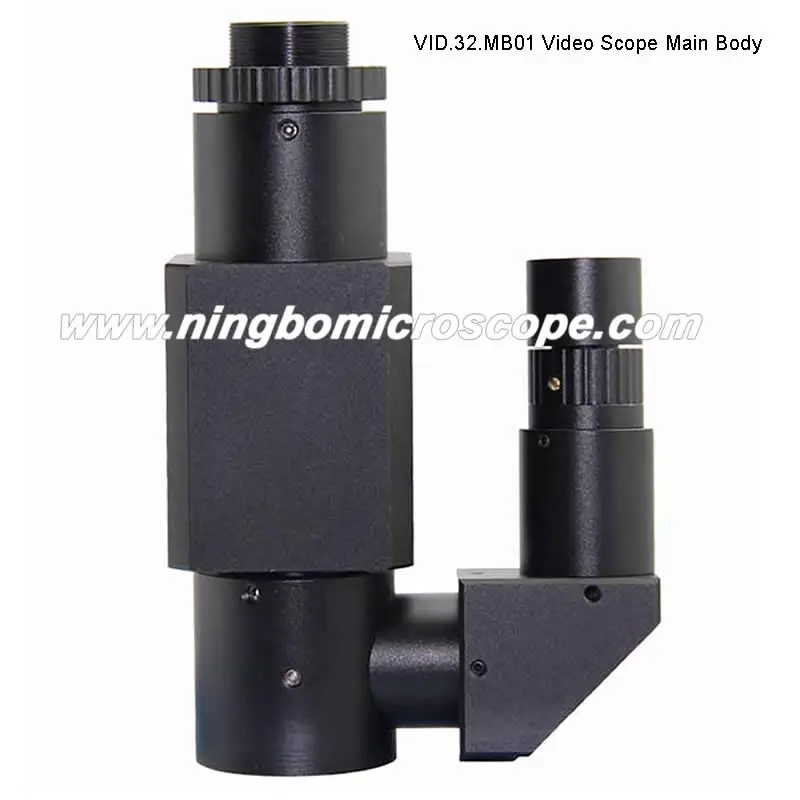

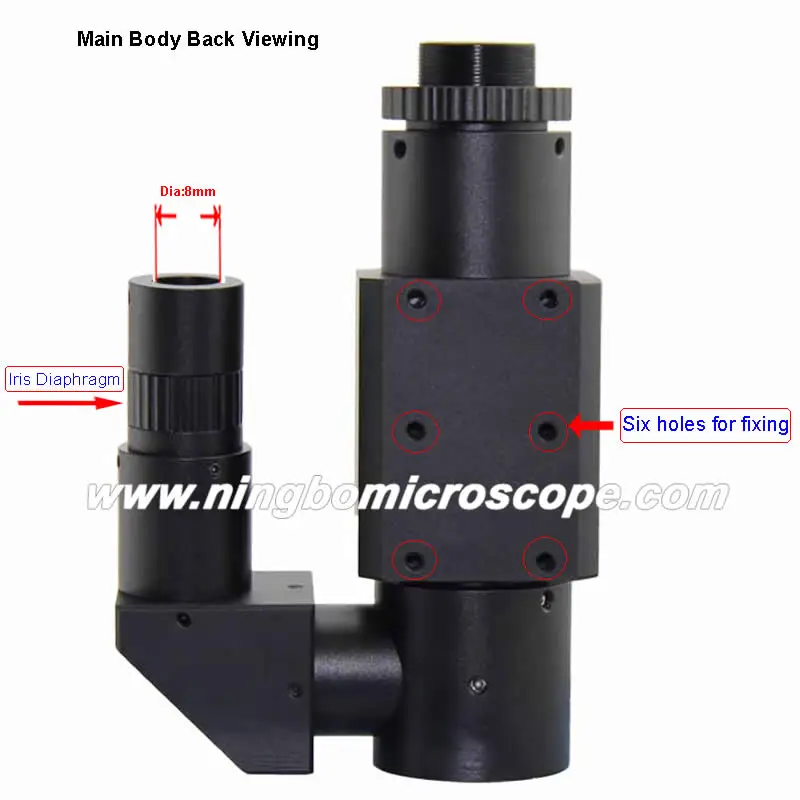

VID.32.MB01 Main Boday	Coxial Monocular body , with standard C-Mount on top and Iris diaphragm									•
M Plan APO Long Working Distance Objective	MPLAPO 2X NA=0.055 FOV=12mm WD=34.6mm									o
	MPLAPO5X NA=0.15 FOV=4.8mm WD=44mm									•
	MPLAPO10X NA=0.28 FOV=2.4 WD=33mm									o
	MPLAPO20X NA=0.29 FOV=1.2mm WD=30mm									o
	MPLAPO50X NA=0.42 FOV=0.4mm WD=4mm									o

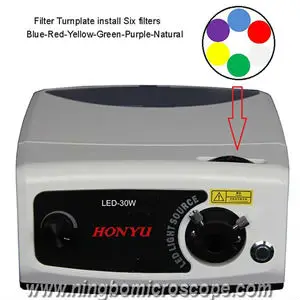

Light	30W LED Cold light source ( LGT.25.30)									•
	Single Soft Fiber: length 1m, Inserting end Dia:8mm									•

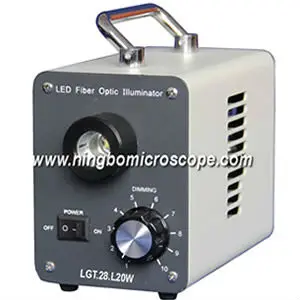

	20W LED Cold light source (LGT.28.20W)									o

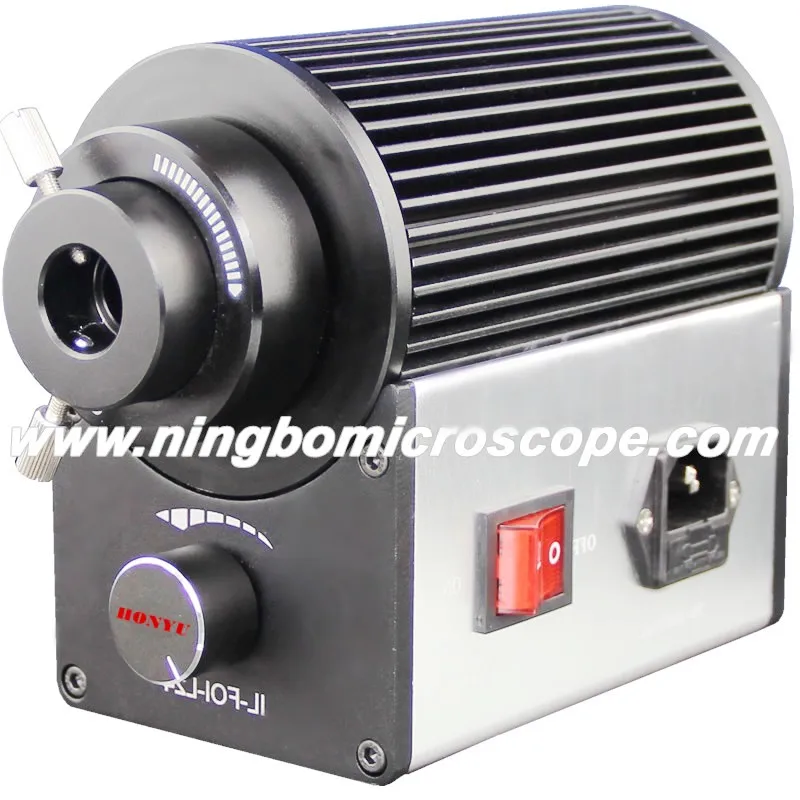

	24 W LED Cold light source ( LGT.19.L24)									o

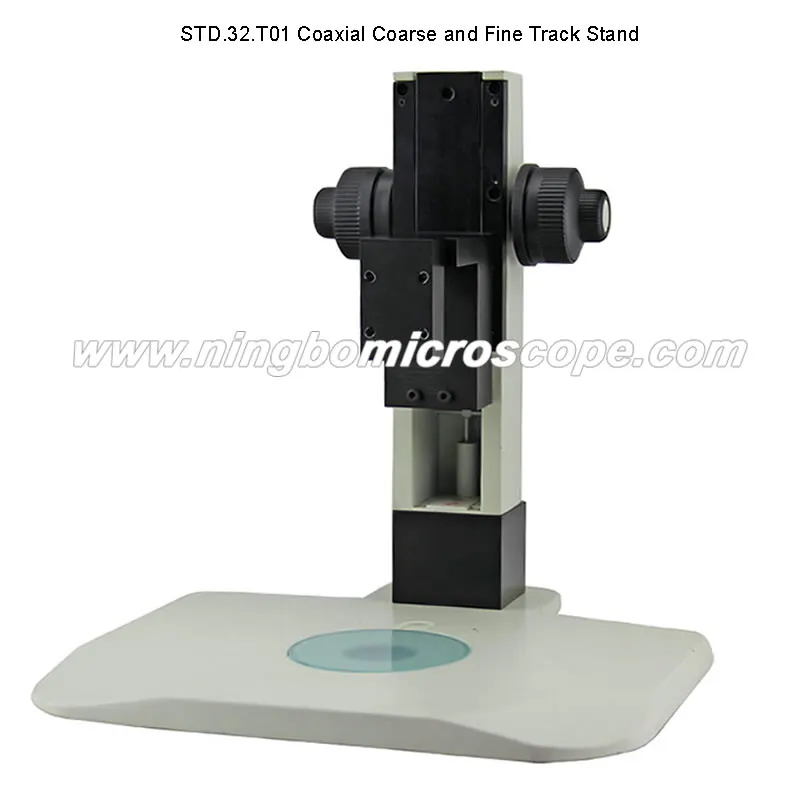

STD.32.T01 Coaxial Coarse and Fine Track Stand	-- Coaxial Coarse and Fine focusing --Big white anticorrosive soleplate, base dimension:310×230×25mm. --The height of track stand is 310mm. --The range of holders movement range 140mm.									•
C-mount Camera	VGA or HDMI Camera									o
	USB2.0 CMOS Camera
	USB3.0 CMOS Camera
	USB2.0 CCD Camera

NOTE: • Means  Standard Spec. o Means Optional



APO Objective Parameters



M Plan Apo L	(N.A.)	?(W.D.)	f'	Depth of  focus(μm)	R.	Field of View
						Eye piece(WF10/24)	1/2"CCD
2X	0.055	34.6	100	91μ	5μ	φ12	2.4x3.2
5X	0.14	45	40	14μ	2μ	φ4.8	0.96x1.28
10X	0.28	34	20	3.5μ	1μ	φ2.4	0.48x0.64
20X	0.29	30.8	10	3.5μ	1μ	φ1.2	0.24x0.32
50X	0.42	20.5	4	1.6μ	0.7μ	φ0.48	0.10x0.13





Optional NIR APO objective

NIR Objective	NA	W.D.(mm)	Focus length(mm)	Depth of Field (μm)	Resolution (μm)
NIR2x	0.055	34.6	100	91	5
NIR5x	0.14	45	40	14	2
NIR10x	0.28	34	20	3.5	1
NIR20x	0.29	30.8	10	3.5	1
NIR50x	0.42	20.5	4	1.6	0.7
