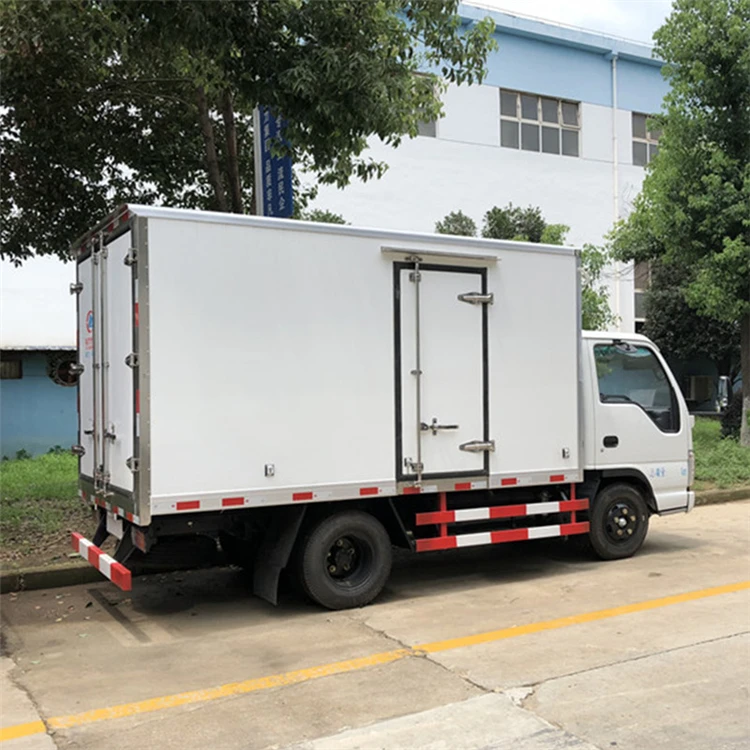

Japan brand 4x2 Mobile Food Freezer Van Refrigerator Truck For African Market



Product Description


Technical Parameter


Reefer Van is a van truck designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on.The material used is polyurethane and fiber glass for the van.It is useful and economical transportation truck in nowadays. Our company has different size of refrigerated van equipped in different chassis. Please consult us for more information.


This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.


For the special requirements of freezer vehicle,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots, ladder, LED lamp, etc. parts can be chosen and installed. Different refrigerated units are available like Carrier, Thermos King, Dongin, Kingtec, etc. The standby battery, side door, side windows, etc are optional.


Technical Parameter





































































































Item



Refrigerator Truck



Chassis Model


QL1040A6HAY







Vehicle parameters



GVW(kg)


4495


Overall Dimension (mm)


5995×1910×2790


Curb weight (kg)


2866


Steering Wheel


LHD


Wheelbase (mm)


3360


Driving Type


4x2







Engine parameters



Engine Brand


1suzu


Model


4KH1CN5LS


Emission Standard


Diesel, Euro 5


Horse Power(hp)


98


Displacement


2999ml


4 stroke,4-cylinders in line, water cooling


Gear Box


5 forward and 1 reverse









Performance Parameter


Max Speed (km/h)


98


Front Axle


1377


Cab Seat


2


Rear Axle


1425


Leaf Spring


7/5+6


Front Suspension


1015


Tire No.


6+1


Rear Suspension


1620


Tire Specification


7.00R16


Approach Angle


24


Axle No.


2


Departure Angle


16






Function parameter




Reefer-Temperature Required





-5



Material


8mm Polyurethane in middle,covered by 2.5mm fiber glass inside and outside





This parameter is just for your referance, we can produce different specification according to your demands



Construction


Chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage,for special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.

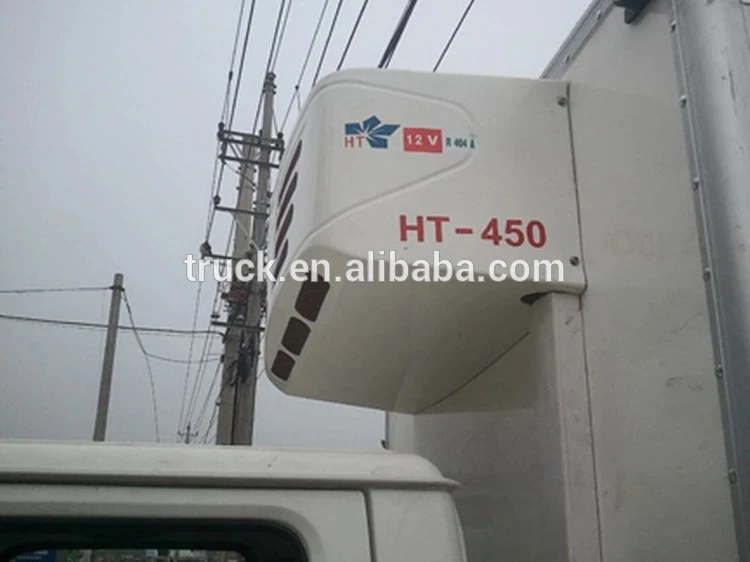

Refrigeration unit classification
Non independent refrigeration unit,independent unit,the domestic units and imported units.


Usually using external refrigerator,for a few mini refrigerated truck,using internal refrigerator.


Choice for insulated body
Good thermal insulation property,light weight,not easy to be damaged.


Truck Box Feature



  • High Insulation;

  • Long operating life;

  • Higher-intensity;

  • Corrosion resistance;

  • Easy to clean.






Product Details


3 (1).jpg3 (2).jpg


More Product Details, and choose what you need


We provide various chiller vans with capacities ranging from 0.5MT to 60MT


3 (3).jpg


Standard Detail of Refrigeration Box


1.Aluminum steel of bottom


The surface contains wale and wearability are pretty good


2.Polyurethane(padding)


Thermal insulation material. It helps refrigeration system reach temperature to -18℃


3.Glass PlateThe Truck body is made of fully plastic, and the inner and outer skin is glass steel plate3 (4).jpg


Application: for fruit, vegatavles, milk, fish, meat and any frozen food delivery...


Truck Show3 (5).jpg





Main Product


More special automobile we manufacture


1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck


2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader


3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck


4. Aerial Working Truck/ Crane Truck


5. Road Wrecker Truck


6. Road Sweeper Truck


7. Oil tanker/ Refuelling Truck


8. LPG Storage Tanker/LPG Tank Trailer/LPG skid plant station


9. Chemical Liquid Tanker


10. Bulk Cement Tanker


11. Milk Transport Truck


12. Concrete Mixer/ Concrete Pump Truck


13. Tractor Head Truck


14. Asphalt Distributor


15. Fire Fighting Truck


16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck


17. Mobile Stage Truck/ LED Advertising Truck


18. Dump Truck/ Tipper


19. Feed Delivery Truck


20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailermain product.jpg
