TG X80 Auto Soybean milk machine /soya milk making machine/soya milk machine

Product Overview

Description

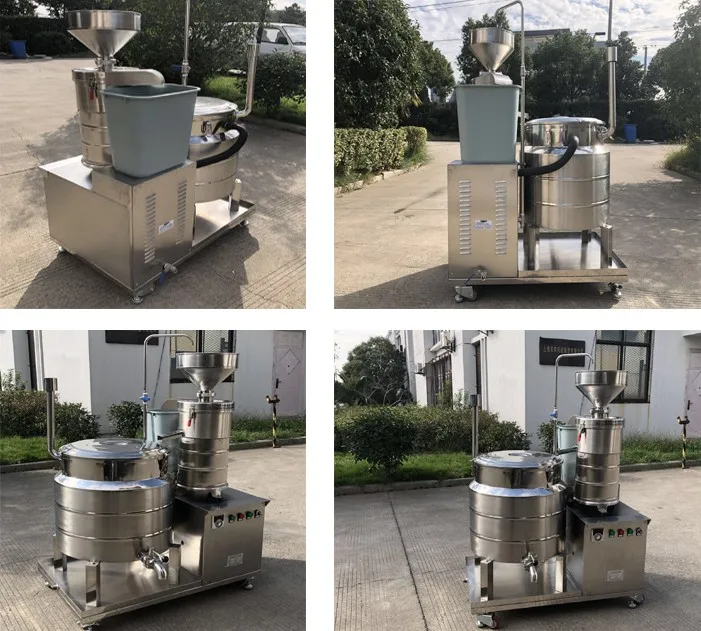

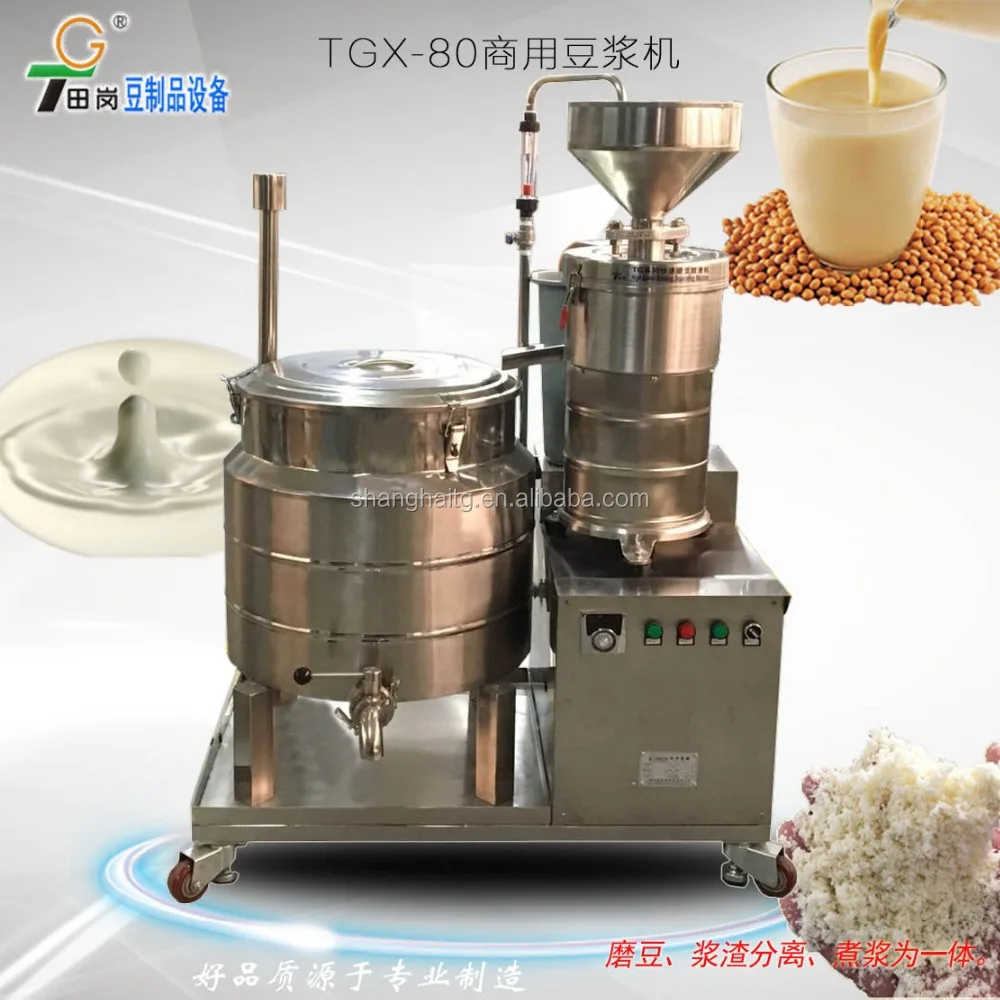

TGX-80 Auto Soybean milk machine / soya milk making machine

TGX-80 soya milk machine(This model requires customization)

TGX-80 Soymilk Making Machine

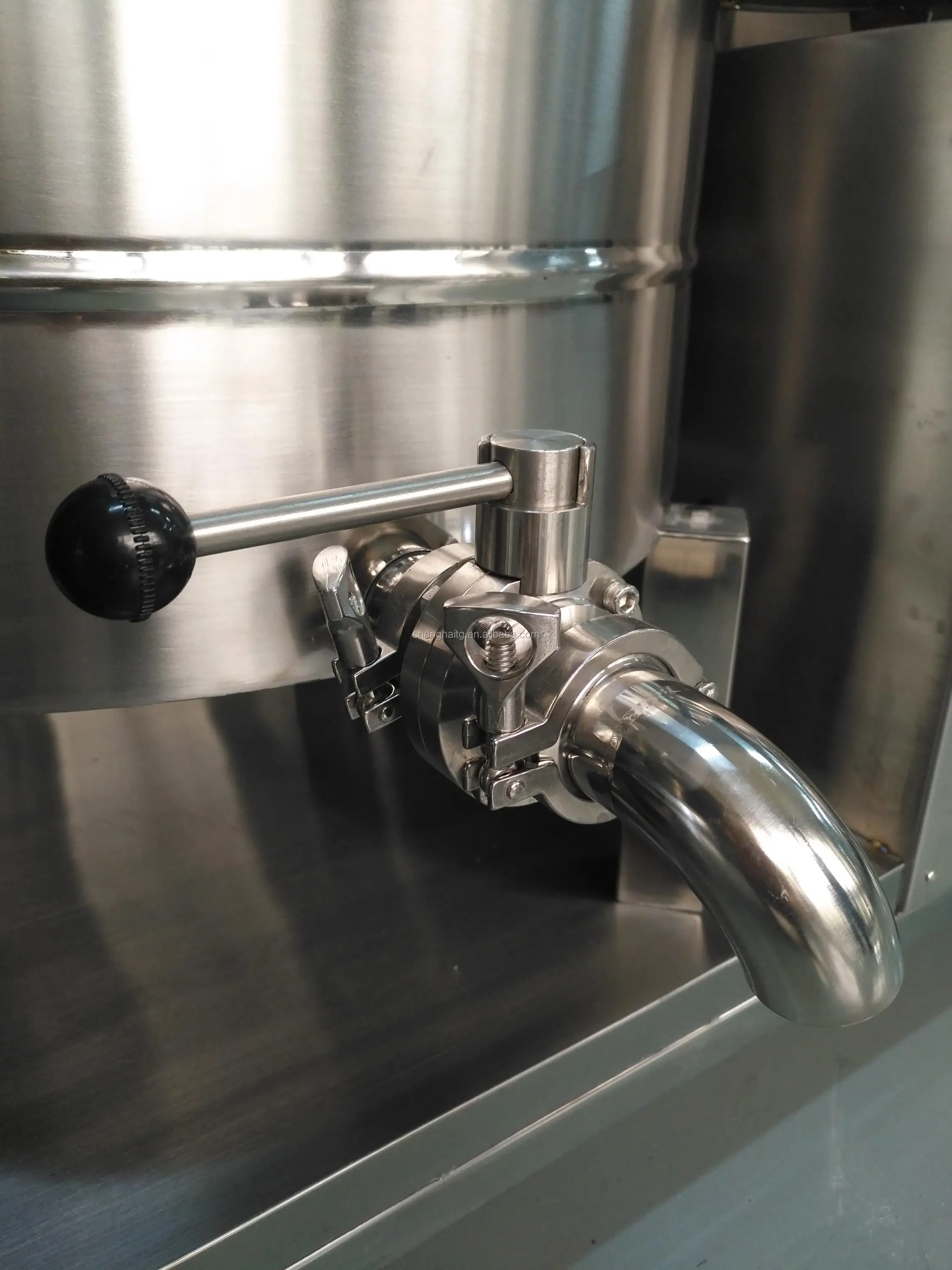

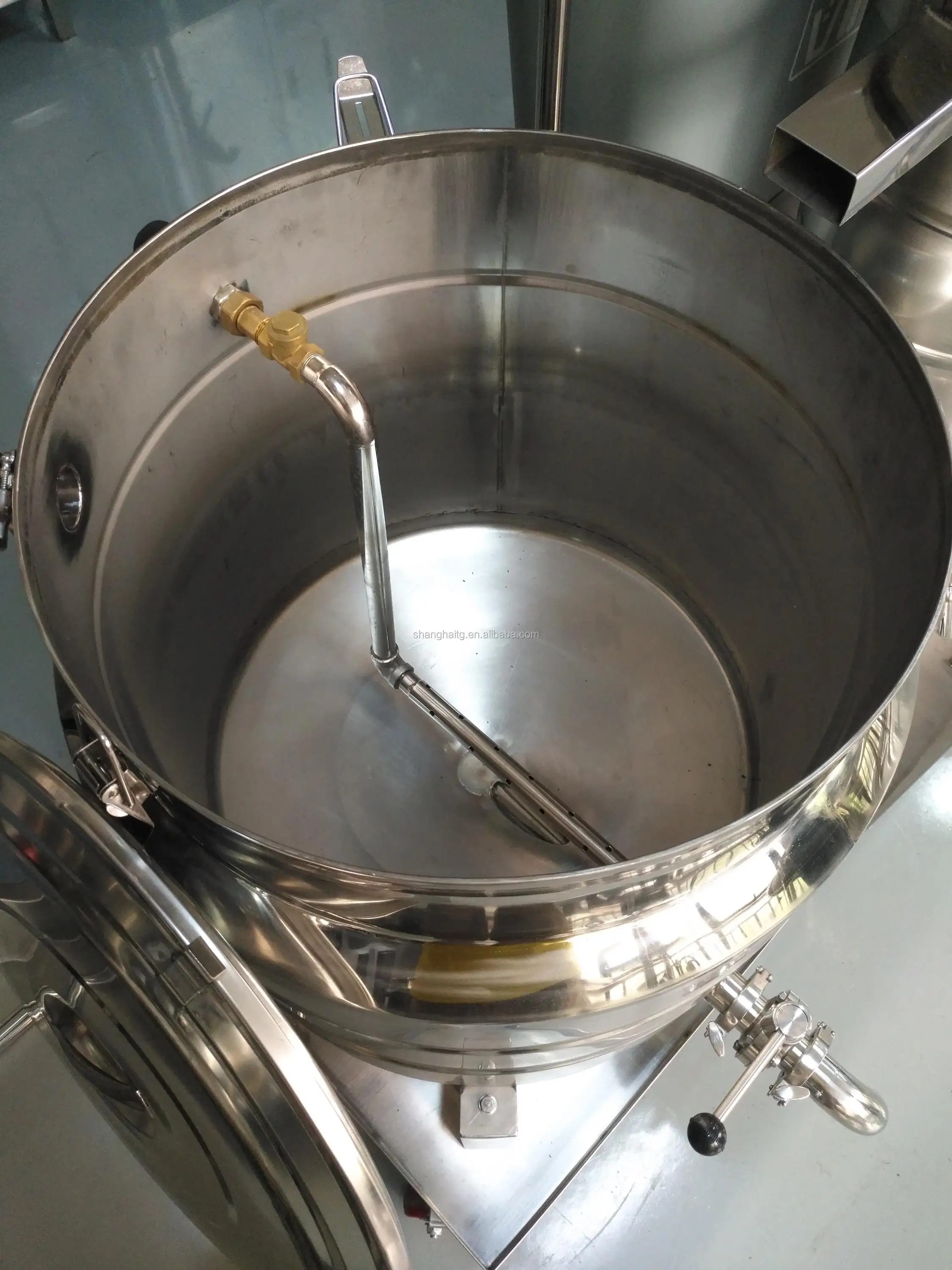

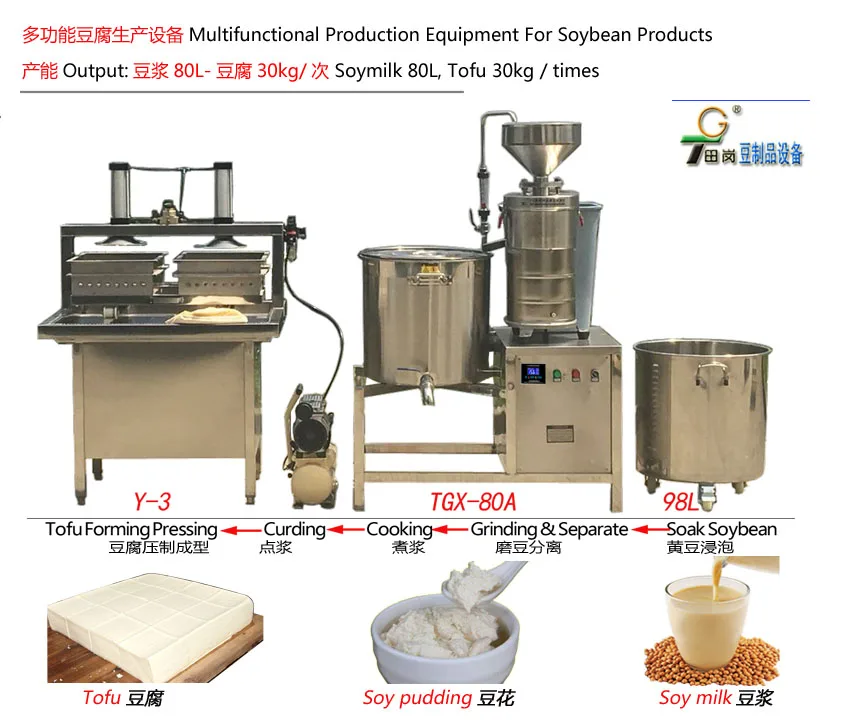

The machine adopts all 304 stainless steel structure. The double layer heat preservation pulping bucket has no sanitary dead angle, with the clamp type sanitary valve tube, it has the grinding bean dregs finished once, heating the cooking automatically, the operation is simple, fast, safe and reliable, clean and sanitary, beautiful appearance and so on. From 80L soymilk to boiling point, it takes only about 40 minutes to make ,convenient and quick. It is only one person to operate from the pulp to the finished product of tofu once. One machine is multi-purpose, it can produce soya bean milk, soy pudding and bean curd at the same time.

Features:

1. adopt full 304 stainless steel structure, sanitary valve fittings, easy to clean and fast.

2. the grinding bean is deslagging at one time, and the soybean milk concentration flowmeter is controlled.

3. built in steam generator, automatic water addition, automatic heating and boiling.



Main technical data:

1, Voltage:380V/50Hz;

2, Heating Power:12kw;

3, Cooking pan capacity:95L;

4,Grinding Power:1.5kw

5, Weight:105kg;

6, Size :620×1030×1450mm

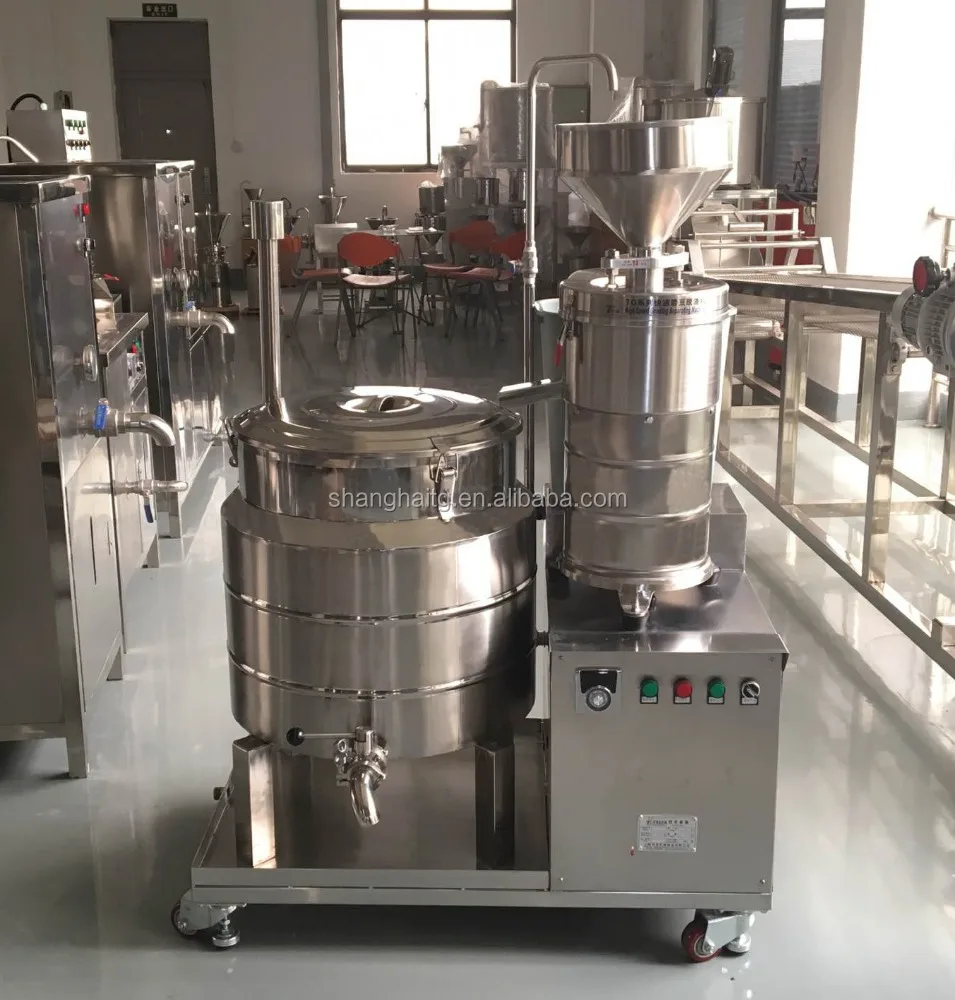

The whole stainless steel structure is made up of TGM-130 grinding bean dregs, slag bucket and steam generator, and the electrical control part controls the temperature of the pulping barrel by the digital temperature control device to control the heating, and the steam package is automatically added to water. First, the soaked soybean is processed by high speed separation mill, and the soybean residue is discharged. The soybean milk produced by steam is heated to get rid of the fishy, homogenized pulp, and the nutritive soy products can be produced by adding auxiliary raw materials to defoaming, emulsifying, solidifying and forming.

Do tofu, the need to increase Bean product pressing machine just OK.



Applications: The Enterprises and institutions cafeteria, dining room, breakfast shop, traditional market, supermarket, and so on, business districts do on the spot presently buy the fresh soybean milk, the peanut thick liquid  tofu  and so on.

We can custom design it to suit customers,needs.



Related products

Technical Data	Voltage	Heating Power	Grinding Power	Pump Power	Boiling pan capacity		Weight	Size
T-30	220V	6kw	750w	--		40L	60Kg	1060*450*1350mm
TG-30	220V	6kw	750w	--		40L	60Kg	1080*530*1350mm
TG-30Z	220V	6kw	1500w	Auto watering		40L	65Kg	1080*530*1350mm
TGX-80A	380V	12kw	1500w	--Auto watering		98L	78Kg	980*520*1550mm

 Can be customized according to customer requirements, can be customized 220V/60hz power supply, single-phase or three-phase power supply.

Technical Data	Pressure mode	Heating Power	Grinding Power	Pump Power	Boiling pan capacity	Weight	Size
TG-250	380V 50Hz	External Boiler	5KW +5KW	750W+1500W	250L*2	500Kg	1400*1800*2250mm
TG-150	220V 50Hz	External Boiler	2200W +1.5KW	370W+750W	170L*2	300Kg	1000*1200*1850mm
TG-100	380V 50Hz	18kw	1500w	120w	110L	200Kg	650*2050*1550mm













Company Introduction



Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

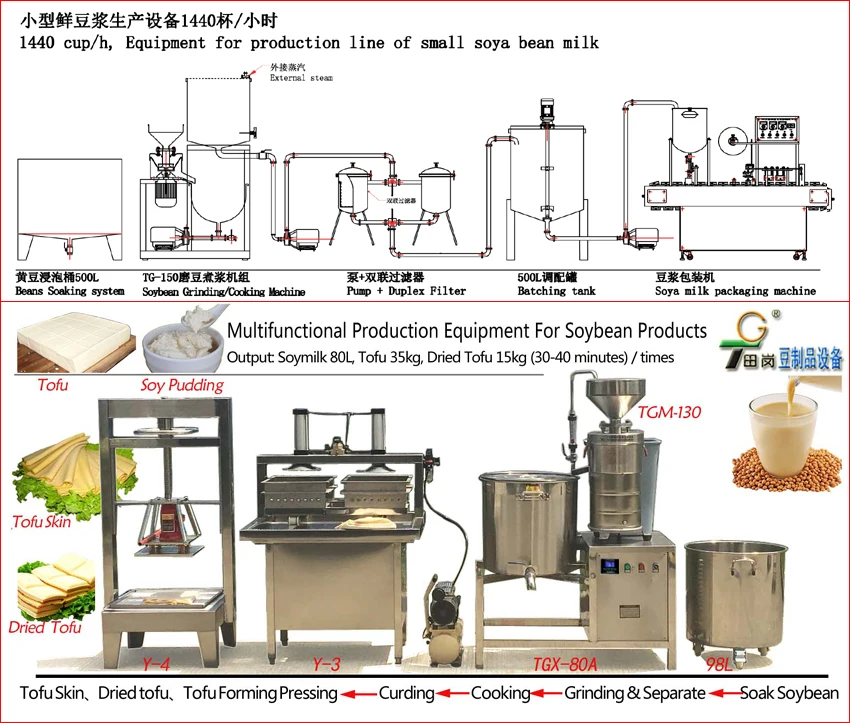

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
