Super Permanent NdFeB Magnet Neodymium magnets price Rare Earth magnets wholesale
- Category: >>>
- Supplier: Ningbo Sunxal Magnetics Co. Ltd. [Zhejiang China]Ningbo
Share on (930670199):
Product Overview
Description
Super Permanent NdFeB Magnet Neodymium Magnets Price Rare Earth magnets Wholesale
Product details:
♥material:neodymium-iron-boron
♥Temperature:the max operation temp is up to 200 degree centigrade or 380 curie temperature
♥Grade:N35,N38,N40,N42,N45,N48,N59(M,H,SH,UH,EH)
♥Shape:ring,block,disc,bar,and so on♥Size:according to customers' requst♥Coating:Ni-Ni-Cu-Ni,Zn,gold,copper,expoxy and so on♥Maximum working temperature: 80 to 200 centigrades♥Super strong magnetic force and high intrinsic coercive force and also with precise tolerance

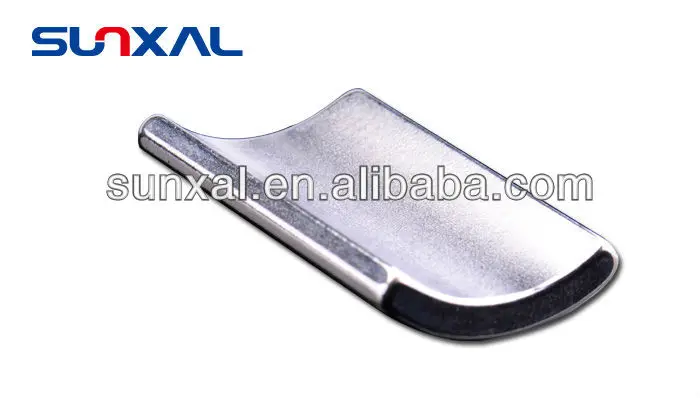

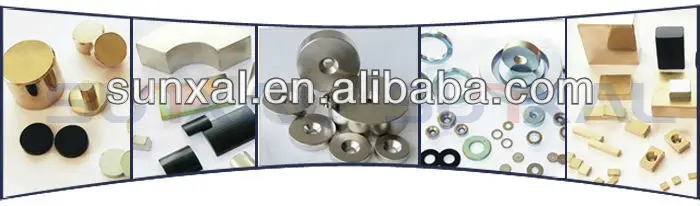

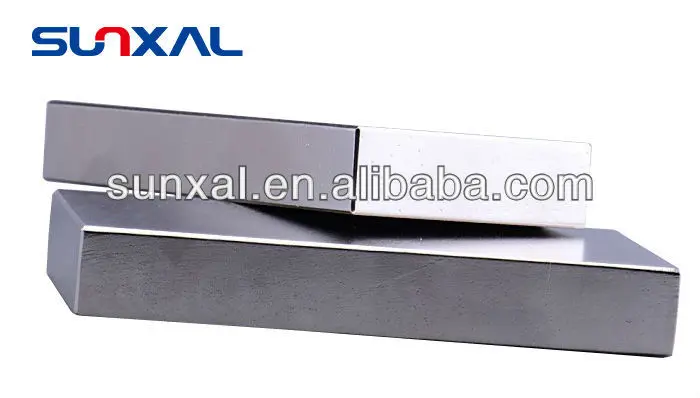

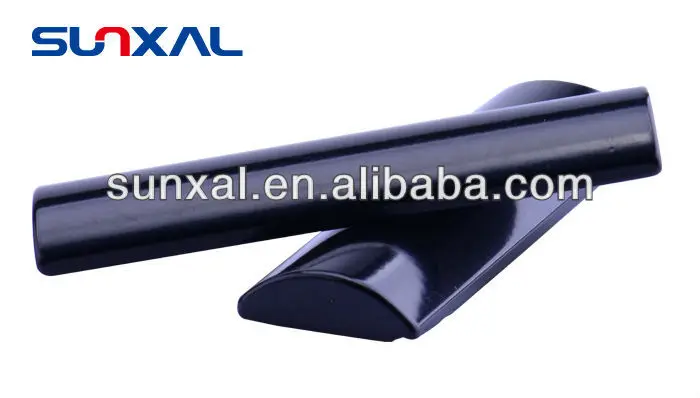

Nedymium Magnet Shapes:
Characteristic Magnet Properties of NdFeB Magnet :
| Magnetic Characteristics And Physical Properties of Sintered Nd-Fe-B | ||||||
| Remanence | Coerciv Force | Intrinsic Coercive | Max Enery Product | Maximum working | |
| Grade | Br mb(KG) | hcb Koe(KA/m) | iHC Koe(KA/m) | (BH) max | temperature | |
| KJ/m2(MGOe) | Tw°C | |||||
| N35 | 1170-1210 | ≥10.8 (≥860) | ≥12 (≥955) | 263-287(33-36) | 80 | |
| N38 | 1210-1250 | ≥10.8 (≥860) | ≥12 (≥955) | 287-310(36-39) | 80 | |
| N40 | 1250-1280 | ≥11.6 (≥923) | ≥12 (≥955) | 302-326(38-41) | 80 | |
| N42 | 1280-1320 | ≥11.6 (≥923) | ≥12 (≥955) | 318-342(40-43) | 80 | |
| N45 | 1320-1380 | ≥11.0 (≥876) | ≥12 (≥955) | 342-366(43-46) | 80 | |
| N48 | 1380-1420 | ≥10.5 (≥835) | ≥12 (≥955) | 366-390(46-49) | 80 | |
| N50 | 1380-1450 | ≥10.5 (≥835) | ≥11 (≥955) | 374-406(47-51) | 80 | |
| N52 | 1430-1480 | ≥10.8 (≥860) | ≥11 (≥876) | 398-422(50-53) | 80 | |
| 35M | 1170-1210 | ≥10.8 (≥860) | ≥14 (≥1114) | 263-287(33-36) | 100 | |
| 38M | 1210-1250 | ≥11.0 (≥876) | ≥14 (≥1114) | 287-310(36-39) | 100 | |
| 40M | 1250-1280 | ≥11.4 (≥907) | ≥14 (≥1114) | 302-326(38-41) | 100 | |
| 42M | 1280-1320 | ≥11.6 (≥923) | ≥14 (≥1114) | 318-342(40-43) | 100 | |
| 45M | 1320-1380 | ≥11.8 (≥939) | ≥14 (≥1114) | 342-366(43-46) | 100 | |
| 48M | 1360-1400 | ≥11.8 (≥939) | ≥14 (≥1114) | 366-390(46-49) | 100 | |
| 50M | 1400-1450 | ≥13.0 (≥1033) | ≥14 (≥1114) | 382-406(48-51) | 100 | |
| 33H | 1130-1170 | ≥10.6 (≥844) | ≥17 (≥1353) | 247-263(31-33) | 120 | |
| 35H | 1170-1210 | ≥11.0 (≥876) | ≥17 (≥1353) | 263-287(33-36) | 120 | |
| 38H | 1210-1250 | ≥11.2 (≥890) | ≥17 (≥1353) | 287-310(36-39) | 120 | |
| 40H | 1250-1280 | ≥11.5 (≥915) | ≥17 (≥1353) | 302-326(38-41) | 120 | |
| 42H | 1280-1320 | ≥12.0 (≥955) | ≥17 (≥1353) | 318-342(40-43) | 120 | |
| 45H | 1320-1380 | ≥12.0 (≥955) | ≥17 (≥1353) | 335-366(42-46) | 120 | |
| 46H | 1330-1380 | ≥12.2 (≥972) | ≥16 (≥1274) | 350-374(44-47) | 120 | |
| 48H | 1360-1430 | ≥12.5 (≥995) | ≥16 (≥1274) | 366-390(46-49) | 120 | |
| 33SH | 1130-1170 | ≥10.6 (≥844) | ≥20 (≥1672) | 247-263(31-33) | 150 | |
| 35SH | 1170-1210 | ≥11.0 (≥876) | ≥20 (≥1672) | 263-287(33-36) | 150 | |
| 38SH | 1210-1250 | ≥11.4 (≥907) | ≥20 (≥1672) | 287-310(36-39) | 150 | |
| 40SH | 1250-1280 | ≥11.8 (≥939) | ≥20 (≥1672) | 302-326(38-41) | 150 | |
| 42SH | 1280-1320 | ≥11.8 (≥939) | ≥20 (≥1672) | 320-342(40-43) | 150 | |
| 45SH | 1320-1380 | ≥12.6 (≥1003) | ≥20 (≥1592) | 342-366(43-46) | 150 | |
| 33UH | 1130-1170 | ≥10.7 (≥852) | ≥25 (≥1990) | 247-263(31-33) | 180 | |
| 35UH | 1170-1210 | ≥10.7 (≥852) | ≥25 (≥1990) | 263-287(33-36) | 180 | |
| 38UH | 1210-1250 | ≥11.4 (≥907) | ≥25 (≥1990) | 287-310(36-39) | 180 | |
| 40UH | 1250-1280 | ≥11.4 (≥907) | ≥25 (≥1990) | 302-326(38-41) | 180 | |
| 30EH | 1080-1130 | ≥9.5 (≥756) | ≥30 (≥2388) | 223-247(28-31) | 200 | |
| 33EH | 1130-1170 | ≥10.2 (≥812) | ≥30 (≥2388) | 247-263(31-33) | 200 | |
| 35EH | 1170-1210 | ≥10.2 (≥812) | ≥30 (≥2388) | 263-287(33-36) | 200 | |
| 38EH | 1210-1250 | ≥11.4 (≥907) | ≥30 (≥2388) | 287-310(36-39) | 200 | |
| 30AH | 1080-1130 | ≥10.2 (≥812) | ≥35 (≥2785) | 223-255(28-32) | 220 | |
| 33AH | 1120-1170 | ≥10.2 (≥812) | ≥35 (≥2785) | 247-271(31-34) | 220 | |

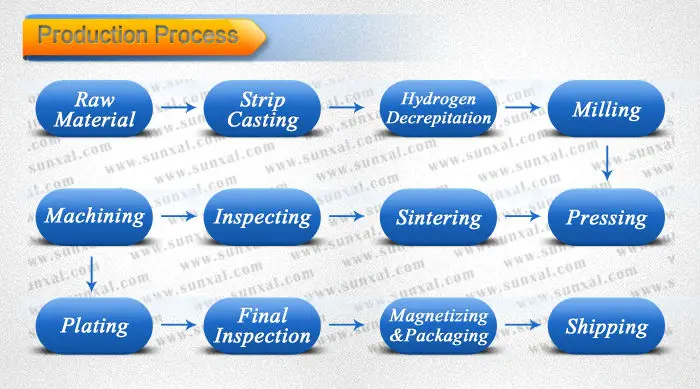

Production-Flow-Chart:
Physical Property of Magnet material:
♥ Br: 11.7-14.9KGs, bHc: 10-13kOe, iHcj, 12-35Koe; Max. working Temp:80-240 Degrees
Tolerance:
+/-0.05mm for samll size neodymium magnet
+/-0.1mm for customer design neodymium magnet
+/-0.05mm for big block neodymium magnet
Certification:
Price and payment:
we accept cresit cards,L/C.T/T,WESTERN UNION,etc.
If you wanan pay with other payment methods,pls contact us.
Packing detail:
Shipping:
We ship worldwide.
Your item will be shipped within14business days, after payment has been received and cleared. Shipping time usually takes 15-30 business days.
Main Market:
Our Advantage of Exporting Neodymium Magnets:
1.We are experienced in magnetic field for many years.
2.Samples and small quantity are available.
3.All the inquiries, questions and emails will be replied within 24 hours.
4.We have stock material for stable production.
Buyer Guide:
Pls tell us following information:
Produce:Size,Grade,Coating etc
Order quantity
Show us drawing if you have
