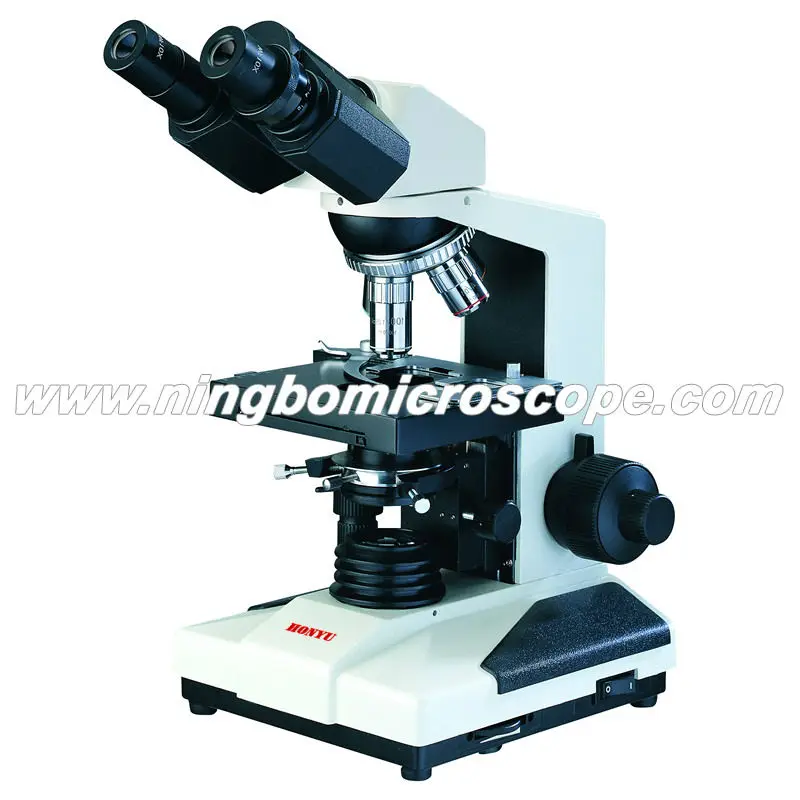

Achromatic Binocular Compound Microscope CPD.02.120B
- Category: >>>
- Supplier: Ningbo Haishu Honyu Opto-Electro Co. Ltd.
Share on (931945231):
Product Overview
Description
40X-1000X Compound Biological Binocular Microscope CPD.02.120 Series
Description
CPD.02.120 Series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They can be widely used in biology, medicine, and agriculture field. They are ideal instruments for medical treatment, teaching demonstration and scientific research.
Features
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• Compensation free binocular head inclined at 30 degree
• Abbe Condenser with Rack & pinion adjustable
• CE Approved and Manufactured Under ISO 9001 and ISO 14000 Quality Control Standard
Specification
CPD.02.120A Specification | |
Eyepiece | Wide field WF10X(|μ18mm) |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic 100X/1.25(Spring, oil) | |
Eyepiece tube | Binocular(Inclination of 30 degree) |
Focus system | Coaxial coarse and fine focus system, fine focus graduation: 2μm. |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical stage(Size:135mmX125mm, traveling range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W, Halogen lamp with brightness control |
CPD.02.120B Specification | |
Eyepiece | Wide field WF10X(|μ18mm) |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic 100X/1.25(Spring, oil) | |
Eyepiece tube | Binocular(Inclination of 30 degree) |
Focus system | Coaxial coarse and fine focus system, fine focus graduation: 2μm, coarse focus with tension adjustable and up stop, a black hand-supporting plastic board placed under the focus system |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical stage(Size:135mmX125mm, traveling range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W, Halogen lamp with brightness control |
CPD.02.120C Specification | |
Eyepiece | Wide field WF10X(|μ18mm) |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic 100X/1.25(Spring, oil) | |
Eyepiece tube | Binocular(Inclination of 30 degree) |
Focus system | Coaxial coarse and fine focus system, fine focus graduation: 2μm, coarse focus with tension adjustable and up stop |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical stage(Size:135mmX125mm, traveling range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W, Halogen lamp with brightness control |
Optional Accessories
Name | Sort/Technique parameter | ||
Eyepiece | Wide field WF16X/FN11 | ||
Dividing 10X(FN18mm) 0.1mm/Div | |||
Objective | Semi-plan achromatic SP 4X/0.10 | ||
Semi-plan achromatic SP 10X/0.25 | |||
Semi-plan achromatic SP 20X/0.40 | |||
Semi-plan achromatic SP 40X/0.65(Spring) | |||
Semi-plan achromatic SP 100X/1.25(Spring, oil) | |||
Eyepiece tube | Monocular(Inclination of 30) | ||
Binocular, Sliding(Inclination of 45) | |||
Trinocular, Sliding(Inclination of 45) | |||
Trinocular(Inclination of 30) | |||
Dual viewing tube(Inclination of 30) | |||
Nosepiece | Quintuple (Backward ball bearing inner locating) | ||
Filter | Green filter | ||
Yellow filter | |||
Light source | LED Collector | Bright and white light | |
Condenser | Dark field | Dry | |
Immersion | |||
Phase contrast unit | Eyepiece | Centering telescope | |
Objectives | Phase contrast achromatic 10X/0.25 PHP | ||
Phase contrast achromatic 20X/0.40 PHP(Spring) | |||
Phase contrast achromatic 40X/0.65 PHP(Spring) | |||
Phase contrast achromatic 100X/1.25 PHP(Spring, oil) | |||
Turnplate phase contrast condenser | |||
Turnplate phase contrast condenser | |||
Flashboard phase contrast condenser | |||
Pull board phase contrast condenser | |||
Infinity optical system | Eyepiece tube | Binocular (Inclination of 30) | |
Trinocular(Inclination of 30) | |||
Eyepiece | Centering telescope | ||
Objectives | Infinity semi-plan achromatic 4X/0.10 | ||
Infinity semi-plan achromatic 10X/0.25 | |||
Infinity semi-plan achromatic 40X/0.65(Spring) | |||
Infinity semi-plan achromatic 100X/1.25(Spring, oil) | |||
Infinity phase contrast achromatic 10X/0.25 PHP | |||
Infinity phase contrast achromatic 20X/0.40 PHP(Spring) | |||
Infinity phase contrast achromatic 40X/0.65 PHP(Spring) | |||
Infinity phase contrast achromatic 100X/1.25 PHP(Spring, Oil) | |||
CCD adapter | 0.4X, 0.5X, 1X | ||
0.5X with dividing 0.1mm/Div | |||
Camera | DV-1(With USB & video output) | ||
DV-2(With USB output) | |||
DV-3(With video output) | |||
Photography | USB Output | ||
VIDEO Output | |||
Digital camera adapter | CANON Digital camera adapter(A610,A620,A630,A640) | ||
Photograph unit | MD Adapter | ||
PK Adapter | |||
2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |||
4X Focusing photograph attachment | |||
Facility polarize | Polarizer(360° rotatable stage) | ||
Analyzer | |||
Adapter(For LED illumination) | Input: 230V50/60HZ Output: 9V 500mA | ||
Input: 110V50/60HZ Output: 9V 500mA | |||
