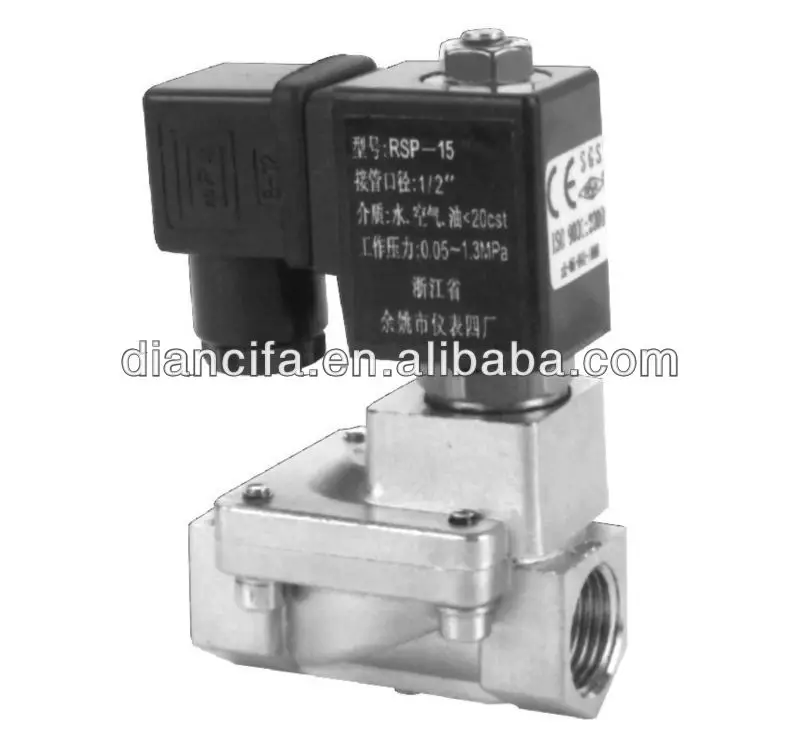

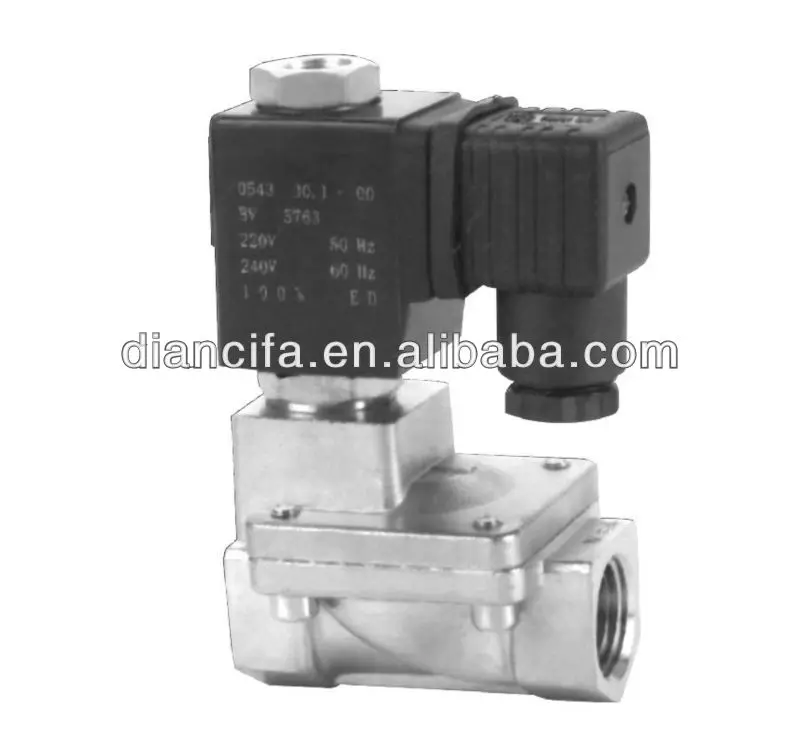

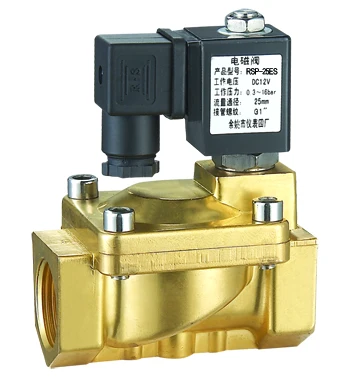

RSP J series Air solenoid valve
- Category: >>>
- Supplier: Yuyao No. 4 Instrument Factory
Share on (933685897):
Product Overview
Description
diaphragm valve
Media: Water, Air, Gas,Oil
Pilot operated solenoid valve
diaphragm valve
-- Media: Gas, Water, Air, Oil (below 20cst)
--Temperature: -10 ÷80
-- Pressure: N/C: 13bar; N/O: 8bar
--Mode of action: Pilot operated
--Body material: Stainless
-- Sealing material: NBR
--Protection class: IP65
--Function type: Normally Closed (N/C), Normally Open (N/O)
Model | RSP-J-10 | RSP-J-15 | RSP-J-20 | RSP-J-25 | RSP-J-35 | RSP-J-40 | RSP-J-50 | |
G Connection | 3/8" | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" | |
Orifice Size | mm | 13 | 15 | 20 | 25 | 35 | 40 | 50 |
Cv Value | 4.5 | 4.5 | 7.6 | 12 | 22 | 30 | 48 | |
L | mm | 66.5 | 66.5 | 75 | 96 | 131 | 131 | 165 |
H | mm | 112.5 | 112.5 | 118 | 124.5 | 137 | 150 | 167 |
H1 | mm | 96.5 | 96.5 | 98 | 104.5 | 112 | 130 | 130 |
Medium temperature | -10 ÷80 | |||||||
Pressure | bar | Normally closed :0.513; Normally Open:0÷8 | ||||||
MAX. Pressure | bar | 17bar | ||||||
Power | AC:220V~AC:230V/50-60HZ 17VA; AC110 ~AC:120V/50-60HZ 13VA; DC24,11 W; DC12V 14W ; Range:±10% | |||||||
Body material | Stainless: SUS304 or SUS316 | |||||||
