2/4x50x, резак для соединения пальцев по дереву

Product Overview

Description

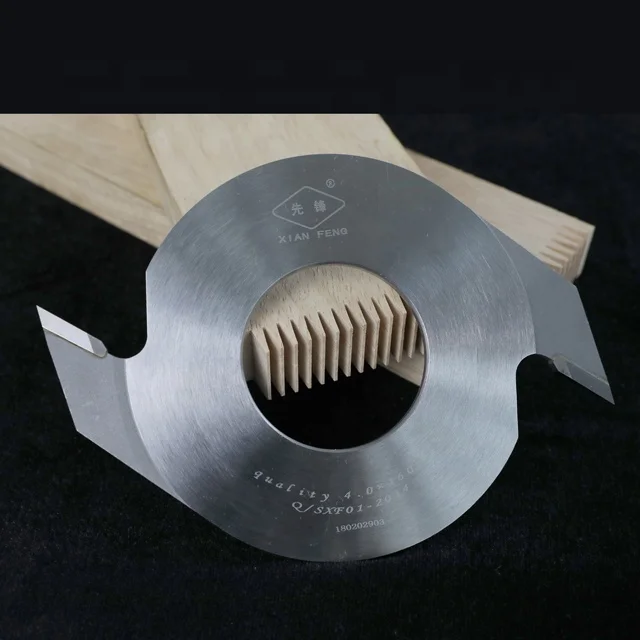

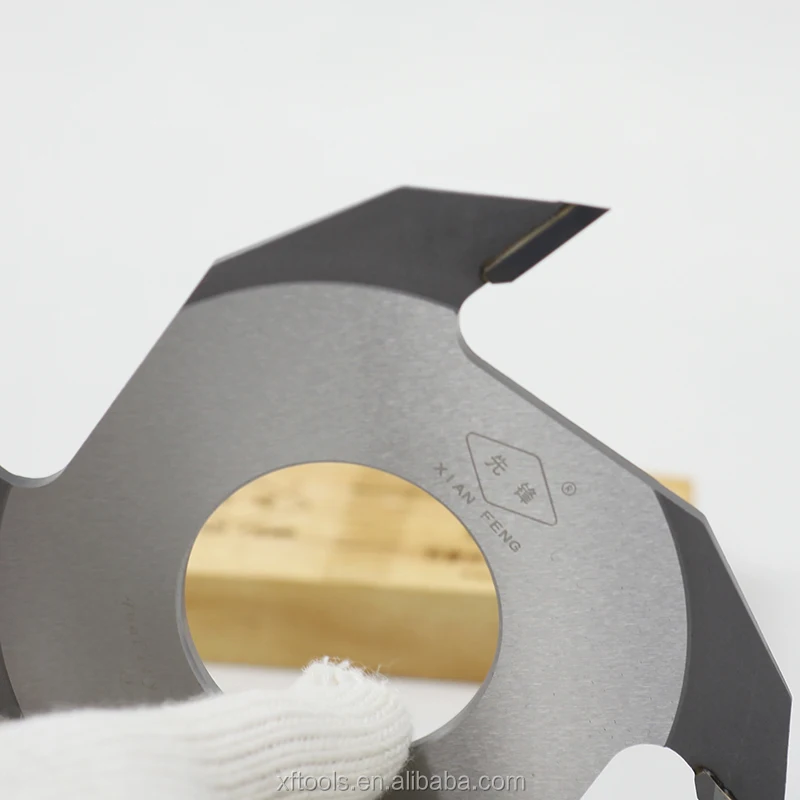

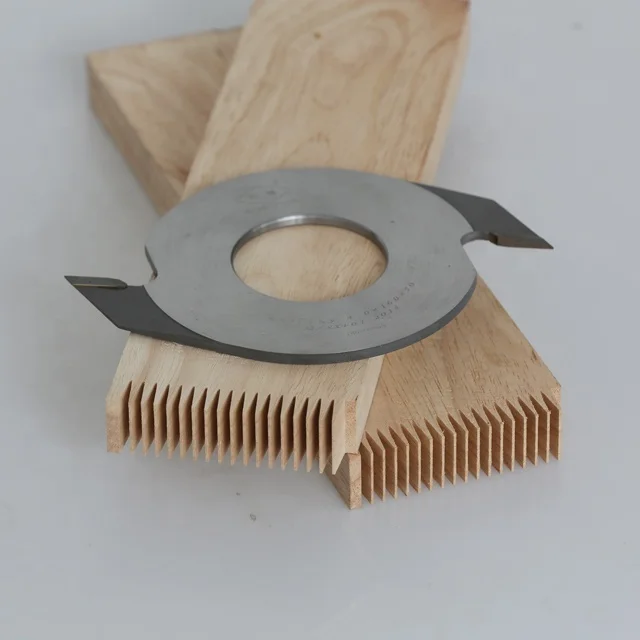

[Pioneer]  160x50x4.0x2/4 wing (teeth) wood finger joint cutter

Model: 160x50x4.0x2 Teeth
Origin: Shijiazhuang city, Hebei Province,China.



Characteristic:



1. 20 years professional manufacturer, as the earlist and largest factory in China.

2: Using the manufacturing equipment with high accuracy, choosing the alloy cutterhead strictly.

3: Excellent controlling the feeding angle between the cutter body and the cutting tooth seriously, All these ensure they can meet the demand of high finger joint fitness, finger joint intensity and common difference.

4: Special heat treatment to improve the stability of the cutting tooth. avoid bending when it cut the gnarl and also reduce the cutting tooth broken.

5: Service life are twice longer than other finger joint cutter made in China.

6. More than 100 series products for your option.

7. Accurate drawings and customized type offer for your special requirement.

8. ODM, OEM products available.



Material:

Carbide tipped
Body: 65Mn

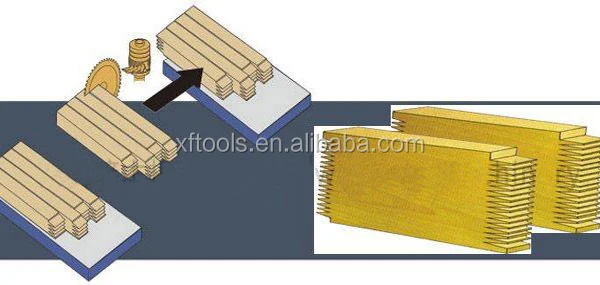

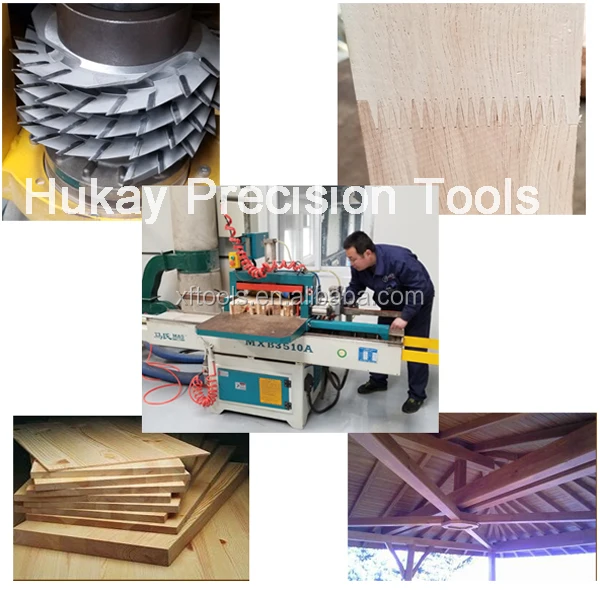

Application:



Used for finger joint machine, comb-type mortising machine, spindle shaper,comb butt mortise machine, automatic finger joint assembler, finger shaper.

Widely used in building wooden side of the open gear docking industry



Specification table



Dimeter(mm)	Thickness(mm)	Hole diameter(mm)	Teeth
160	4.0	40	2 T
160	4.2	40	2 T/4 T
160	4.0	50	2T
160	4.2	50	2T/4T
160	4.0	70	2T
160	4.2	70	2T/4T
160	10.0	40	2T/4T
