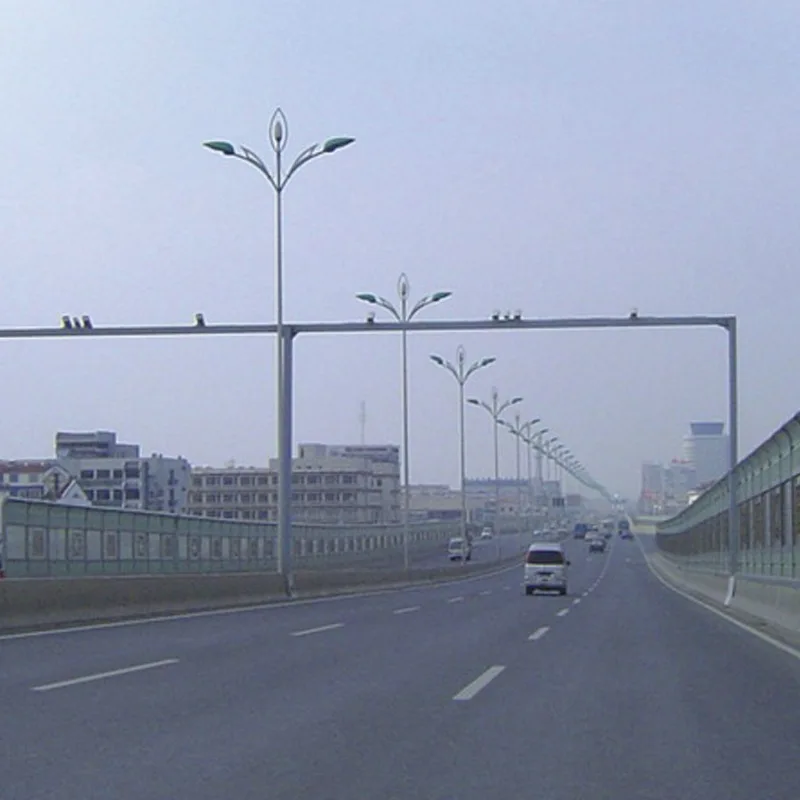

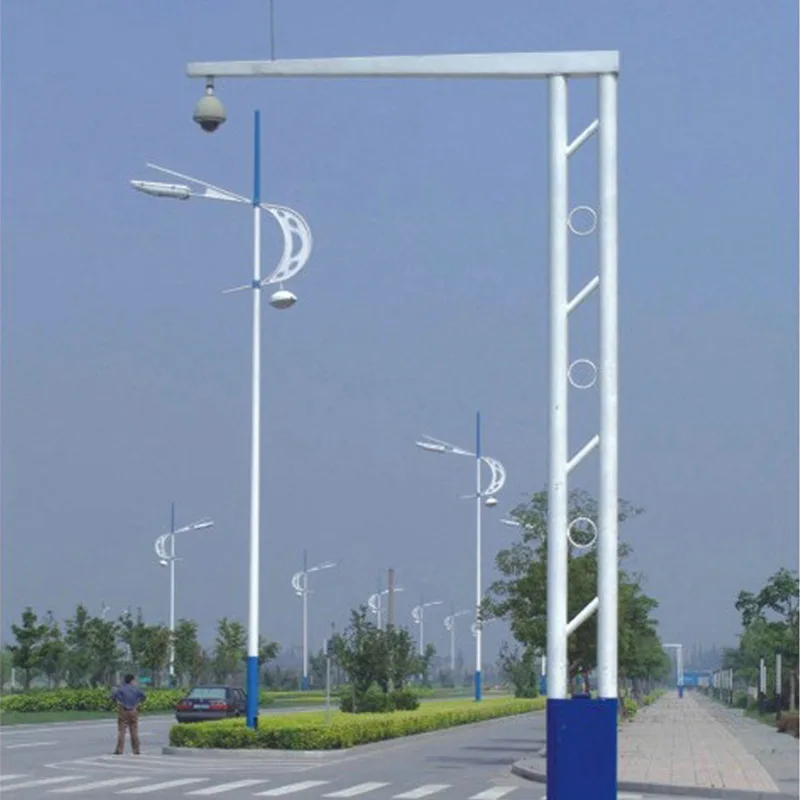

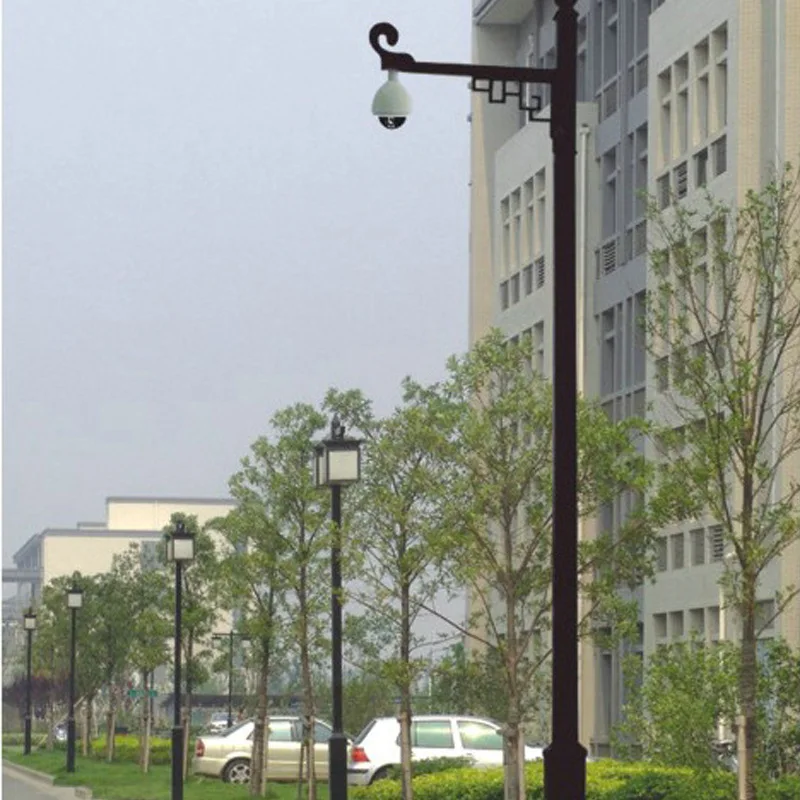

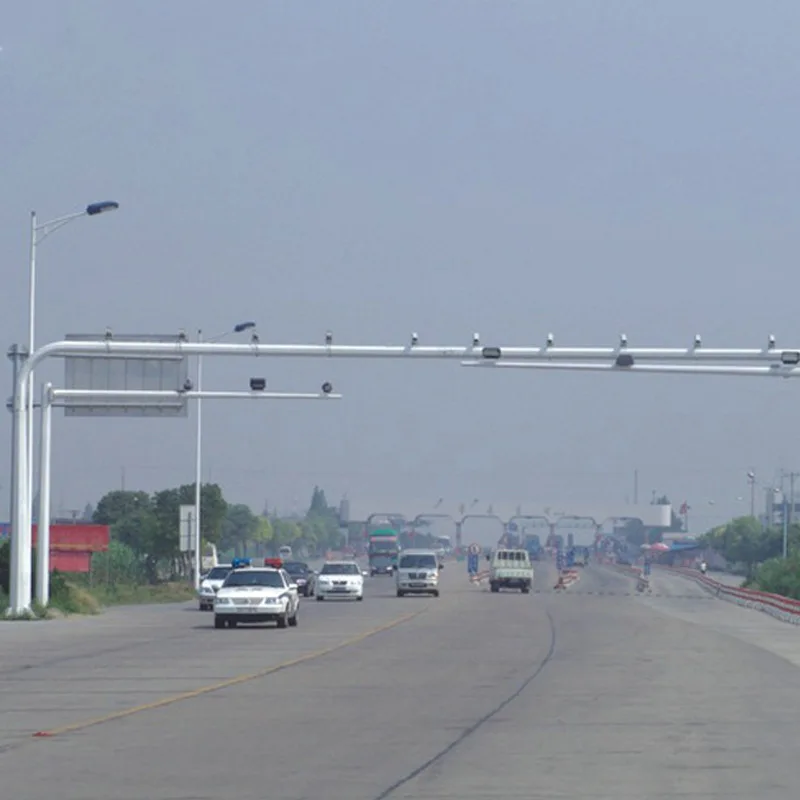

Traffic Road safety warning column/Steel Traffic signal post
- Category: Roadway Safety >>>
- Supplier: Yixing Hongxin Illumination Facilities Co. Ltd.
Share on (936333366):
Product Overview
Description
Product Description

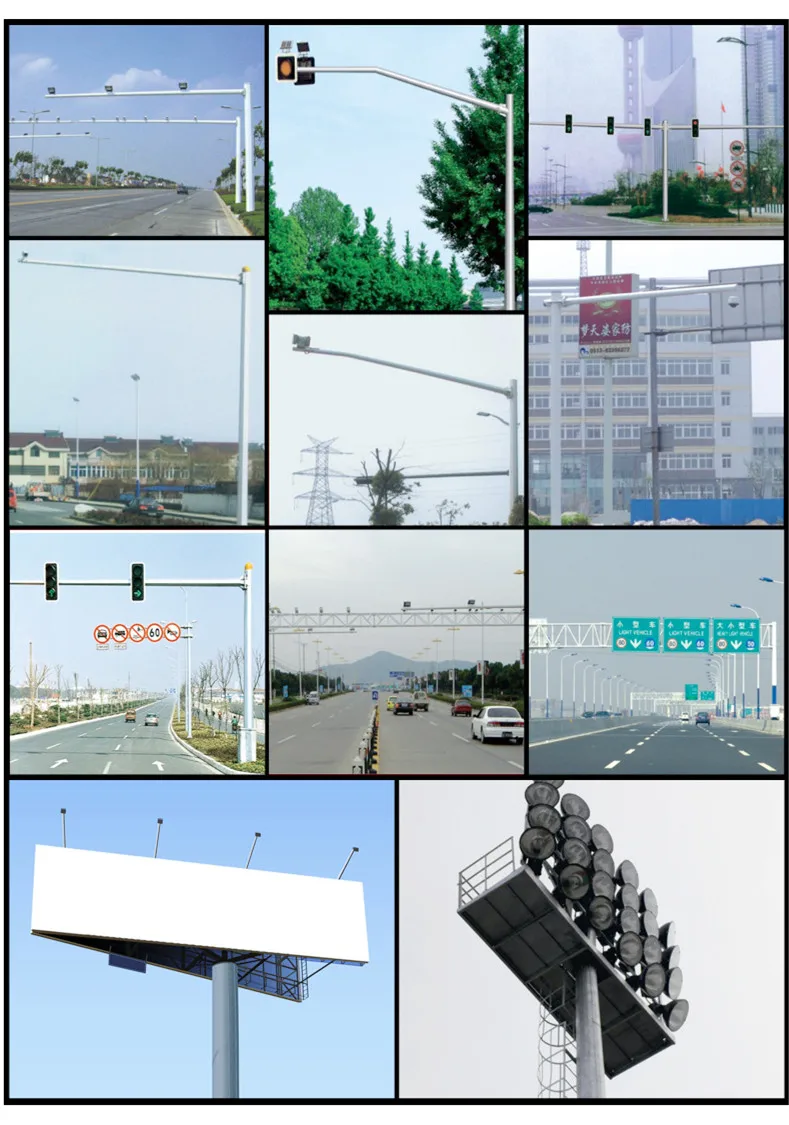

Hongxin's outdoor steel galvanized traffic lighting signal poles with single /double arms:
Pole’s height |
5m to 15m |
Shape of pole | Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
Brackets/ Arm |
Single or double brackets/ arm are in the shape and dimension as per customers requirement |
Length |
Within 14m once forming without slip joint |
Wall thickness |
2.5mm to 20mm |
Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard of CWB |
Jointing |
Jointing of pole with insert mode,innerflange mode,face to face joint mode. |

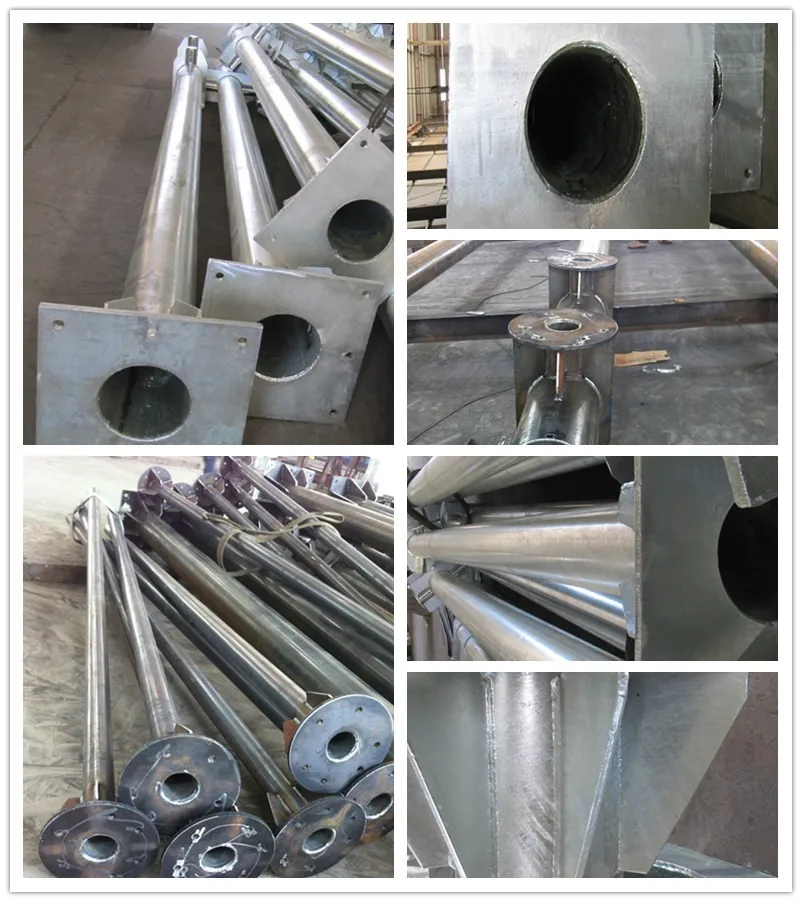

Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
Ground mounted |
The length buried underground as per customers requirement. |
Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL Color stardand. |
windResistance |
Aganist wind pressure of 160Km/h |
Manufacturing |
According to GB/T 1591-1994. |
Quality Control |
We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant. |
Company Information
Certifications
Contact Us
FAQ
Q1:How can I get the price of needed pole?
A:1.Please give the exactly dimensions such as height,thickness,material,top and bottom dia.We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler,we would like to grow up with you together.
Q3:I am a designer,can you help me to produce the sample which I designed?
A:Our mission is to help customers to be successful.So it's welcome if we can help you solve problem and make your design come true.
Q4:Tell me about your company?
A:Yixing Hongxin Lighting Co.,Ltd,we have been a manufacturer and exporter of all kinds of steel poles,including street lighting pole,solar energy light pole,mid-hinged light pole,high mast pole and other steel products.
Q5:Do you have some special policies for Brand company?
A:Yes,we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q6:Can you make Door to Door service? Because I don't know how to do customs clearance.
A:Yes.We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
