Yuxing best industrial computer quilting machines for sale

Product Overview

Description



•


  Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.










•


  Compared with the common speed multi-needle quilting machine:




  A) more stronger structure, and running with saddling rock line guide, so the machine running more steady and patterns making more precise, stitch more pretty.




  B) integration structure, easier for shipment and dismounting.




  c) needle bar and compression bar take rocker-style structure, less noise, less maintenance cost and No need to add oil.




  D) output is 30-40% higher.




  E) standard assembling is including original imported shuttle, auto stop device, and fabric feed-in device with fabric reversing.




  F) During the producing process of high speed quilting machine, in some range of quilting thickness, no need to adjust the machine, more simple operation.














  Specification:

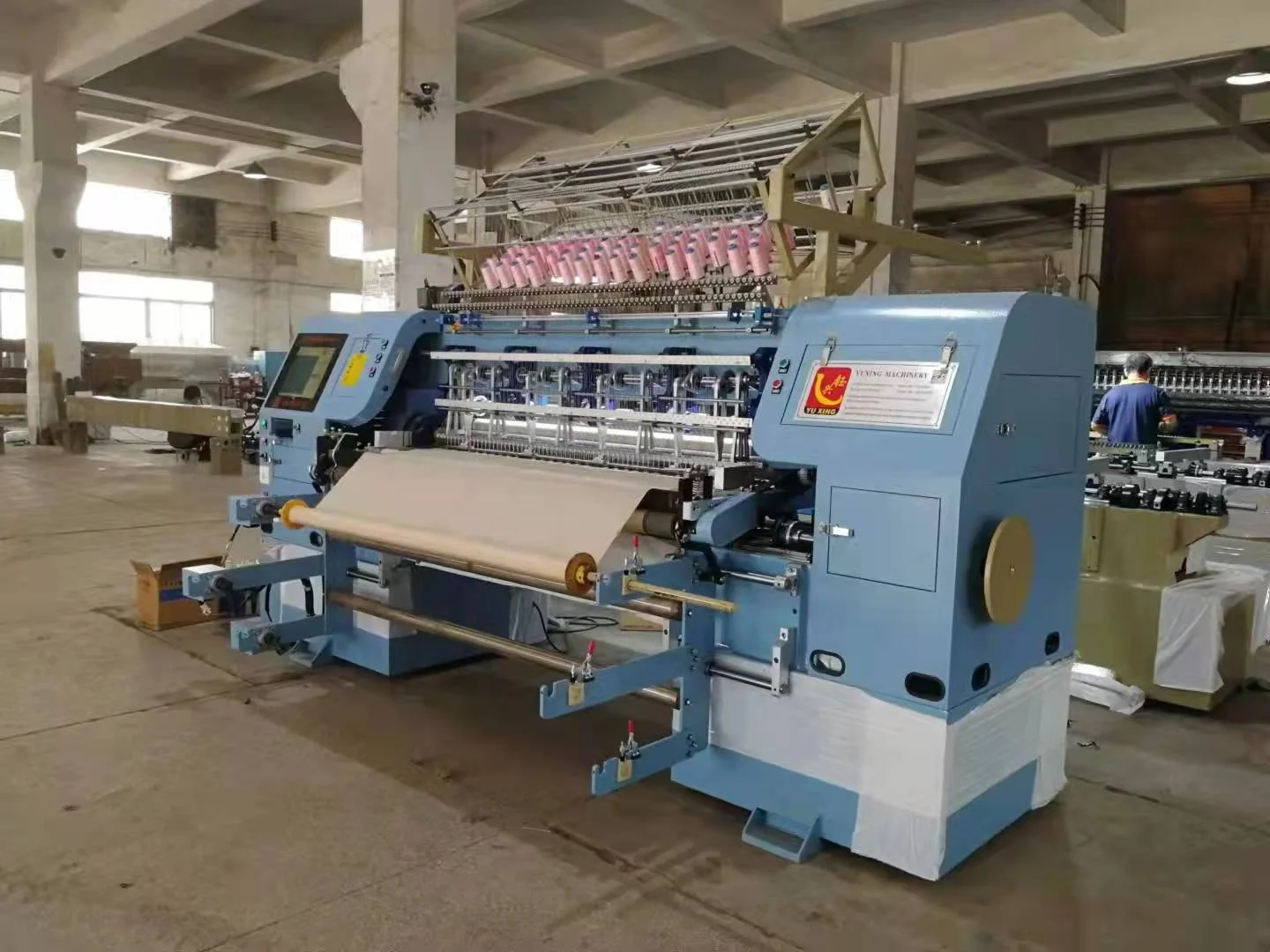

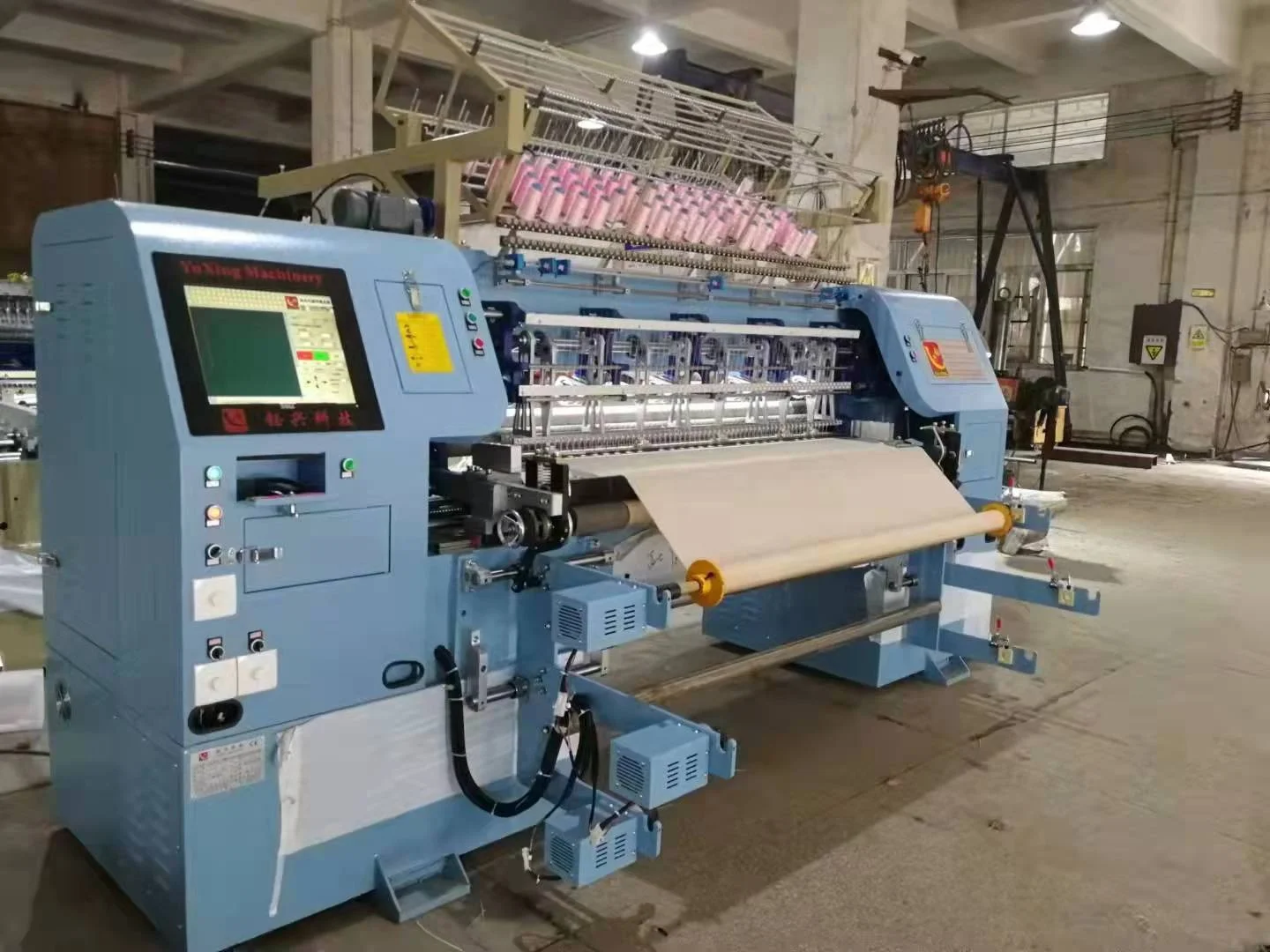

  Product Name	High Speed Computer Shuttle Multi-needle Quilting Machine
  Model	YXS-94-3C
  Size(L*W*H)	5000*1400*1700mm
  Weight	4600kg
  Quilting width	2450mm
  Needle bar space	3C 152.4(3”+3”)
  Quilting thickness	≤50mm
  Rolling speed	500-800r/min
  Output	0-195m/hour
  Needle type	#16,#19
  X-axis movement	254mm
  Needle space	25.4mm
  Stitch	2-6mm
  Rated voltage(AC)	380V/50HZ,/220V/60HZ
  Power	6.5KW



















  Functions:




  1.Adopt the advanced computer and mechanistic technology.




  2.Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.




  3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.




  4.Saddling rack and roller are driven by servo equipment.




  5.Principal axis uses the frequency conversion device.




  6.Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2mm-6mm.




  7.360°random quilting and limitless multi-span and independent quilting.




  8.Compensation function,an effective solution for looping pattern with thick material.




  9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.




  10.The infrared system ,make your operate more safe.




  11.Pattern editing is easy to learn.




  12.Ringing notice when start machine.











Our company is specialized in manufacturing computerized multi-needle quilting machine,

computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding

machine,more than 10 kinds of products.

It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and

Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City

Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.

We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive

market,we make progress and get innovation constantly.We firmly believe high quality and good

service are the best support for users' trust.









     Welcome to visit our factory any time!!!^_^
