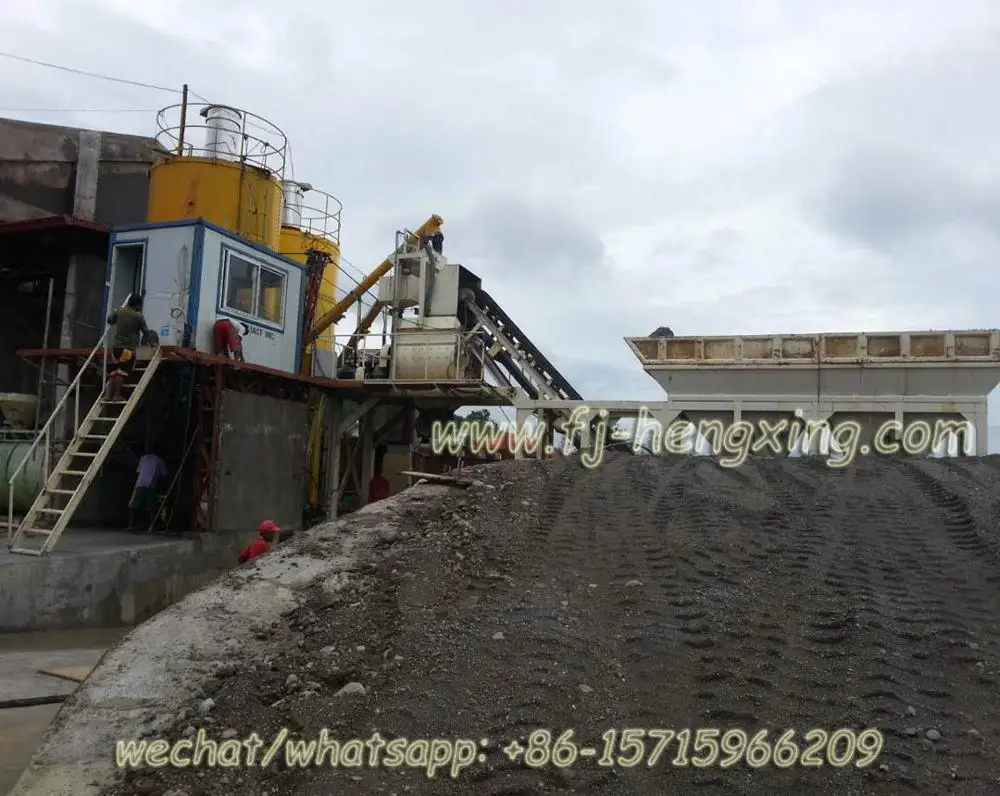

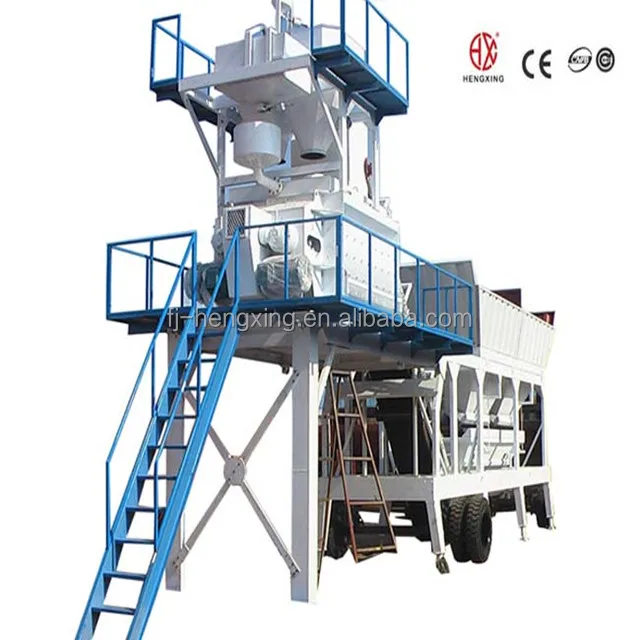

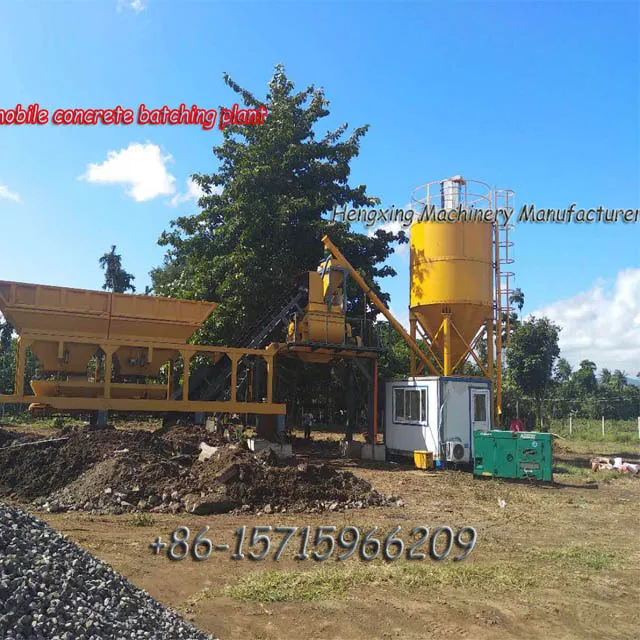

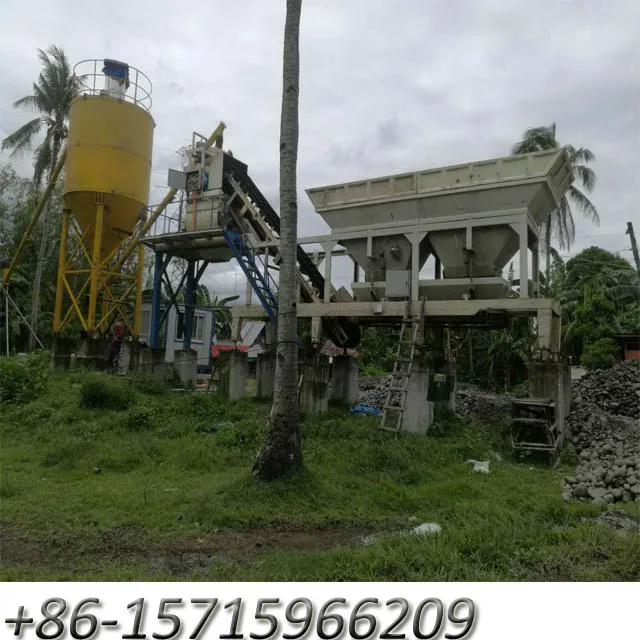

35m3 concrete batching plant YHZS series mobile concrete batching plant with higher stability for road works

Product Overview

Description

YHZS Mobile Concrete Bacthing Plant description:

Batching system:

2 hoppers accumulative weighing system with transcell sensor.

the frequent mobile transitions of construction and development of concrete mixing equipment users. The machine adopts the international popular quickly assembled module type structure, easy installation, compact and reasonable, cover an area smaller, higher automatic degree, widely used in bridge, construction in our country, water conservancy, electricity and other infrastructure construction.

Mixing system:

Dual-axial mixing machine, strong mixer ability, stirring evenly.

achieve good mixing effect on the ratio of various mixture materials. Mixing blade, lining board adopts high chromium wear-resistant alloy materials.

Control system:

adopts industrial control computer.

Realize the material metering station, transporting, mixing, unloading of automatic production process. real-time data processing, the system can automatic control, can also be manual operation.

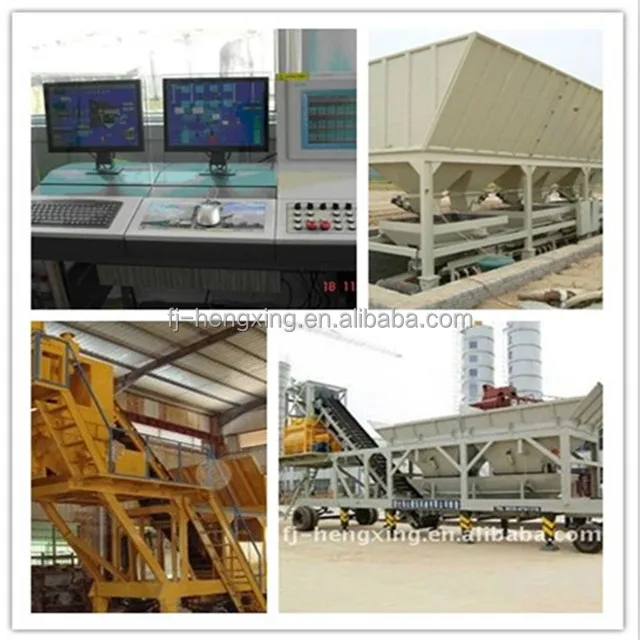

Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear.

store various proportioning and mixing station working data, print all kinds of report data as required.

Constant temperature container type control room with sound insulation, heat insulation sandwich panel, capacious and bright,

Batching system:
Station is equipped with two or three bin and can be used for more than three kinds of aggregate gradation need. Loader, directly feeding are available, and each bin has a thick at the bottom of the two-stage pneumatic discharge door, cylinder accept the signal to open the door, in order to weigh hopper at the bottom of the feeding.

Weighing system:

Weighing system adopts special ingredients control device, with automatic compensation function head. Aggregate, cement, water and additive by separate meter control weighing, measurement accurate and reliable.

Hoisting system of the aggregate

The measured aggregate released by belt machine, fall in aggregate inclined belt, conducted by the inclined belt ascending to the blender mixing. The troughed belt being chose has the advantage of high dip Angle, large conveying Angle, compact structure, smooth operation, high work reliability.



YHZS Mobile Concrete Bacthing Plant Parameters:

YHZS mobile concrete batching plant technical parameters
Model	(m³/h)	Mixer	weighing presicion		power (kw)	weight (kg)	speed (km/h)	tread diameter (mm)	turning radius  (m)
			aggregate	additive
YHZS25	25	JS500	≤2%	≤1%	45	20000	15	3200	9
YHZS35	35	JS750	≤2%	≤1%	60	22000	15	3200	9
YHZS50	50	JS1000	≤2%	≤1%	70	25000	15	3400	10
YHZS75	75	JS1500	≤2%	≤1%	100	32000	15	3400	12
