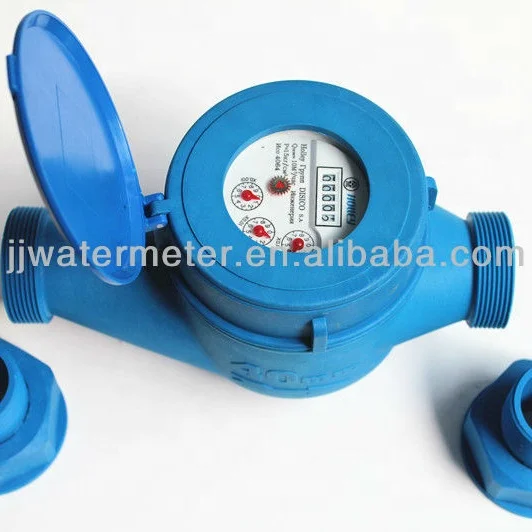

LXSG 40E DN40 Plastic Water Meter
LXSG-40E DN40 Plastic Water Meter
LXSG-40E DN40 Plastic Water Meter
LXSG-40E DN40 Plastic Water Meter

LXSG 40E DN40 Plastic Water Meter

Share on (937198096):


Price:$17.00 - $17.40

Quantity:


Product Overview

Description







Features:
1.Multi—jet
2.Dry type / Wet type / Liquid Sealed (for selecting)
3.Anti—magnetic, good anti—freezing property
4.The adoption of mechanism with vacuum sealed keeping the reading clear in long term operation
5.Measuring accuracy is up to ISO4064 CLASS B
6.High quality materials, steady & reliable characteristic
7.Material: Nylon(PA)


Working Conditions
Cold water temperature≤35℃
Hot water temperature≤90℃
Water pressure≤1.0Mpa / 1.6Mpa


ERROR CURVE
a.at low zone is ± 5％ from Qmin to Qt(not)
b.at high zone is ± 2％ from transitional flow(Qt) to maximum low(Qmax)


MAIN TECHNICAL DATA







Meter Size
(mm)
CLASS
Qmax
(m³/h)
Qn
(m³/h)
Qt
(m³/h)
Qmin
(m³/h)
Min Reading
Max Reading
15
B
3.125
2.5
0.05
0.03125
0.0001
99999
20
B
5
4
0.08
0.05
0.0001
99999
25
B
7.875
6.3
0.126
0.07875
0.0001
99999
32
B
12.5
10
0.2
0.125
0.0001
99999
40
B
20
16
0.32
0.2
0.001
99999
50
B
31.25
25
3.15
0.5
0.001
99999

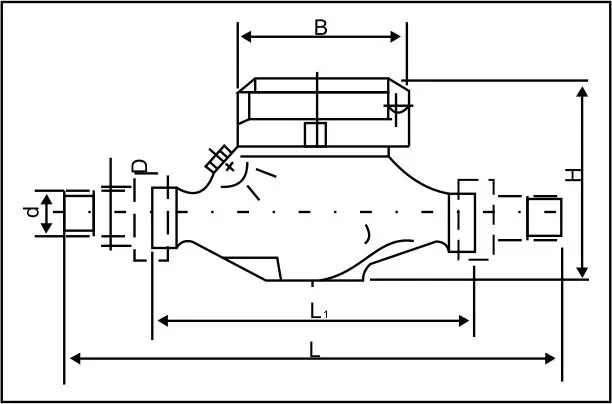

DIMENSIONS AND WEIGHT
Meter size
DN
15
20
25
32
40
50
Length
L1(mm)
165
195
225
230
245
300
Width
B(mm)
98
98
103
103
125
135
Height
H(mm)
114
114
114
114
144
155

Connecting thread
d
R1/2
R3/4
R1
R1-1/4
R1-1/2
R2
D
G3/4
G1
G1-1/4
G1-1/2
G2
G2-1/2
Weight
kg
0.6
0.7
1.0
1.5
2
2.5
