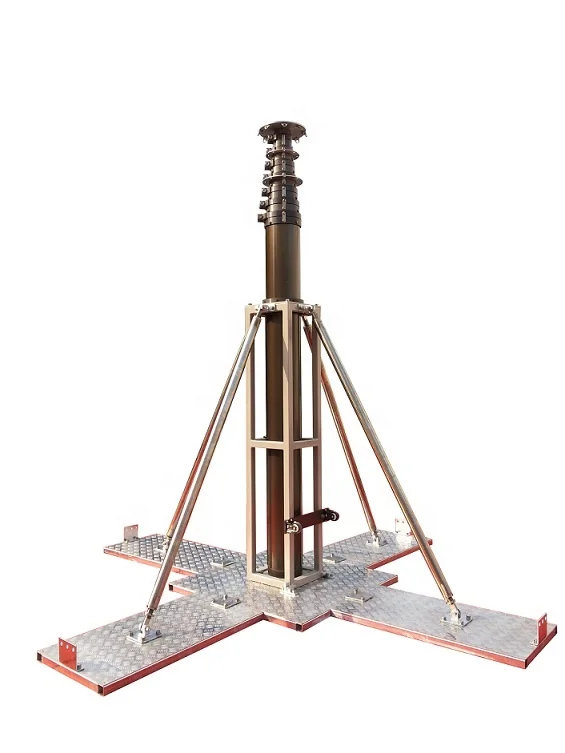

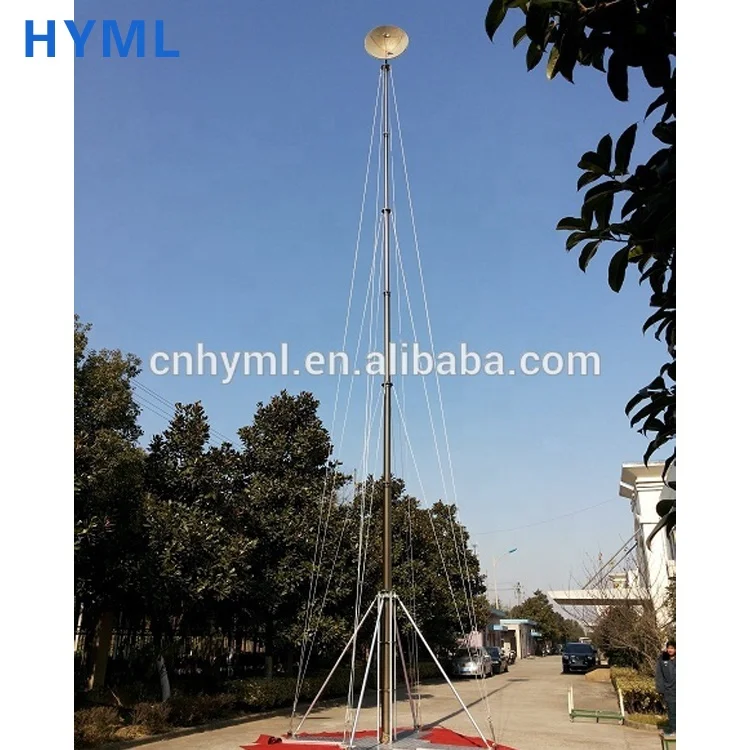

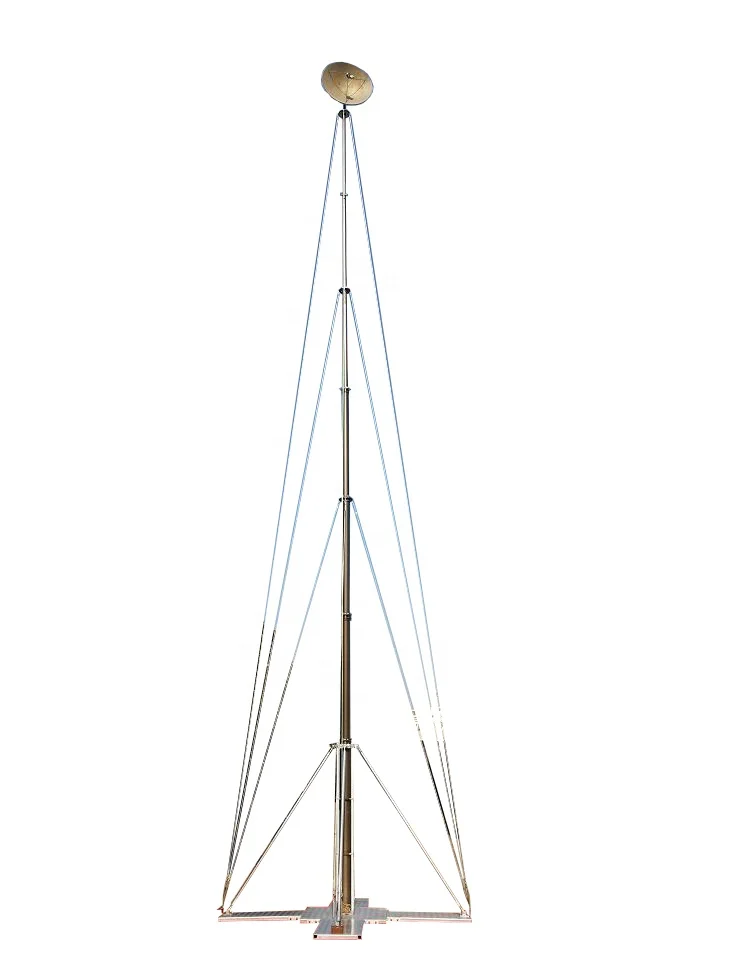

18m Heavy high telecommunication tower and telescopic antenna tower mast pole
- Category: >>>
- Supplier: Wuxi Hi-Eagle Move-Light Co. Ltd.
Share on (937315110):
Product Overview
Description
Introduction

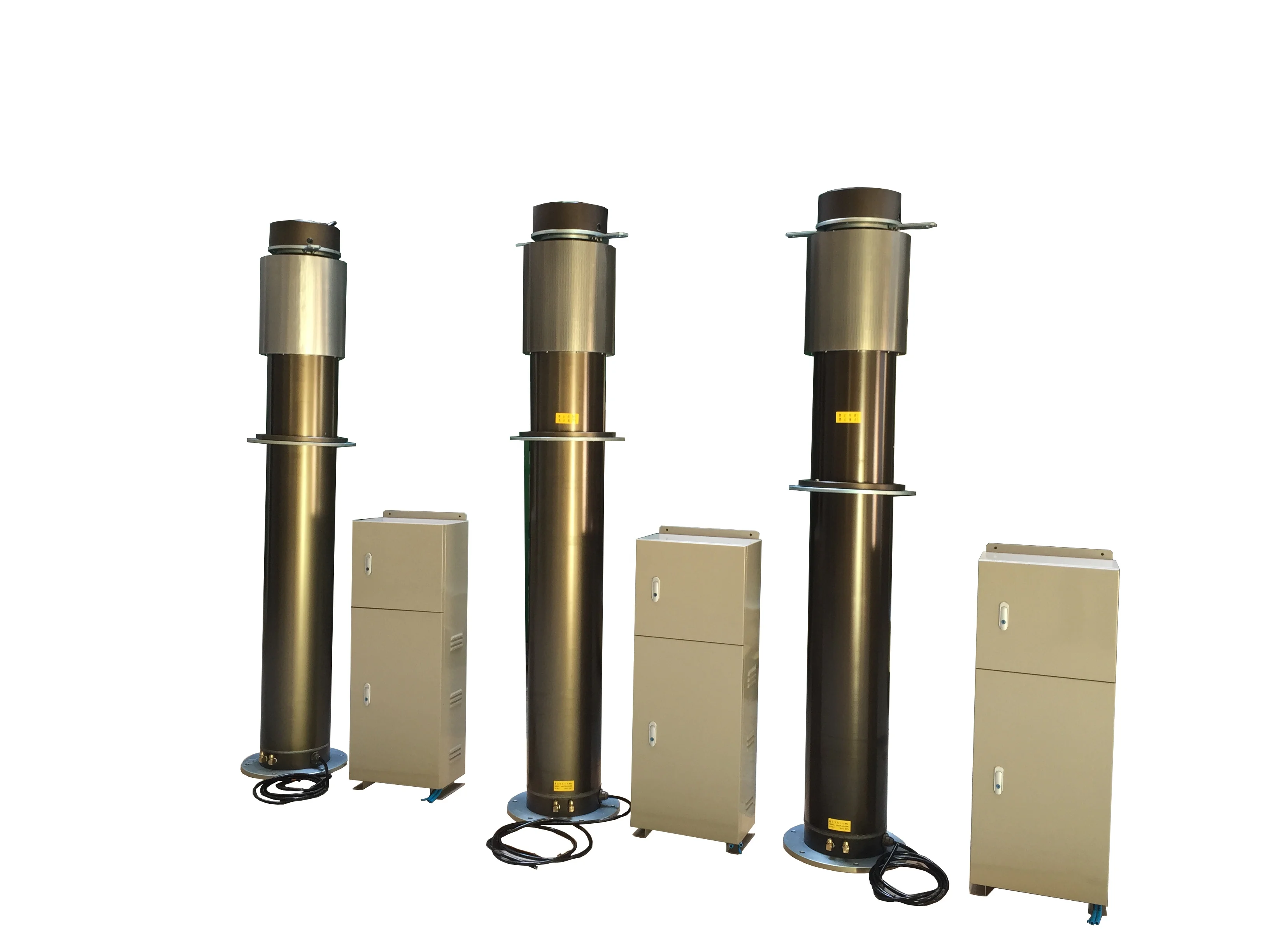

We are the manufacturer who is specialized in manufacturing the various pneumatic telescopic masts for different applications.
The height is from 1m(3.2feet) - 32m(105feet)
The top payload is from 1kgs (2.2lbs) - 450kgs(992lbs.)
Our mast is made of light weight ,high strength 6063 aluminium alloy . The surface coating is hard anodized treatment that improves the surface hardness, anti-corrosion strength, and longer lifetime.
The working temperature of the mast is -55°C~ +80°C
The scope of application

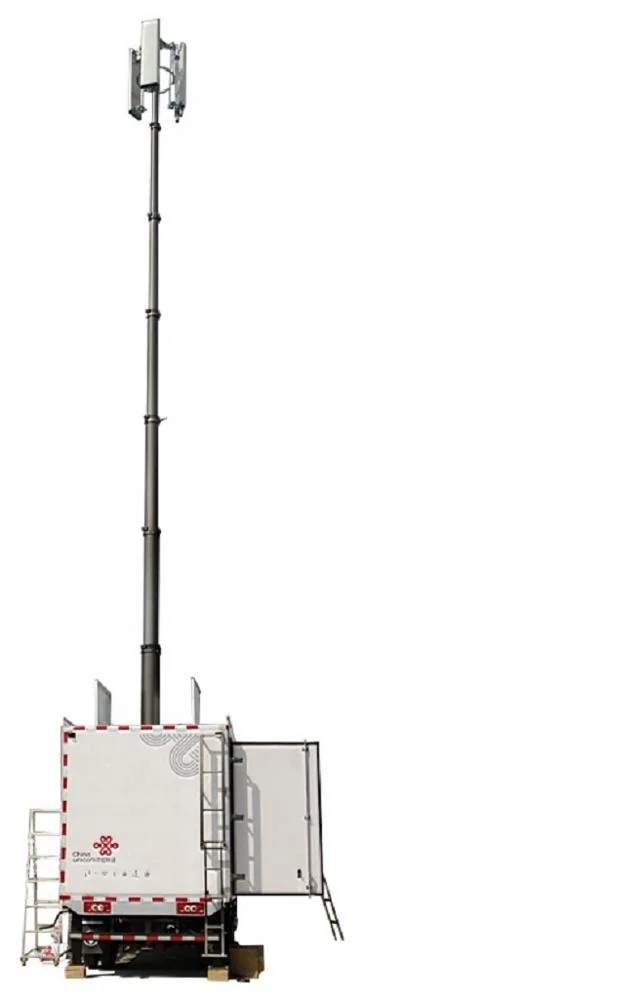

Our products are widely used in CCTV, Firetruck , Trailer , Cabin,Shelter, Center command vehicle, Military application, Antenna, Mobile Communication Tower ,Mobile Cell site Broadcasting ,field and etc
Our locking mast can support more than 450kgs(992lbs.)
Specifications
Model | sections | Nested height | Extended height | Outer diameter | Inner diameter | Max. Payload | Net weight |
A4-75-1200-3634 | 4 | 1200mm (3.93ft) | 3634mm (11.92ft) | 82mm (3.22inch) | 30mm (1.18inch) | 18kg/ 39Lb | 10kg/ 22Lbs |
A4-110-1550-4809 | 4 | 1550mm (4.92ft) | 4809mm (15.77ft) | 118mm (4.64inch) | 60mm (2.36inch) | 72kg/ 158Lb | 20kg/ 44Lbs |
A5-110-1600-6006 | 5 | 1600mm (5.24ft) | 6006mm (19.70ft) | 118mm (4.64inch) | 46mm (1.81inch) | 42kg/ 92Lb | 20kg/ 44Lbs |
A4-110-2360-8009 | 4 | 2360mm (7.74ft) | 8009mm (26.27ft) | 118mm (4.64inch) | 60mm (2.36inch) | 72kg/ 158Lb | 30kg/ 66Lbs |
A6-150-2000-9025 | 6 | 2000mm (6.56ft) | 9025mm (29.60ft) | 160mm (6.29inch) | 60mm (2.36inch) | 72kg/ 158Lb | 50kg/ 110Lbs |
A4-150-3000-10000 | 4 | 3000mm (9.84ft) | 10000mm (32.80ft) | 160mm (6.29inch) | 90mm (3.54inch) | 162kg/ 357Lb | 62kg/ 136Lbs |
A7-150-2381-12000 | 7 | 2381mm (7.81ft) | 12000mm (39.37ft) | 160mm (6.29inch) | 46mm (1.81inch) | 42kg/ 92Lb | 65kg/ 143Lbs |
A6-215-3110-14515 | 6 | 3110mm (10.20ft) | 14515mm (47.62ft) | 229mm (9.01inch) | 110mm (4.33inch) | 242kg/ 533Lb | 155kg/ 341Lbs |
A9-270-2600-15094 | 9 | 2500mm (8.2ft) | 15094mm (49.52ft) | 284mm (11.18inch) | 90mm (3.45inch) | 162kg/ 357Lb | 210kg/ 462Lbs |
A7-284-3000-16200 | 7 | 3000mm (9.8ft) | 16200mm (53.14ft) | 284mm (11.18inch) | 130mm (5.11inch) | 280kg/ 617Lbs | 231kgs/ 509lbs |
A7-270-3400-18063 | 7 | 3400mm (11.15ft) | 18063mm (59.26ft) | 284mm (11.18inch) | 130mm (5.11inch) | 388kg/ 855Lb | 265kg/ 584Lbs |
A8-270-3500-20981 | 8 | 3500mm (11.48ft) | 20981mm (68.89ft) | 284mm (11.18inch | 110mm (4.33inch | 242kg/ 533Lb | 285kg/ 628Lbs |
A10-270-3600-23000 | 10 | 3500mm (11.48ft) | 26000mm (85.3ft) | 284mm (11.18inch | 75mm (3inch) | 110kgs/242lb | 300kg/ 661Lbs |
