Copper HO7V U H07VU Cu H07 HO7 H05 HO5 Electric wire electrical wire for sale
- Category: >>>
- Supplier: Henan Sanheng Industrial Co. Ltd.
Share on (937538280):
Product Overview
Description
Copper HO7V-U H07VU Cu H07 HO7 H05 HO5 Electric wire electrical wire for sale
Product Description
PVC Electric wire
---Application:
low voltage electric wire prices is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
---Conductor:
Class 1 pure annealed copper wire (IEC 60228)
---Conductor
Solid copper wire
---Insulation:
PVC (Polyvinyl chloride polymer)
---Insulation colour:
Red, black, yellow, brown, green and other colours
---Rate of Voltage:
300/500V, 450/750V
---Produts shape:
Circular
---Operating Temperature:
0~70 °C
--- Minimum Bending Radius
Up to 10mm²: 3 x overall diameter
10mm² to 25mm²: 4 x overall diameter
Above 25mm²: 5 x overall diameter
Wire - single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire,PVC insulation
2. Conductor: 100% pure copper
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C
5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house wiring, factory wiring, switching panel
distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date:
BV 300/500V | |||
Nominal Section(mm2) | No.Dia. of Core(mm) | Max outer diameter(mm) | Conductor resistance at 20C(≤Ωkm) |
0.5 | 1/0.8 | 2.4 | 36.0 |
0.75(A) | 1/0.97 | 2.6 | 24.5 |
0.75(B) | 7/0.37 | 2.8 | 24.5 |
1(A) | 1/1.13 | 2.8 | 18.1 |
1(B) | 7/0.43 | 3.0 | 18.1 |
BV 450/750V | |||
1.5(A) | 1/1.38 | 3.3 | - |
1.5(B) | 7/0.52 | 3.5 | - |
2.5(A) | 1/1.78 | 3.9 | 11.8 |
2.5(B) | 7/0.68 | 4.2 | 11.8 |
4(A) | 1/2.25 | 4.4 | 7.39 |
4(B) | 7/0.85 | 4.8 | 7.39 |
6(A) | 7/0.85 | 4.8 | 4.91 |
6(B) | 7/1.04 | 5.4 | 4.91 |
10 | 7/1.35 | 7.0 | 3.08 |
16 | 7/1.70 | 8.0 | 1.91 |
25 | 27/2.04 | 10.0 | 1.20 |
35 | 27/2.52 | 11.5 | 0.868 |
50 | 19/1.78 | 13.0 | 0.641 |
70 | 19/2.14 | 15.0 | 0.443 |
95 | 19/2.52 | 17.5 | 0.320 |
120 | 37/2.03 | 19.0 | 0.253 |
150 | 37/2.25 | 21.0 | 0.206 |
185 | 37/2.52 | 23.5 | 0.164 |
240 | 61/2.25 | 26.5 | 0.125 |
300 | 61/2.52 | 29.5 | 0.100 |

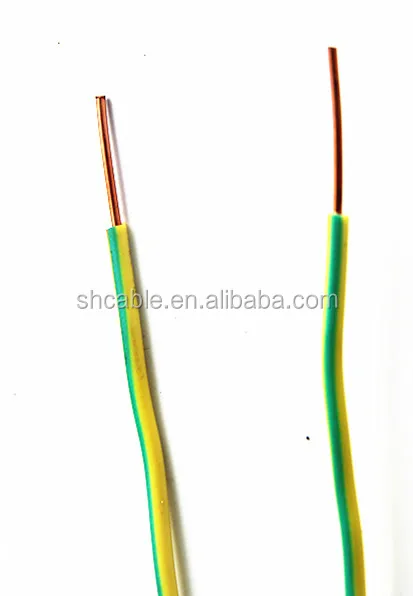

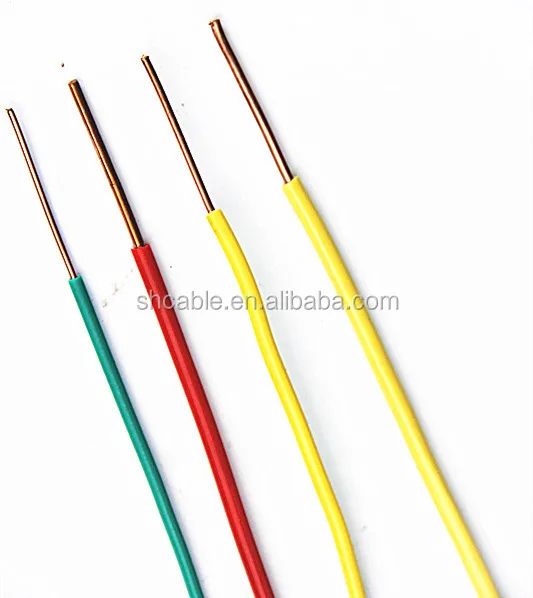

Product Pictures
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !

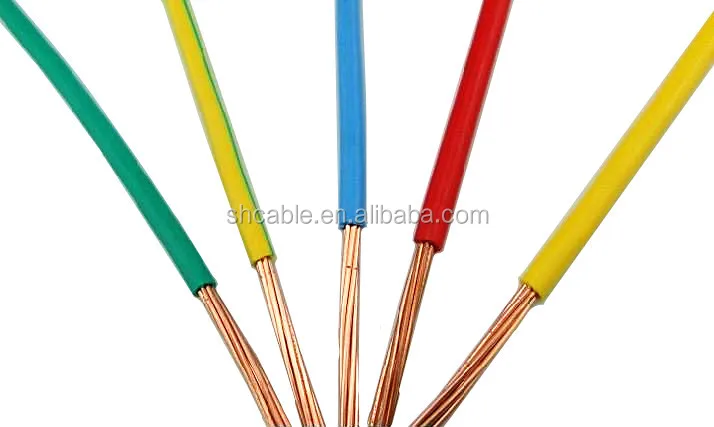

PVC Electric wire

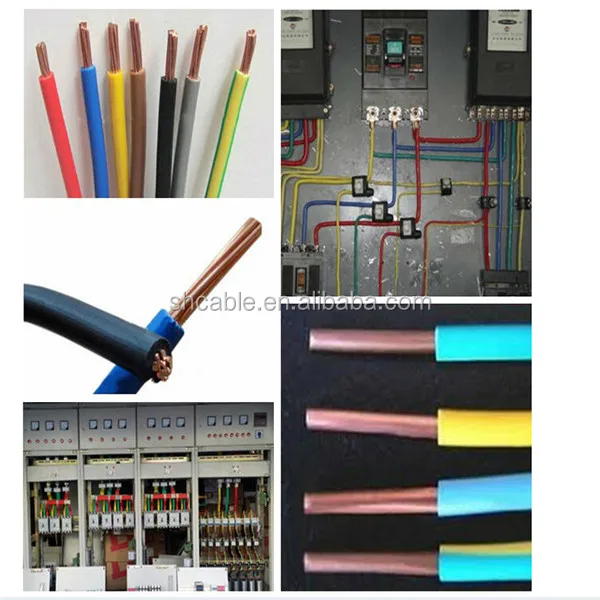

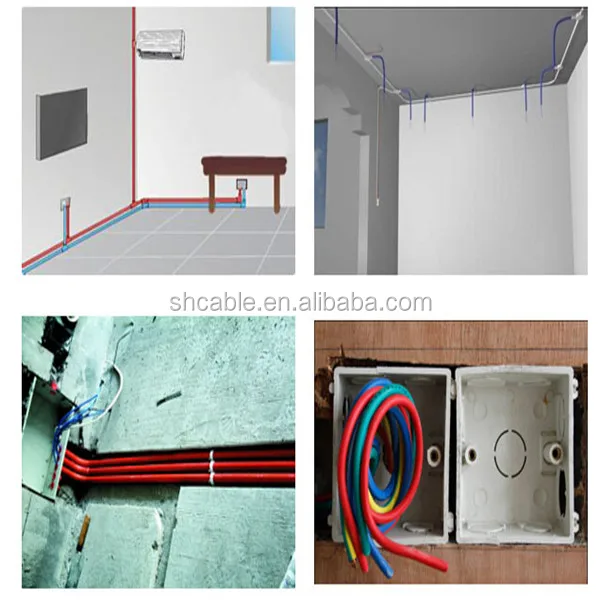

Application
Packaging & Shipping
Certifications
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
OEM Service
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
Our Customers
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
FAQ
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC
