MMO покрытием титановый стержень анод

Product Overview

Description

Name:	MMO Coated Titanium Plate Anode
Item No.	MD-007
Specifications:	Floor Metal: Gr1, Gr2, Ta, Nb Coating Material: IrO2+Ta2O5+X Current Density: <11500A/sq m Noble Metal Content: 15-45g/sq m Vitriol Concentration: <60% Temperature Scope: >60 degree celsius Content of Florin Ions: <50mg/L PH Value: 1-12
Features:	1. High erosion-resisting 2. High current efficiency 3. High durability 4. Floor can circle after electrodes lose activity 5. Heavy current density, high productivity 6. Light weight
Application:	Metal Foil Producing Surface process Acid water electrolysis High speed electro-plating Cathode protection Electrodialysis Organic synthesis Noble metal plating
Introduction:	Anode: In electrochemistry, the anode is where oxidation occurs and is the positive polarity contact in an electrolytic cell. At the anode, anions (negative ions) are forced by the electrical potential to react chemically and give off electrons (oxidation) which then flow up and into the driving circuit. Mnemonics: LEO Red Cat (Loss of Electrons is Oxidation, Reduction occurs at the Cathode), or AnOx Red Cat (Anode Oxidation, Reduction Cathode), or OIL RIG (Oxidation is Loss, Reduction is Gain of electrons), or Roman Catholic and Orthodox (Reduction - Cathode, anode - Oxidation), or LEO the lion says GER (Losing electrons is Oxidation, Gaining electrons is Reduction) This process is widely used in metals refining. For example, in copper refining, copper anodes, an intermediate product from the furnaces, are electrolysed in an appropriate solution (such as sulfuric acid) to yield high purity (99.99%) cathodes. Copper cathodes produced using this method are also described as electrolytic copper.

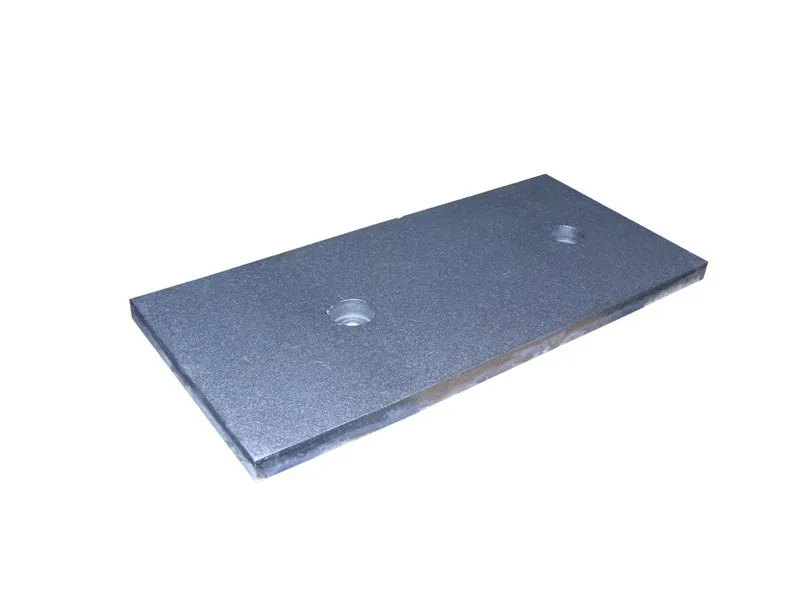

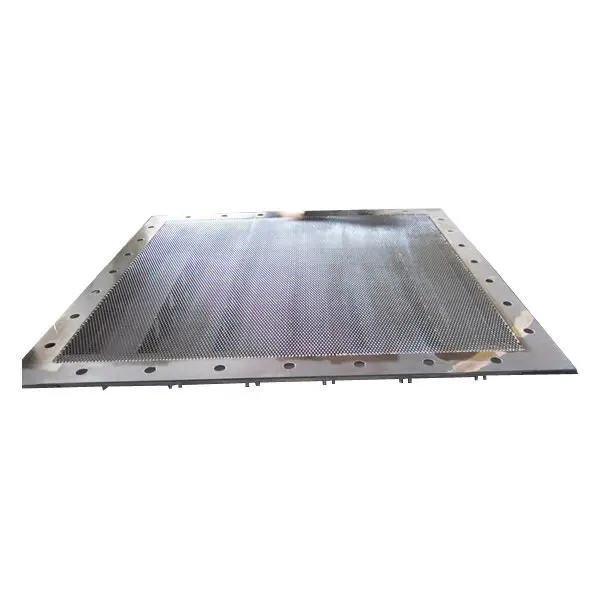

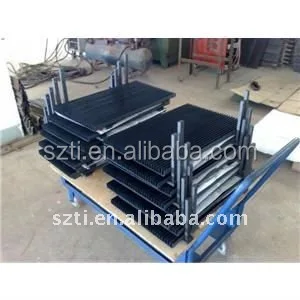

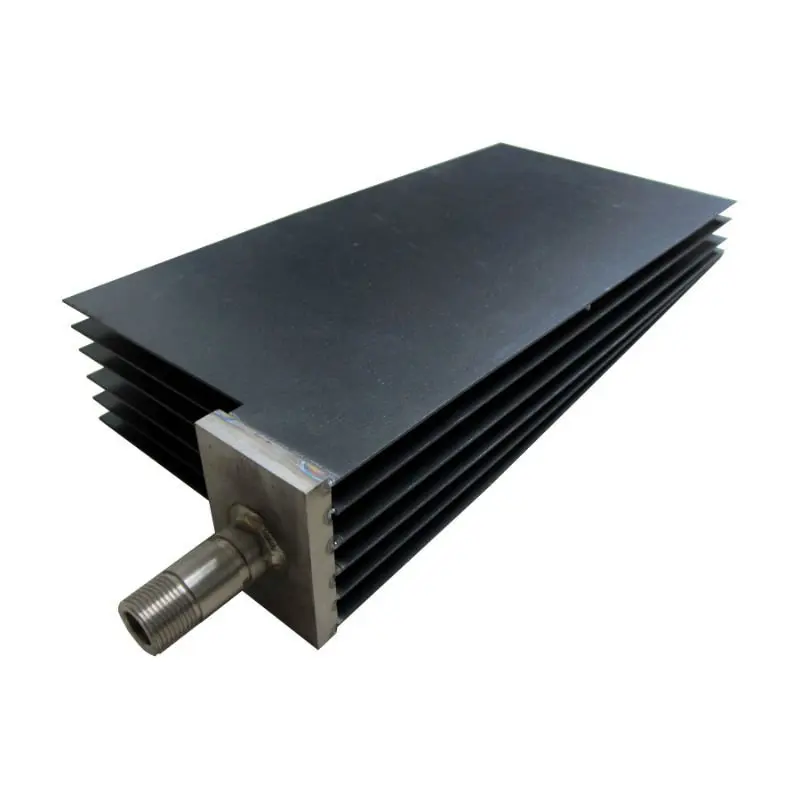

Item's pictures:
