Microfiltration and Ultrafiltration Ceramic Membrane Filter Element

Product Overview

Description



Microfiltration and Ultrafiltration Ceramic Membrane Filter



1:Description

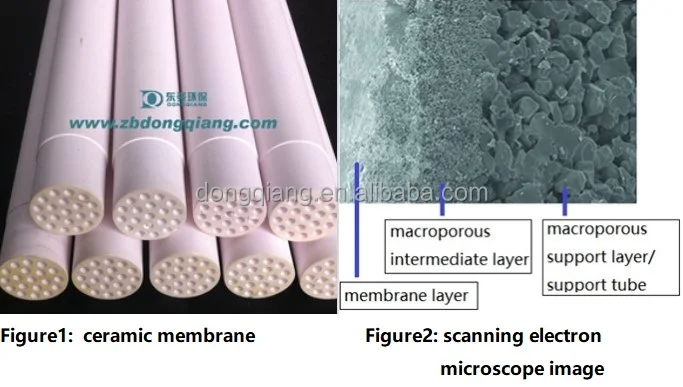

DQCM ceramic membrane is asymmetric multi-channel membranes composed of filtering layer, intermediate layer, and support layer (from the finest).





2: Filtration mode: cross flow filtration / inside-outside filtration;



3:Properties of ceramic membrane:

Support material:	α-alumina
Pore sizes:	UF: 2,5,10,15,20,30,50nm
	MF: 100,200,500,800,1200nm
Membrane material:	Zirconia,Titania,Alumina
Length of membrane:	250-1200mm(special length upon customer's request)
Outer diamater:	12/25/30/40/52mm
Working pressure:	Normal: 0.1-0.4MPa  Max.: ≤1.0MPa
Burst pressure:	≥9.0MPa
Working temperature:	5-150℃
PH range:	0-14



4:Specification of membranes:





5: Ceramic Membrane Compared with traditional filtration system

Compared with such tradition filter like frame filter,press filter, centrifugal filter, DE Filter and polymeric membrane filter, ceramic membrane has many unique advantages.

1).Excellent resistance to acid, alkaline and oxidation chemicals.

2).Good solvent stability, high thermal stability.

3).Fine separability with narrow pore size distribution.

4).Extremely long working life compared with polymeric membrane.

5).Easy to be cleaned and sanitized with back flushing.

6).High mechanical strength,good abrasive resistance.

6:Applications:

 Filtration,clarification,purification and concentration.

(especially for filtration of food and beverage industries,chemical and petrochemical industries,biochemical and pharmaceutical industries.)



7:Typical Applications:

1) Biochemical and Pharmaceutical Industries:

Clarification and purification of the fermentation products as well as purification or separation of product slurries;

2) Environmental applications:

water and waster water treatment,oily water separation;

3) Food and beverage Industry:

Milk microfiltration,yogurt concentration,vegetable oil clarification,protein

concentration,and separation of soya bean protein;

wine clarification,beer clarification,fruit juice clarification;

4) Highly useful for various filtration applications in the Petro-Chemical Industry;

5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing

liquids.



*For more detailed information,feel free to contact us.
