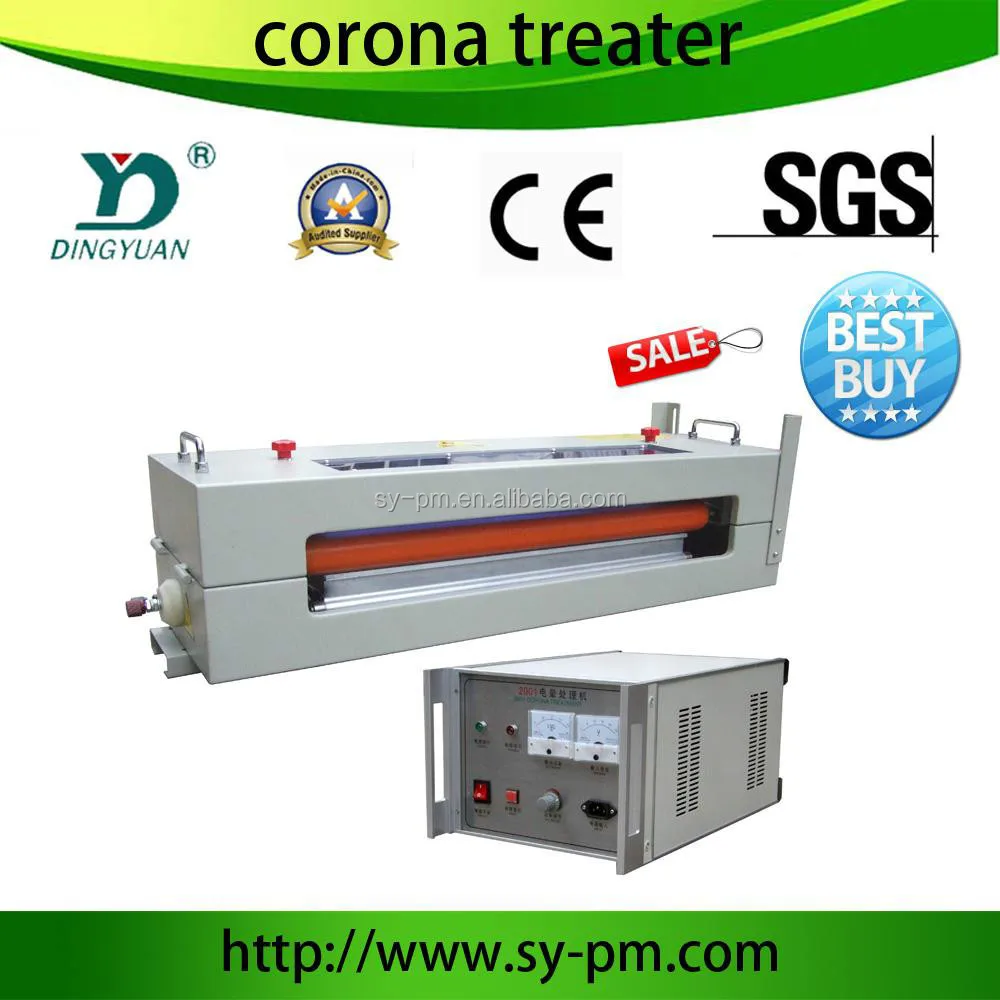

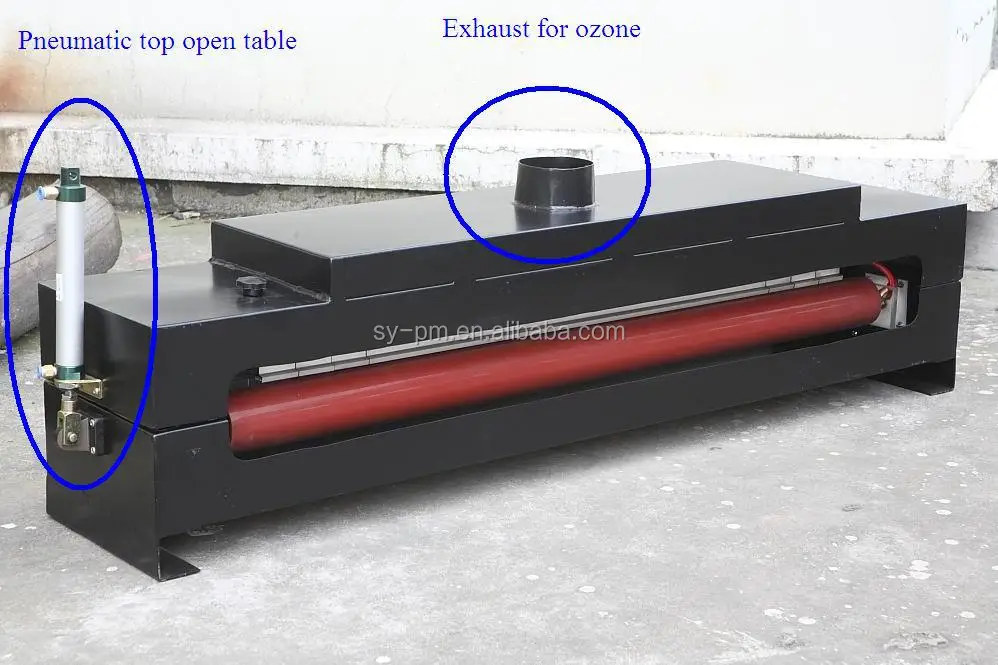

Corona Treater for film blowing machine

Product Overview

Description

        Corona Treater  for film blowing machine

Application:It is used for treating all kinds of plastic film and sheet.



The Main Feature



1. It adopts high voltage fast-switching power transistor for invert circuit



2. High efficiency, high operating frequency. (8-25KHz)



3. Power output is continuous adjustable.



4. Electronic protection and low speed automatic off.



5. Server in the film production, printing, gelatinize, and complex unit.



Technical details



1. Treating side: Double Side



2. Silicon Sleeve Diameter: 45mm



    Technical Parameters

Type	Power supply	Operation frequency	The max output power	The max treating width	Treating material
2001	AC220V50HZ	8-25KHz	1.5KW	650mm	PP,PE,PS etc. plastic film, metal film
2002	AC220V50HZ	8-25KHz	2KW	800-1000mm
2003	AC220V50HZ	8-25KHz	3KW	1000-1200mm
2004	AC220V50HZ	8-25KHz	4KW	1500mm
