Low speed Centrifuge for Laboratory // swing rotor centrifuge // Microtiter plate rotor centrifuge

Product Overview

Description

Low speed Centrifuge for Laboratory // swing rotor centrifuge // Microtiter plate rotor centrifuge



A standard and high-quality low-speed centrifuge machine used for separation and preparation liquids samples, widely used in Laboratory and research institutes in such fields as biochemistry, medical science, pharmacy, clinical trials, food and environment protection etc.



FEATURES:

1. Advanced Control System, Excellent separation

1) 10 kinds of Accel/Decel modes can be selected; User can set up the operating parameter by themselves, to achieve the best centrifugal result.

2) Short running function, easy to achieve diversification of centrifugation.

3) Proprietary SCT speed control technical, high efficiency.

4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get the maximum specimen.

2. High Safety, Ease of use

1) Auto-ID instant rotor identification system, no need to select rotor No.

2) Over temperature, over speed, door and unbalanced protection.

3) Steel body, Stainless steel chamber, Steel Protective sleeve.

4) Can take the rotor with aerosol-tight lid for use with hazardous samples.

3. Friendly Display, Humanity Operate

1) LCD and LED multiple display, the Programs, Accel/Decel modes, RPM/RCF, Time, and Temperature are all easy to set up.

2. Microprocessor control, the instrument can be started with RCF directly, 40 kinds of self-defining programs can be stored and recalled.

4. Good parts, Reliable and long-lasting

1) Brushless converter motor which has high torque, imported supper speed bearing.

2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).



TECHNICAL PARAMETER

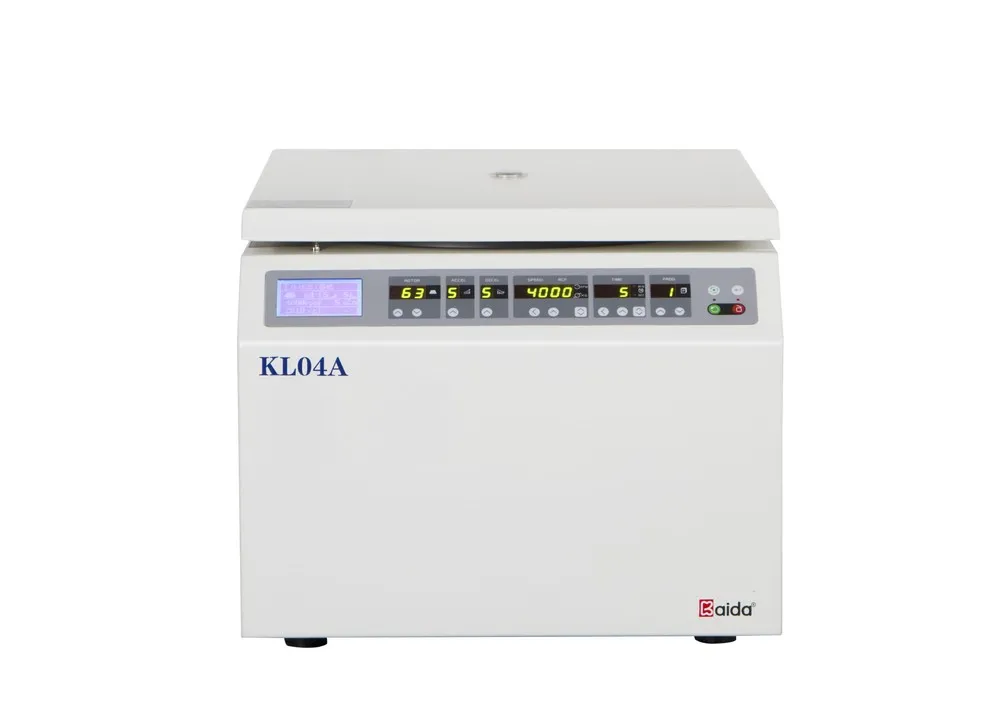

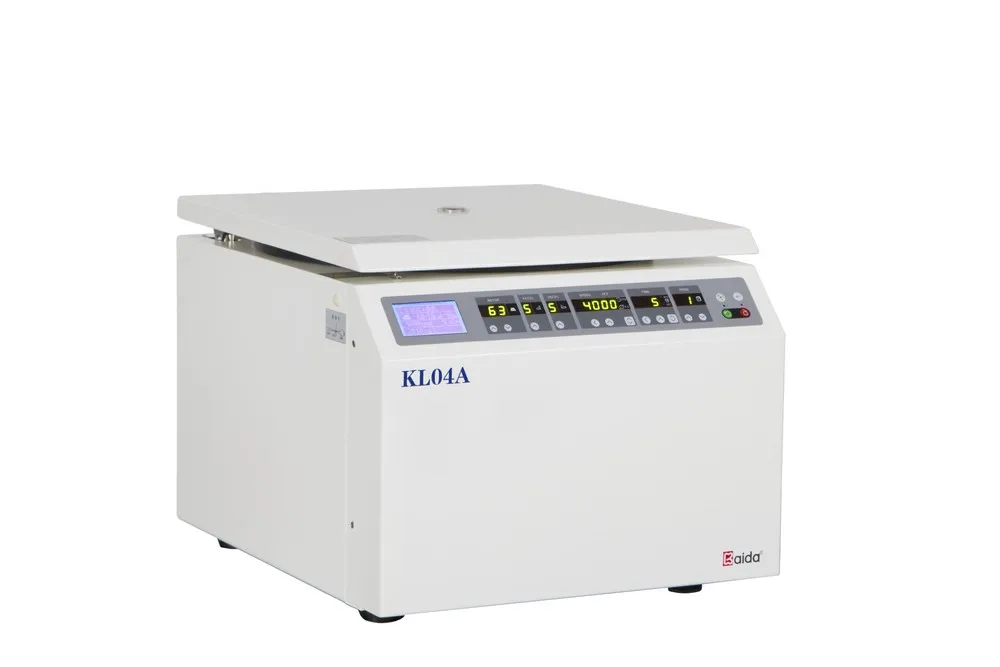

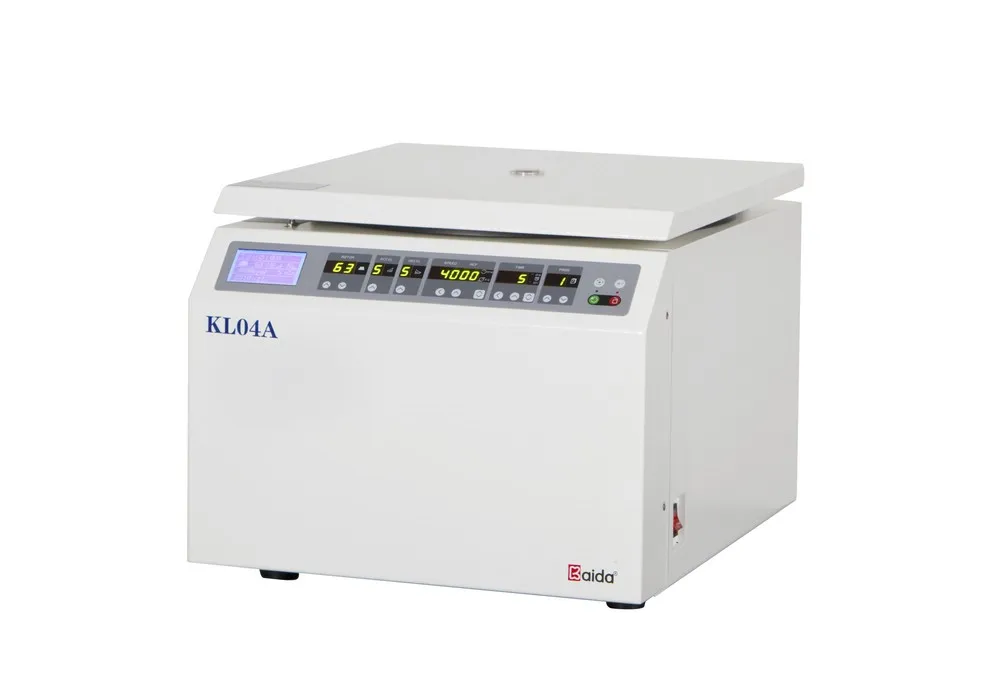

Model	KL04A
Max Speed	5000r/min
Max RCF	4390×g
Max Capacity	800ml
Speed Accuracy	±20r/min
Time Rang	1-999min/sec
Power Supply	AC 220V 50Hz 15A
Noise	≤65dB
Dimension	540×460×390mm
Net Weight	54kg



ROTOR OPTIONS:



Rotor Type	Number	Capacity	Max Speed (r/min)	Max RCF(×g)	Dimension of tube (mm)
Swing Rotor	No.1	4×50/100ml	5000r/min	4390×g	Φ38×124
	No.2	32×10/15ml	4000r/min	2810×g	Φ16×85-118
	No.3	8×50/100ml	4000r/min	2810×g	Φ28×105-115
	No.4	40/48×5ml	4000r/min	3500×g	Blood Collection Tube
	No.5	24/10/15ml	4000r/min	2810×g	Φ16×85-118
Microplate Rotor	No.6	2×2×96	4000 r/min	2300×g	Microplate
