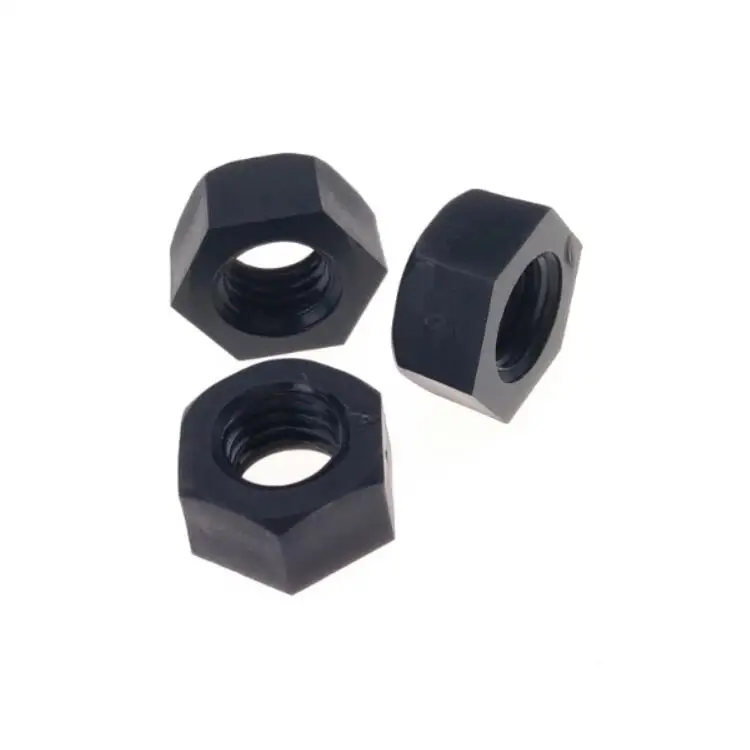

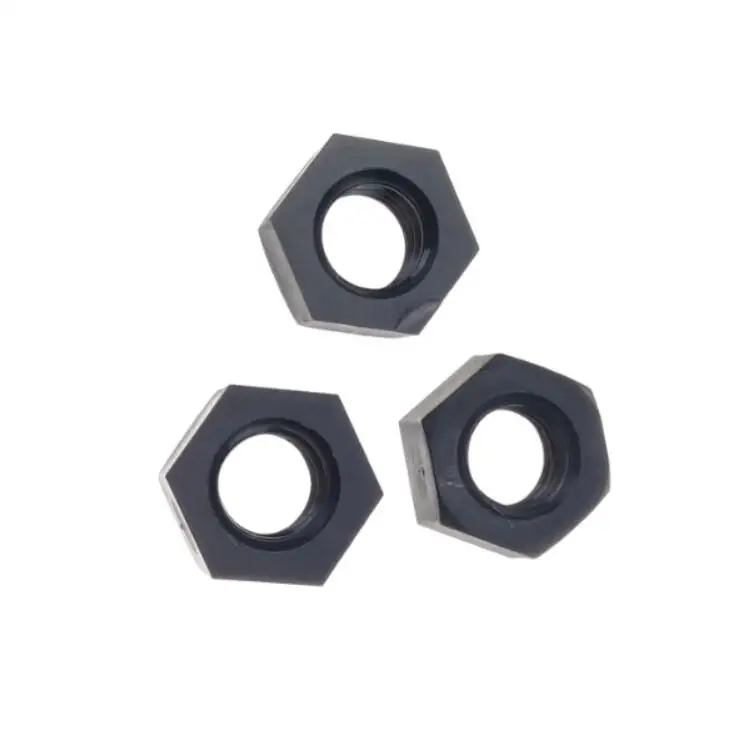

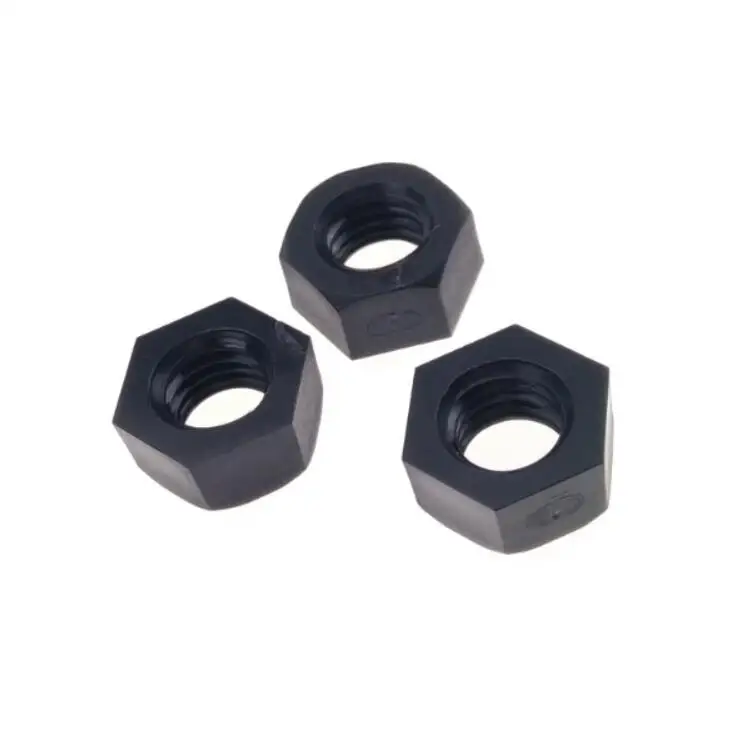

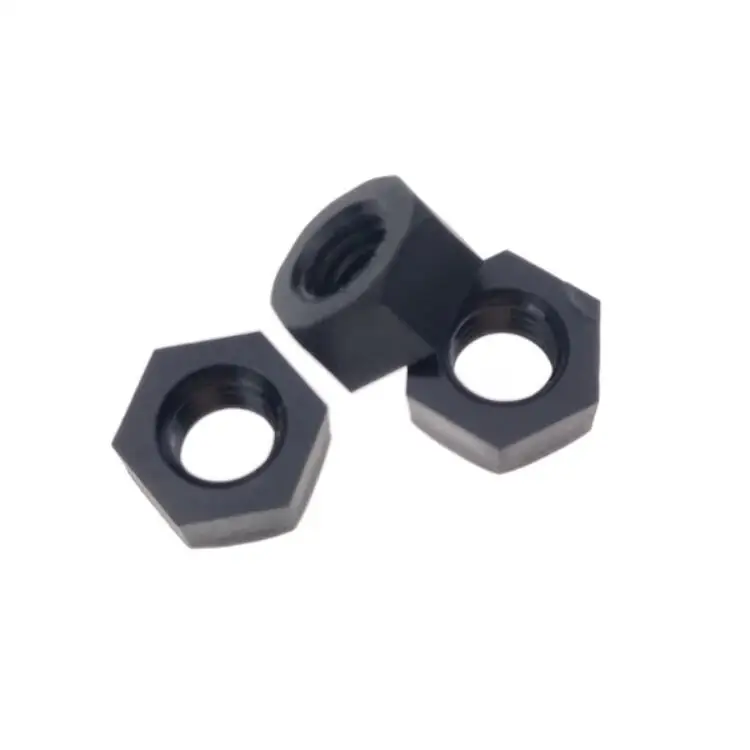

M3 Black nylon Hex Nuts PA 66 Standard Fastener DIN 934 for Bolt Screws
General Description
Plastic hex nuts are namd hex jam nuts as well , made from nylon grade 66 with black color and fire proof grade meets UL 94V-2 , it is one of popular fastener for locking . Normally , plastic hex nuts are designed to secure or lock objects via bolts or screws from reverse side when screw or bolt was through object .
Plastic hex nuts are widely used for different areas especially for electronics as good properties and features . Except together with screws or bolts , plastic hex nuts are also worked with washers like flat washers ,spring washers for more secure purpose .
Technical Data
Material
Plastic nylon
Physical Properties
| Tensile strength MPa | 70 |
| Elongation at break % | 40 |
| Bending strength MPa | 90 |
| Modulus of elasticity for tension MPa | 3160 |
| Shearing strength MPa | 67 |
| Fatigue MPa | 35 |
| Hardnee ( HR ) | 94 |

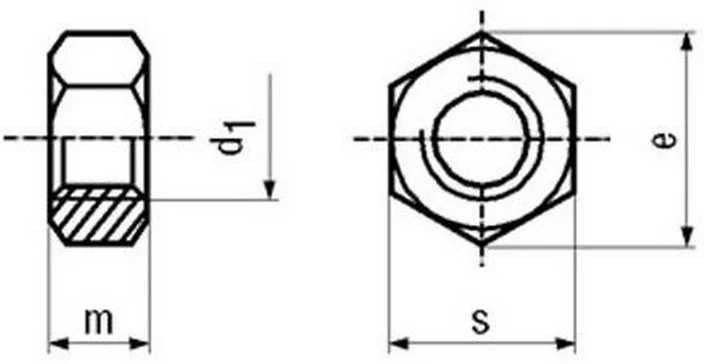

Specification
| d1 | M3 | |
m | 2.4 | |
Pitch | 0.5 | |
s | 5.5 | |
e | 6 |
Optional Specifications
| d1 | M2 | M3 | M4 | M5 | M6 |
| p | 0.4 | 0.5 | 0.7 | 0.8 | 1 |
| m | 1.6 | 2.4 | 3.2 | 4.7 | 5.2 |
| s | 4 | 5.5 | 7 | 8 | 9 |
| e | 4.32 | 6.01 | 7.66 | 8.79 | 11.05 |
Product Features
1 . Perfect elastic resilience .. 2 . Strong abrasive resistance . 3 . Fire retardancy 4 . Crrosion proofing 5 . Antiageing, 6 . Flexbility 7. Firm structure 8 . Reliable work 9 . Conduct insulativity
Applications
Plastic hex nuts are made from nylon with perfect properties , they are widely used to various fields .
1 . Automotive
Nylon hex nutsl are good on heat and corrossion resitance and strong tension and convienet to process .
2. Electronics
As conduct insulativity , precise electronics equipments , lighting and so on , and also for electric cooker , electric vacuum cleaner and food heater etc . and for lighting , switch , junction box and wire clamp etc .
3. Mechanical equipments
Nylon hex nuts are widely used for train , truck and vessel etc like insulative washer , shaft , nuts , bolts and gears and so on .
4 . Household appliances.
5 . Building
Tips for Use
1 . Far from fire or high temperature for longer service
2 . Do not put over torque on hex nuts .
3 . Do not expose hex nuts under sunshine .
4 . Do not put over load .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 2 Kgs / CTN : 16 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kgs / Bag : 1 Kgs / CTN : 12 L X W X H : 25 X 25 X 20 cm | Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one
