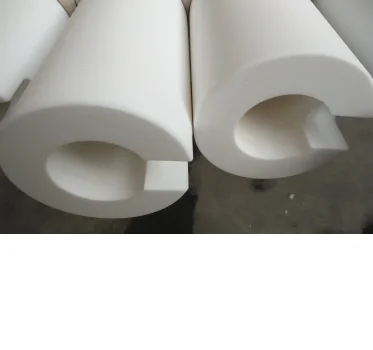

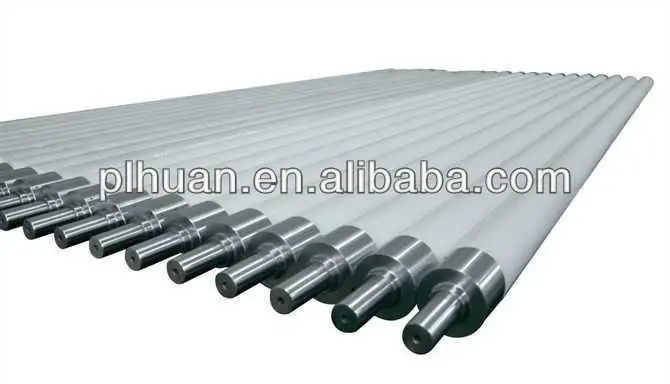

Fused Silica Roller

Product Overview

Description

our company can product high quality fused silica Rolls

1.      Very low thermal expansion coefficient, strong thermal shock stability, no deformation under    high temperature

2.     Raw material with high purity, excellent chemical and physical properties

3.      Precision processing technology, accurate size accuracy

4.     Reliable shaft head connection technology



The Physical and Chemical Properties of Fused Silica Ceramic



Property	Unit	Technical Parameter
SiO2	wt%	≥ 99.5
Density	g /cm3	≥1.8
Bending Strength	MPa	≥20
Compressive Strength	M Pa	≥80
Heat Conductivity Coefficient	W/m20℃	1
Coefficient of Linear Expansion	×10-6/℃	1
Dielectric Constant	εr,20℃	3.3
Dielectric Loss	tanδ×10-3	1
Disruptive Strength	KV/mm , DC	≥20
Acid Resistance	mg/cm2	≤0.1
Max.Use Temperature	℃	1650(1100)
Transmissivity		/
Radiation Coefficient		/
