Stainless steel trench drain / swimming pool drain / trench drain grate

Product Overview

Description

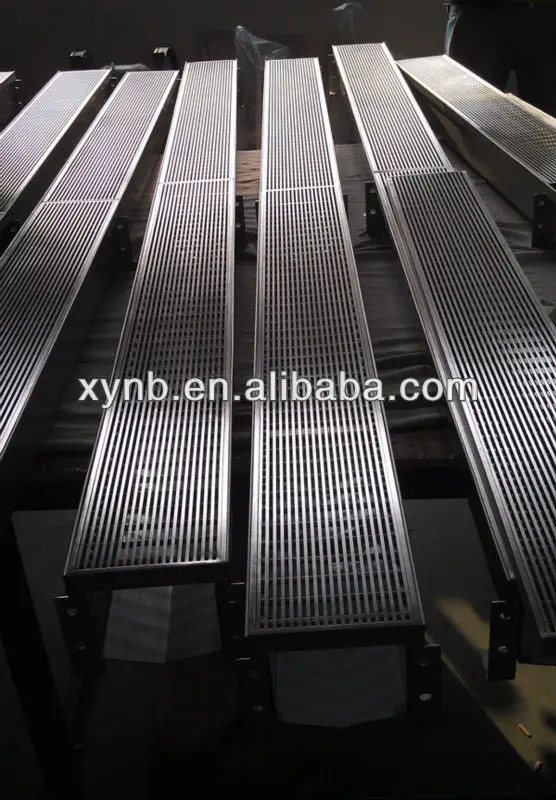

Stainless steel trench drain / trench drain grate / trench drain





Trench drain system is designed for a variety of applications, both indoor and outdoors, commercial, industrial and hospital,the drain channels are easy to install, durable, resistant to many chemicals and solution for freeze, thaw applications, the flow rates equal to or greater than most larger poured-in-place trench drain grates.

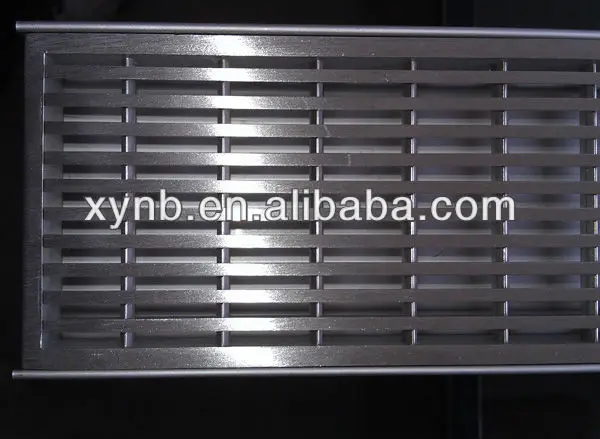

Grating is made of angle "V" profile wires



1. Material: all secctions made of high quality stainless steel SUS304 /EN1.4301

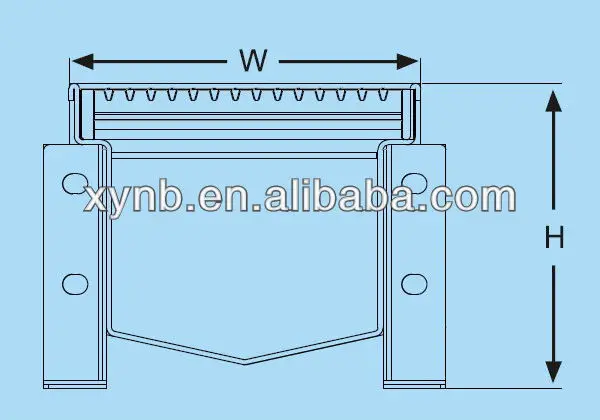

2.Size: Length 1000~6000mm, width 140mm or others, the height is 110mm, custom welcomed



3. Shallow "V" of channel bottom, high flow capability, meet European standard En1253



4. Choice of grate covers, welded wedge wire grate or punched hole grate



5. A high weight capacity with a high passing ability and warping preventing



6. Streamlined appearance, unique, a cheerful new look



7.Compatible range of indoor drainage with a coordinated design



8. Easy to clean, the water along the channel bottom to outlet



9.Streamlined shiny metal appearance, give you an eclectic new look

MODEL			MATERIAL	SURFACE FINISHED	SIZE
Brand	Body	Grating			Length	Width	Height
XinYu	X-NTD12	Modern	Stainless steel 304	Brushed, Mirror	1-6 m	140mm	110mm
Outlet	Flow capability	MOQ	Delivery time	Unit price (FOB Ningbo)	Packing
		10 PCS	20~35 days	USD 30~58	Bubble bag	Carton box	Pallet

We are happy to supply you OEM service, looking forward to your enquiry and a long win-win cooperation.



Welcome to contact us to get our integrated catalogue.
