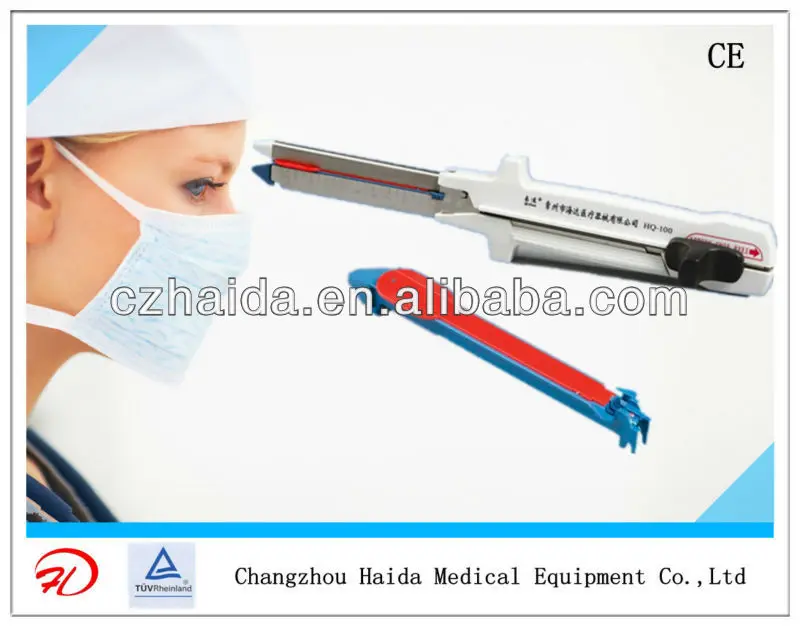

Linear cutting stapler/Surgical stapler

Product Overview

Description

Linear cutting stapler/Surgical stapler







Function and Application





The stapler is appropriate for removal and anastomase tissue and organoperated-on-gastrointestinal-tract, gynecology, thoracic (pulmonary lobectomy) and pediatric surgery (infantile stomach and intestinal tract).



The Principle





The product is based on the principle of stapler, using the suture needles to cut and suture the tissue



Technical parameters and Dimensions



Type	Module	Staple Height(mm)	Suture Thickness(mm)	Cutting Length(mm)	Suture Length(mm)	No. of Titanium nail
HQ-60L	HQZ-60L	2.5	1.0	55	60	60
HQ-60M	HQZ-60M	3.8	1.5	55	60	60
HQ-60H	HQZ-60H	4.5	2.0	55	60	60
HQ-80L	HQZ-80L	2.5	1.0	75	80	80
HQ-80M	HQZ-80M	3.8	1.5	75	80	80
HQ-80H	HQZ-80H	4.5	2.0	75	80	80
HQ-100L	HQZ-100L	2.5	1.0	95	100	100
HQ-100M	HQZ-100M	3.8	1.5	95	100	100
HQ-100H	HQZ-100H	4.5	2.0	95	100	100







Steps to use (Note: This Operation Instructions may not be used as a technical guide for surgical anastomosing operations.)

1. Using this product should follow the general principle of stapler.



2. This product should beused under the guidance of doctors, who are educated in the professional and technical training



3.  It should be carefully examined whether the outer packing and internal packing are broken or not before using.If broken,please don’t use it, and contact with our company representative



4. Steps:



• Release the active handle to open the two parts of equipment, and then remove the protection cover
• Position the nail retainer on one side of the tissue ,or in the first lumen,.
• Open the active handle fully, position the stapler-storehouse on the other side of tissue or in the second lumen.
• To start from the proximal and put the two parts of equipment together.
• Shut down the active handle completely into the locked state.
• Move the Firing button forward.
•  Replace the firing button to its original position.
• Release the two parts of equipment, replace the used staple-storehouse with a new one for the next use



5. After the operation, check the anastomotic port by means of the sutural piece. If hemorrhagic spot is found, it should be sutured to stop bleeding.



6. This production is for one patient only, suture cartridge can be changed in the same operation.



Note

1. The product has be sterilized by γ-ray, if the sterile barrier has been damaged, shall not be used. "Packaging damaged is strictly prohibited." If damage is found, please contact with the Company representative.
2. The product is for one patient only , shouldn’t be resterilized , Double-handling or resterilization may affect the structural integrity of products and / or may lead to product failure, which could lead to patient injuries, infection or death. Reusing will result in the risk of being contaminated or infect patients or lead to cross-infection.
3. Cartridge must be produced by the Company of the same type of Cartridge specifications. Any other brandis not allowed.
4. Make sure: Model specifications; valid; packaging intact.
5. After firing, be carefulto withdraw ,not use violence or forcibly pull out products.

6. with the air component of the product (no needle) Self-locking, cartridge without needle can not be effective percussion. If need to reuse the stapler in surgical operation, make sure whether cartridge is effectively fired or not for preventing the product from air cartridge , and strong percussion lead to product failure or damage.
7. With damage or suspected damage resulting from falling or improper disposal, should not be used in clinical practice.



Contraindication



1. Unhealthy Tissue banned.
2. Tissue is too thick or too thin.
3. The prohibition of pulmonary vein for treatment.







Packing, Storage





1. This product has been sterilized by γ-ray, and is in a sterile state, If the small package does not break the seal and / or is not damaged, It should be used within 3 yeas



2. Make sure the product is within the period of validity (three years after sterilized).It is strictly prohibited to use the product beyond the expiration date.

3. This product should be stored in dry, shady and cool , non-corrosive gases and well-ventilated room, of which the relative humidity is not more than 80%.



Packing





 Main Products







MORE ABOT US( Skype:linagu6)



Changzhou Haida Medical Equipment Co., Ltd is located in Changzhou, a beautiful city the region of Yangtze River Delta which has many talented people and developed culture and economy. It is a company specializing in research, manufacture and sale of surgical instruments such as surgical staplers.

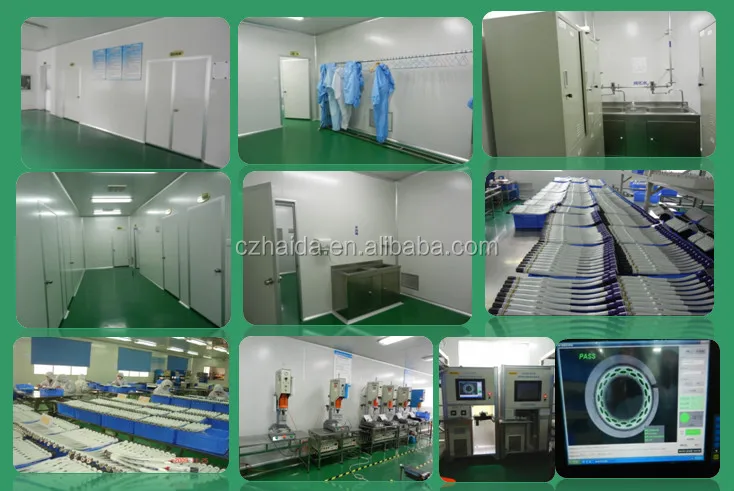

Our company has a modern standard working area of 8000m² , including a 100,000-level purfied workshop of 2000m² . There are 150sets of various precision machining an checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.



Disposable circular stapler, disposable hemorrhoids stapler, disposable linear stapler, disposable linear cutter stapler, disposable curved cutter stapler, disposable ENDO cutter stapler, disposable skin stapler and disposable purse string stapler and so on produced by our company are leading in technology and quality in China. They have the same surgical function and effects as the famous products of the same kind abroad.



The company has set up an overall quality control system strictly in accordance with the standard YY/T0287. And have obtained CE mark and ISO 9001:2000, ISO13485:2003 international quality system certificate. Product coverage nationwide and has entered Western Europe, North Africa, South America and Southeast Asia market.



Companies in "hold world with virtue and self-reliance" enterprise culture, which treats others with sincerity and sustained progress, and constantly improve the quality of products, quality of service and professional level, together with our clients to strive for excellence, create brilliant!
