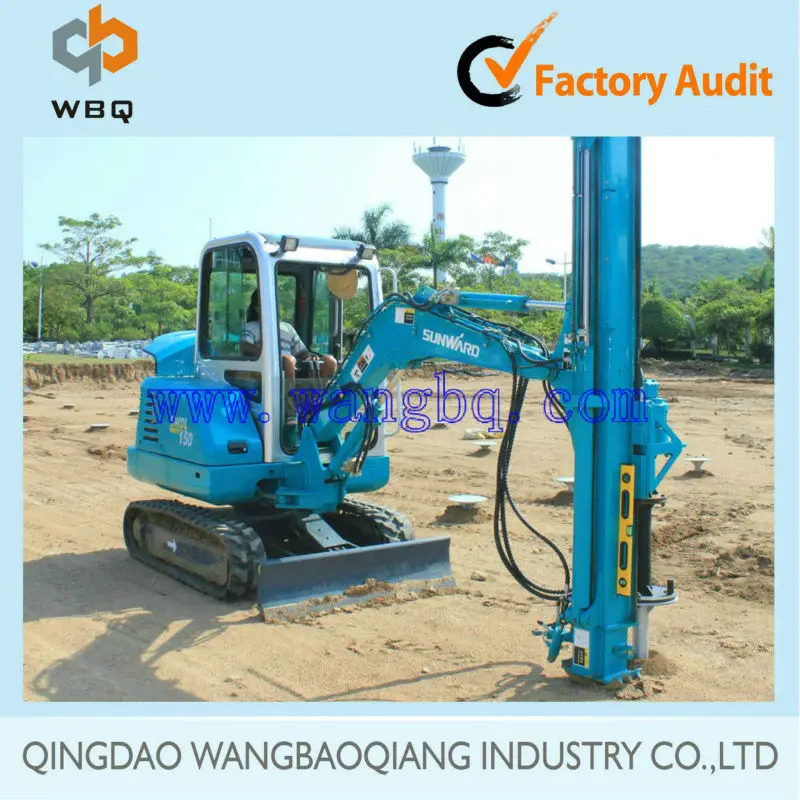

High Efficient SWDL 600 Ground Screw Piling Machine for Foundation Construction

Product Overview

Description

As the first and biggest supplier in China, Qingdao Wangbaoqiang Industry Co.,Ltd (WBQ) has been produced solar power products since 1999. The production line including Ground screw, Screw Piling machine , Solar Racking system and Solar farm fencing series products.



Ground Screw Piling Machine Advantage



Easy and flexible operation: all actions including travel, dozer, turntable swing, work devices, pile rotation and feed etc. are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator's load and advance the control stability.

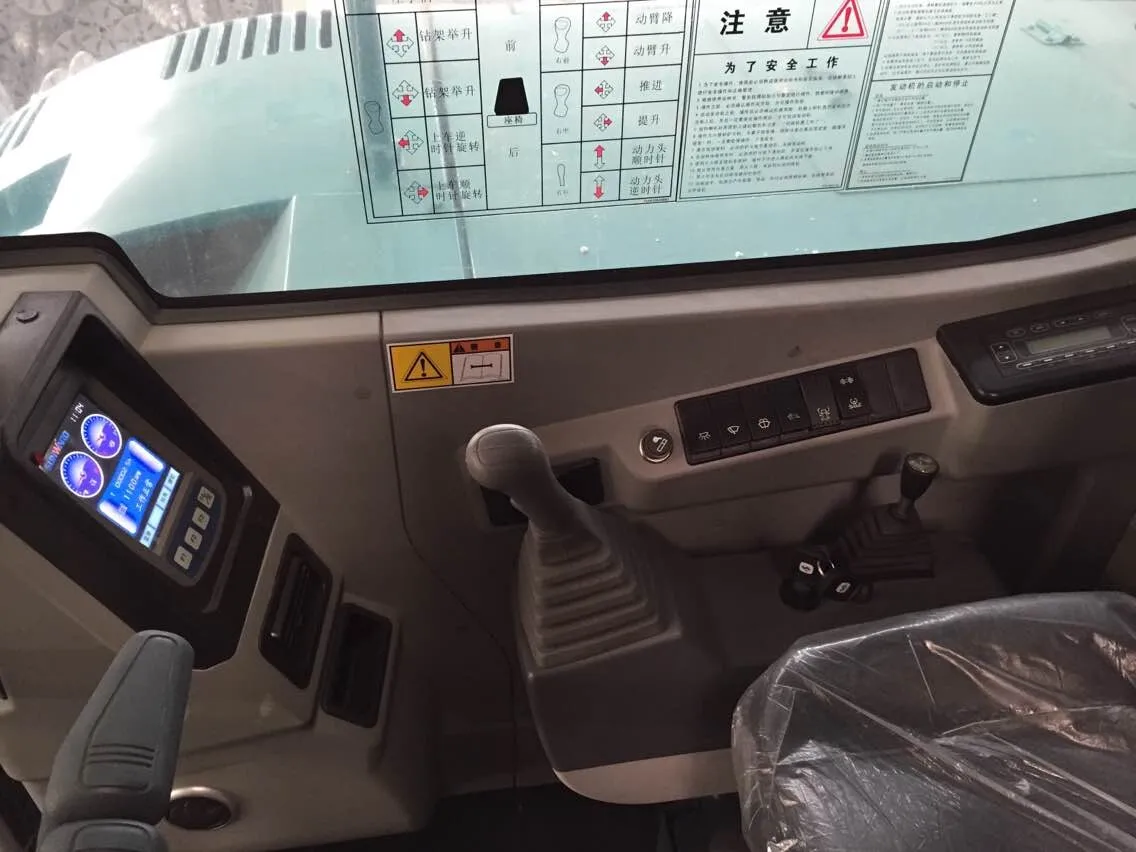

1. Drill frame angle display is fit in the cab, which make operation clearly.

2. The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.

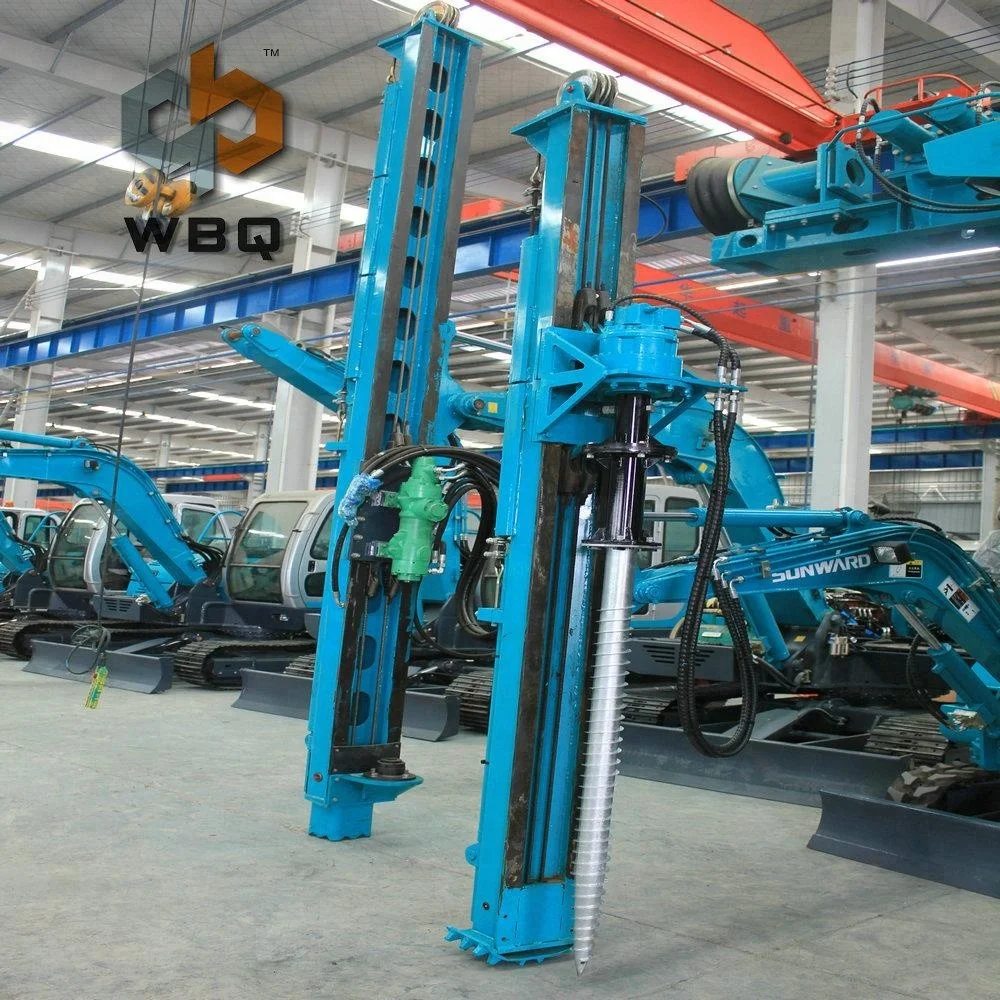

3. The machine is supplying pile guiding device which can ensure the verticality of pile drill.

4. Safety and reliable key parts: YANMAR-3TNV82A engine from Japan, hydraulic system main pump, main valve, swing motor, travel motor are all from KYB Janpa.



Ground Screw Piling Machine Technical Data

Pile Drilling Parameter
Drilling Diameter	mm	114
Drilling Depth	mm	3000

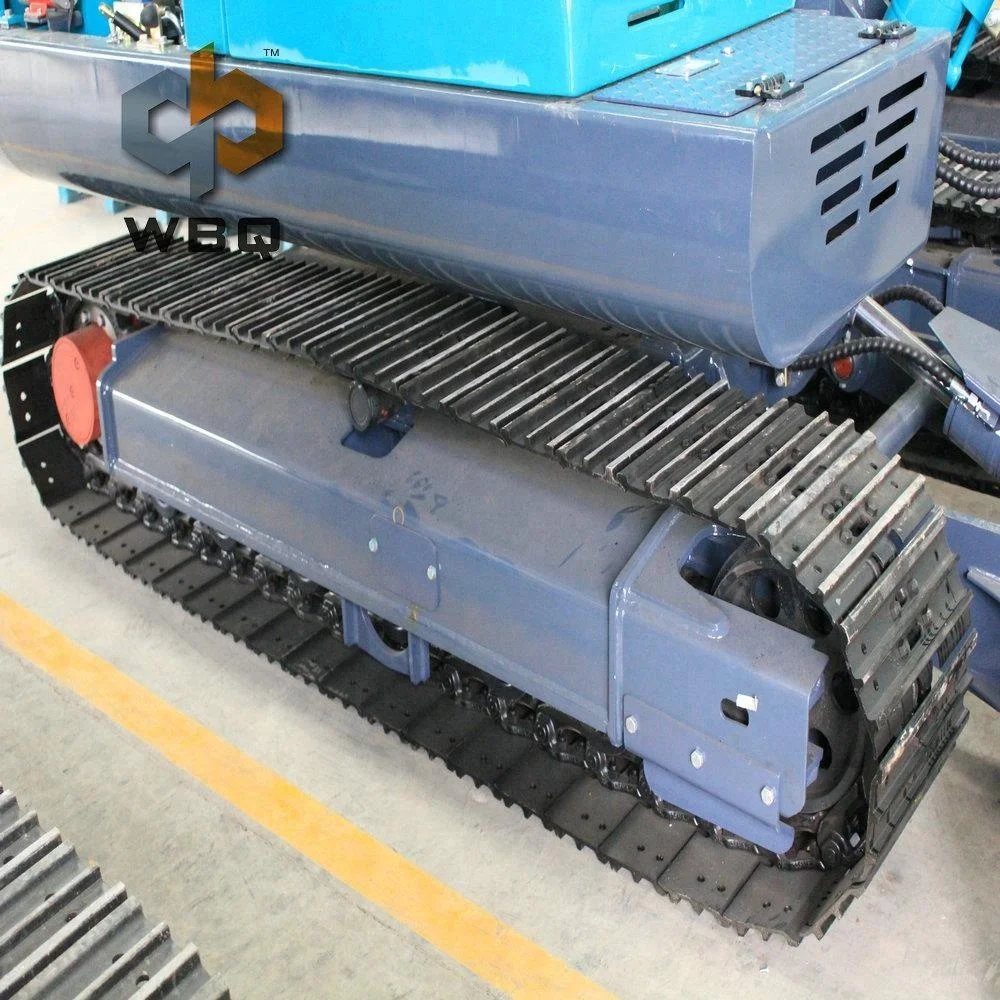

Chassis
Wheel gauge	mm	2240
Track  gauge	mm	1680
Crawler width	mm	400
Grounding clearance	mm	340

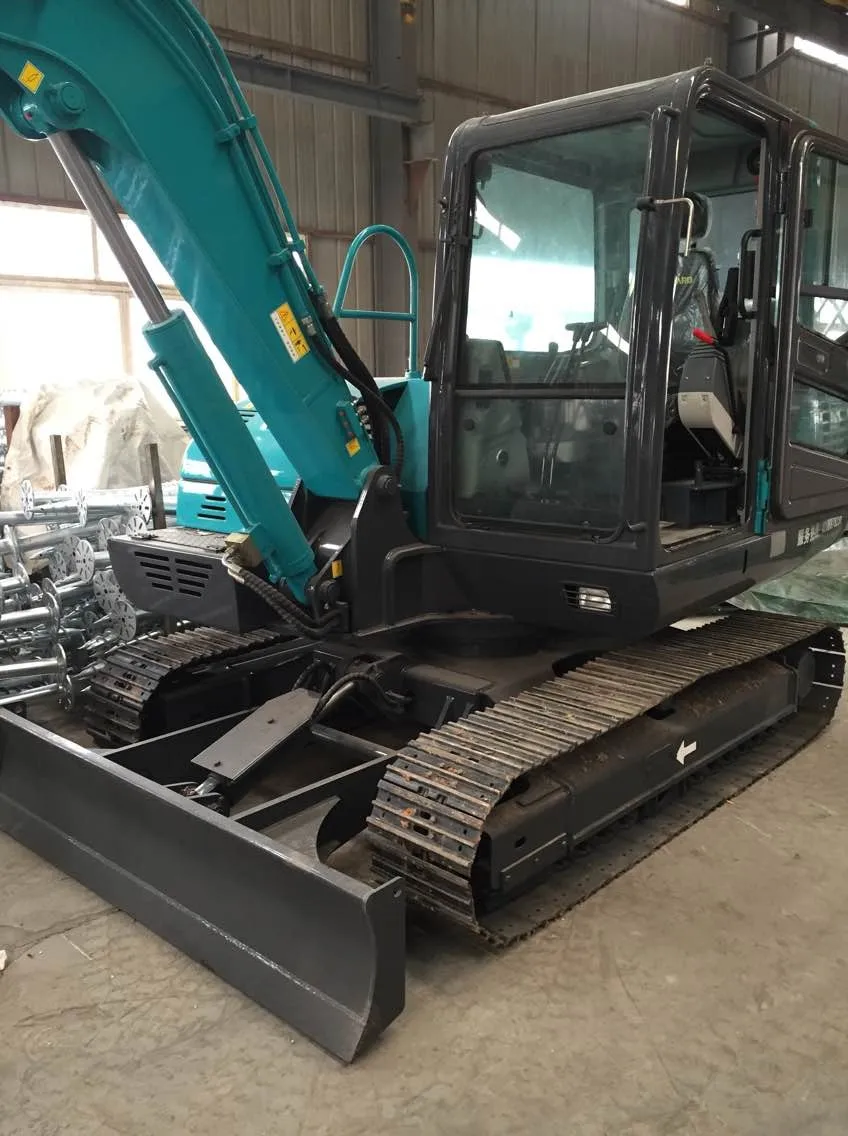

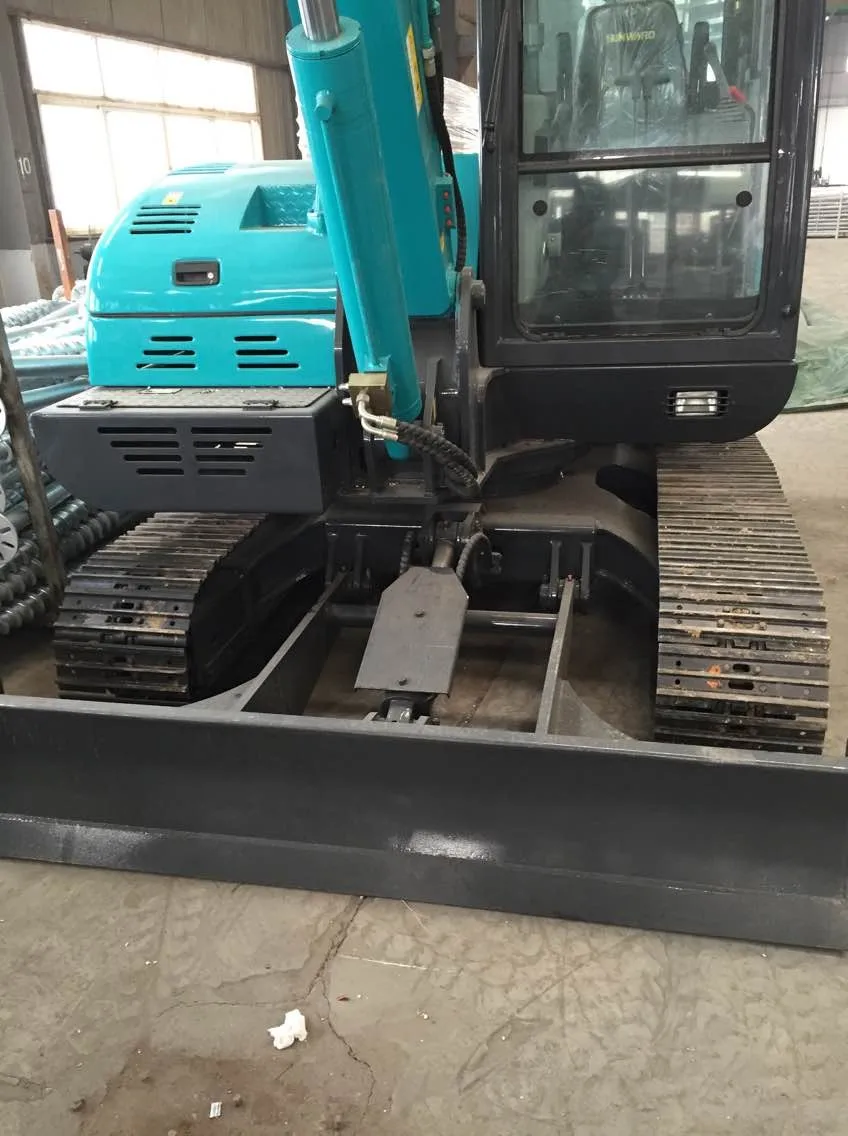

Dozer length	mm	2080
Travel Capacity
Max. Traction	KN	55
(Max/Min) Travel speed	Km/h	4.5/3.1
Climbing capacity	°	20
Feed
Length of feeding beam	mm	4800
Stroke	mm	2500
Speed	m/min	3
Rotation
Torque	N.m	6000
Speed	rpm	40
Engine
Model		V3300-DI
Displacement	L	3.3
Power/Rev.	kw/rpm	54.9/2600
Fuel tank volume	L	140
Turntable Swing	°	360
Dimension(L*W*H)	mm	8437X2190X3150
Machine Weight	kg	7800
